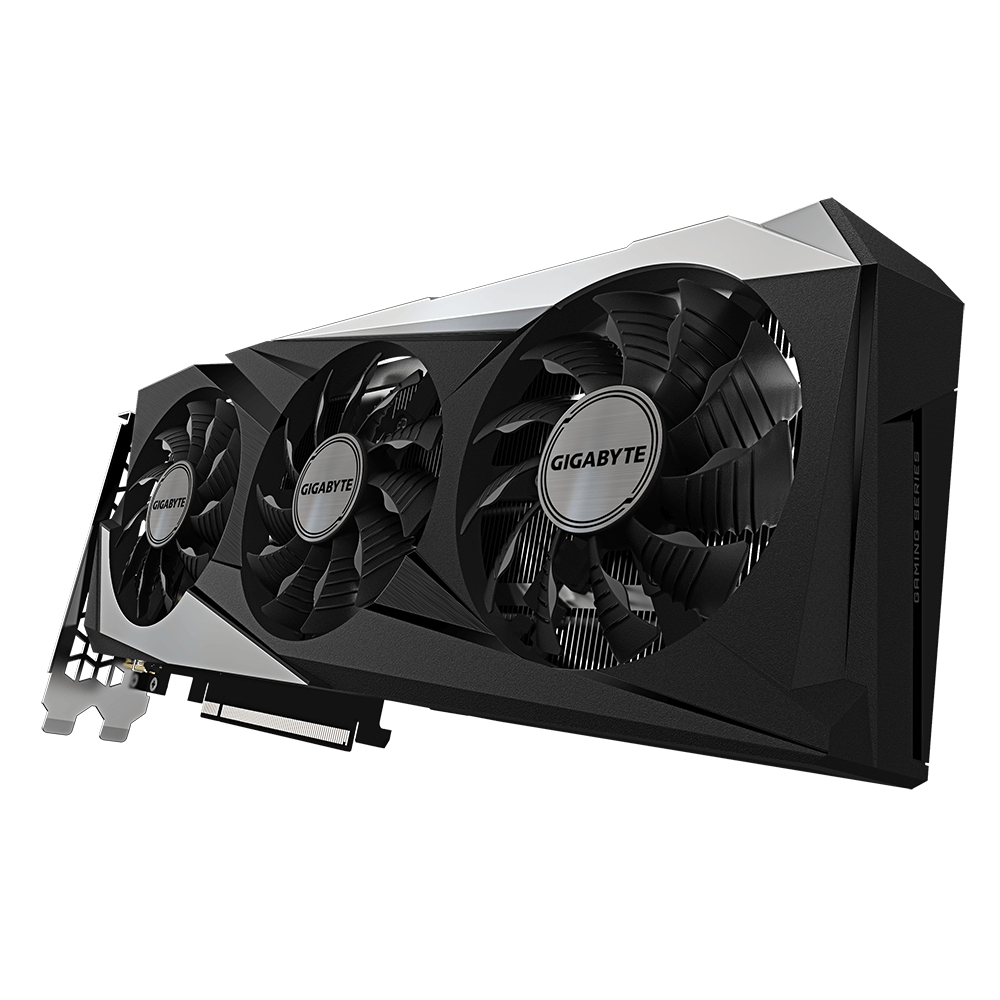

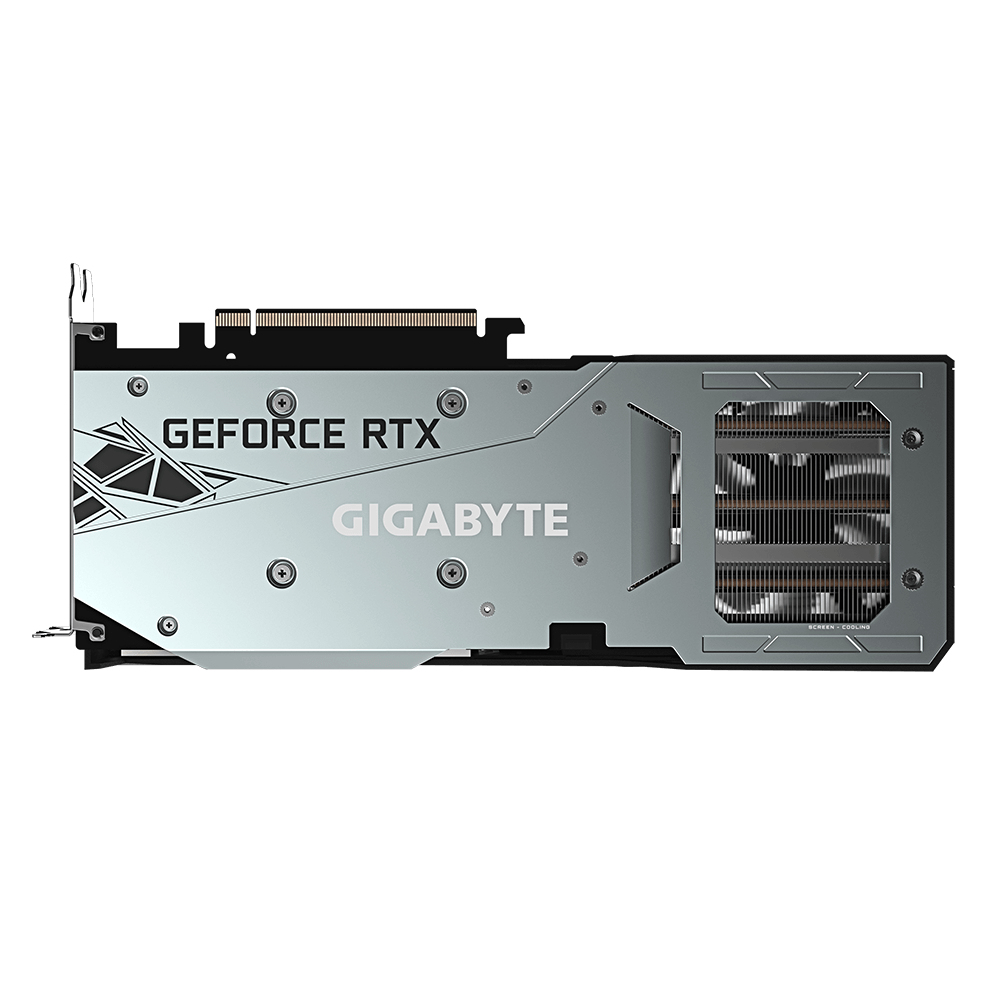

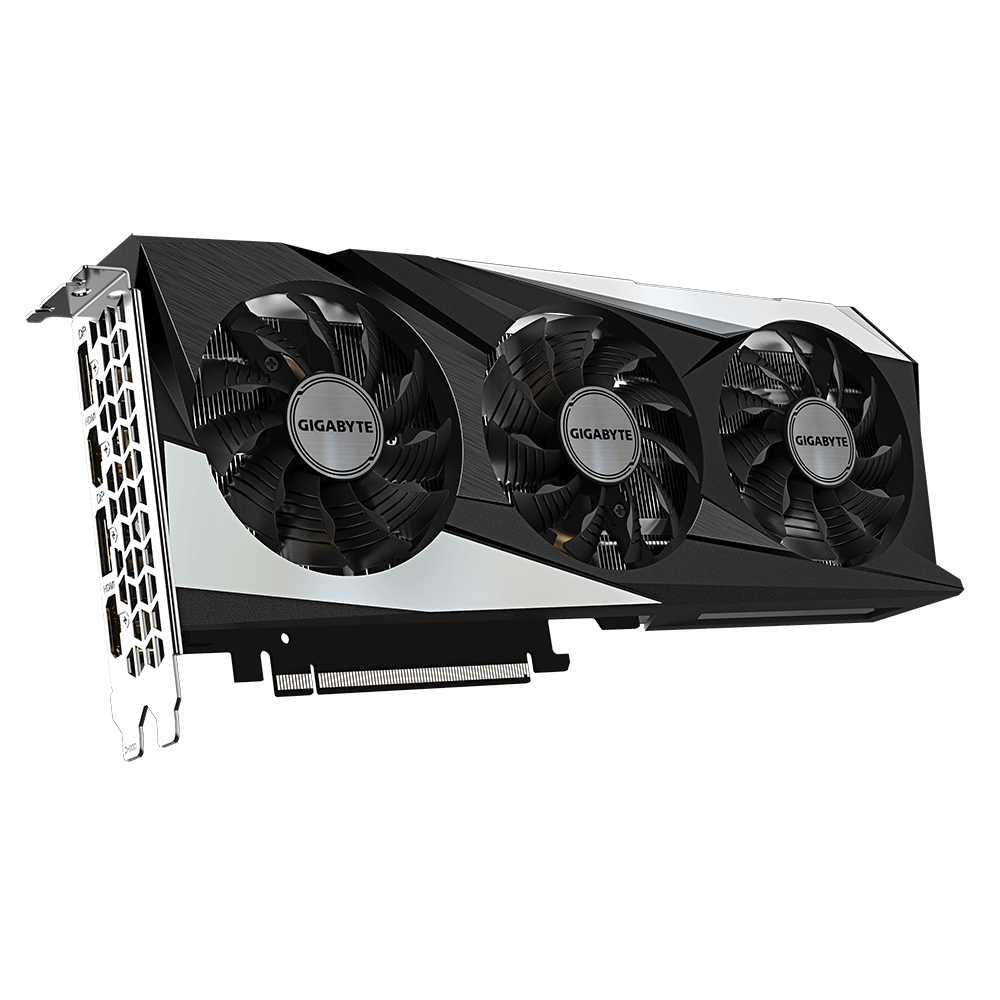

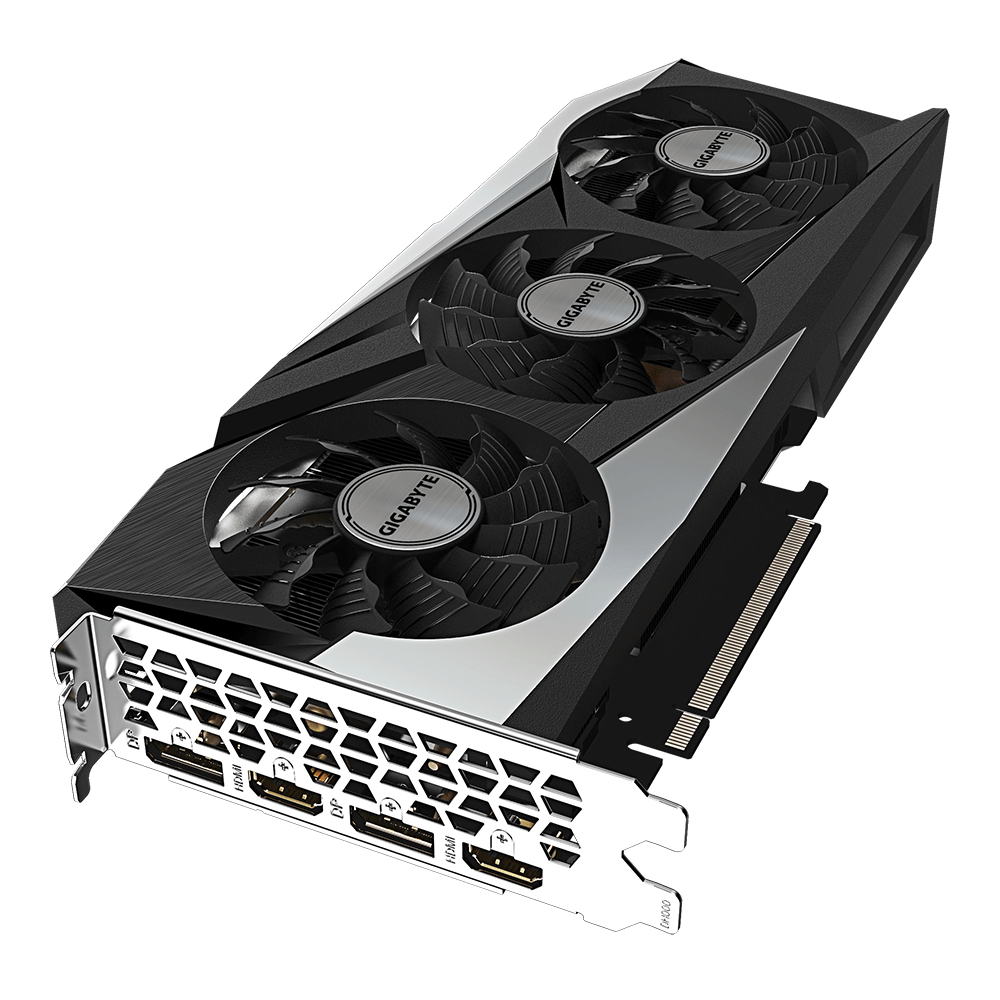

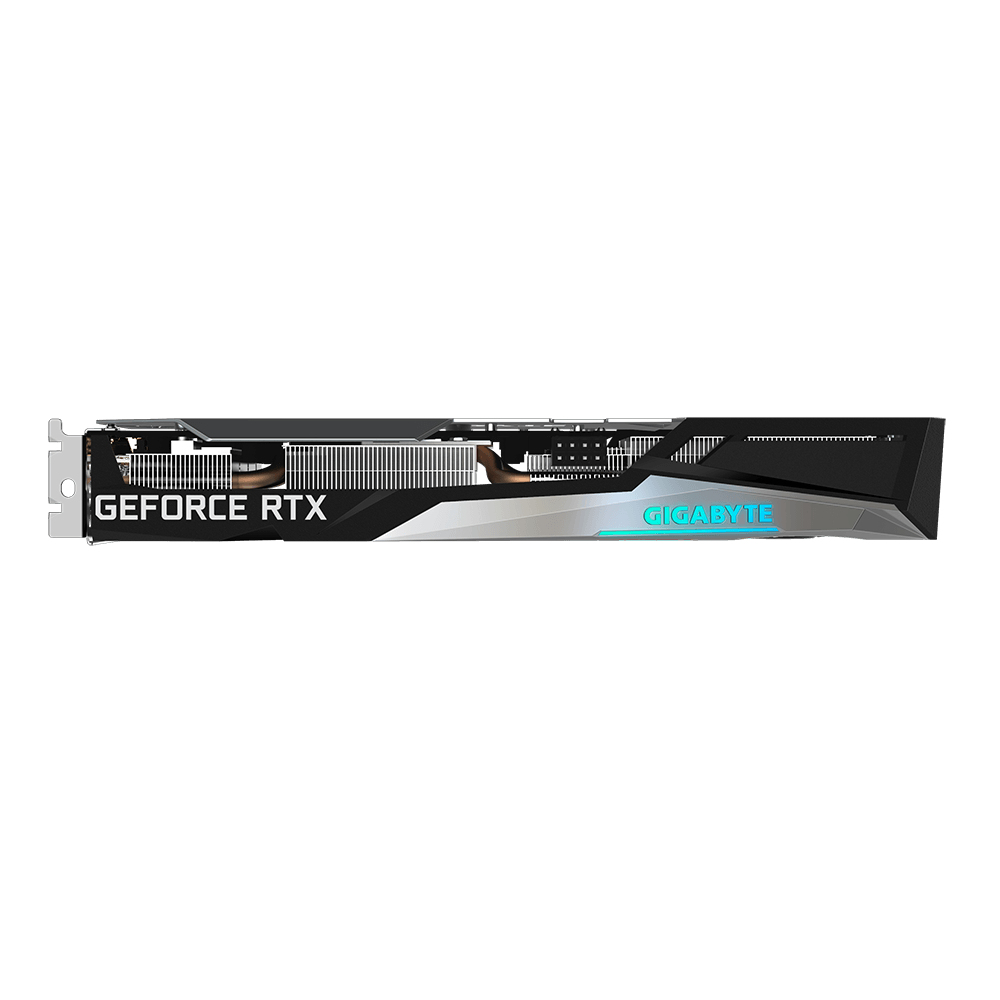

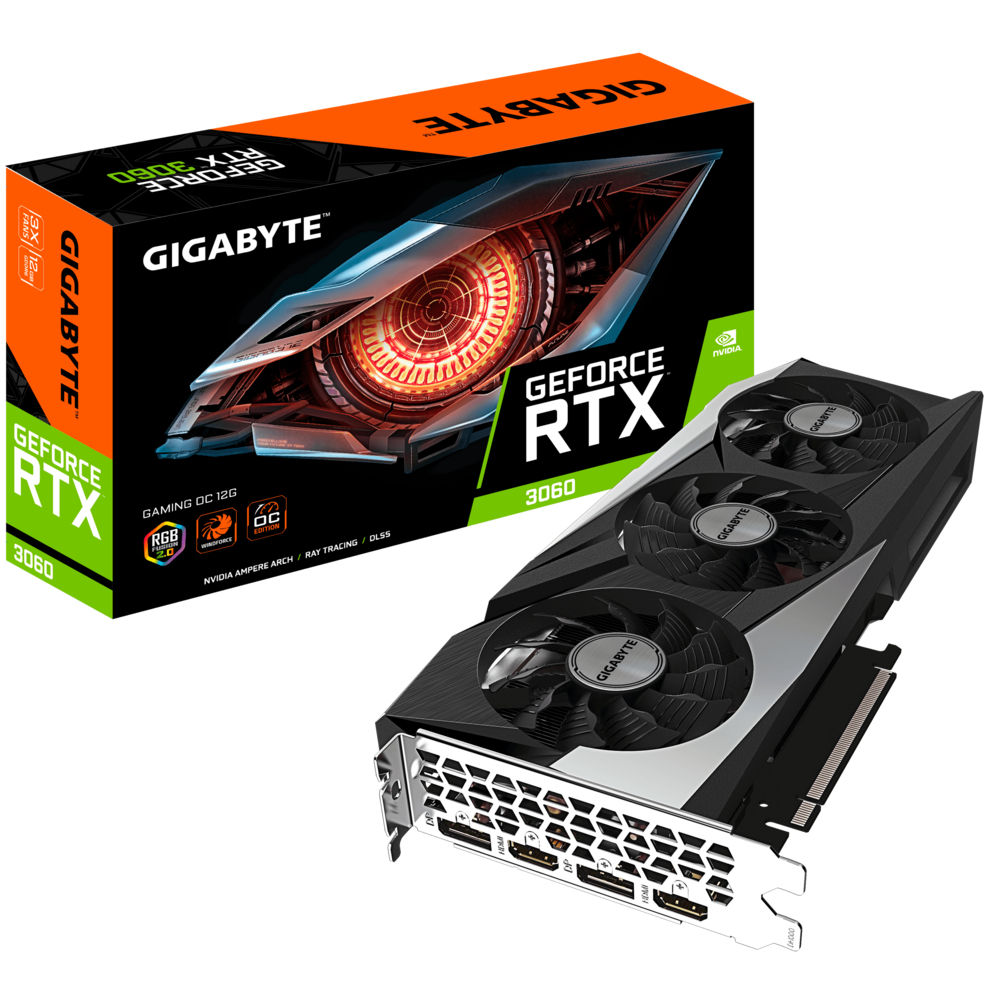

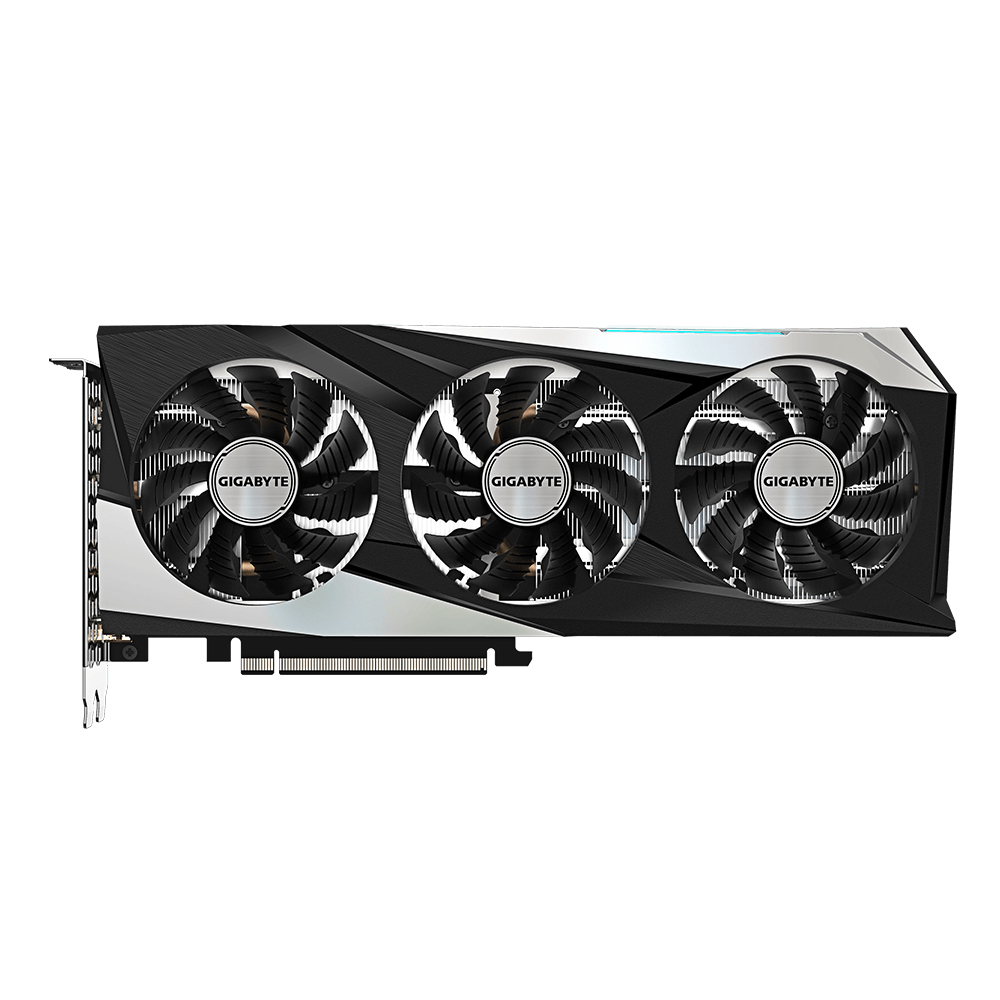

GV-N3060GAMING OC-12GD
Model GV-N3060GAMING OC-12GDPart no. GVN3060GO-00-10EAN 889523028629
37 specifications Checked today
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory12 GB
- Interface typePCI Express x16 4.0
- PhysXYes
- Cooling typeActive
Overview
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 12 GB
- Interface type
- PCI Express x16 4.0
- PhysX
- Yes
- Cooling type
- Active
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GV-N3060GAMING OC-12GD
- Part number
- GVN3060GO-00-10
- EAN / UPC
- 889523028629
- Also known as
- GIGABYTE GAMING GV-N3060GAMING OC-12GD NVIDIA GeForce RTX 3060 12 GB GDDR6
Specifications
37 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 3060 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 3584 |
| Processor frequency | 1837 MHz |
| FireStream | Yes |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 12 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 192 bit |
| Memory clock speed | 15000 MHz |
| Memory bandwidth (max) | 360 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 4.0 |

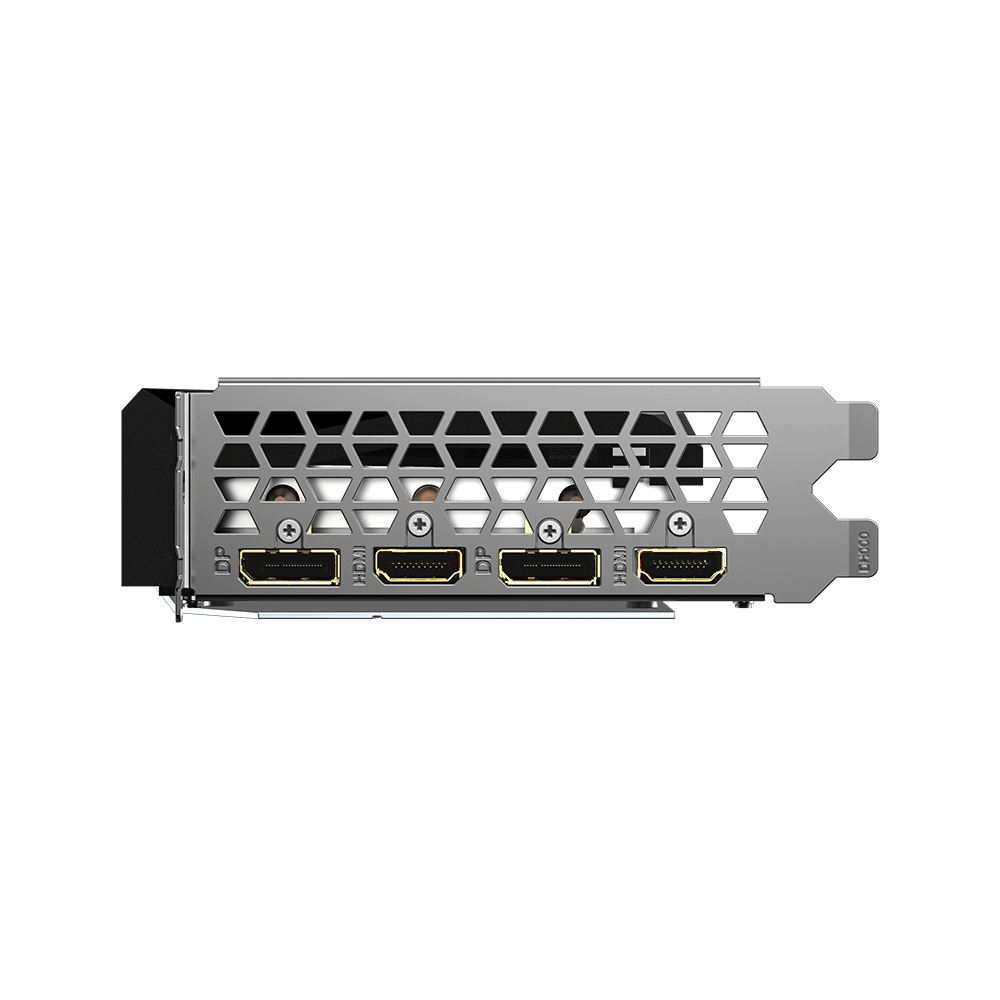

| HDMI ports quantity | 2 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4a |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | Yes |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Illumination | Yes |
| Illumination colour | Blue, Green, Red |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 550 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 282 mm |
| Depth | 41 mm |
| Height | 117 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
