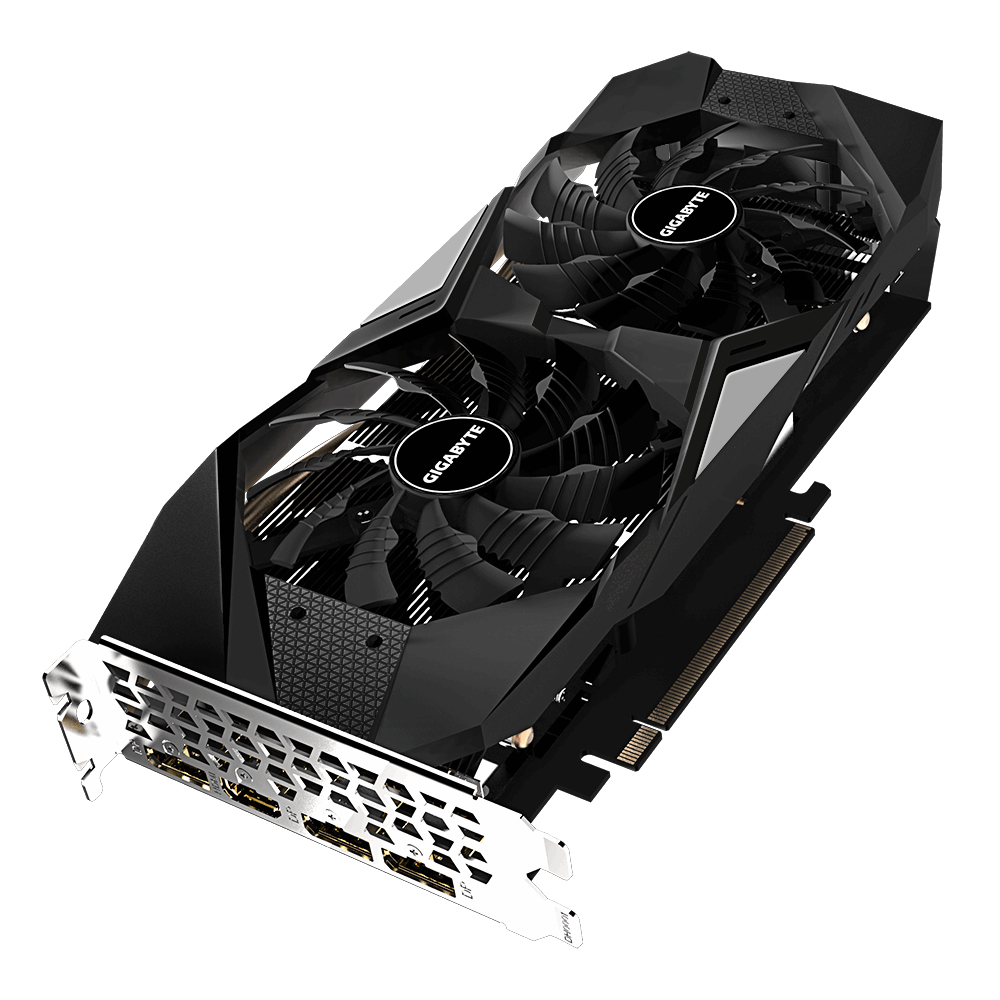

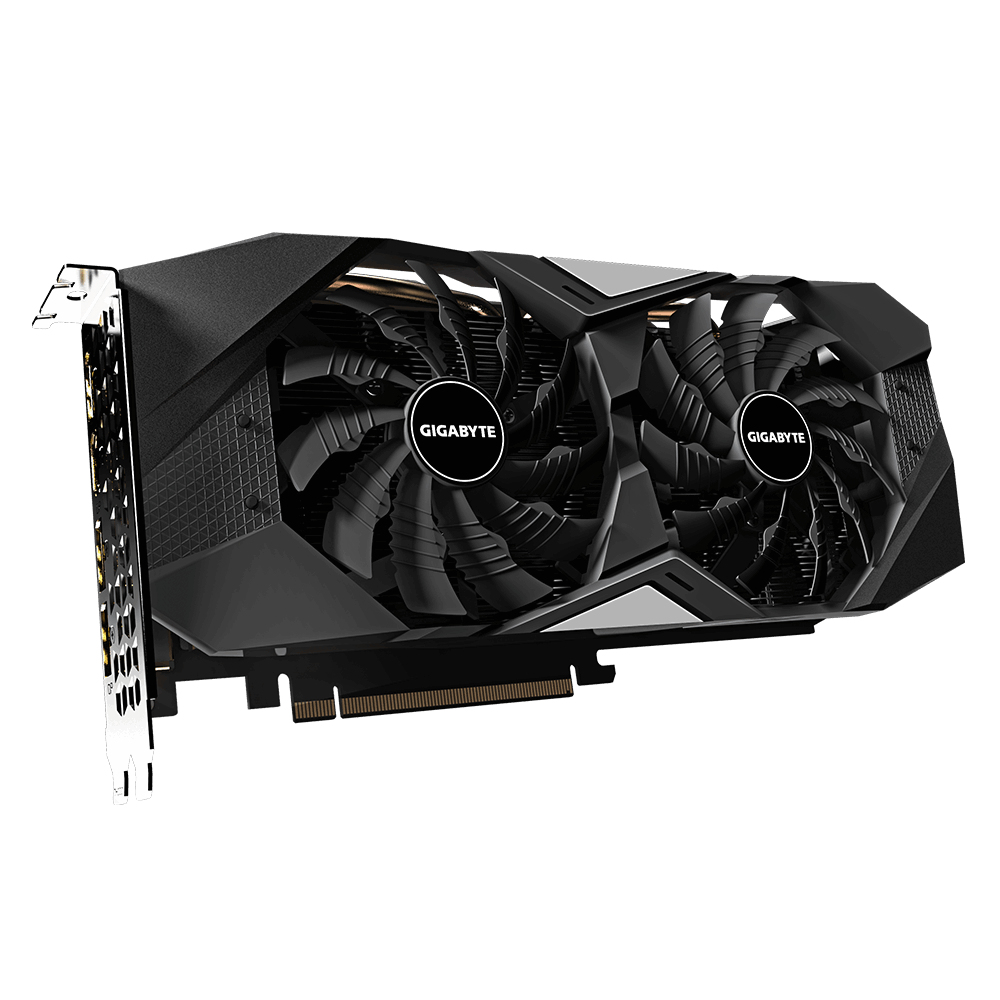

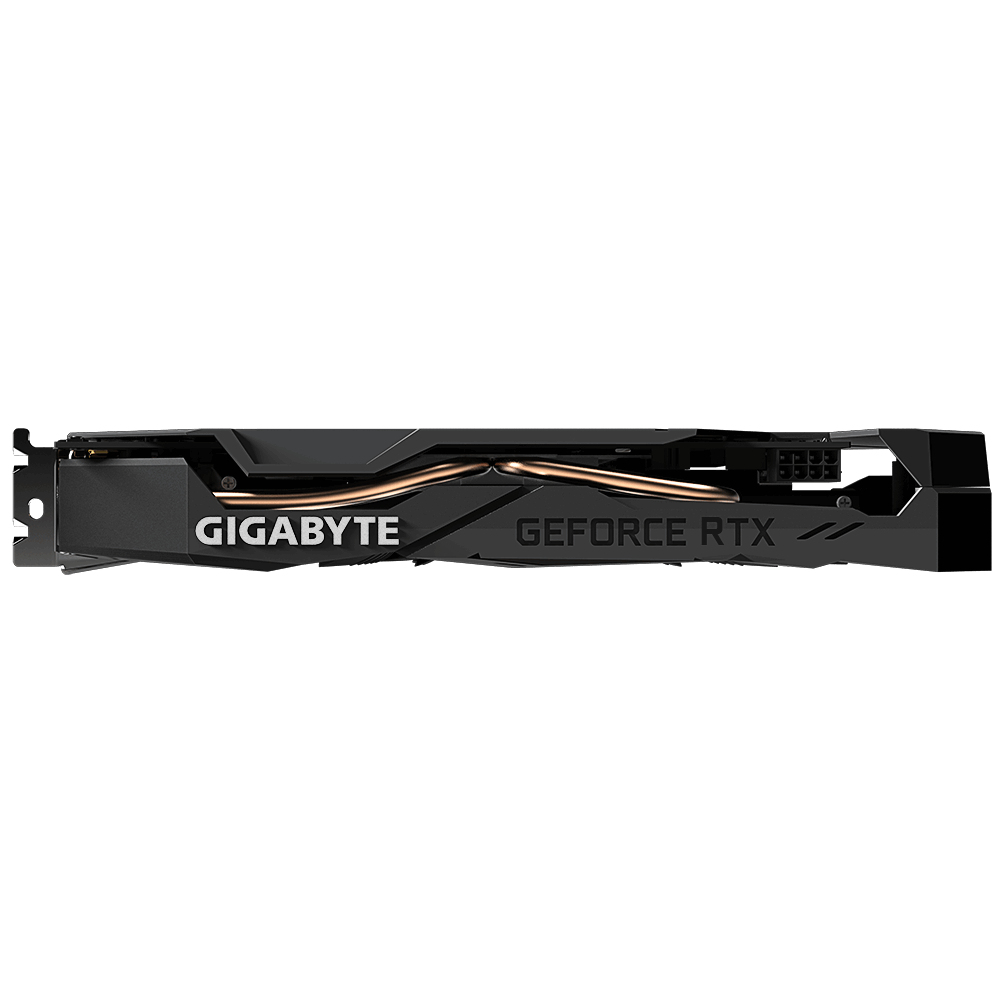

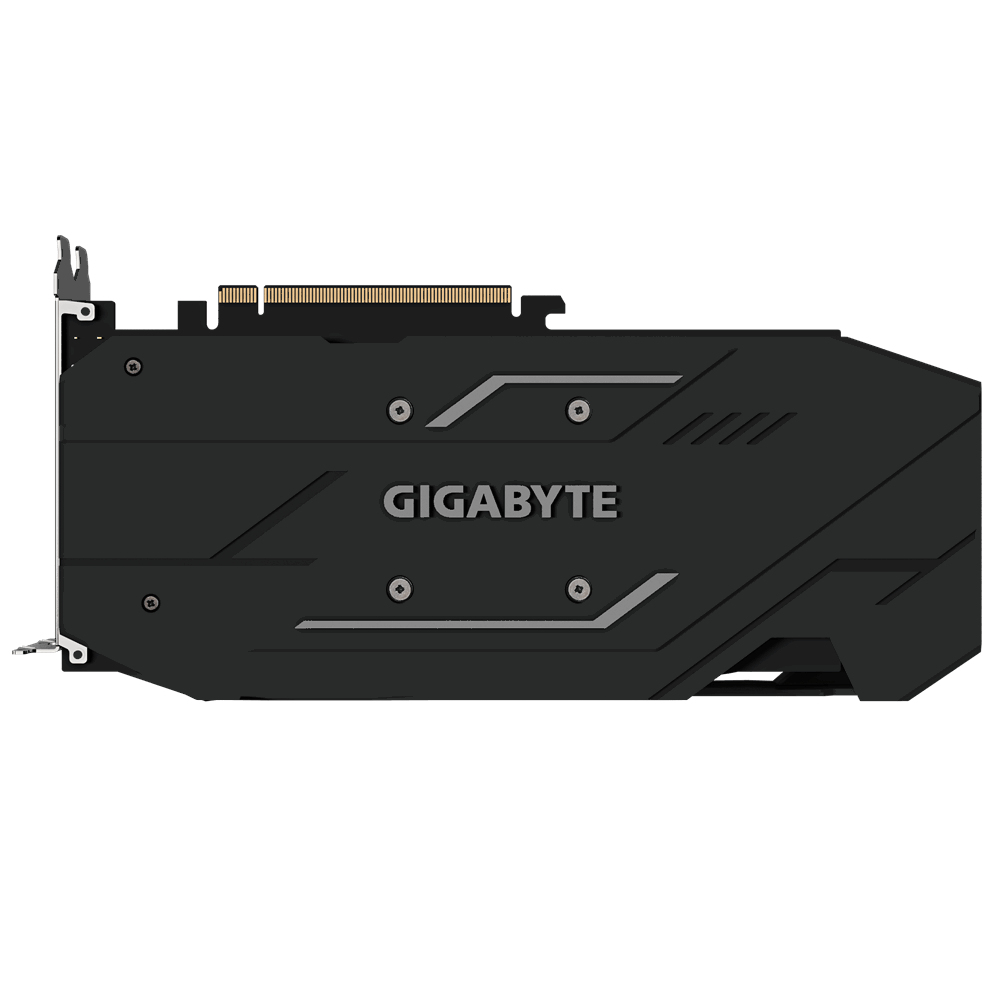

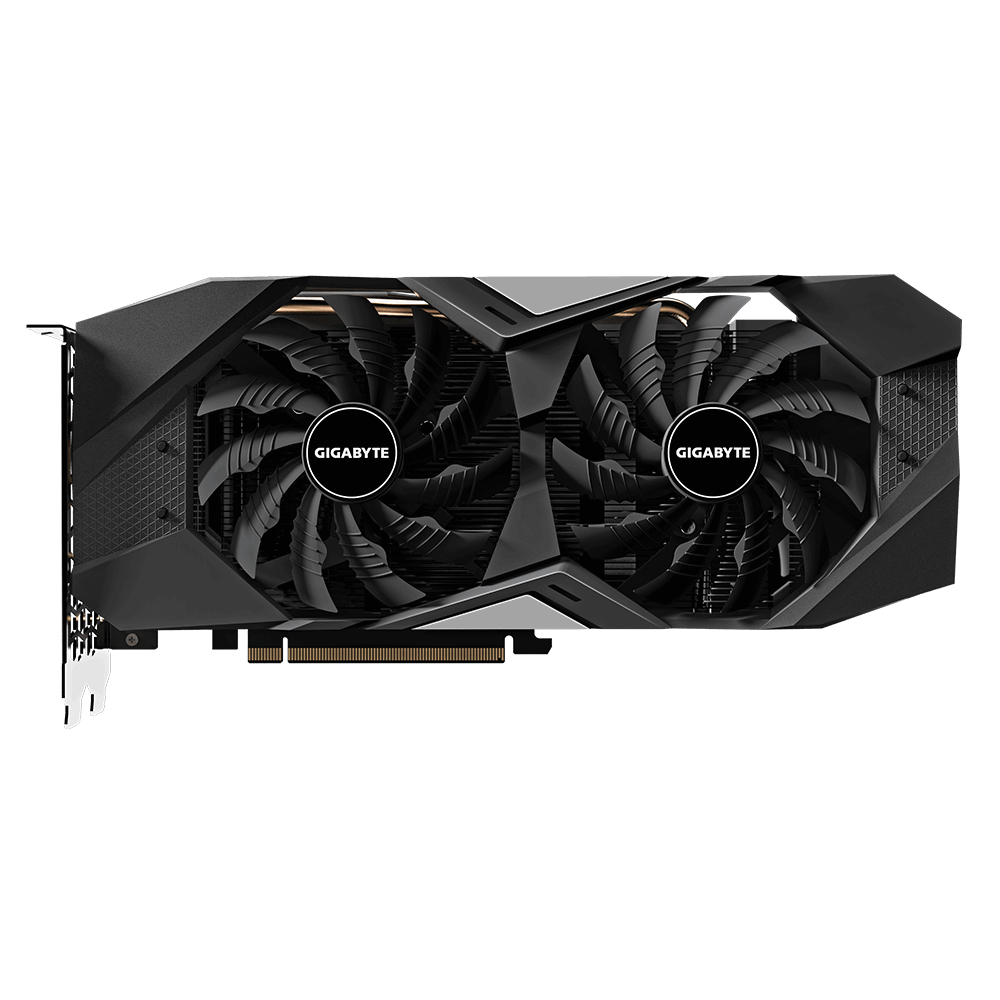

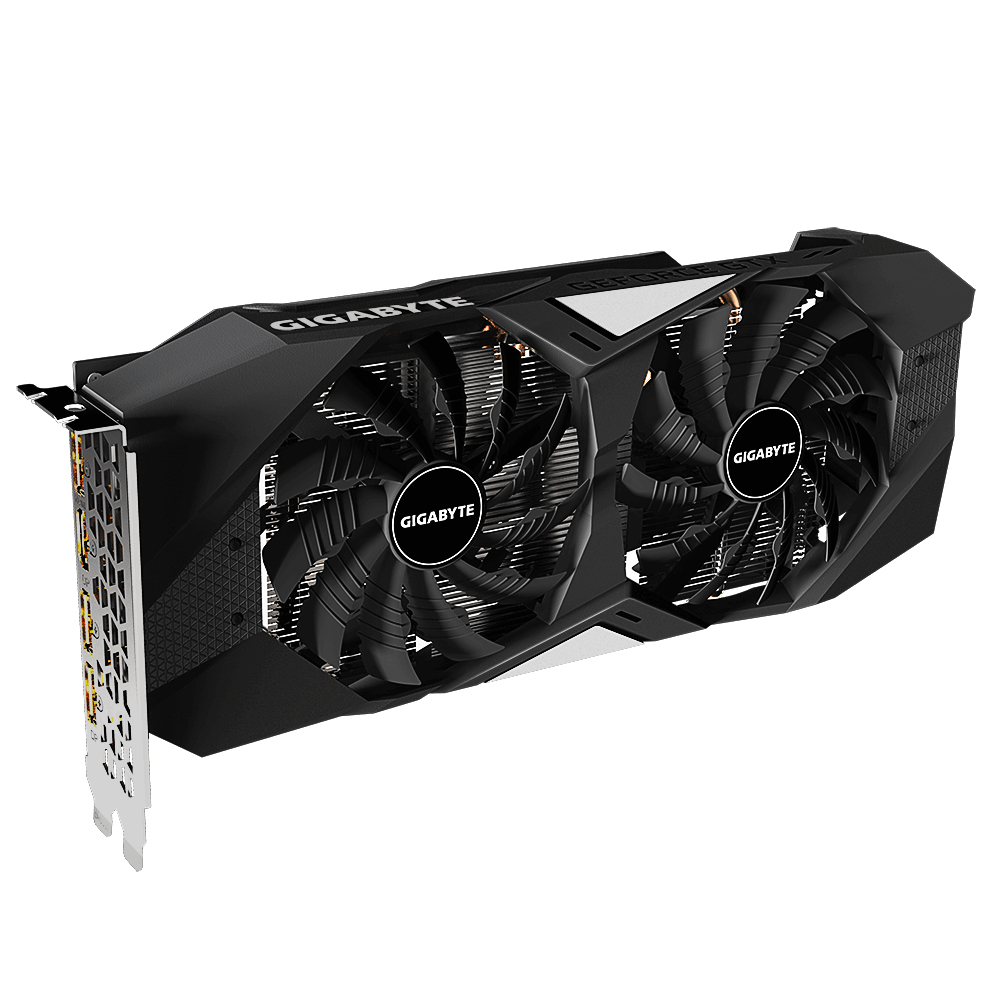

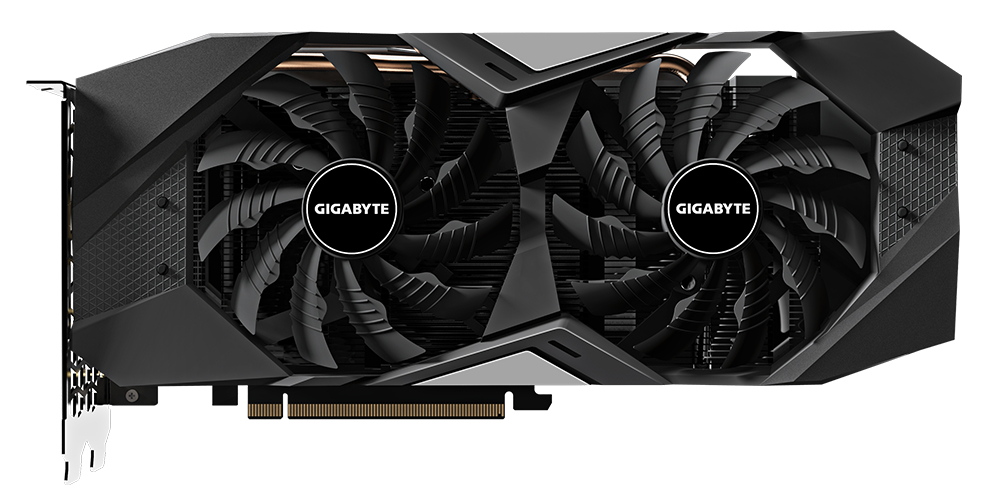

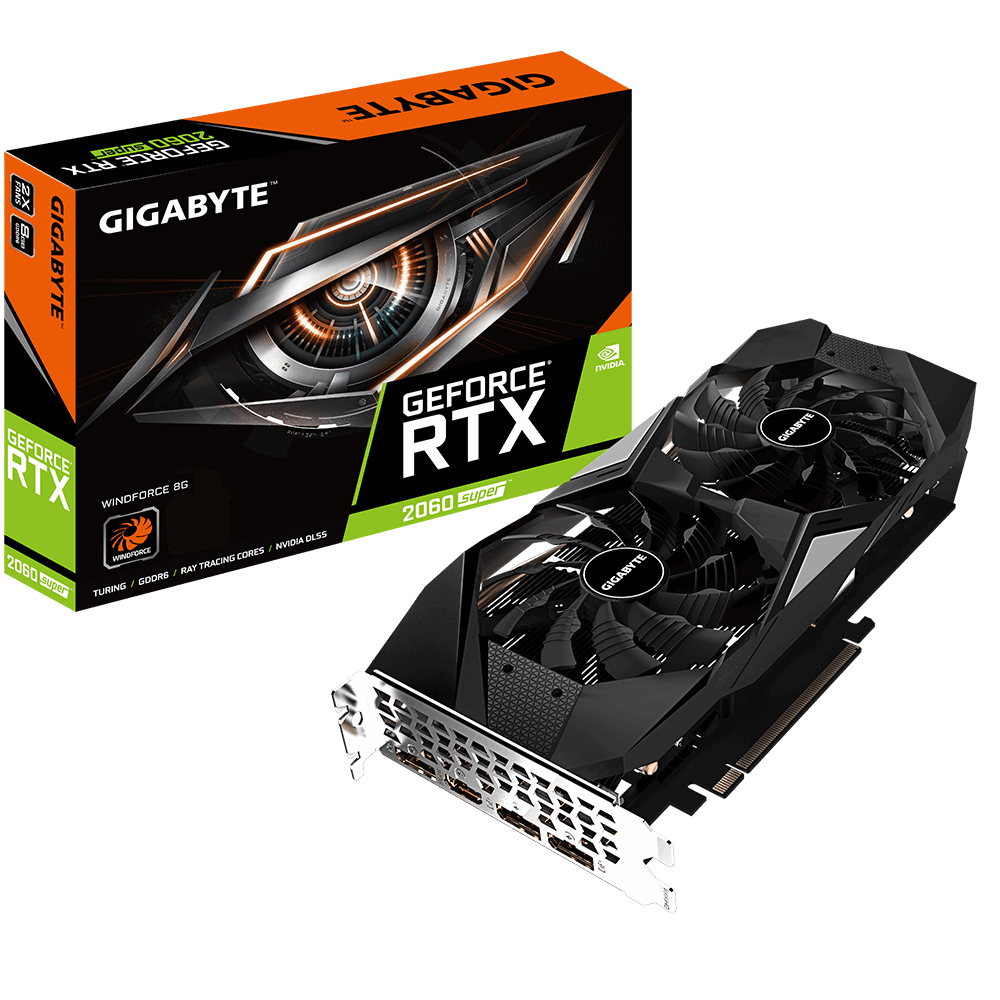

GIGABYTE GV-N206SWF2-8GD graphics card NVIDIA GeForce RTX 2060 SUPER

GV-N206SWF2-8GD graphics card NVIDIA GeForce RTX 2060 SUPER

8 GB GDDR6

Model GV-N206SWF2-8GDEAN 4719331305413

35 specifications Checked today

TypeFull-Height/Full-Length (FH/FL)
ColourBlack
Graphics processor familyNVIDIA
Discrete graphics card memory8 GB
Interface typePCI Express x16 3.0
DirectX version12.0

See all specifications

Overview

Type: Full-Height/Full-Length (FH/FL)
Colour: Black
Graphics processor family: NVIDIA
Discrete graphics card memory: 8 GB
Interface type: PCI Express x16 3.0
DirectX version: 12.0

Brand: GIGABYTE
Category: GPU
Model: GV-N206SWF2-8GD
Part number: GV-N206SWF2-8GD
EAN / UPC: 4719331305413
Also known as: GIGABYTE GV-N206SWF2-8GD graphics card NVIDIA GeForce RTX 2060 SUPER 8 GB GDDR6

Specifications

35 specifications in 8 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 2060 SUPER
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	2176
Processor frequency	1650 MHz

Memory

Specification	Value
Discrete graphics card memory	8 GB
Graphics card memory type	GDDR6
Memory bus	256 bit
Memory clock speed	14000 MHz
Memory bandwidth (max)	448 GB/s

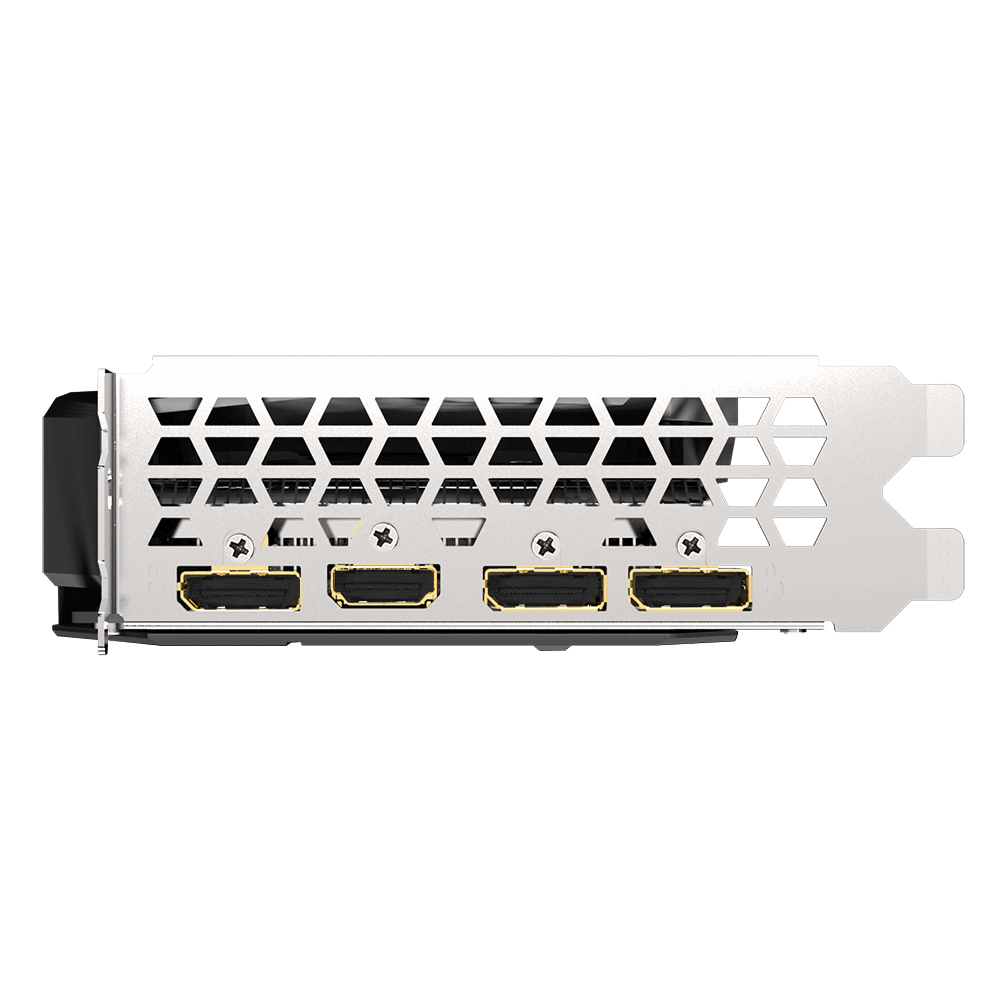

Ports & interfaces

Specification	Value
Interface type	PCI Express x16 3.0
HDMI ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	3
HDMI version	2.0b
DisplayPort version	1.4
VGA (D-Sub) ports quantity	0

Performance

Specification	Value
DirectX version	12.0
OpenGL version	4.5

Design

Specification	Value
Cooling type	Active
Cooling technology	GIGABYTE WINDFORCE 2X
Number of fans	2 fan(s)
Fan diameter	10 cm
Bracket height	Full-Height (FH)
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	Black

Power

Specification	Value
Minimum system power supply	550 W
Supplementary power connectors	1x 8-pin

Weight & dimensions

Specification	Value
Length	265 mm
Depth	40 mm
Height	121 mm

Packaging content

Specification	Value
Drivers included	Yes
User guide	Yes
