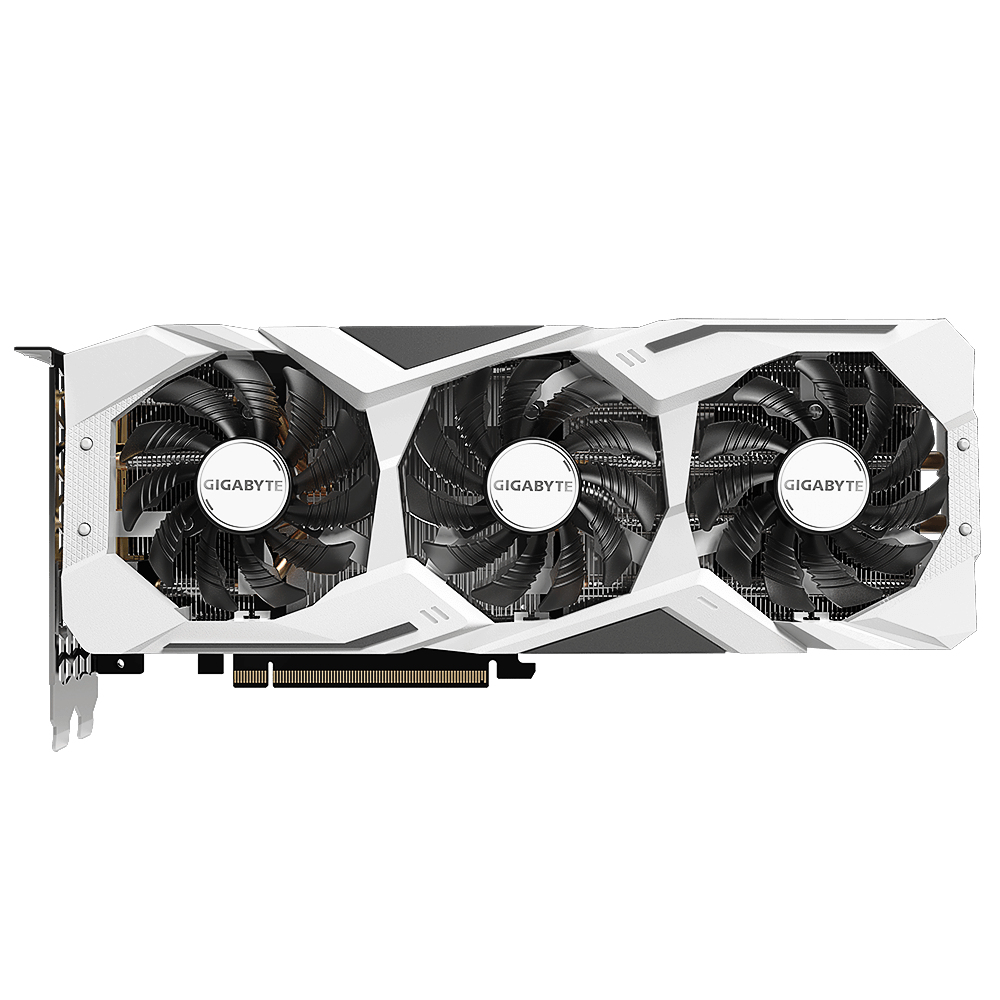

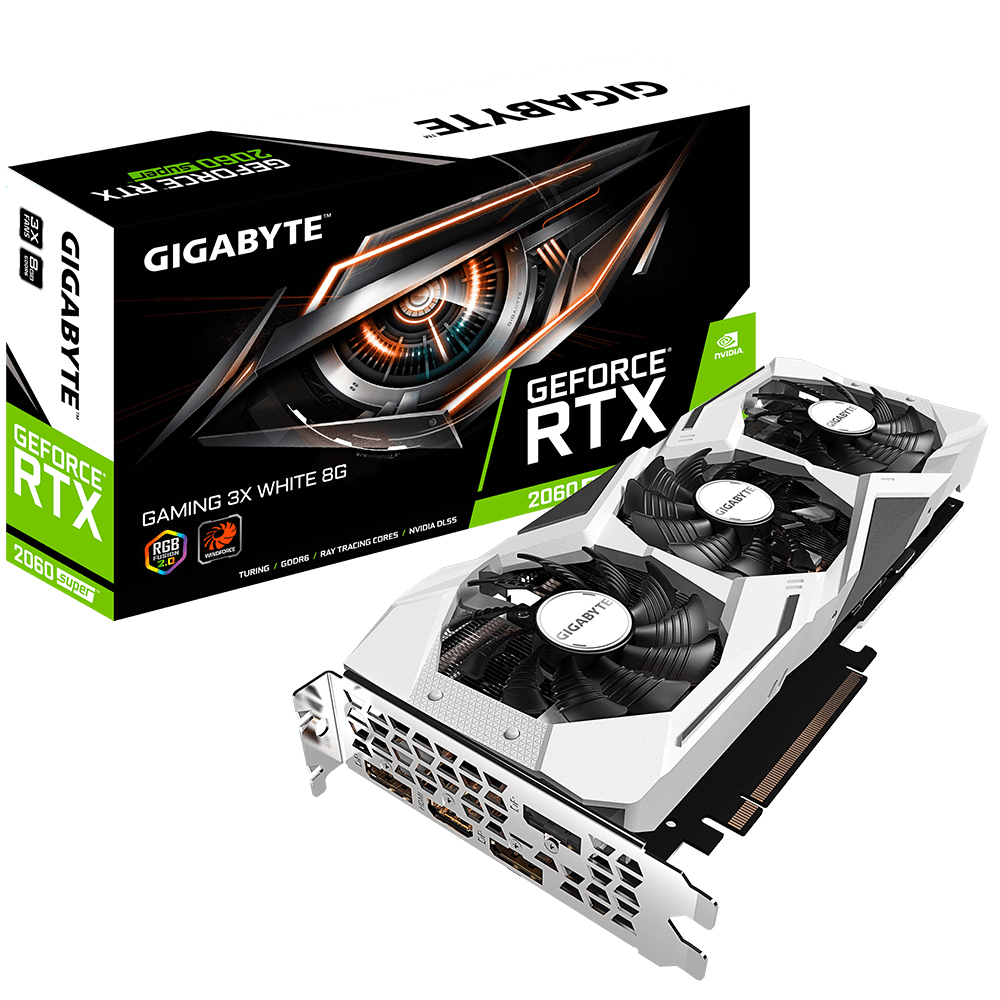

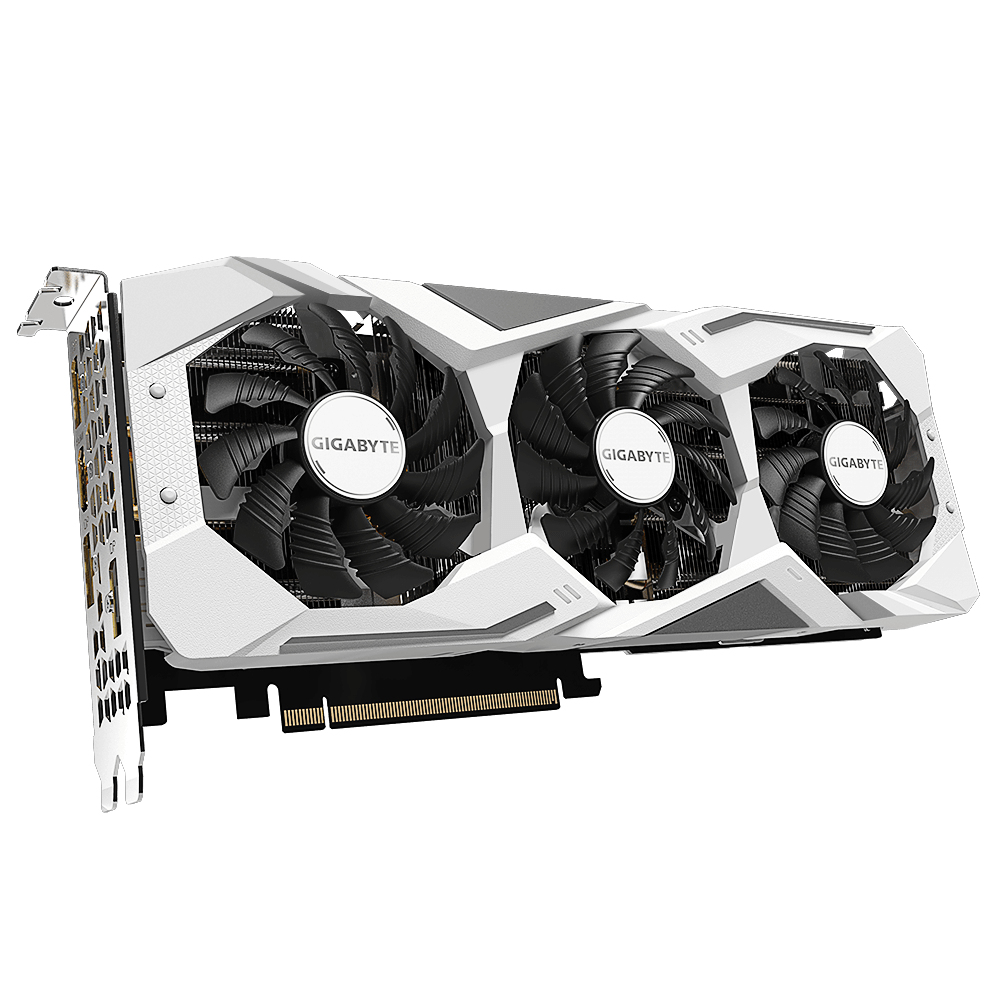

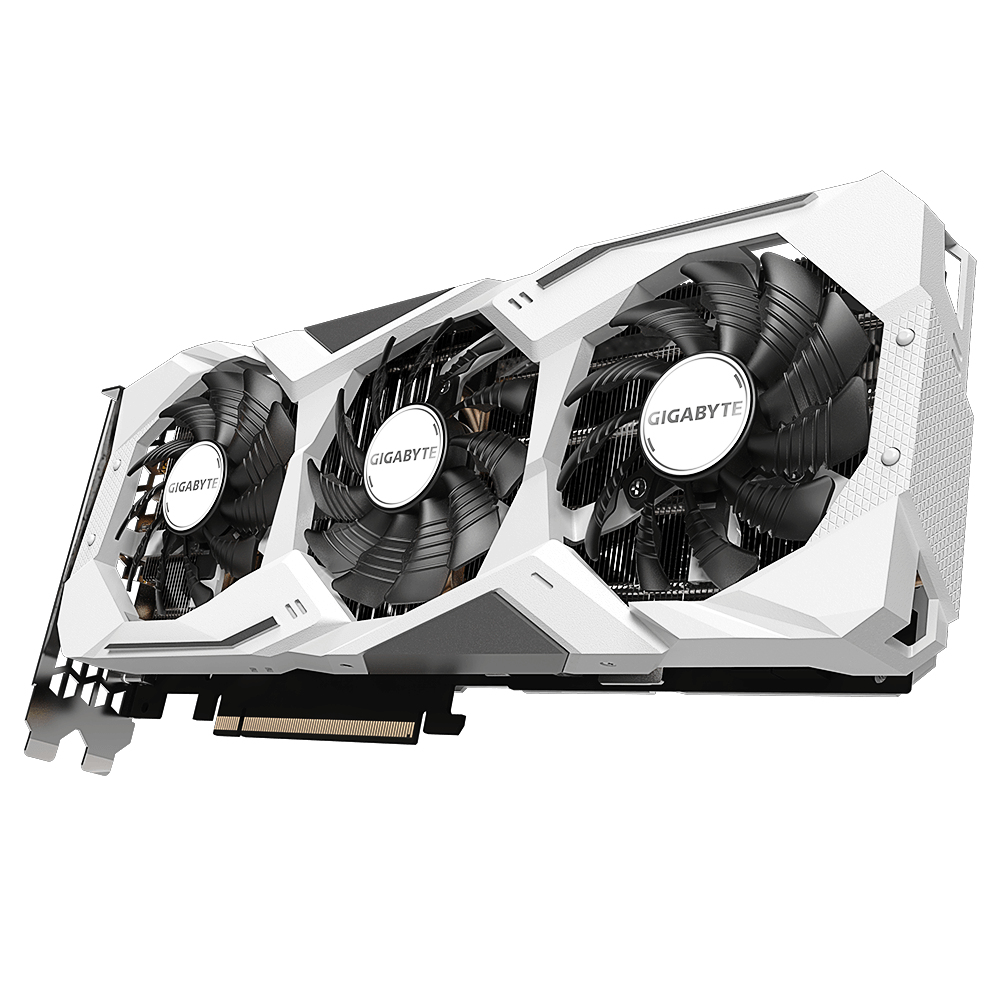

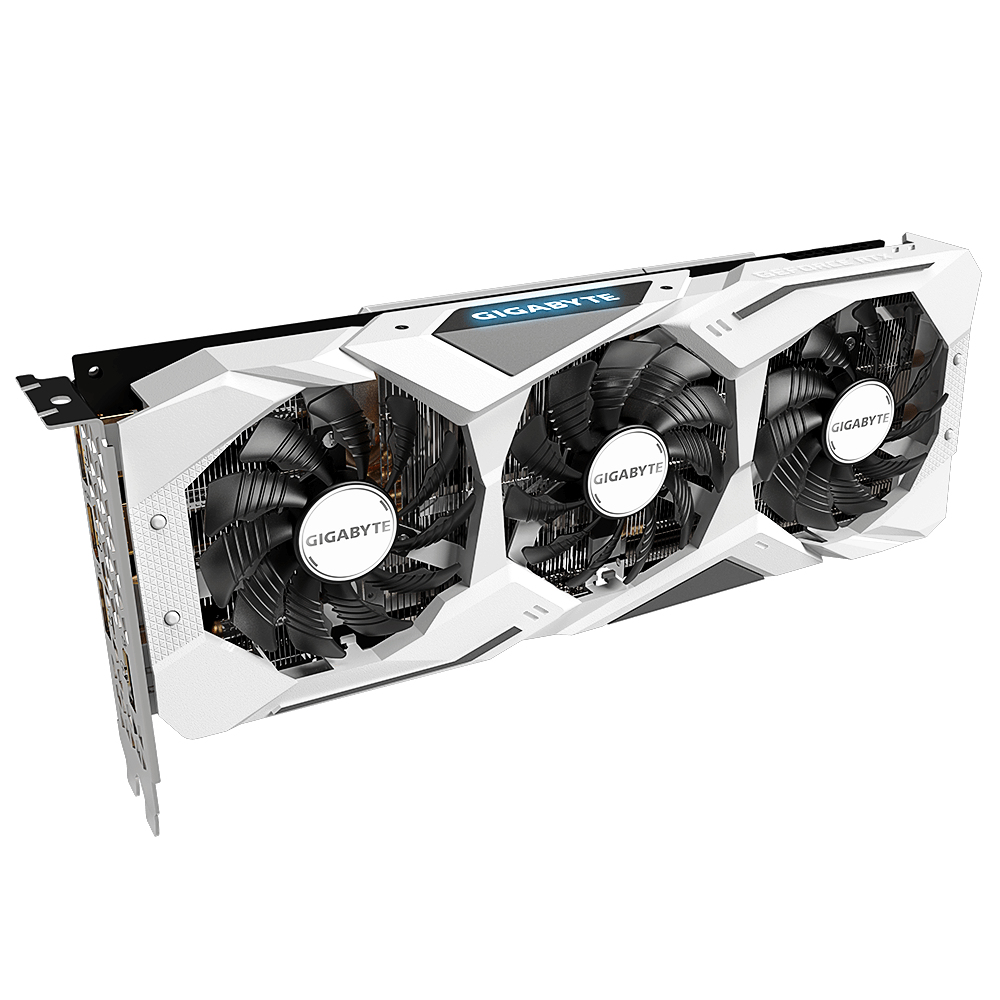

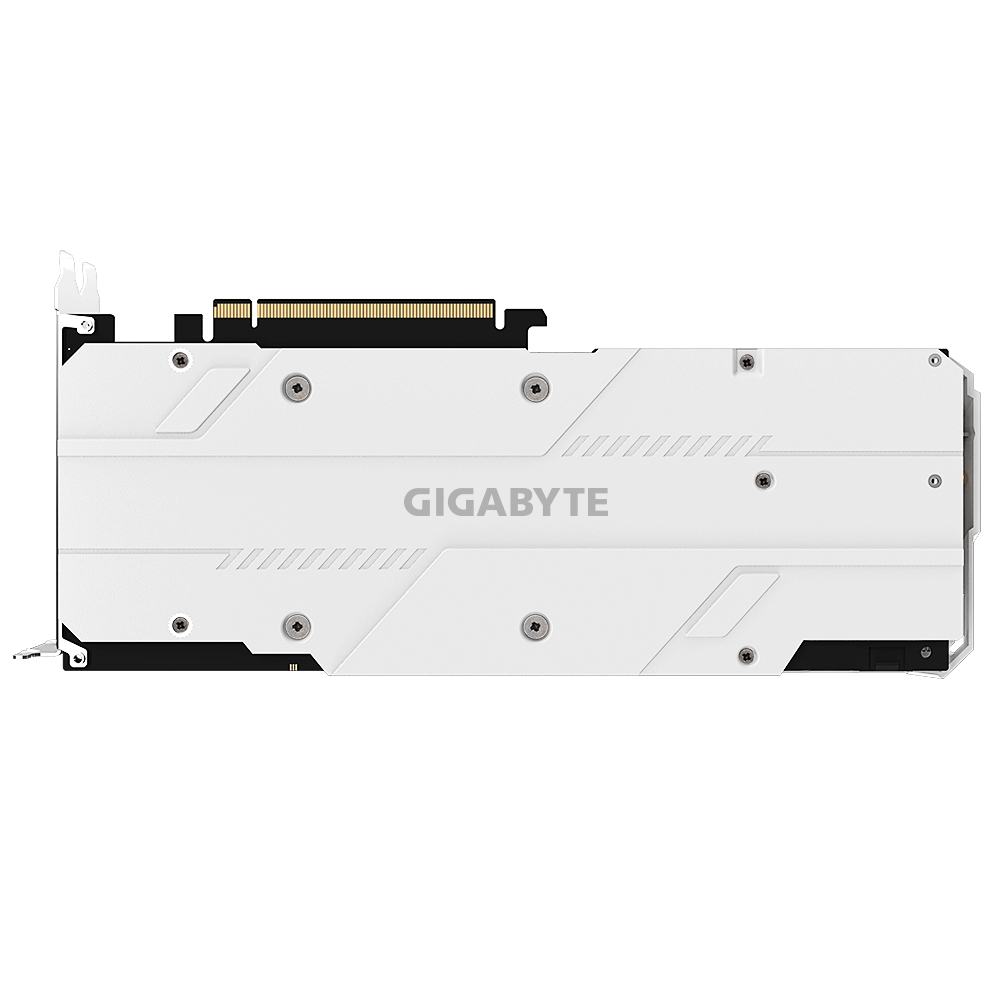

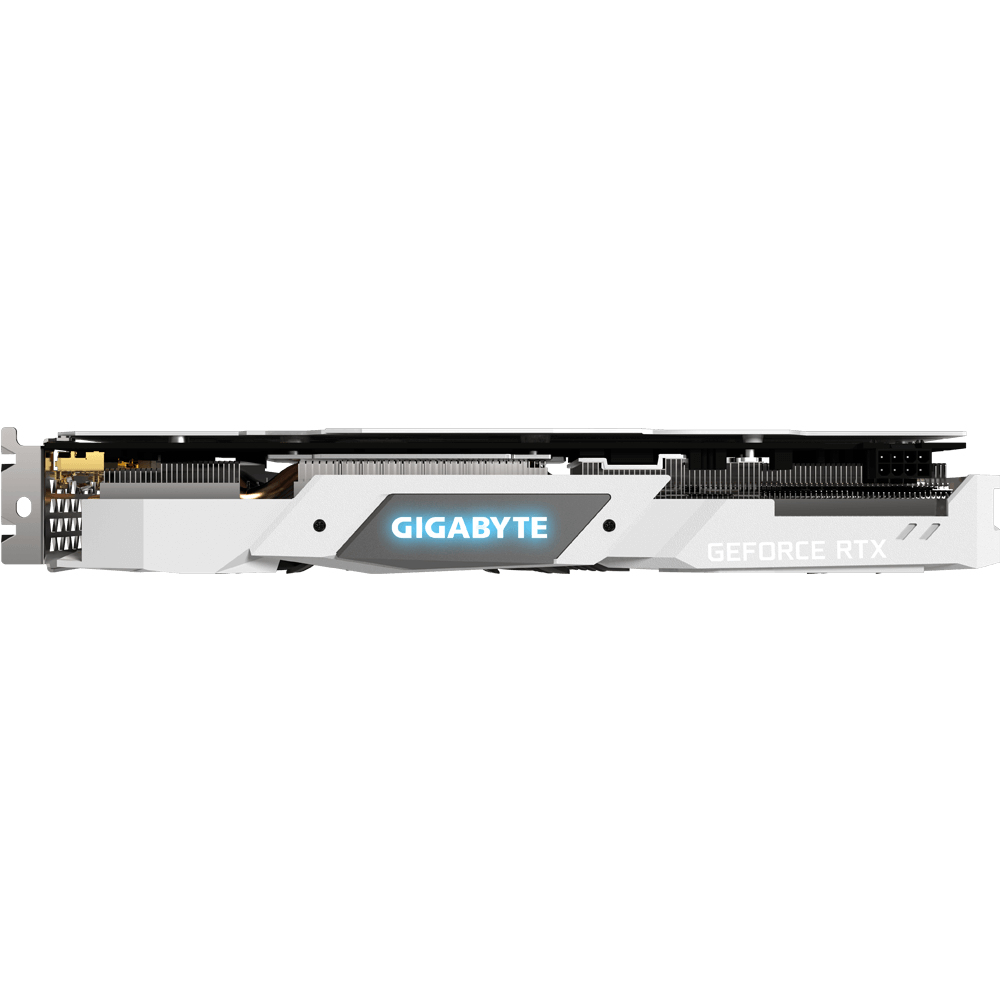

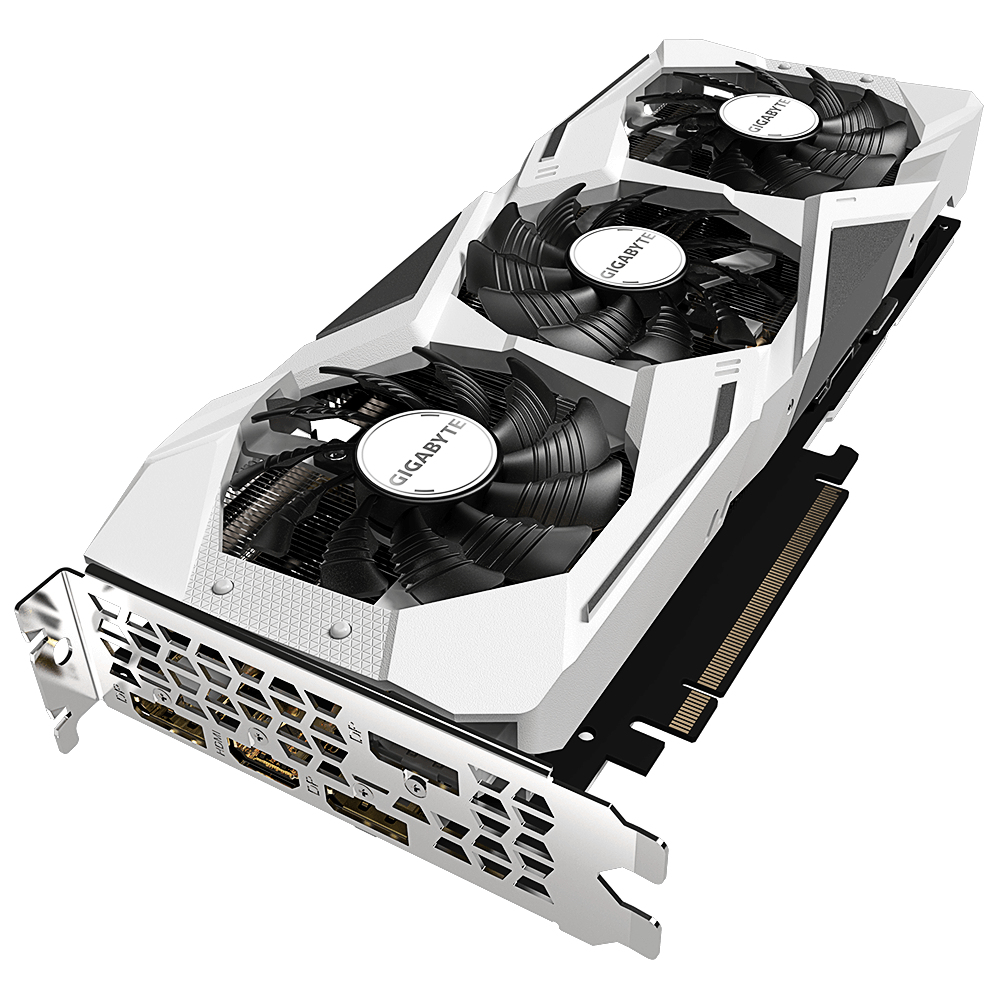

GIGABYTE GV-N206SGAMING WHITE-8GD

GV-N206SGAMING WHITE-8GD

Model GV-N206SGAMING WHITE-8GDEAN 4719331306298

37 specifications Checked today

ColourWhite
Graphics processor familyNVIDIA
Discrete graphics card memory8 GB
Interface typePCI Express x16 3.0
PhysXNo
Cooling typeActive

See all specifications

Overview

Colour: White
Graphics processor family: NVIDIA
Discrete graphics card memory: 8 GB
Interface type: PCI Express x16 3.0
PhysX: No
Cooling type: Active

Brand: GIGABYTE
Category: GPU
Model: GV-N206SGAMING WHITE-8GD
Part number: GV-N206SGAMING WHITE-8GD
EAN / UPC: 4719331306298
Also known as: GIGABYTE GAMING GV-N206SGAMING WHITE-8GD graphics card NVIDIA GeForce RTX 2060 SUPER 8 GB GDDR6

Specifications

37 specifications in 8 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 2060 SUPER
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	2176
Processor frequency	1650 MHz
FireStream	No
Parallel processing technology support	Not supported

Memory

Specification	Value
Discrete graphics card memory	8 GB
Graphics card memory type	GDDR6
Memory bus	256 bit
Memory clock speed	14000 MHz
Memory bandwidth (max)	448 GB/s

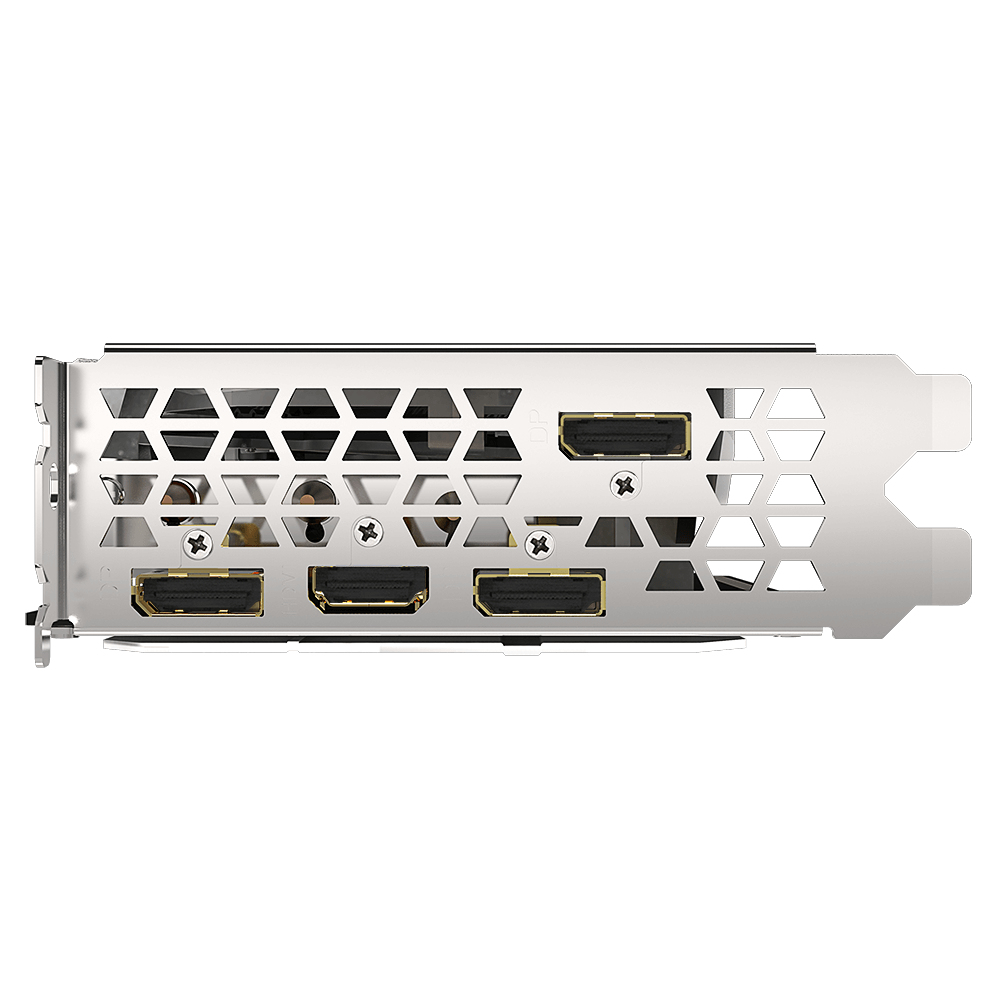

Ports & interfaces

Specification	Value
Interface type	PCI Express x16 3.0
HDMI ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	3
HDMI version	2.0b
DisplayPort version	1.4
VGA (D-Sub) ports quantity	0

Performance

Specification	Value
PhysX	No
TV tuner integrated	No
DirectX version	12.0
Shader model version	No
OpenGL version	4.6
HDCP	No
Dual Link DVI	No

Design

Specification	Value
Cooling type	Active
Number of fans	3 fan(s)
Product colour	White

Power

Specification	Value
Minimum system power supply	550 W
Supplementary power connectors	1x 8-pin

Weight & dimensions

Specification	Value
Length	280.4 mm
Depth	40.2 mm
Height	116.5 mm

Packaging content

Specification	Value
Quick installation guide	Yes
