GeForce GTX 1070 WINDFORCE
3X 8G
Model GV-N1070WF3-8GD
48 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- ColourBlack, Orange
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express x16 3.0
- PhysXYes
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Colour
- Black, Orange
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express x16 3.0
- PhysX
- Yes
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GV-N1070WF3-8GD
- Part number
- GV-N1070WF3-8GD
- Also known as
- GIGABYTE GeForce GTX 1070 WINDFORCE 3X 8G
Specifications
48 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce GTX 1070 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 1920 |
| Processor frequency | 1506 MHz |
| Processor boost clock speed | 1683 MHz |
| Processor frequency (OC mode) | 1531 MHz |
| Processor boost clock speed (OC mode) | 1721 MHz |
| FireStream | No |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | 2-Way SLI |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR5 |
| Memory bus | 256 bit |
| Memory clock speed | 8008 MHz |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 3.0 |

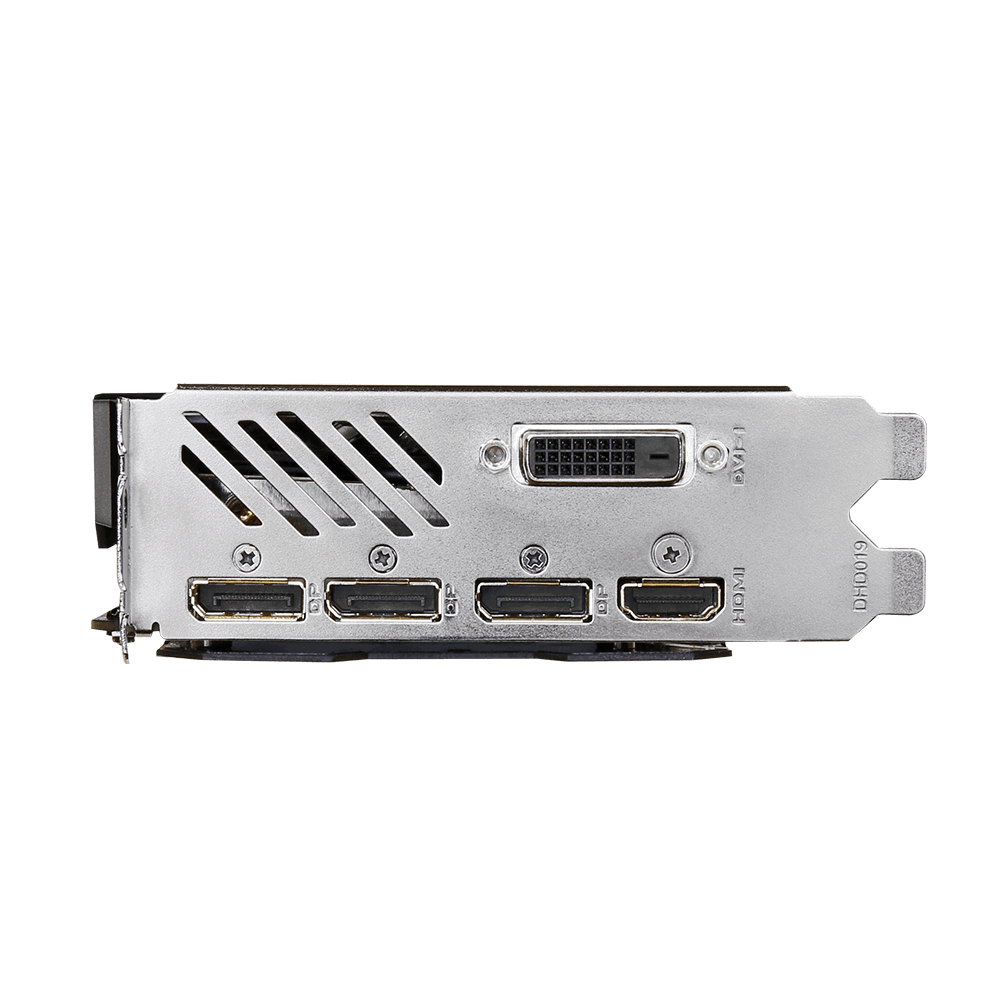

| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | Yes |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.5 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| Dual Link DVI | Yes |
| NVIDIA G-SYNC | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Illumination | Yes |
| Illumination colour | Orange |
| Product colour | Black, Orange |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 500 W |
| Supplementary power connectors | 1x 8-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 280 mm |
| Depth | 41 mm |
| Height | 114 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
