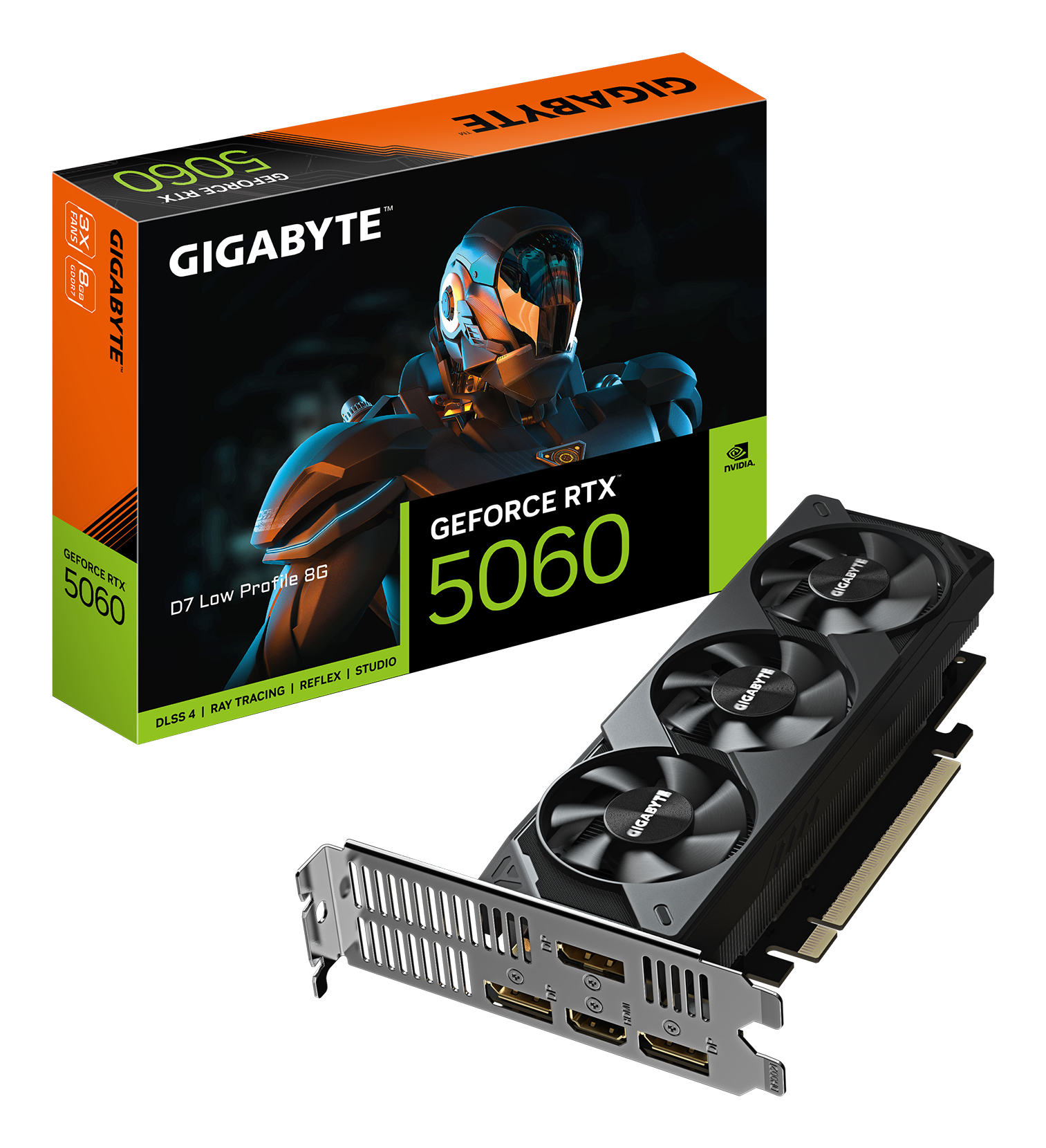

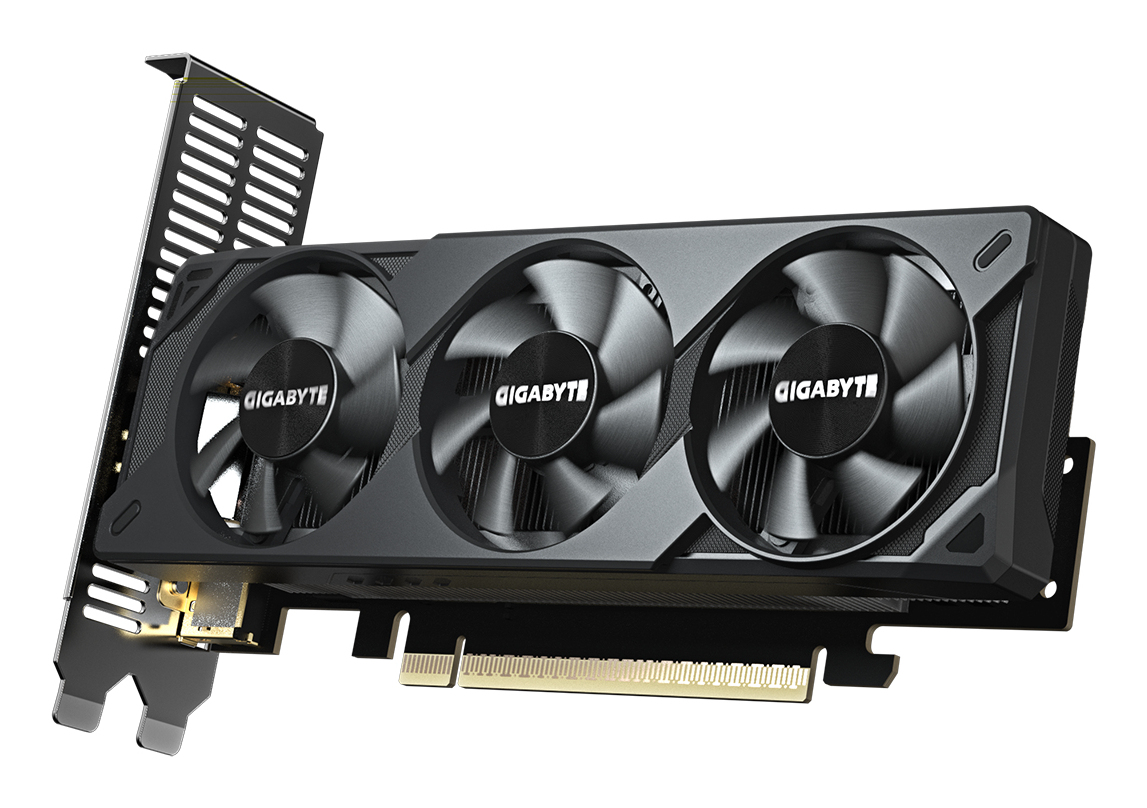

GeForce RTX 5060 D7 Low Profile 8G
Model GeForce RTX 5060 D7 Low Profile 8GPart no. GV-N5060D7-8GLEAN 889523052372
45 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight330 g
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express x8 5.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 330 g
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express x8 5.0
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GeForce RTX 5060 D7 Low Profile 8G
- Part number
- GV-N5060D7-8GL
- EAN / UPC
- 889523052372, 4719331356705
- Also known as
- GIGABYTE GeForce RTX 5060 D7 Low Profile 8G Graphics Card - 8GB GDDR7, 128bit, PCI-E 5.0 x8, 2497 MHz Core Clock, 3 x DisplayPort, 1 x HDMI, NVIDIA DLSS 4, GV-N
Specifications
45 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5060 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 3840 |
| Processor frequency | 2497 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| Memory clock speed | 28000 MHz |
| Data transfer rate | 28 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x8 5.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1b |
| DisplayPort version | 2.1b/1.4a |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Warranty period | 3 year(s) |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 550 W |
| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 109 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 330 g |
| Length | 182 mm |
| Depth | 36 mm |
| Height | 69 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 210.5 mm |
| Package depth | 295 mm |
| Package height | 50 mm |
| Package weight | 620 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
