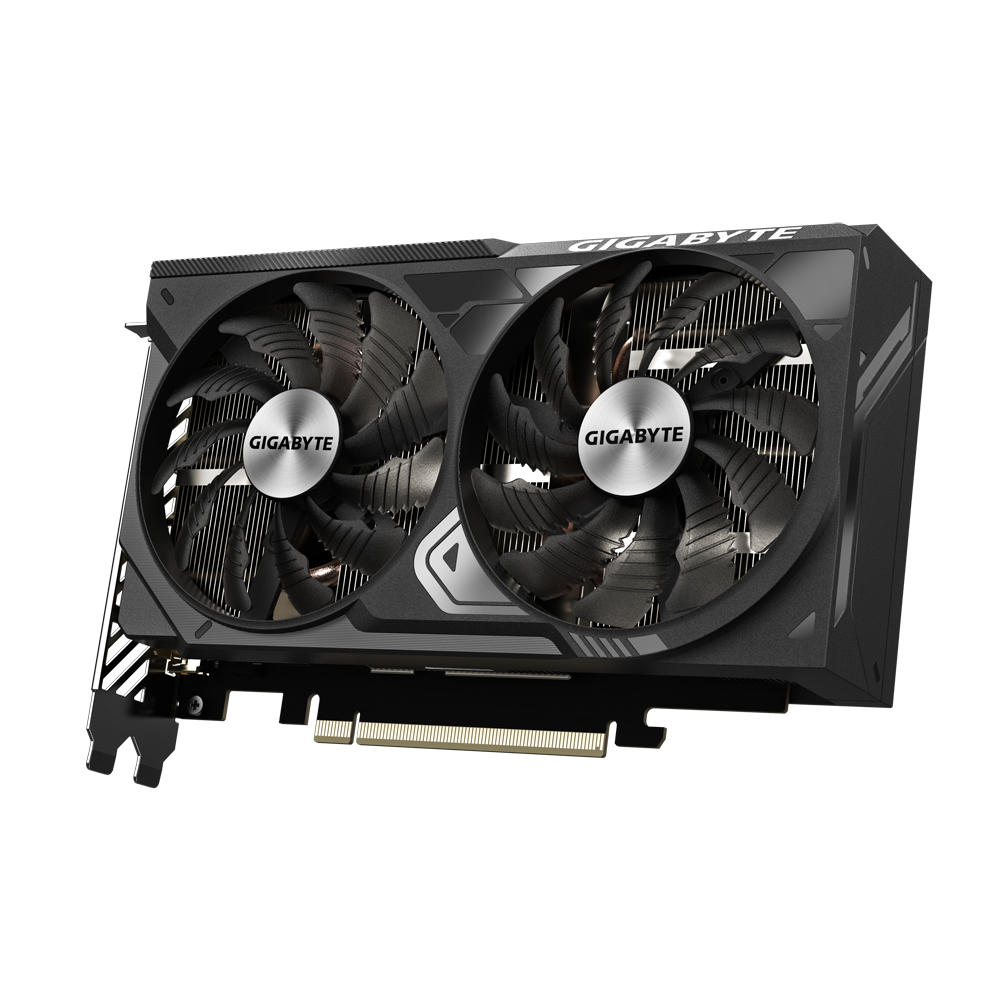

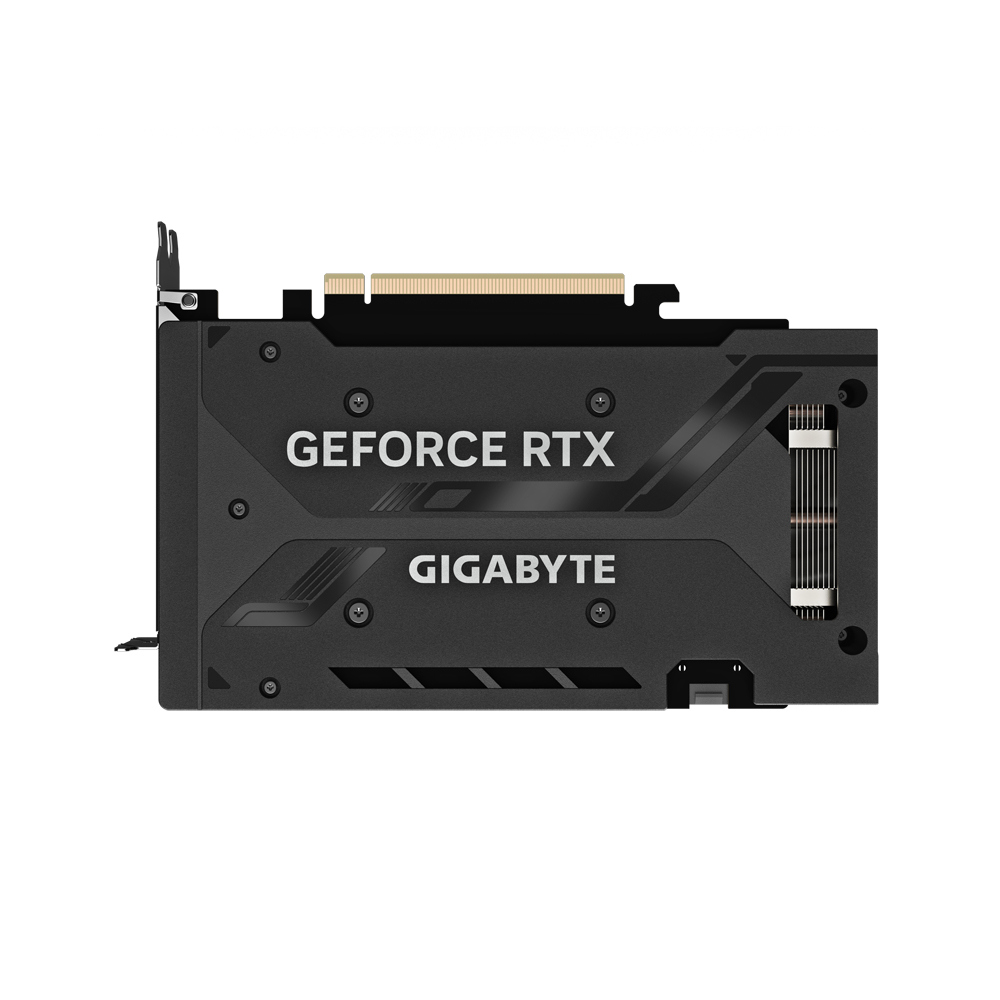

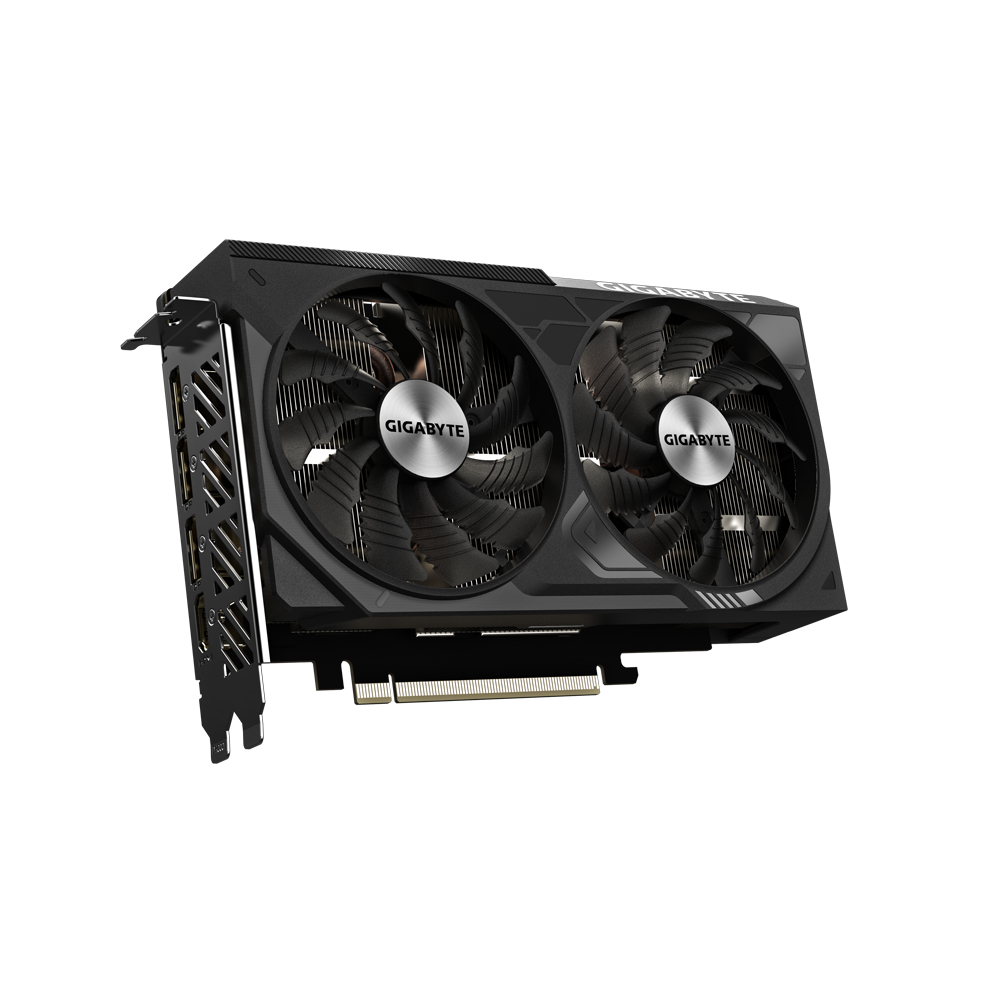

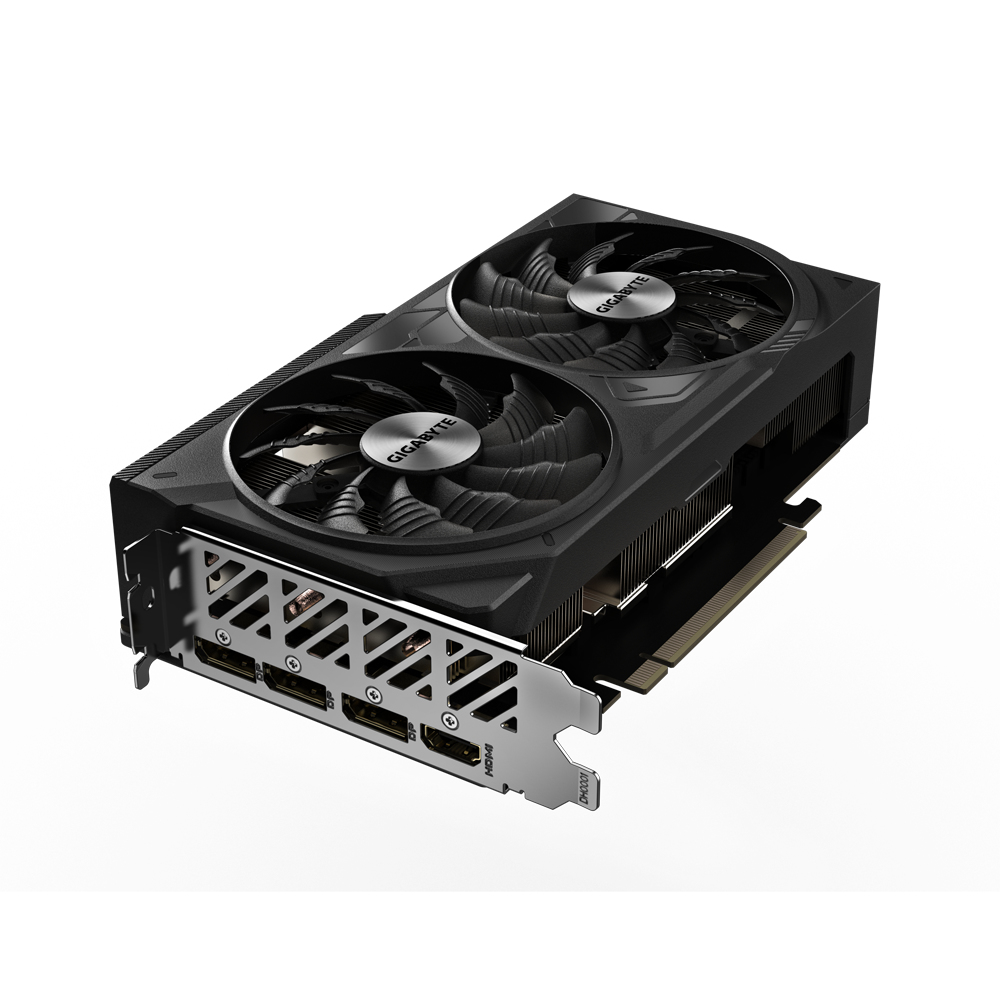

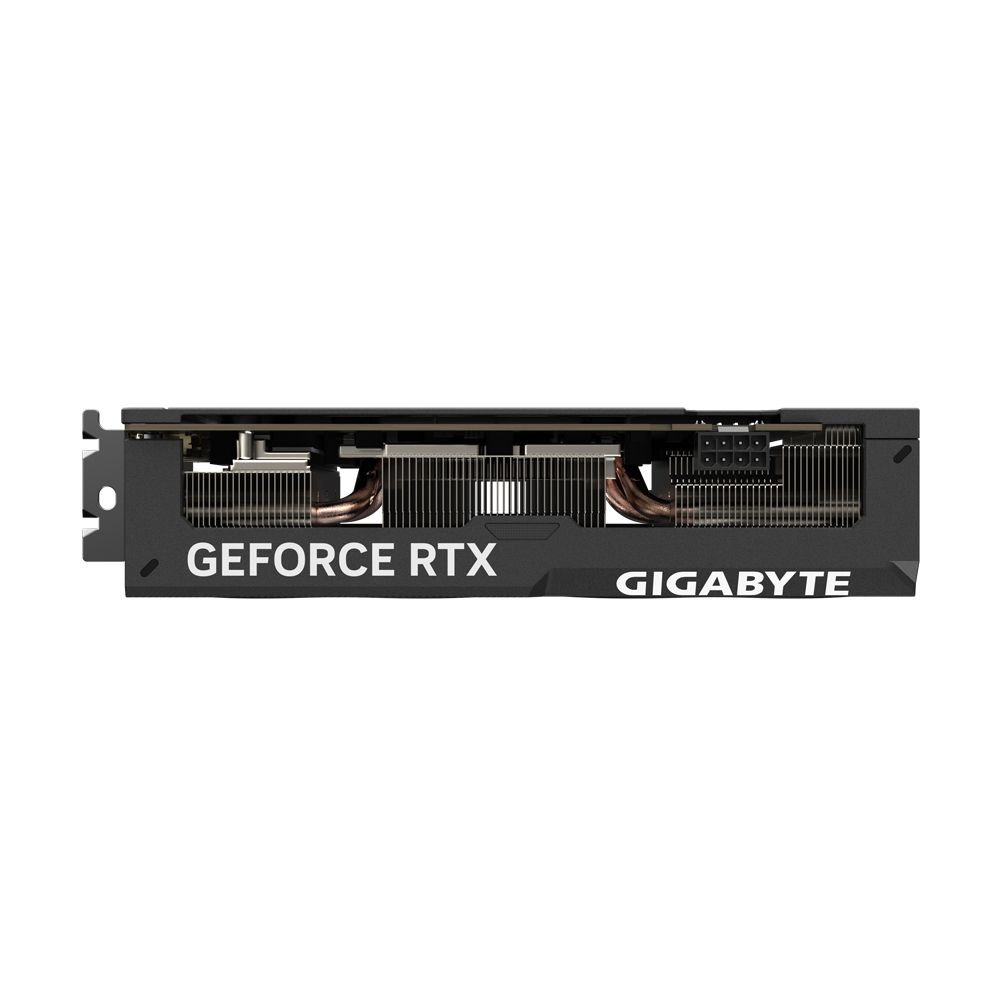

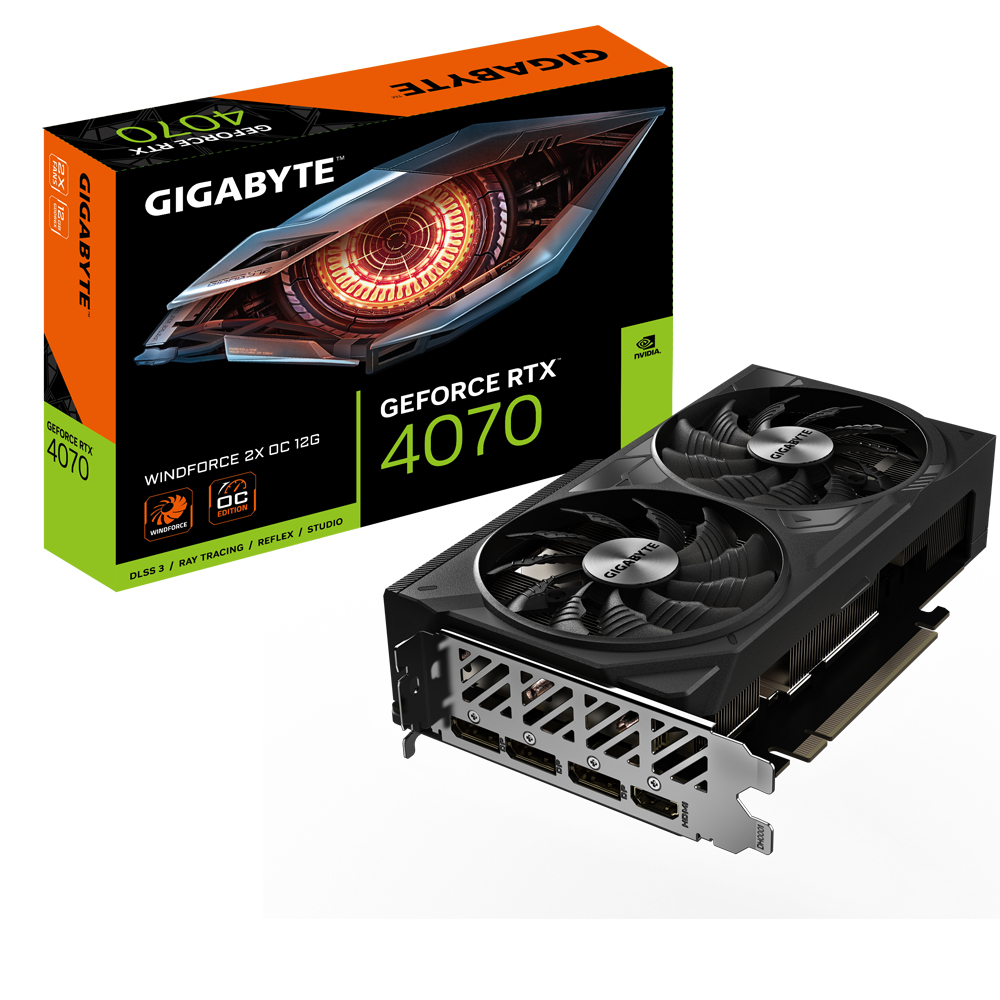

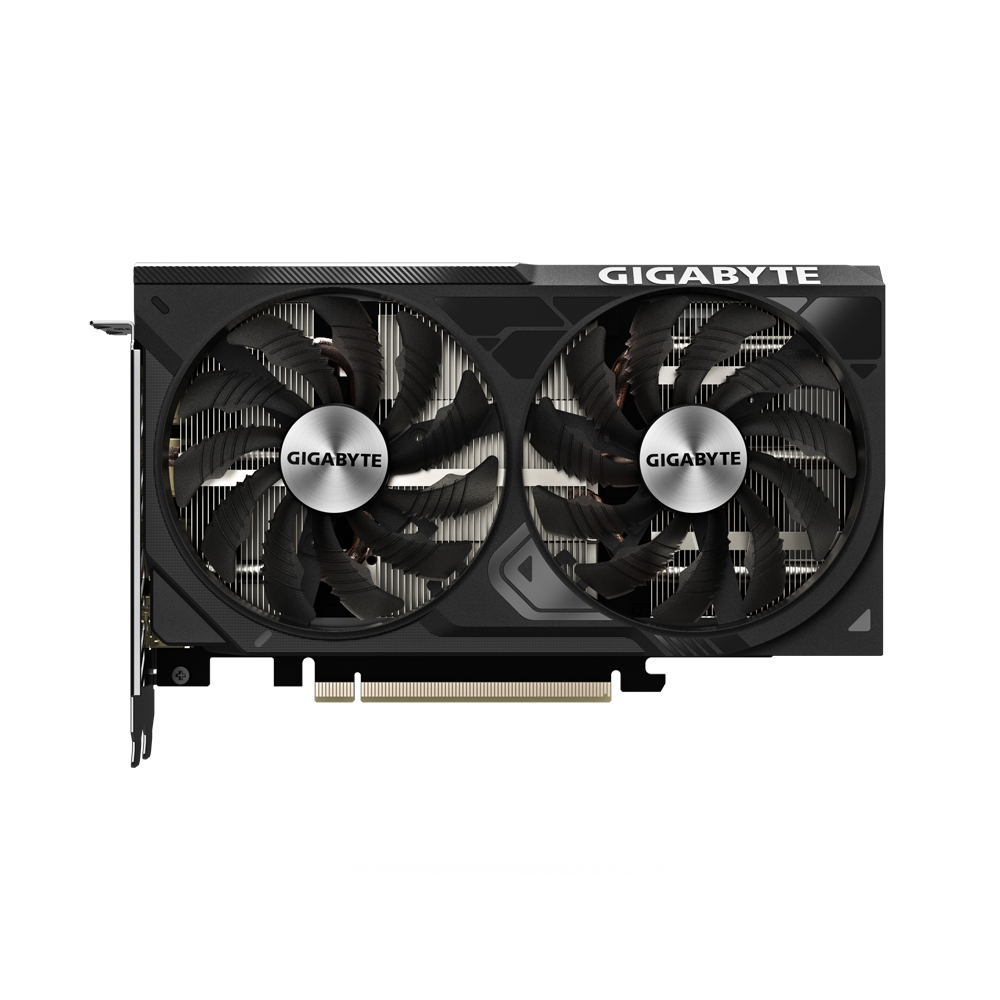

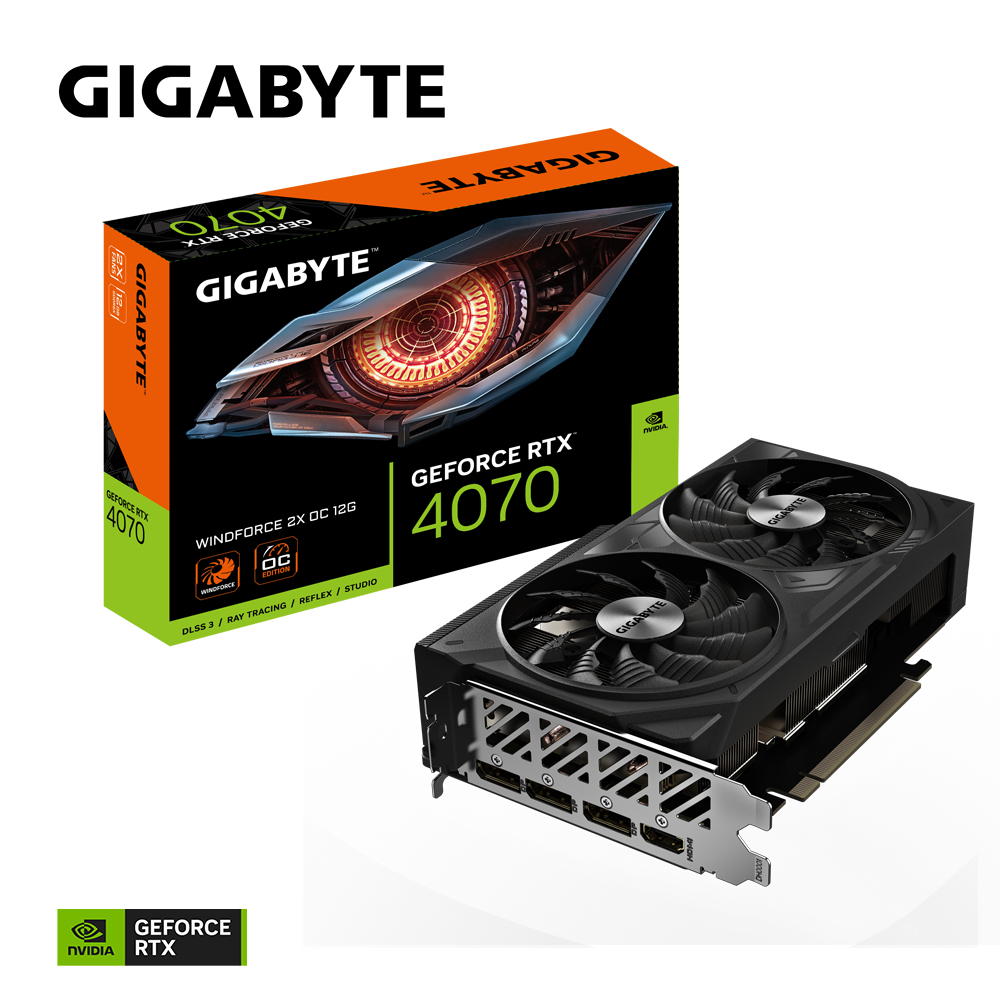

GeForce RTX 4070 WINDFORCE 2X OC 12G
Model GeForce RTX 4070 WINDFORCE 2X OC 12GPart no. GV-N4070WF2OC-12GDEAN 889523040539
45 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight620 g
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory12 GB
- Interface typePCI Express x16 4.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 620 g
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 12 GB
- Interface type
- PCI Express x16 4.0
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GeForce RTX 4070 WINDFORCE 2X OC 12G
- Part number
- GV-N4070WF2OC-12GD
- EAN / UPC
- 889523040539, 4719331314828
- Also known as
- GIGABYTE GeForce RTX 4070 WINDFORCE 2X OC 12G Graphics Card - 12GB GDDR6X, 192bit, PCI-E 4.0, 2490MHz Core Clock, 3 x DisplayPort 1.4a, 1 x HDMI 2.1a, NVIDIA DL
Specifications
45 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 4070 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 5888 |
| Processor frequency | 2490 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 12 GB |
| Graphics card memory type | GDDR6X |
| Memory bus | 192 bit |
| Memory clock speed | 21000 MHz |
| Memory bandwidth (max) | 21 GB/s |

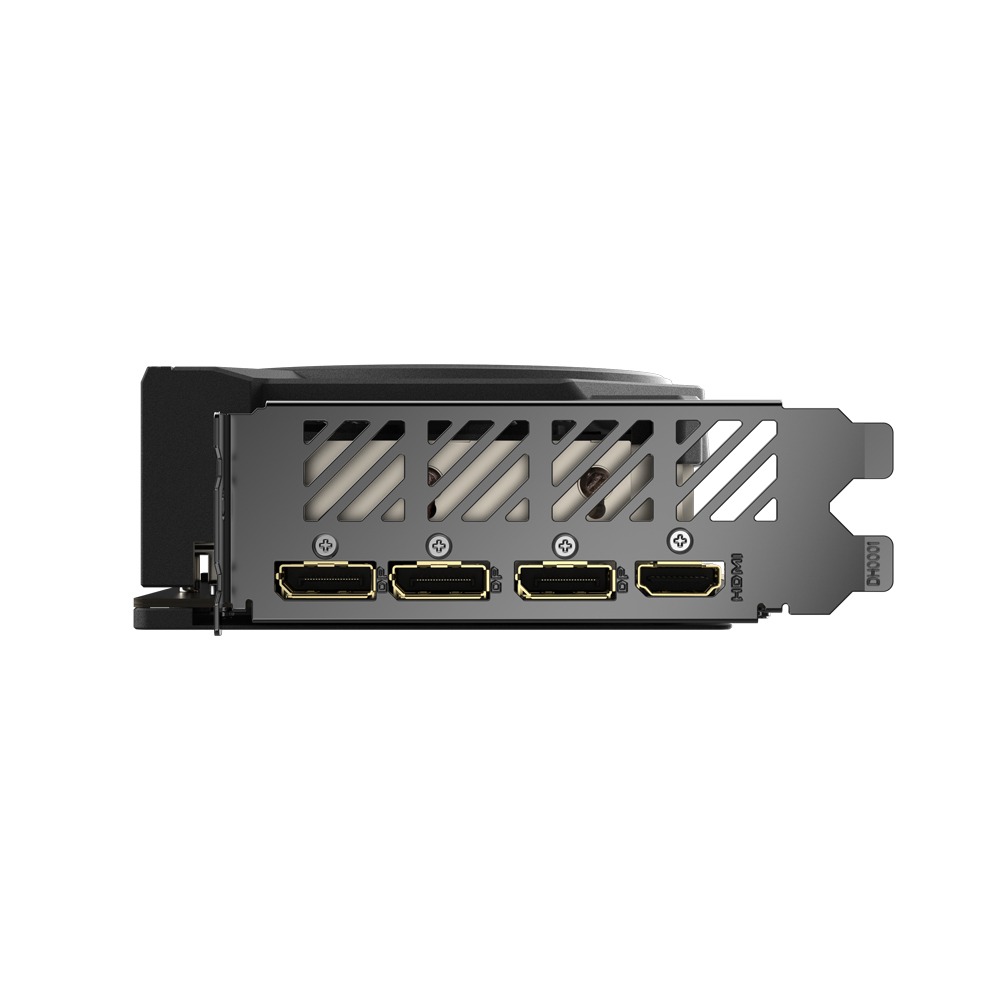

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1a |
| DisplayPort version | 1.4a |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| Warranty period | 3 year(s) |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2.5 |
| Illumination | Yes |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 650 W |
| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 200 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 620 g |
| Length | 201 mm |
| Depth | 48.4 mm |
| Height | 122.3 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 210.5 mm |
| Package depth | 295 mm |
| Package height | 65 mm |
| Package weight | 1.02 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
| Bundled software | GIGABYTE CONTROL CENTER |
Logistics data
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
