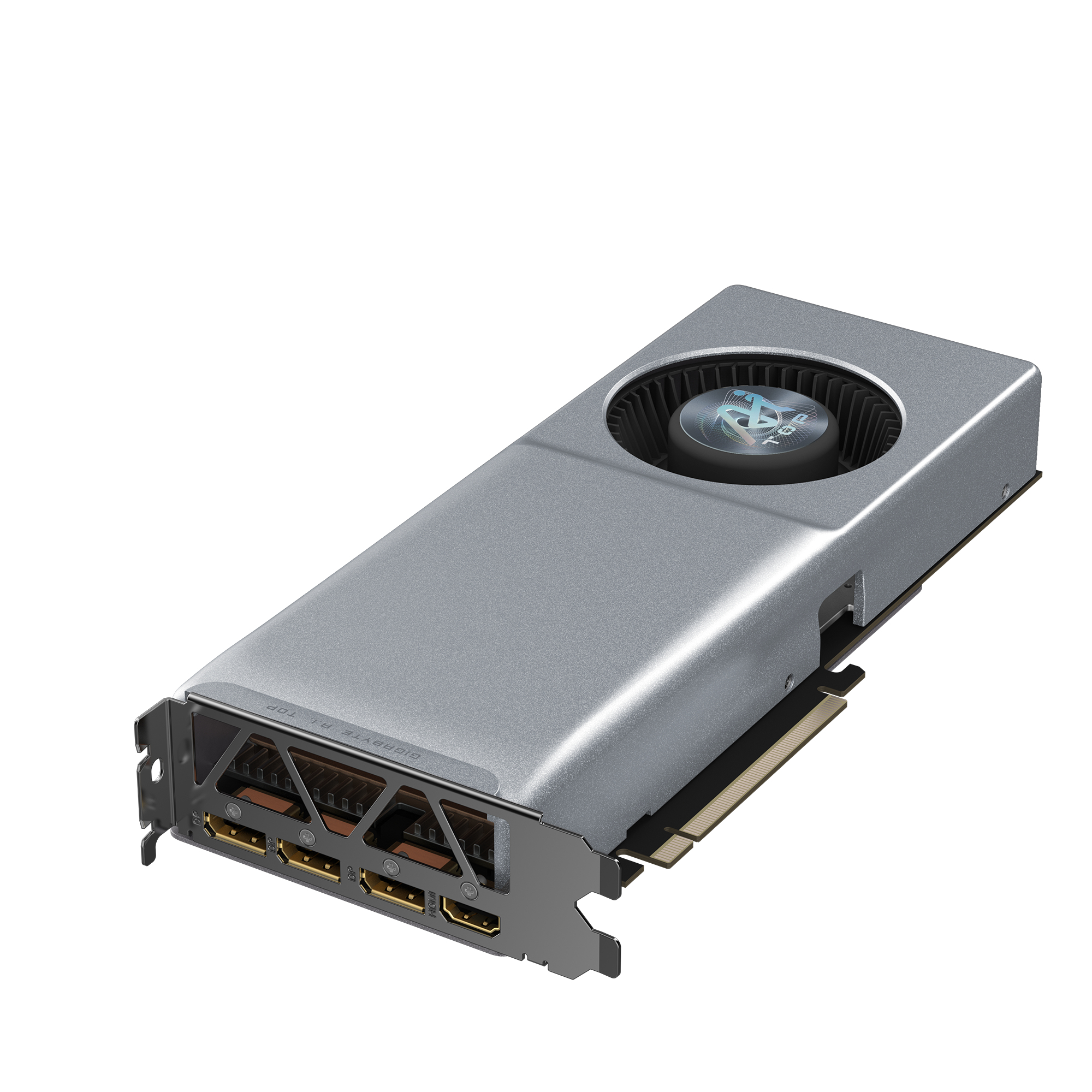

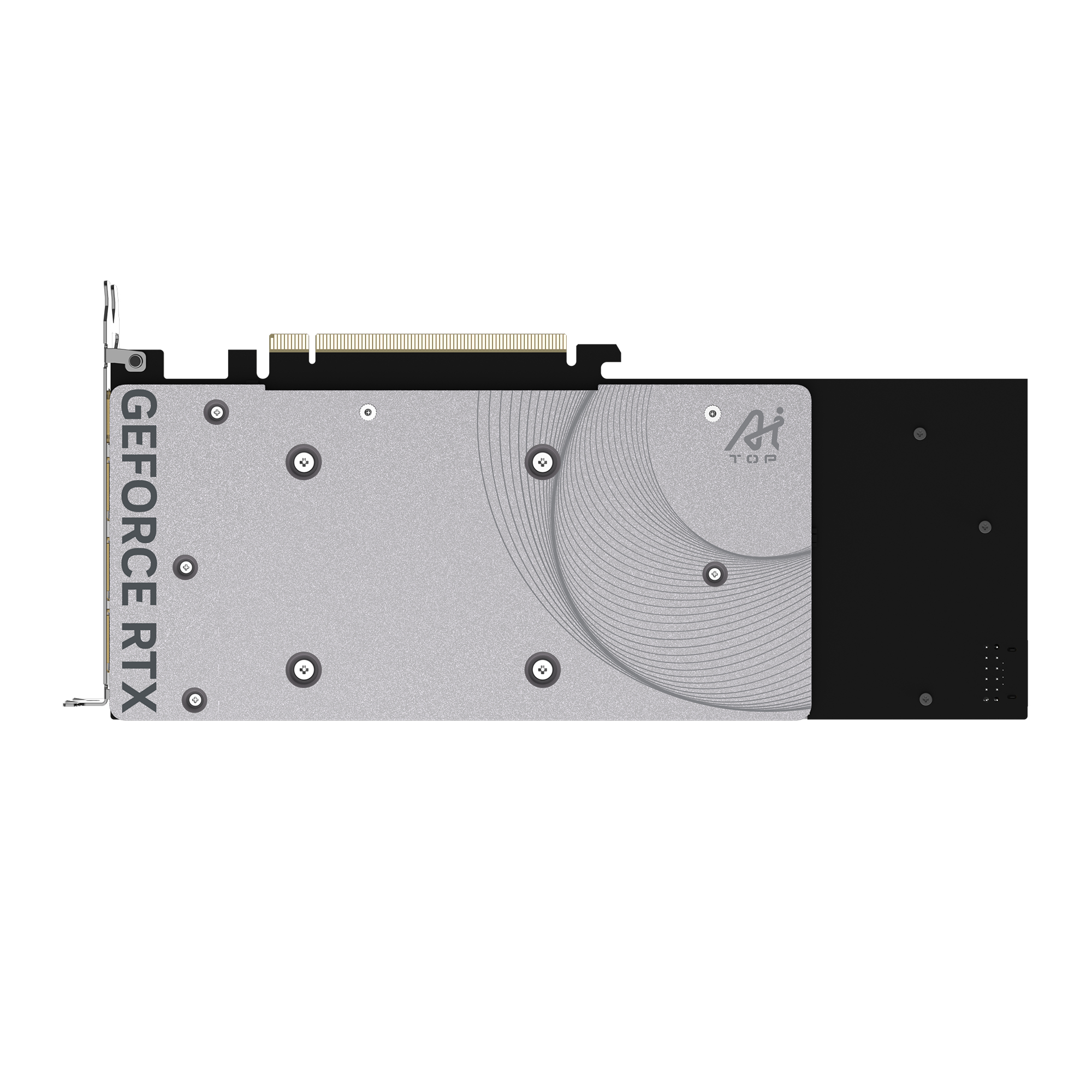

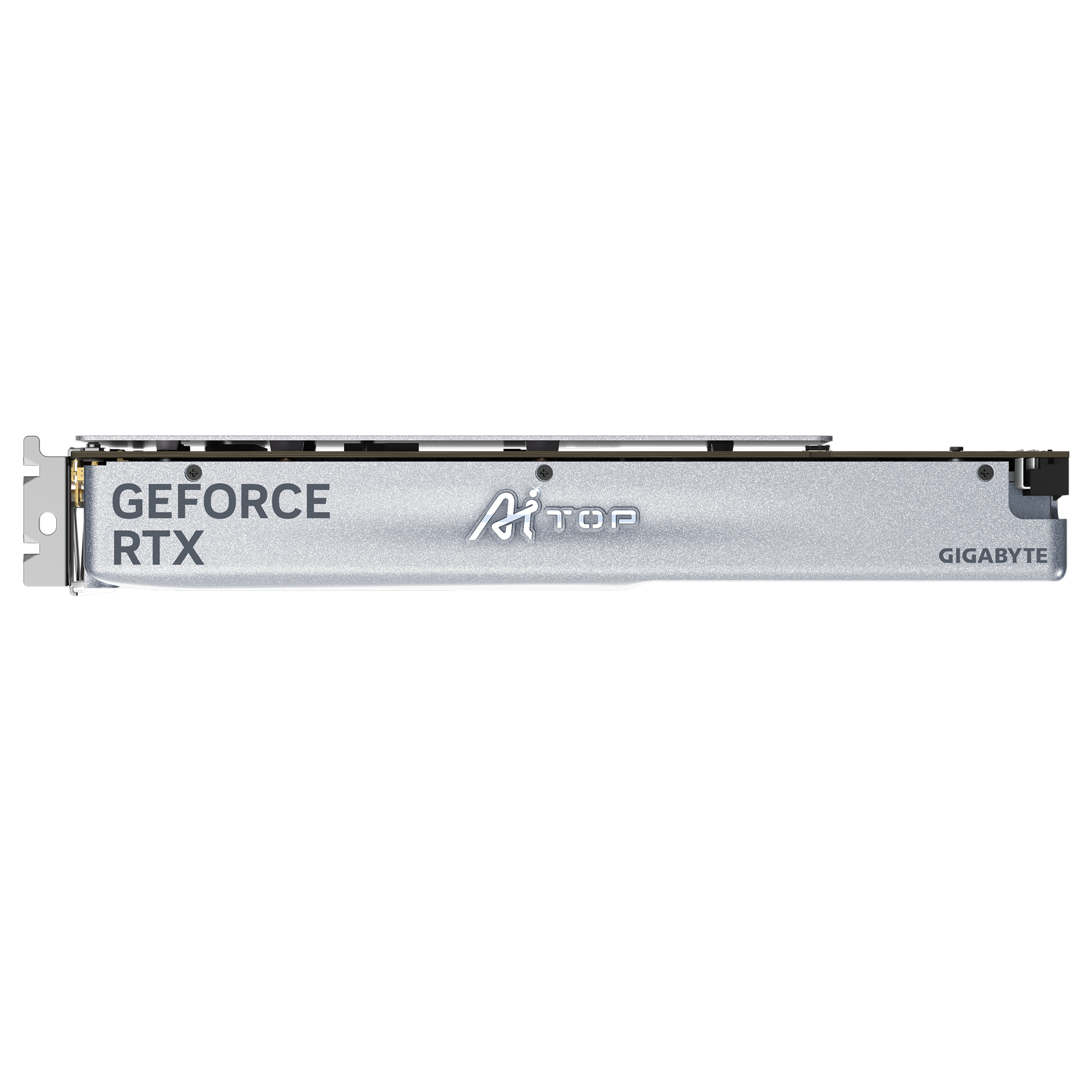

GIGABYTE GeForce RTX 4070 Ti SUPER AI TOP 16G
Model GeForce RTX 4070 Ti SUPER AI TOP 16GPart no. GV-N407TSAI TOP-16GDEAN 889523044162
51 specifications Checked yesterday
- TypeFull-Height/Full-Length (FH/FL)
- Weight1.22 kg
- ColourSilver
- Graphics processor familyNVIDIA
- Discrete graphics card memory16 GB
- Interface typePCI Express x16 4.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 1.22 kg
- Colour
- Silver
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 16 GB
- Interface type
- PCI Express x16 4.0
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GeForce RTX 4070 Ti SUPER AI TOP 16G
- Part number
- GV-N407TSAI TOP-16GD
- EAN / UPC
- 889523044162, 4719331354633
- Also known as
- GIGABYTE GeForce RTX 4070 Ti SUPER AI TOP 16G Graphics Card - 16GB GDDR6X, 256bit, PCI-E 4.0, 2610MHz Core Clock, 3 x DisplayPort 1.4a, 1 x HDMI 2.1a, NVIDIA DL
Specifications
51 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 4070 Ti SUPER |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 8448 |
| Processor frequency | 2610 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6X |
| Memory bus | 256 bit |
| Memory clock speed | 21000 MHz |
| Data transfer rate | 21 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1a |
| DisplayPort version | 1.4a |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Warranty period | 3 year(s) |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | Gigabyte Turbo Fan |
| Number of fans | 1 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Product colour | Silver |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Power consumption (typical) | 285 W |
| Supplementary power connectors | 1x 16-pin |
| Thermal Design Power (TDP) | 201 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.22 kg |
| Length | 260 mm |
| Depth | 36 mm |
| Height | 109 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 214 mm |
| Package depth | 322 mm |
| Package height | 75 mm |
| Package weight | 1.68 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Power |
| User guide | Yes |
| Bundled software | GIGABYTE CONTROL CENTER |
Logistics data
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
Compare GIGABYTE GeForce RTX 4070 Ti SUPER AI TOP 16G
Compare any products- GIGABYTE GeForce RTX 4070 Ti SUPER AI TOP 16G vsGIGABYTE GeForce RTX 4070 Ti SUPER WINDFORCE MAX OC 16GCompare specs
- GIGABYTE GeForce RTX 4070 Ti SUPER AI TOP 16G vsGIGABYTE Radeon PRO W7800 AI TOP 32GCompare specs

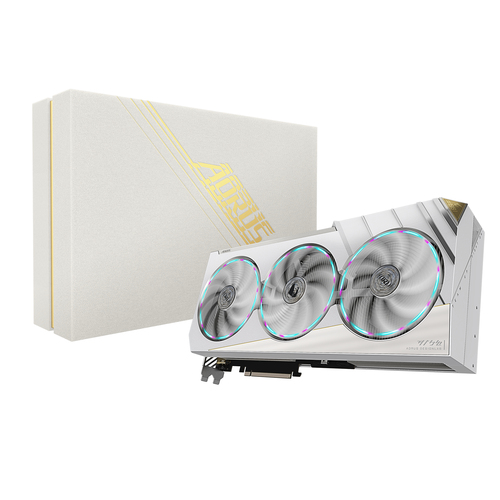

- GIGABYTE GeForce RTX 4070 Ti SUPER AI TOP 16G vsGIGABYTE AORUS GeForce RTX 4080 SUPER XTREME ICE 16GCompare specs

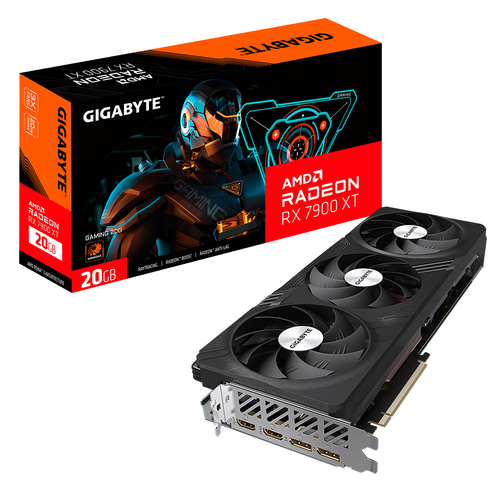

- GIGABYTE GeForce RTX 4070 Ti SUPER AI TOP 16G vsGIGABYTE Radeon RX 7900 XT GAMING 20GCompare specs
