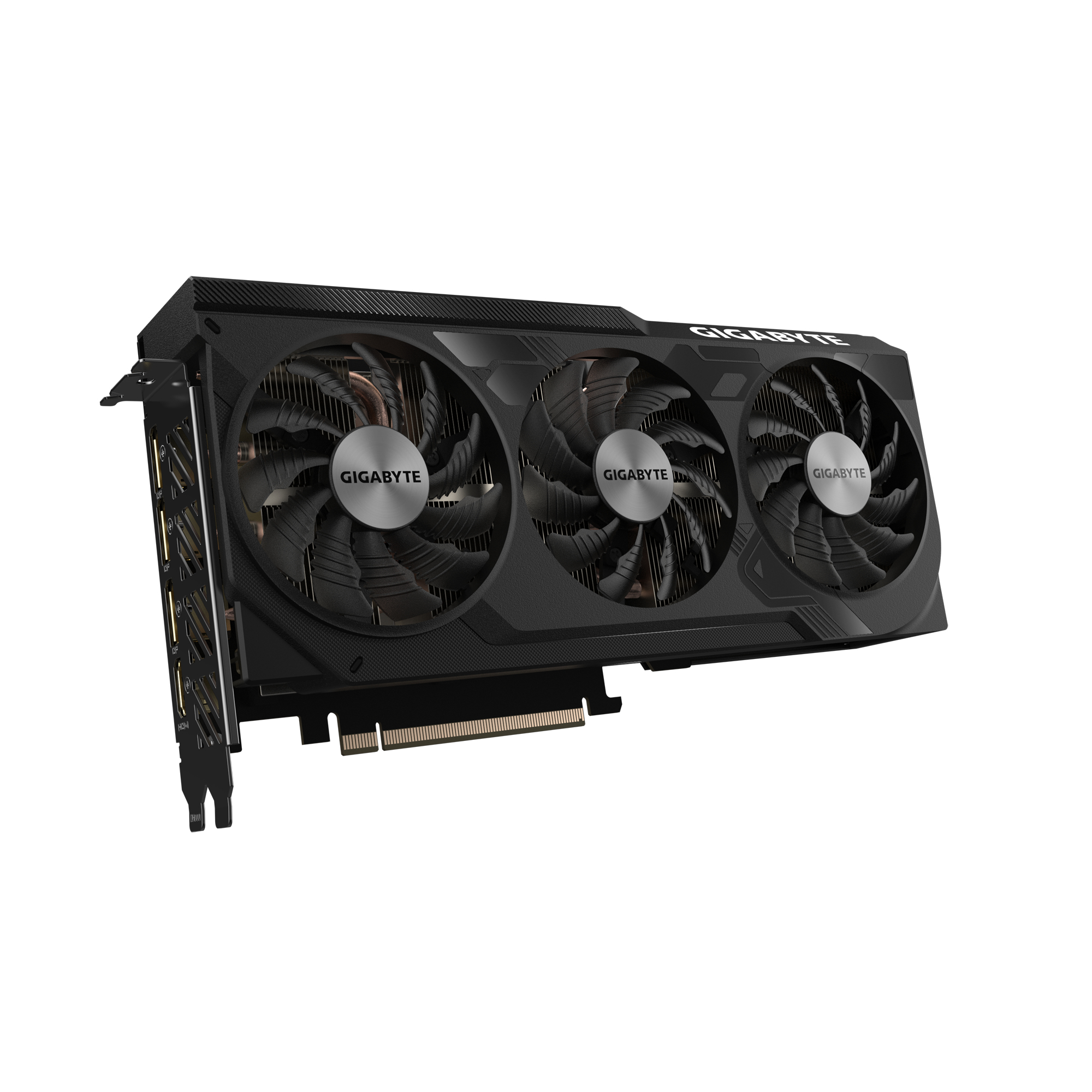

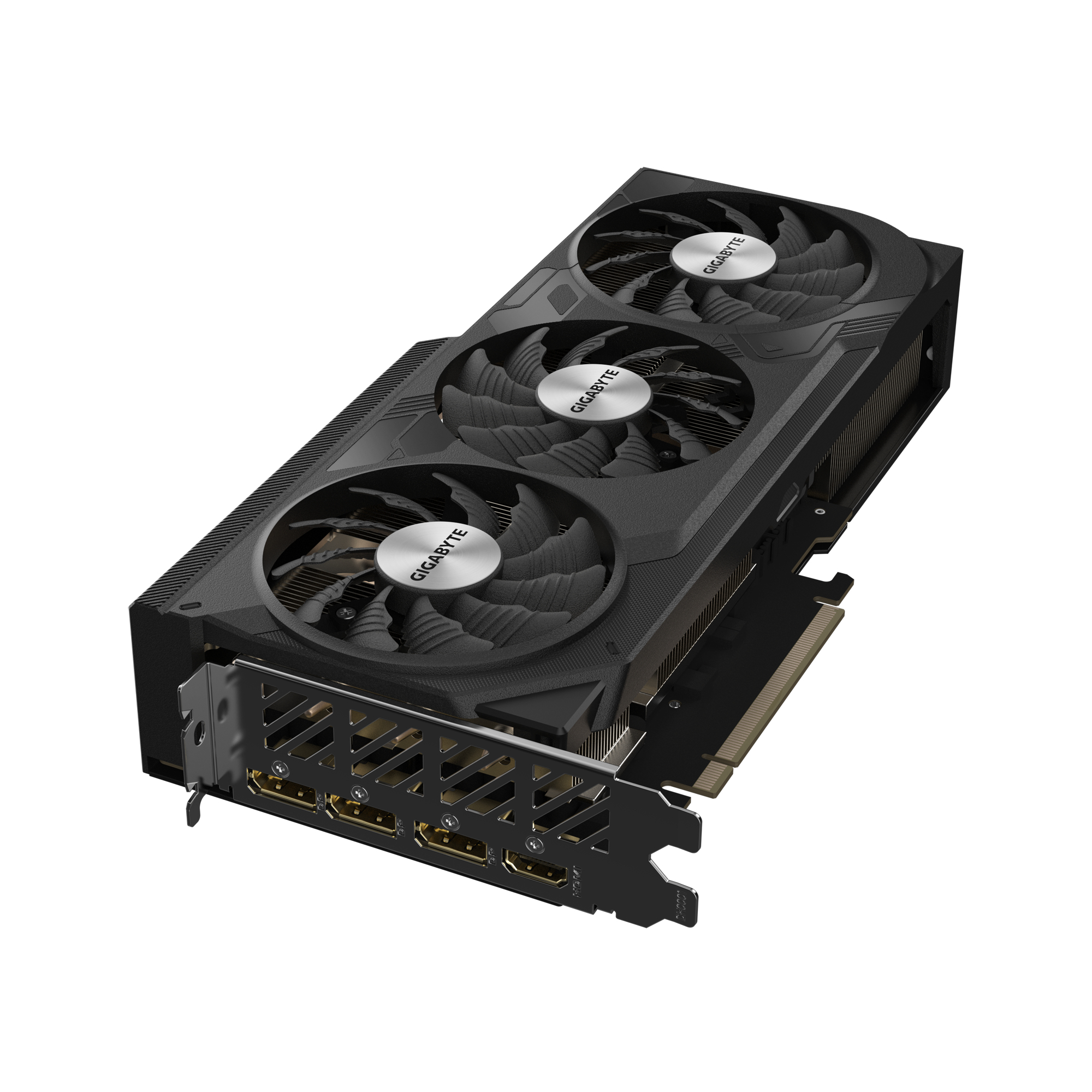

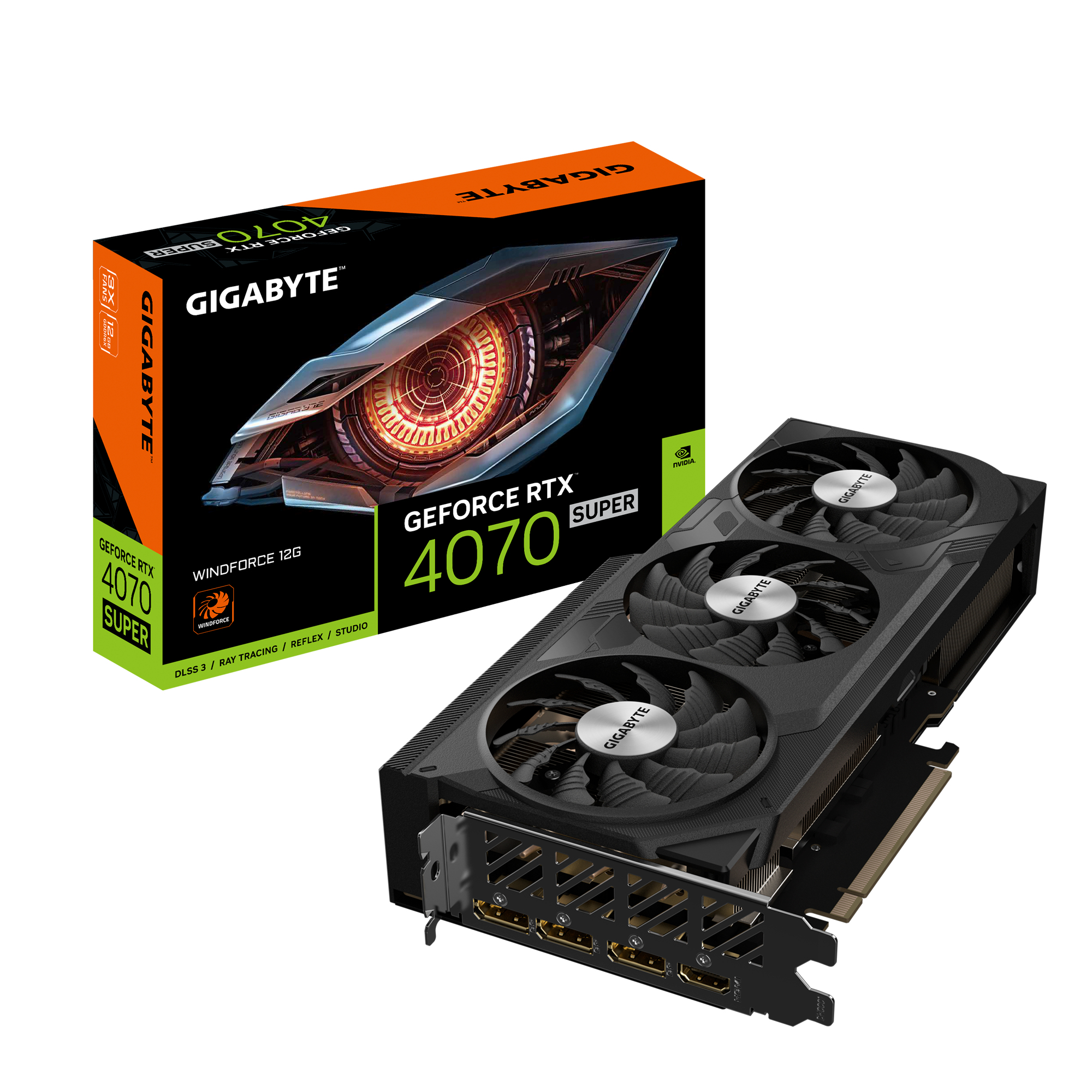

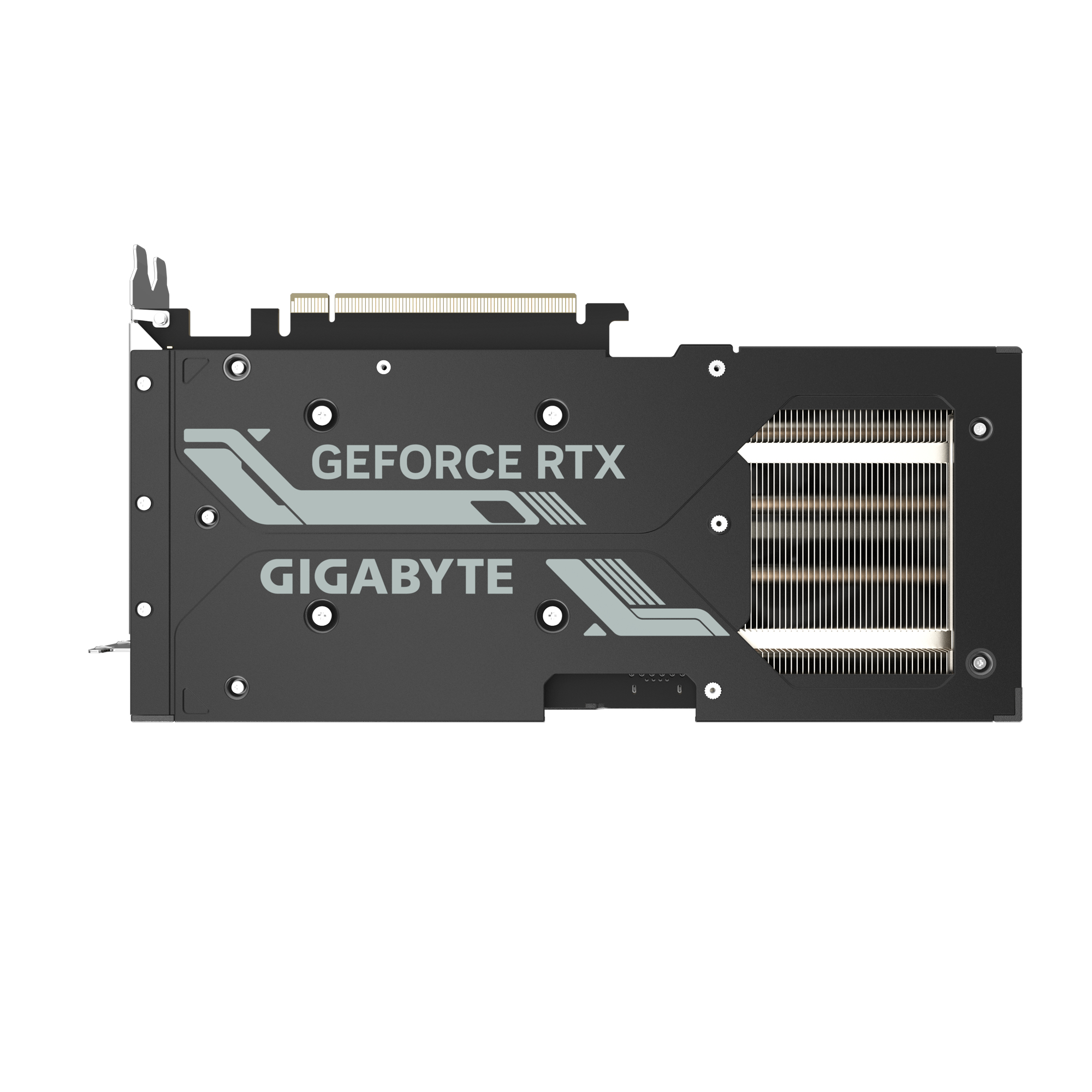

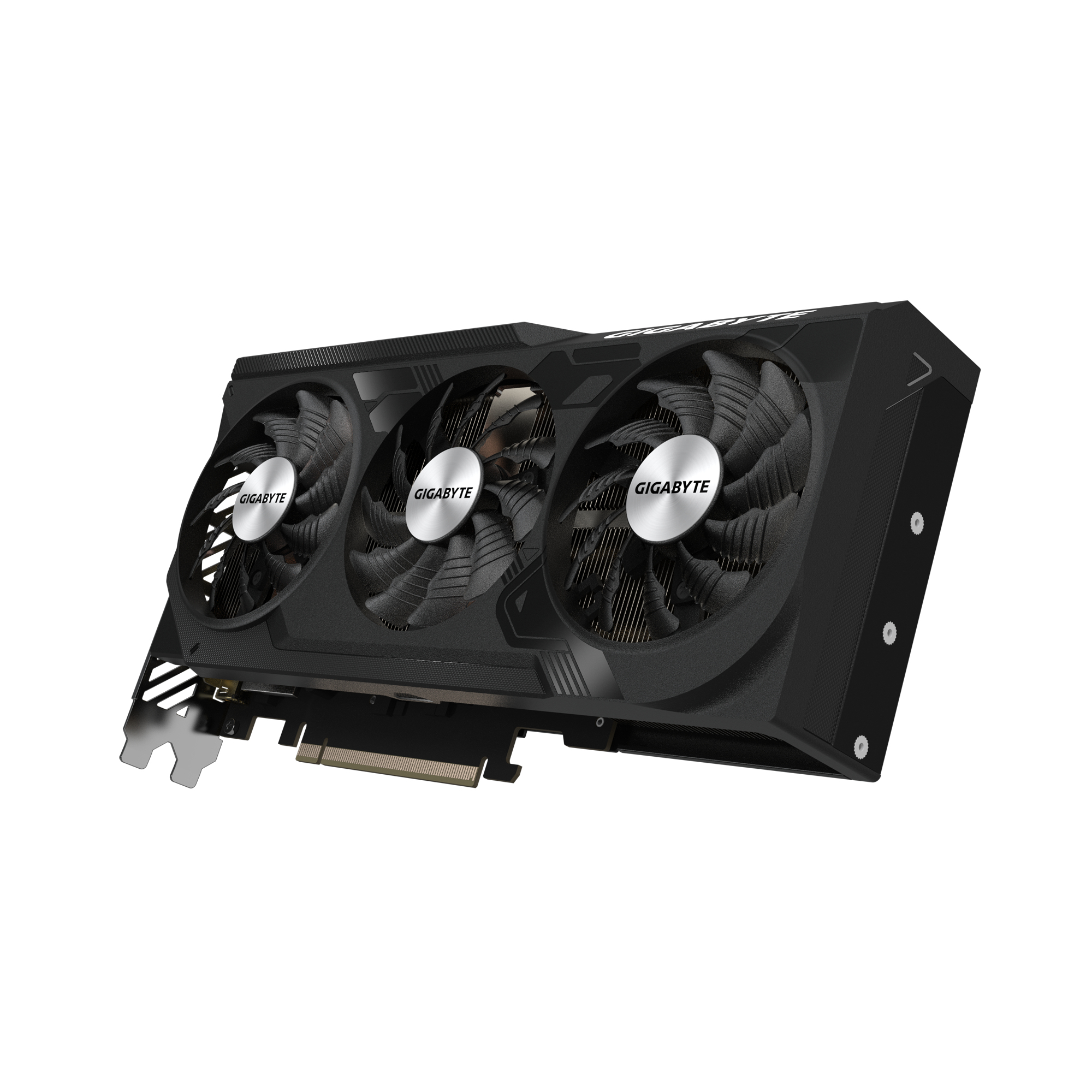

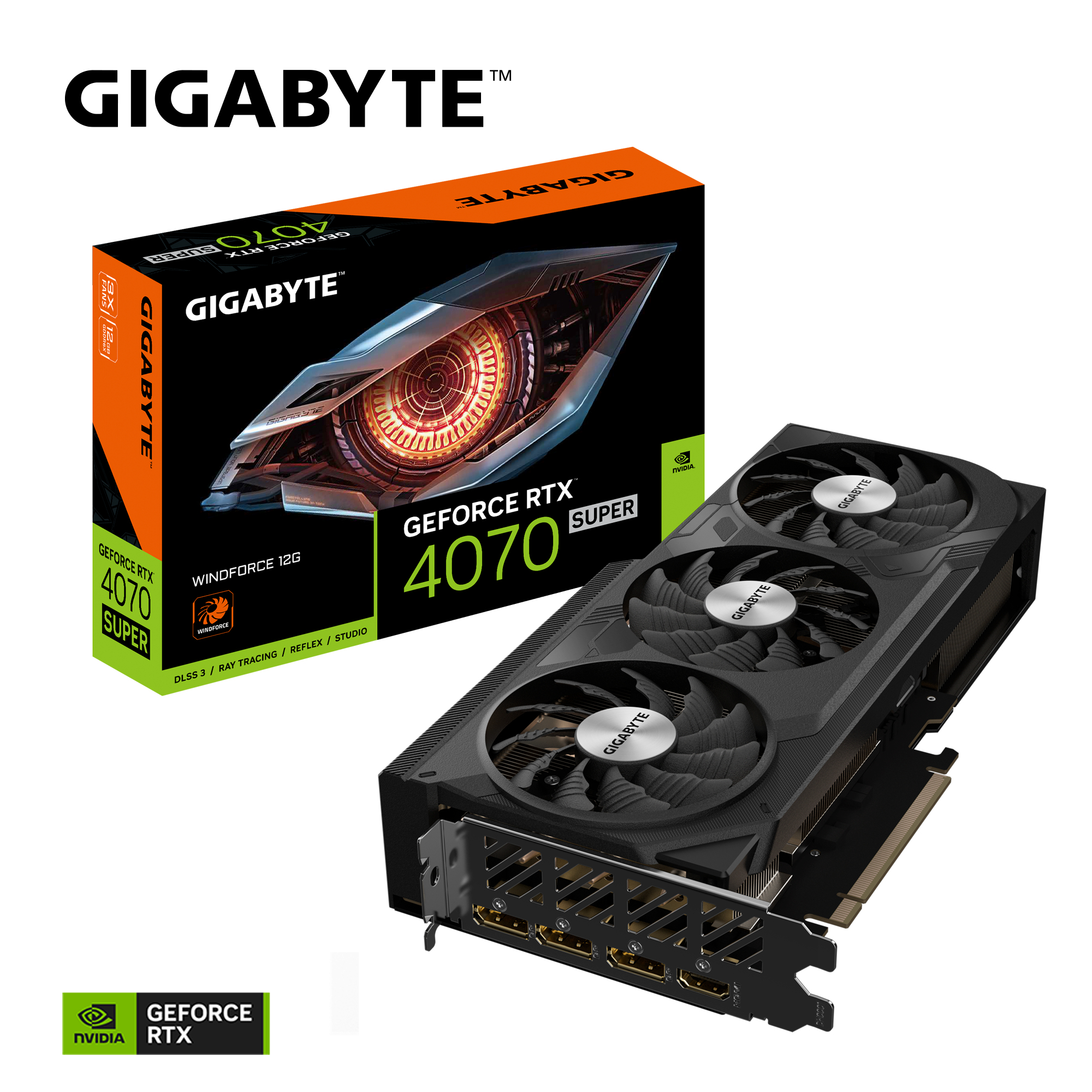

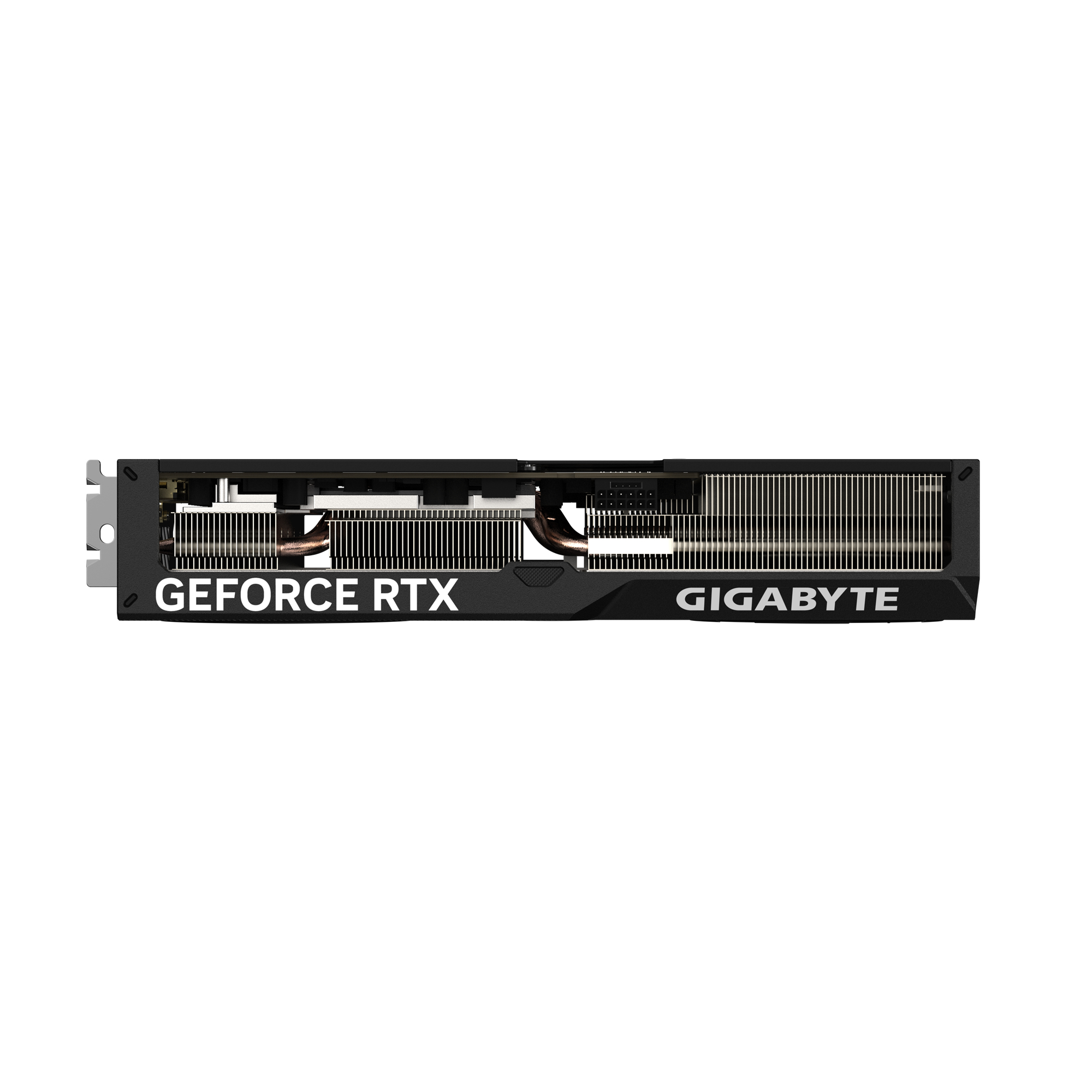

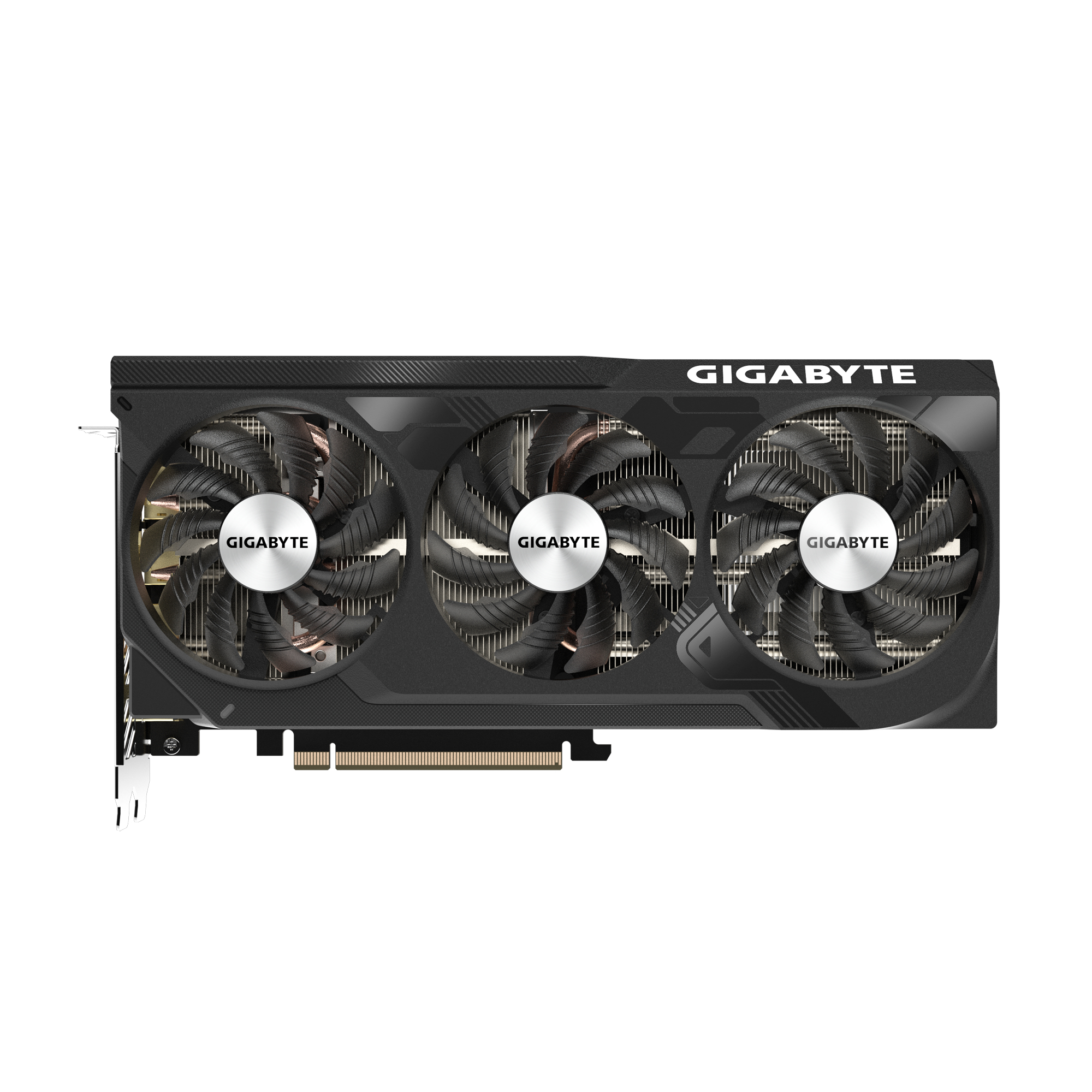

GIGABYTE GeForce RTX 4070 SUPER WINDFORCE 12G

GeForce RTX 4070 SUPER WINDFORCE 12G

Model GeForce RTX 4070 SUPER WINDFORCE 12GPart no. GV-N407SWF3-12GDEAN 4719331354459

37 specifications Checked today

TypeFull-Height/Full-Length (FH/FL)
ColourBlack
Graphics processor familyNVIDIA
Discrete graphics card memory12 GB
Interface typePCI Express x16 4.0
TV tuner integratedNo

See all specifications

Overview

Type: Full-Height/Full-Length (FH/FL)
Colour: Black
Graphics processor family: NVIDIA
Discrete graphics card memory: 12 GB
Interface type: PCI Express x16 4.0
TV tuner integrated: No

Brand: GIGABYTE
Category: GPU
Model: GeForce RTX 4070 SUPER WINDFORCE 12G
Part number: GV-N407SWF3-12GD
EAN / UPC: 4719331354459
Also known as: GIGABYTE GeForce RTX 4070 SUPER WINDFORCE 12G NVIDIA 12 GB GDDR6X

Specifications

37 specifications in 9 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 4070 SUPER
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	7168
Processor frequency	2475 MHz
Maximum displays per videocard	4

Memory

Specification	Value
Discrete graphics card memory	12 GB
Graphics card memory type	GDDR6X
Memory bus	192 bit
Memory clock speed	21000 MHz
Memory bandwidth (max)	21 GB/s

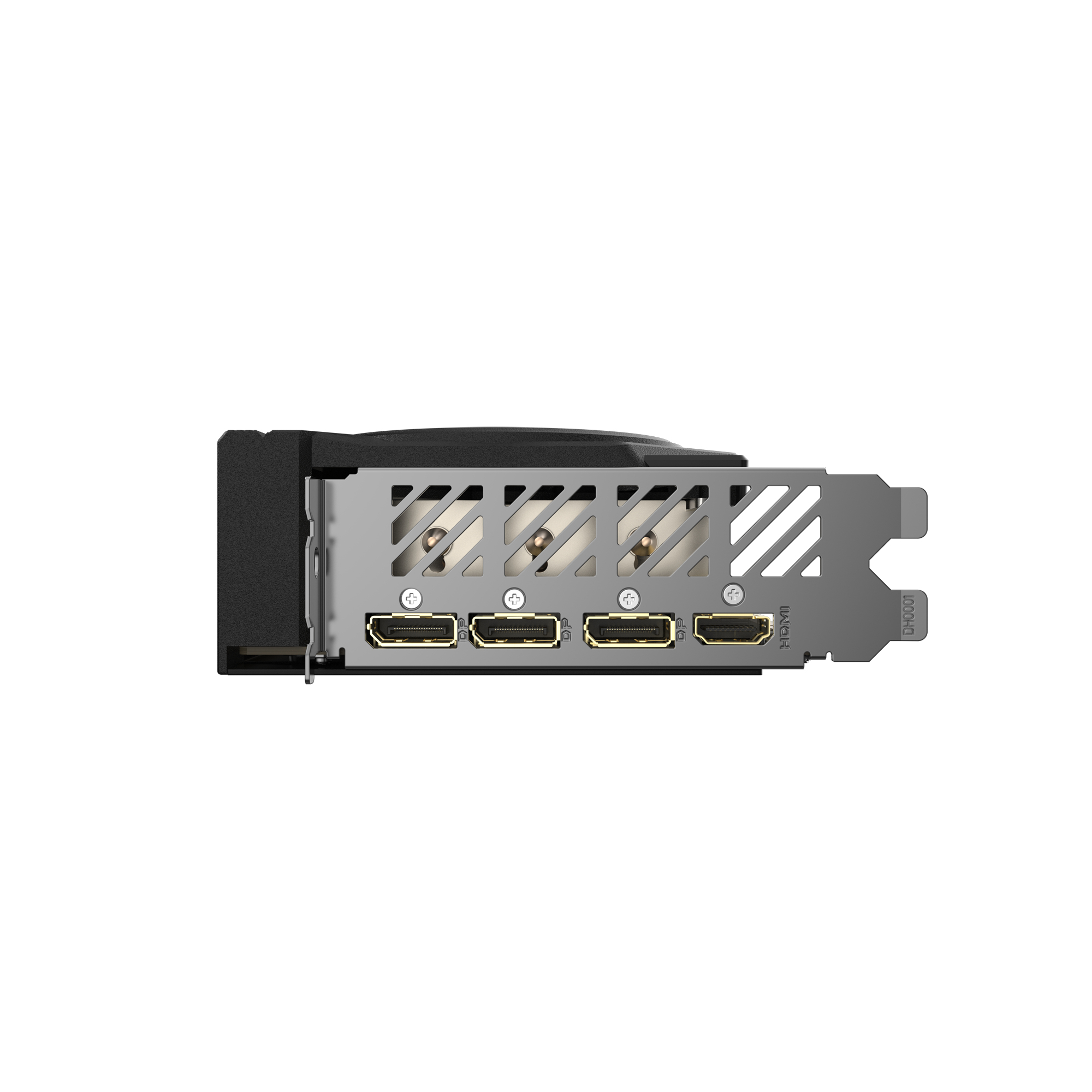

Ports & interfaces

Specification	Value
Interface type	PCI Express x16 4.0
HDMI ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	3
HDMI version	2.1a
DisplayPort version	1.4a

Performance

Specification	Value
TV tuner integrated	No
DirectX version	12 Ultimate
OpenGL version	4.6
Dual Link DVI	No
Warranty period	3 year(s)

Design

Specification	Value
Cooling type	Active
Number of fans	3 fan(s)
Fan diameter	8 cm
Form factor	Full-Height/Full-Length (FH/FL)
Illumination	Yes
Product colour	Black

Power

Specification	Value
Minimum system power supply	700 W
Supplementary power connectors	1x 16-pin

Weight & dimensions

Specification	Value
Length	261 mm
Depth	50 mm
Height	126 mm

Packaging data

Specification	Value
Package type	Box

Logistics data

Specification	Value
Products per shipping (inner) case	1 pc(s)
