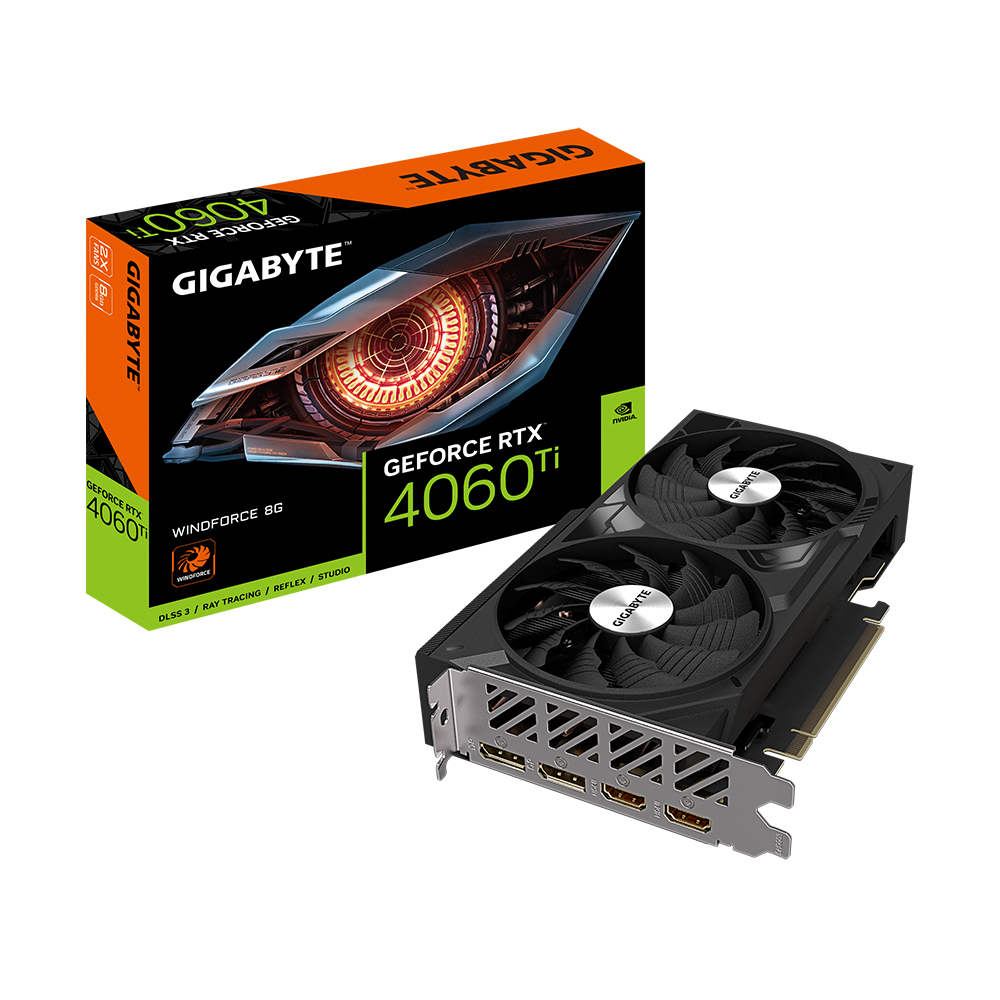

GeForce RTX 4060 Ti WINDFORCE 8G
Model GeForce RTX 4060 Ti WINDFORCE 8GPart no. GV-N406TWF2-8GDEAN 4719331314699
48 specifications Checked today
- Weight600 g
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express x8 4.0
- TV tuner integratedNo
Overview
- Weight
- 600 g
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express x8 4.0
- TV tuner integrated
- No
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GeForce RTX 4060 Ti WINDFORCE 8G
- Part number
- GV-N406TWF2-8GD
- EAN / UPC
- 4719331314699
- Also known as
- GIGABYTE GeForce RTX 4060 Ti WINDFORCE 8G Graphics Card - 8GB GDDR6, 128bit, PCI-E 4.0, 2535MHz Core Clock, 3 x DisplayPort 1.4a, 1 x HDMI 2.1a, NVIDIA DLSS 3,
Specifications
48 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 4060 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 4352 |
| Processor frequency | 2535 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Memory clock speed | 18000 MHz |
| Data transfer rate | 18 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x8 4.0 |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.1a |
| DisplayPort version | 1.4a |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Overclocked (OC) edition | No |
| Warranty period | 3 year(s) |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 2X |
| Number of fans | 2 fan(s) |
| Number of slots | 2 |
| Illumination | No |
| SFF ready | No |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 500 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 600 g |
| Length | 201 mm |
| Depth | 41 mm |
| Height | 120 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 210.5 mm |
| Package depth | 295 mm |
| Package height | 50 mm |
| Package weight | 880 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
