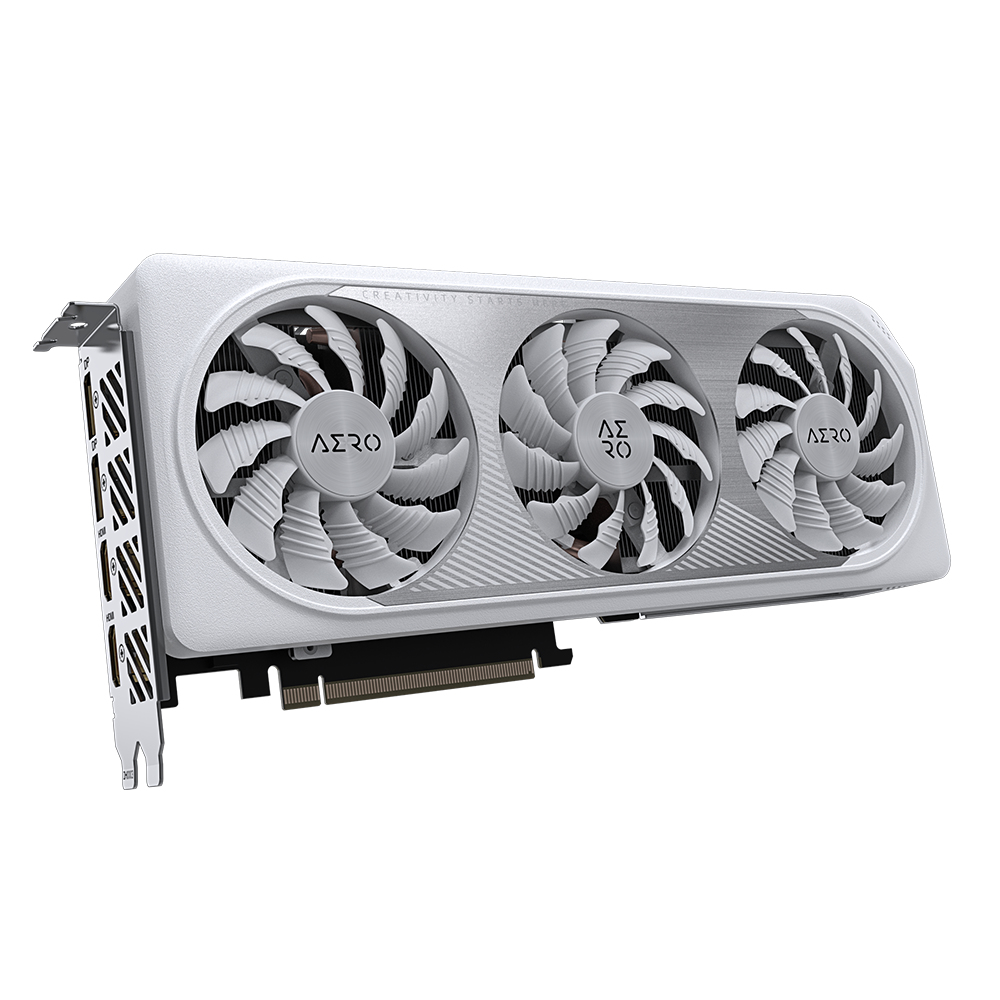

GIGABYTE GeForce RTX 4060 Ti AERO OC 8G

GeForce RTX 4060 Ti AERO OC 8G

Model GeForce RTX 4060 Ti AERO OC 8GPart no. GV-N406TAERO OC-8GDEAN 889523038086

36 specifications Checked today

TypeFull-Height/Full-Length (FH/FL)
ColourWhite
Graphics processor familyNVIDIA
Discrete graphics card memory8 GB
Interface typePCI Express 4.0
TV tuner integratedNo

See all specifications

Overview

Type: Full-Height/Full-Length (FH/FL)
Colour: White
Graphics processor family: NVIDIA
Discrete graphics card memory: 8 GB
Interface type: PCI Express 4.0
TV tuner integrated: No

Brand: GIGABYTE
Category: GPU
Model: GeForce RTX 4060 Ti AERO OC 8G
Part number: GV-N406TAERO OC-8GD
EAN / UPC: 889523038086, 4719331313449
Also known as: GIGABYTE AERO GeForce RTX 4060 Ti OC 8G NVIDIA 8 GB GDDR6

Specifications

36 specifications in 9 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 4060 Ti
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	4352
Processor boost clock speed	2580 MHz
Maximum displays per videocard	4
Parallel processing technology support	Not supported

Memory

Specification	Value
Discrete graphics card memory	8 GB
Graphics card memory type	GDDR6
Memory bus	128 bit
Data transfer rate	18 Gbit/s

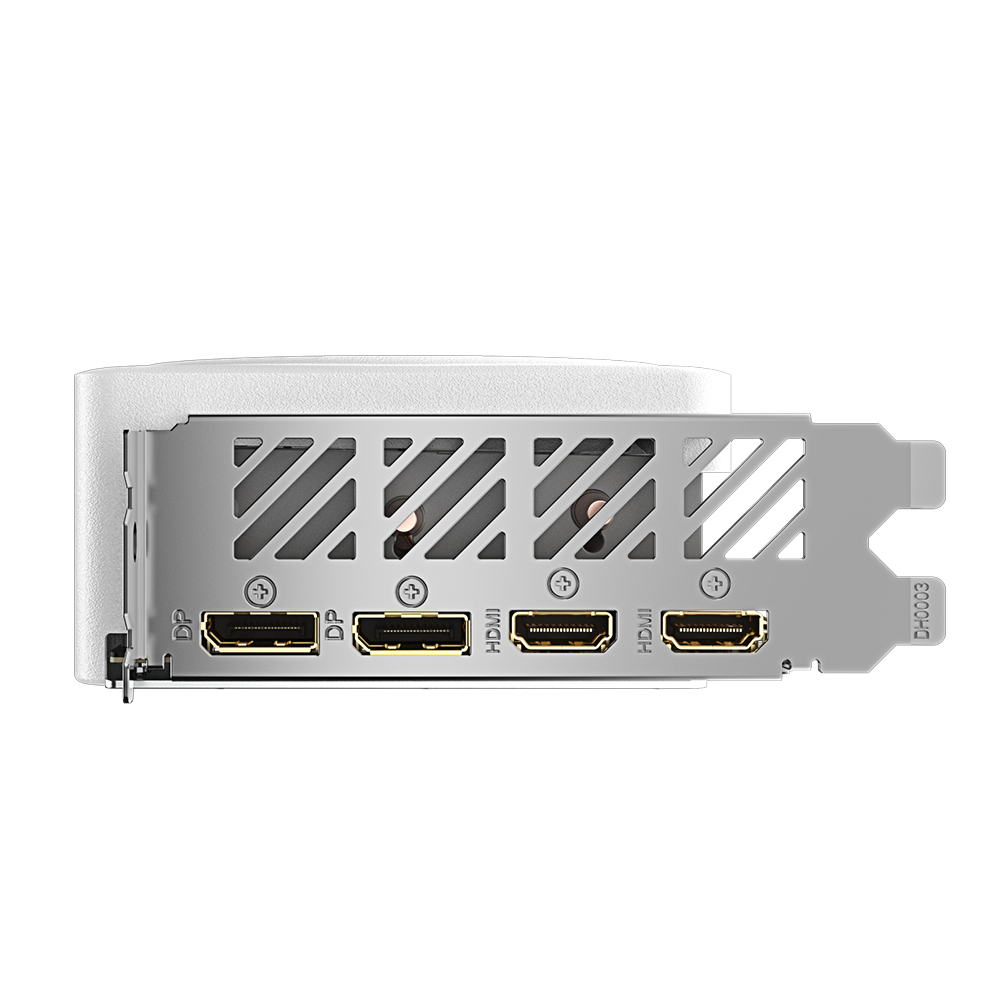

Ports & interfaces

Specification	Value
Interface type	PCI Express 4.0
HDMI ports quantity	2
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	2
HDMI version	2.1a
DisplayPort version	1.4a

Performance

Specification	Value
TV tuner integrated	No
DirectX version	12 Ultimate
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No

Design

Specification	Value
Cooling type	Active
Cooling technology	GIGABYTE WINDFORCE 3X
Number of fans	3 fan(s)
Form factor	Full-Height/Full-Length (FH/FL)
Product colour	White

Power

Specification	Value
Minimum system power supply	500 W
Supplementary power connectors	1x 8-pin

Weight & dimensions

Specification	Value
Length	281 mm
Depth	50 mm
Height	117 mm

Packaging data

Specification	Value
Package type	Box

Packaging content

Specification	Value
Quick installation guide	Yes
