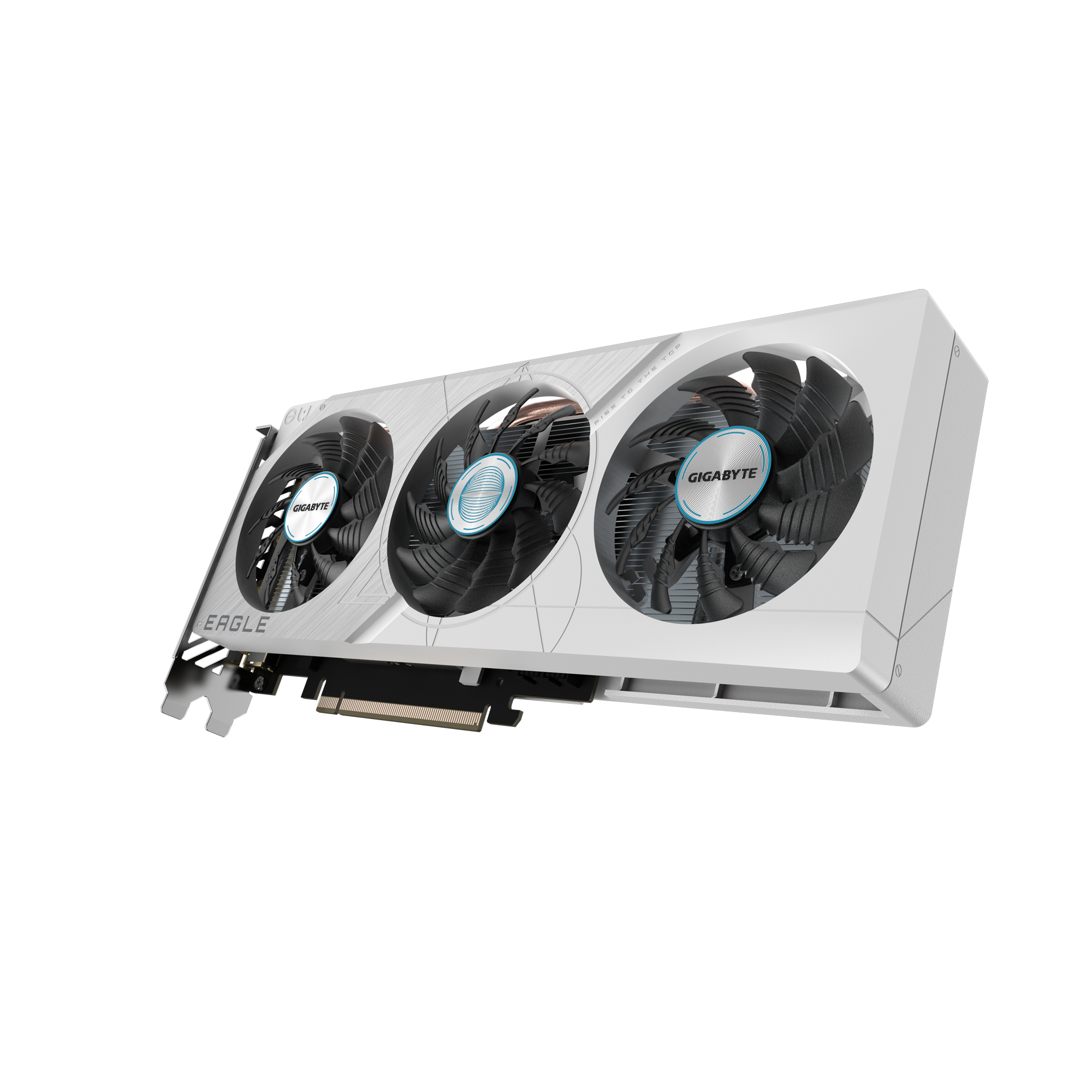

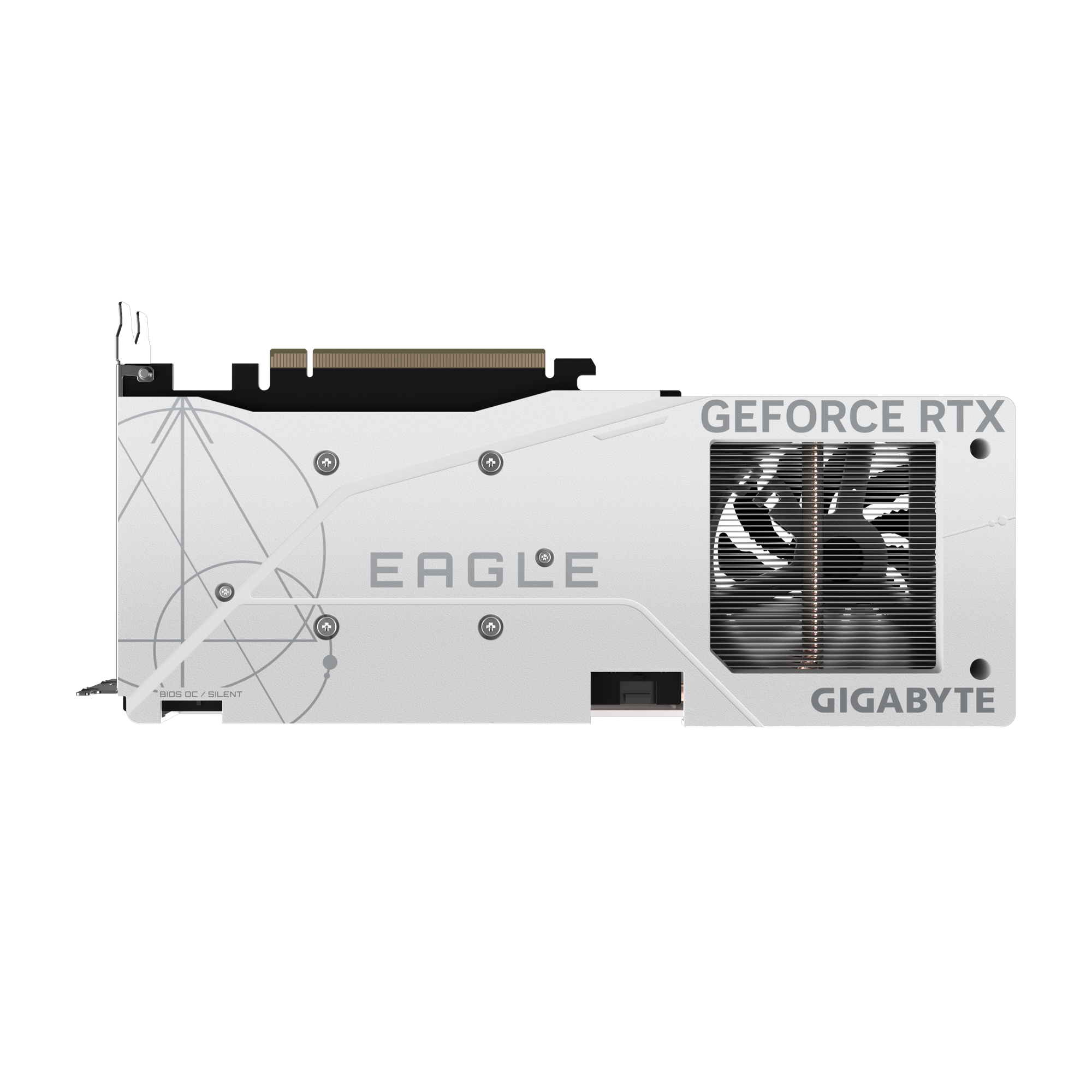

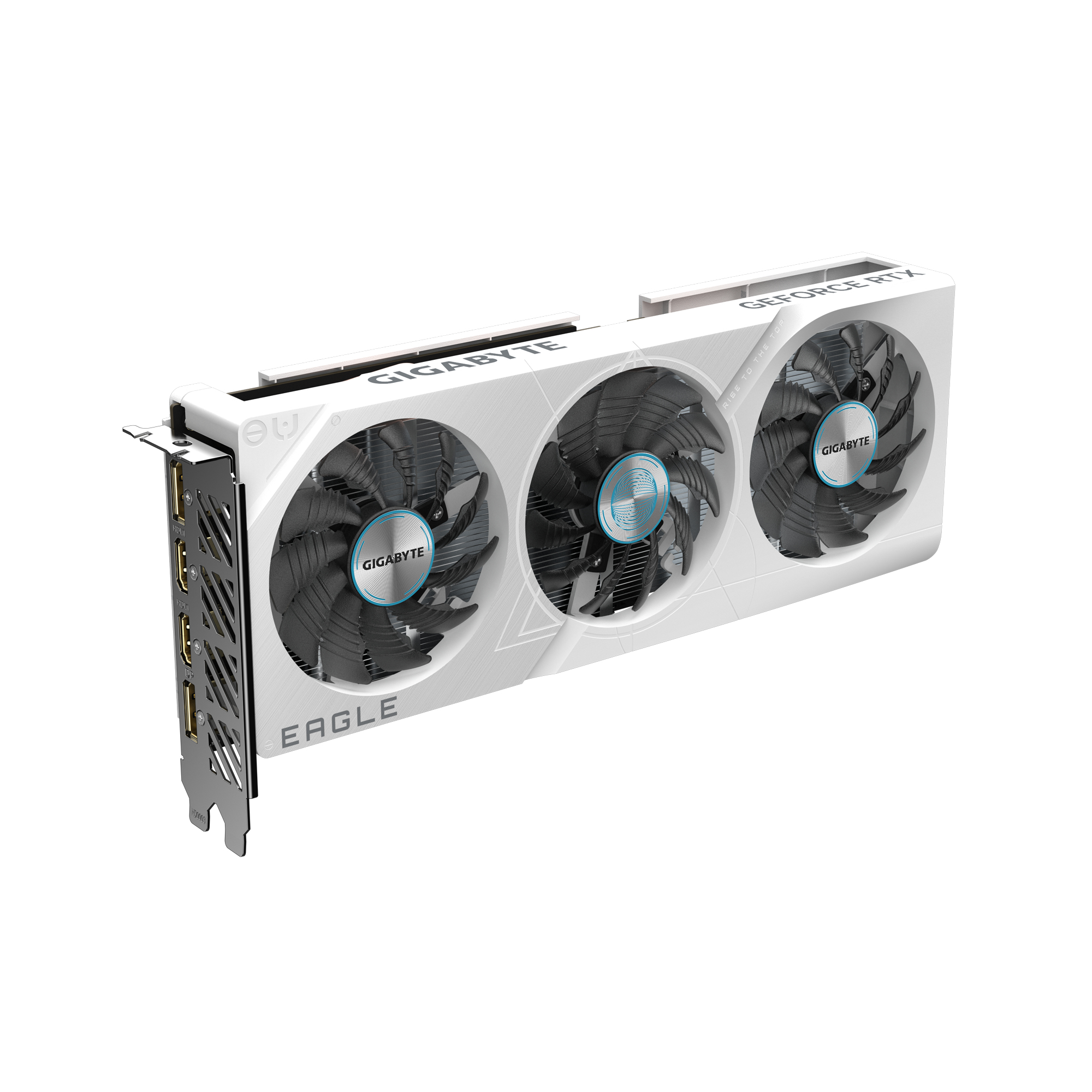

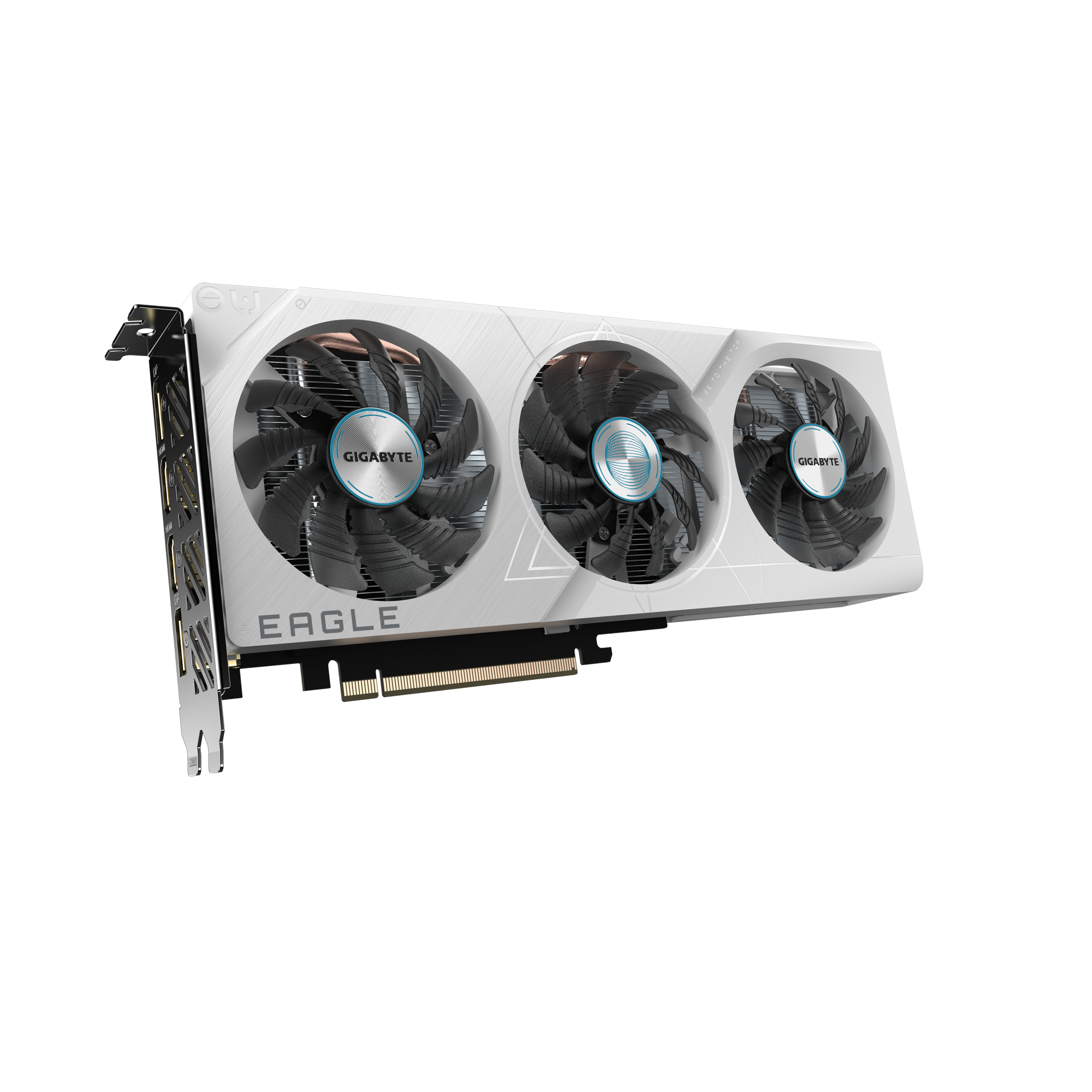

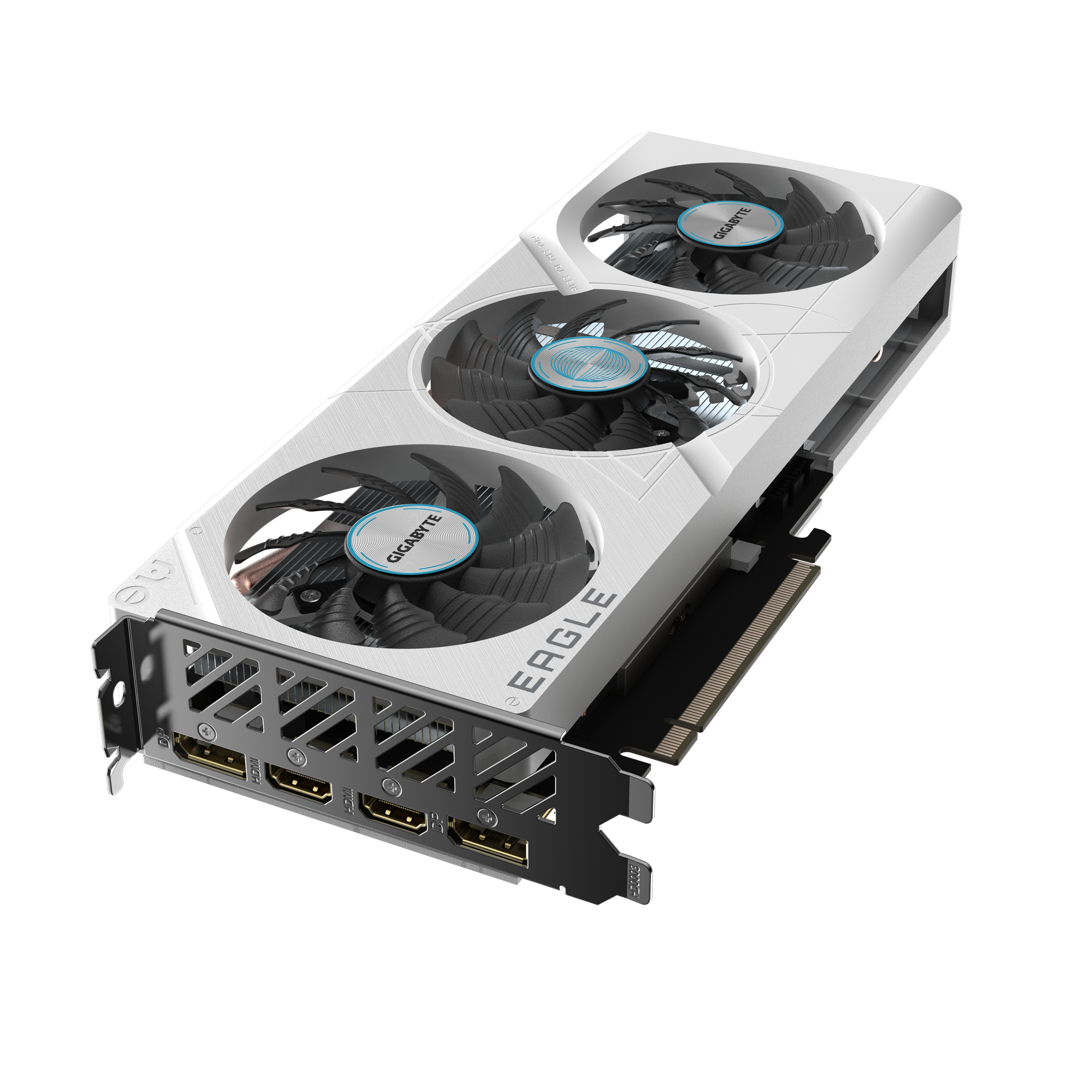

GeForce RTX 4060 EAGLE OC ICE 8G
Model GeForce RTX 4060 EAGLE OC ICE 8GPart no. GV-N4060EAGLEOC ICE-8GDEAN 4719331354336
49 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight640 g
- ColourWhite
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express x8 4.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 640 g
- Colour
- White
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express x8 4.0
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GeForce RTX 4060 EAGLE OC ICE 8G
- Part number
- GV-N4060EAGLEOC ICE-8GD
- EAN / UPC
- 4719331354336
- Also known as
- GIGABYTE GeForce RTX 4060 EAGLE OC ICE 8G Graphics Card - 8GB GDDR6, 128bit, PCI-E 4.0, 2505MHz Core Clock, 2 x DisplayPort 1.4a, 2 x HDMI 2.1a, NVIDIA DLSS 3,
Specifications
49 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 4060 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 3072 |
| Processor frequency | 2505 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Memory clock speed | 17000 MHz |
| Data transfer rate | 17 Gbit/s |

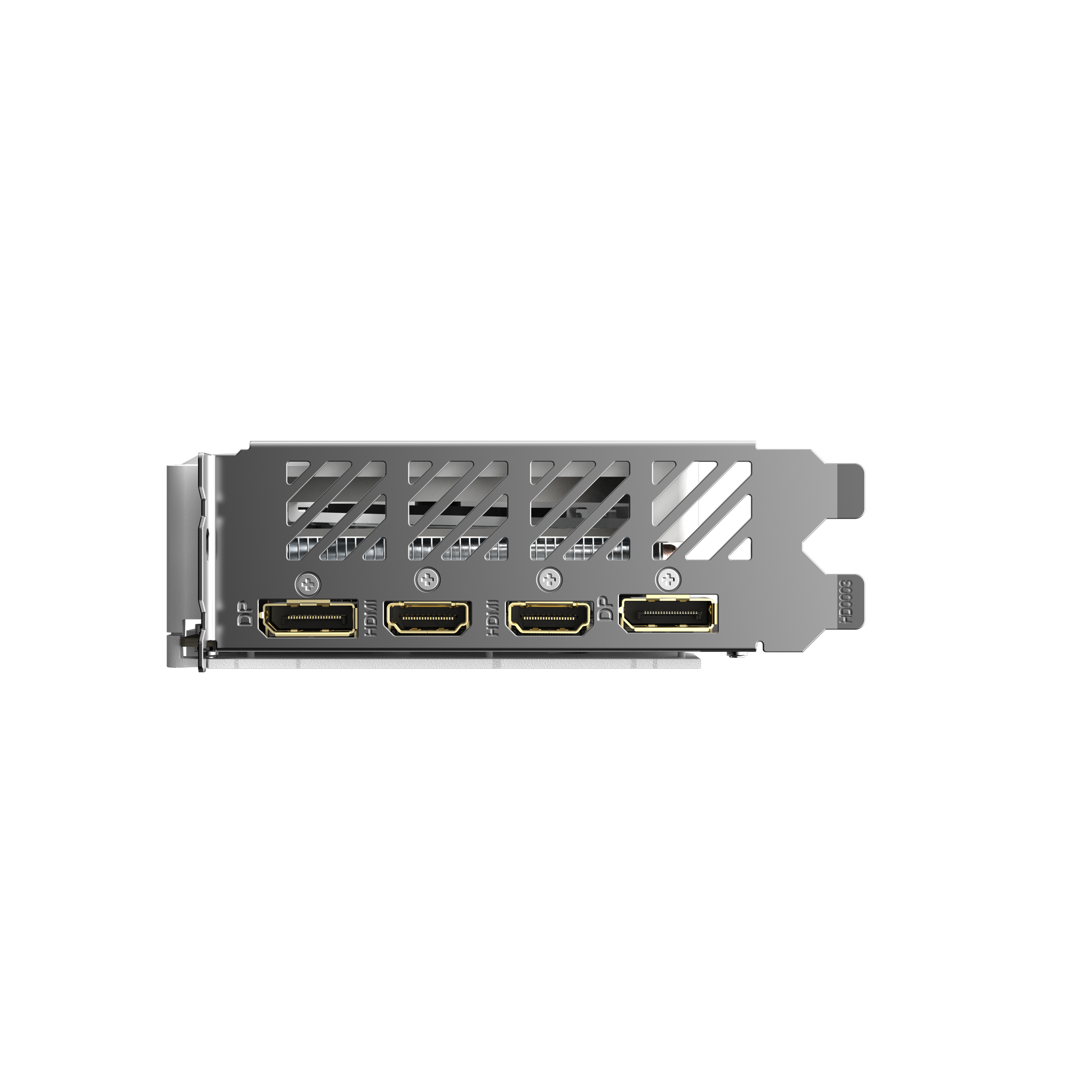

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x8 4.0 |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.1a |
| DisplayPort version | 1.4a |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Warranty period | 3 year(s) |

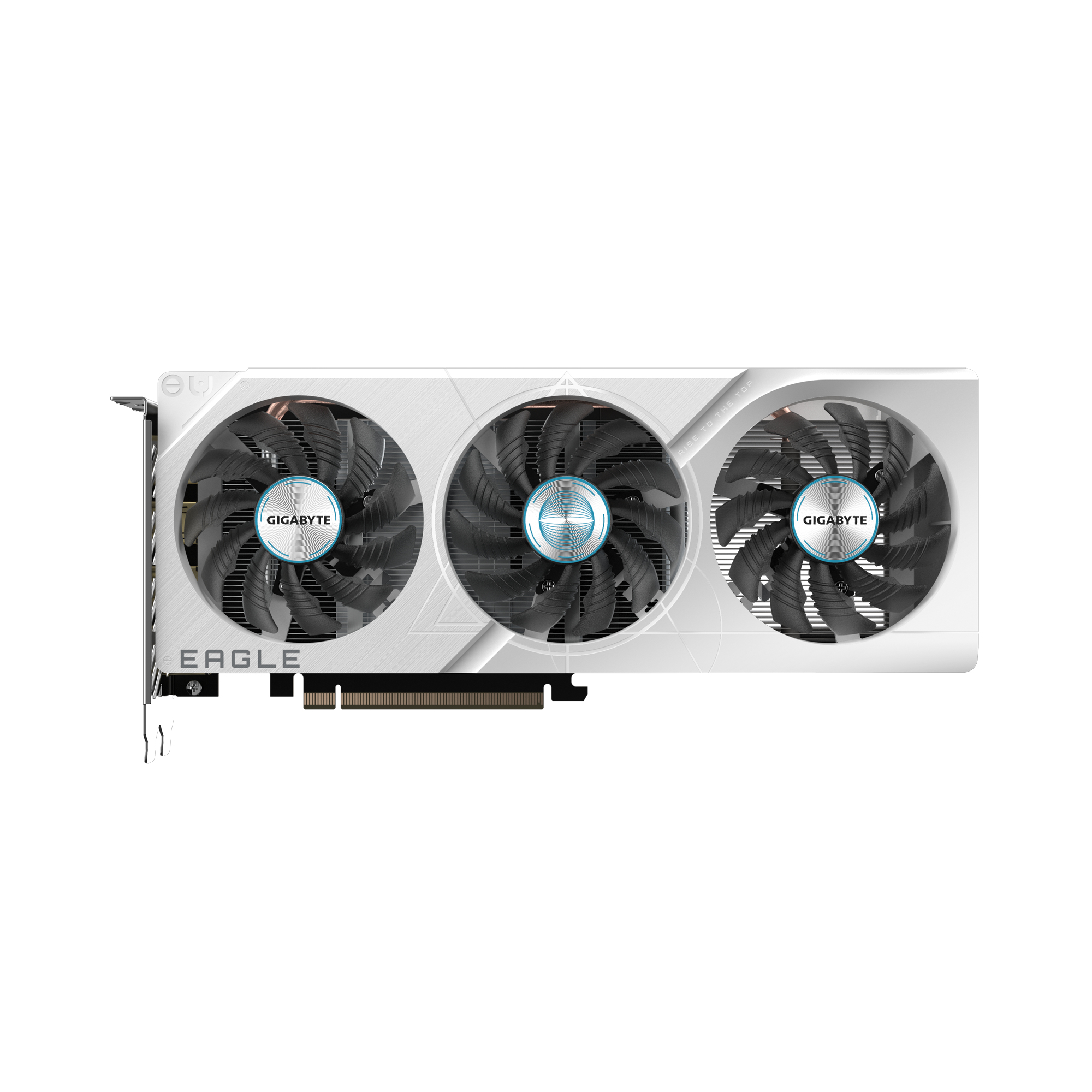

Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Fan diameter | 8 cm |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | White |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 450 W |

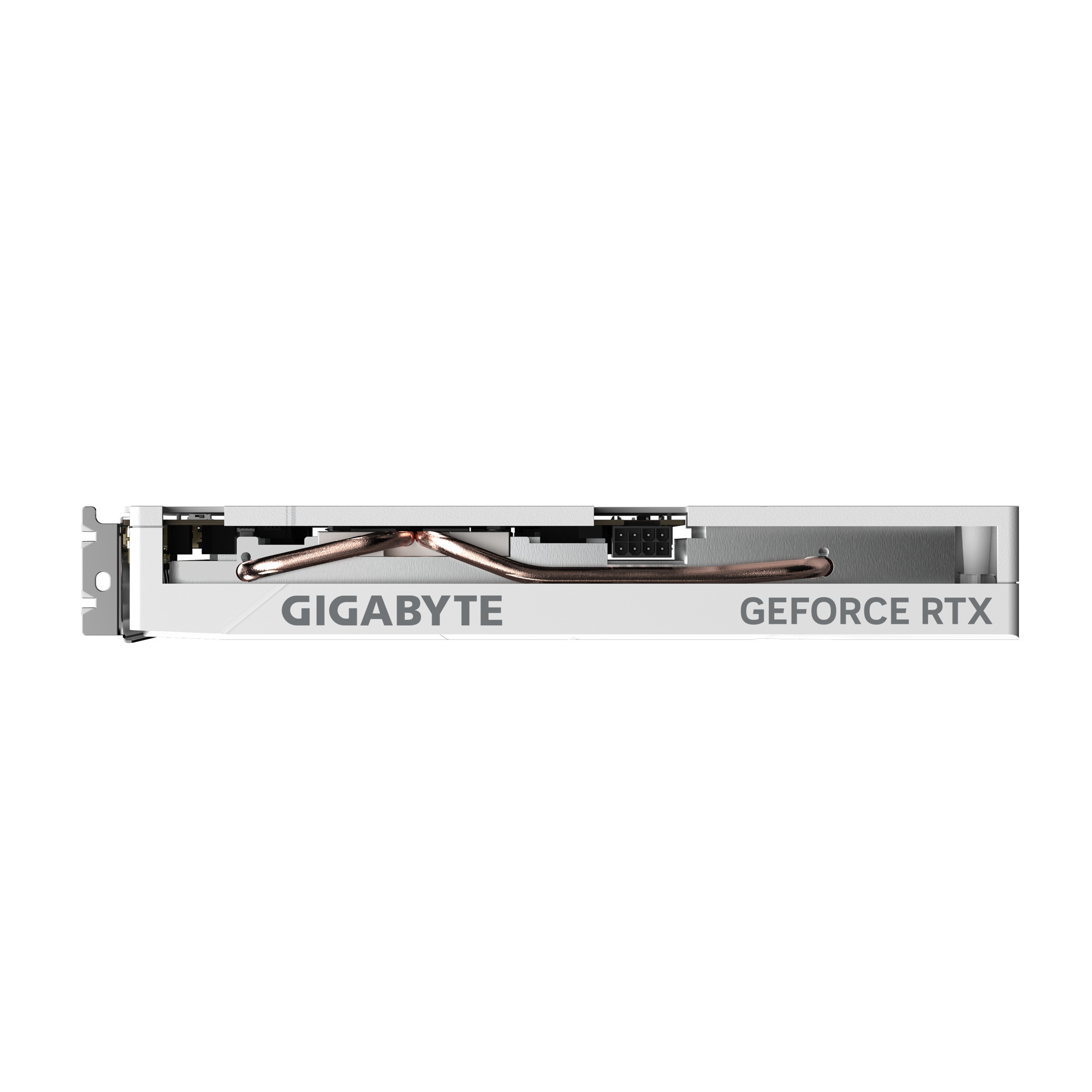

| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 75 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 640 g |
| Length | 272 mm |
| Depth | 40 mm |
| Height | 115 mm |

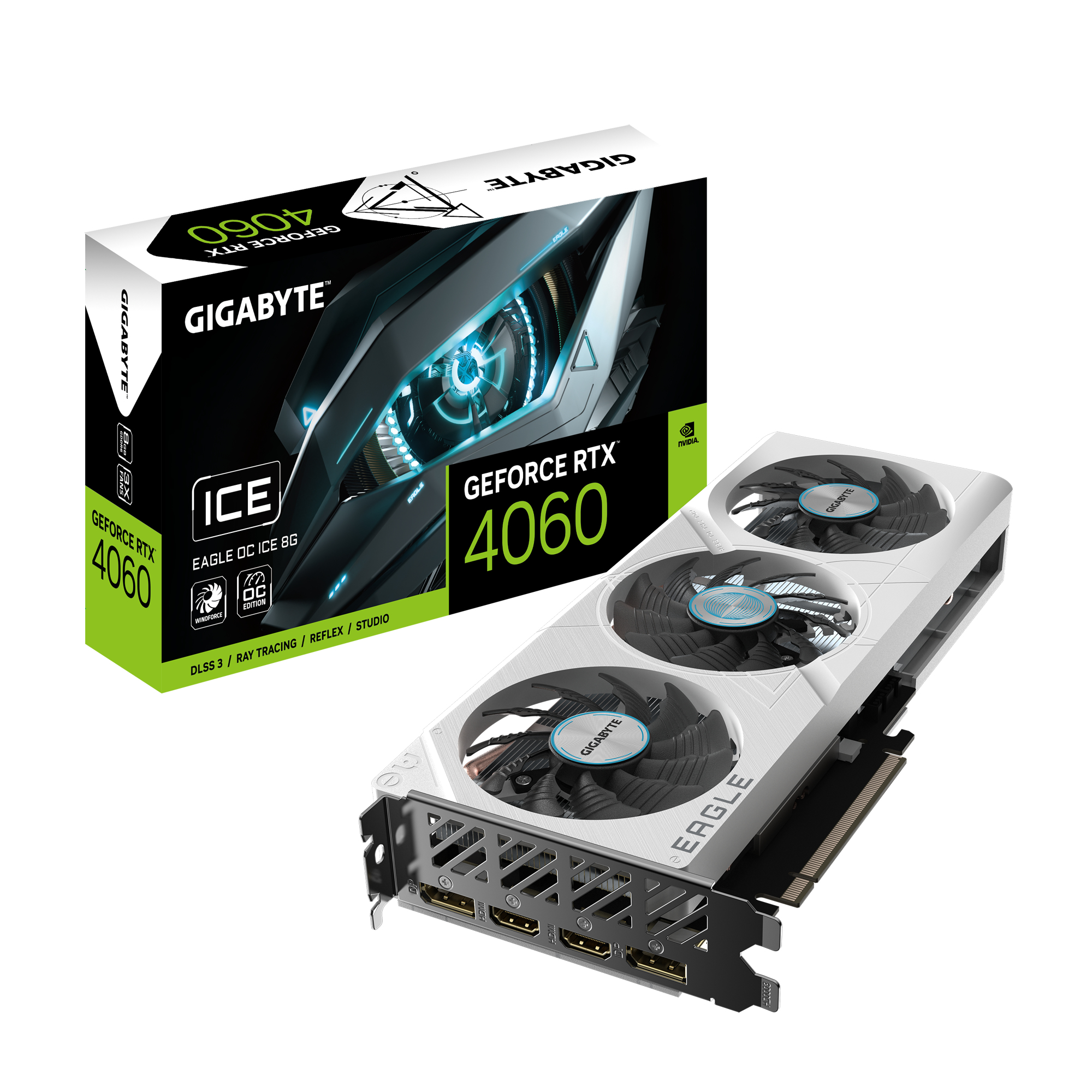

Packaging data
| Specification | Value |
|---|---|
| Package width | 182.5 mm |
| Package depth | 354 mm |
| Package height | 75 mm |
| Package weight | 1.1 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Power |
| User guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
