GeForce RTX 4060 AERO OC 8G
Model GeForce RTX 4060 AERO OC 8GPart no. GV-N4060AERO OC-8GDEAN 889523038550
37 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- ColourWhite
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express 4.0
- TV tuner integratedNo
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Colour
- White
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express 4.0
- TV tuner integrated
- No
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GeForce RTX 4060 AERO OC 8G
- Part number
- GV-N4060AERO OC-8GD
- EAN / UPC
- 889523038550, 4719331313661
- Also known as
- GIGABYTE AERO GeForce RTX 4060 OC 8G NVIDIA 8 GB GDDR6
Specifications
37 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 4060 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 3072 |
| Processor frequency | 2550 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |

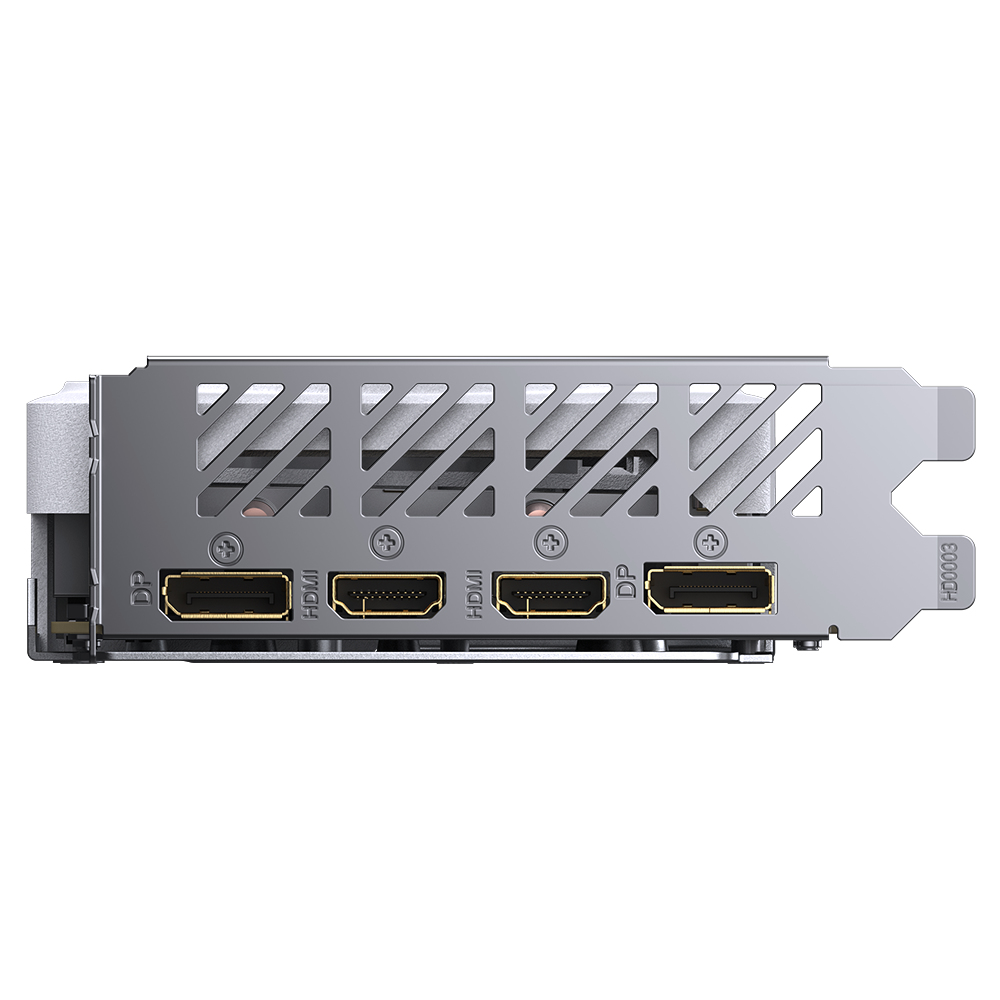

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 2 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1a |
| DisplayPort version | 1.4a |
| Mini DisplayPorts quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | White |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 450 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 281 mm |
| Depth | 38 mm |
| Height | 114 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
