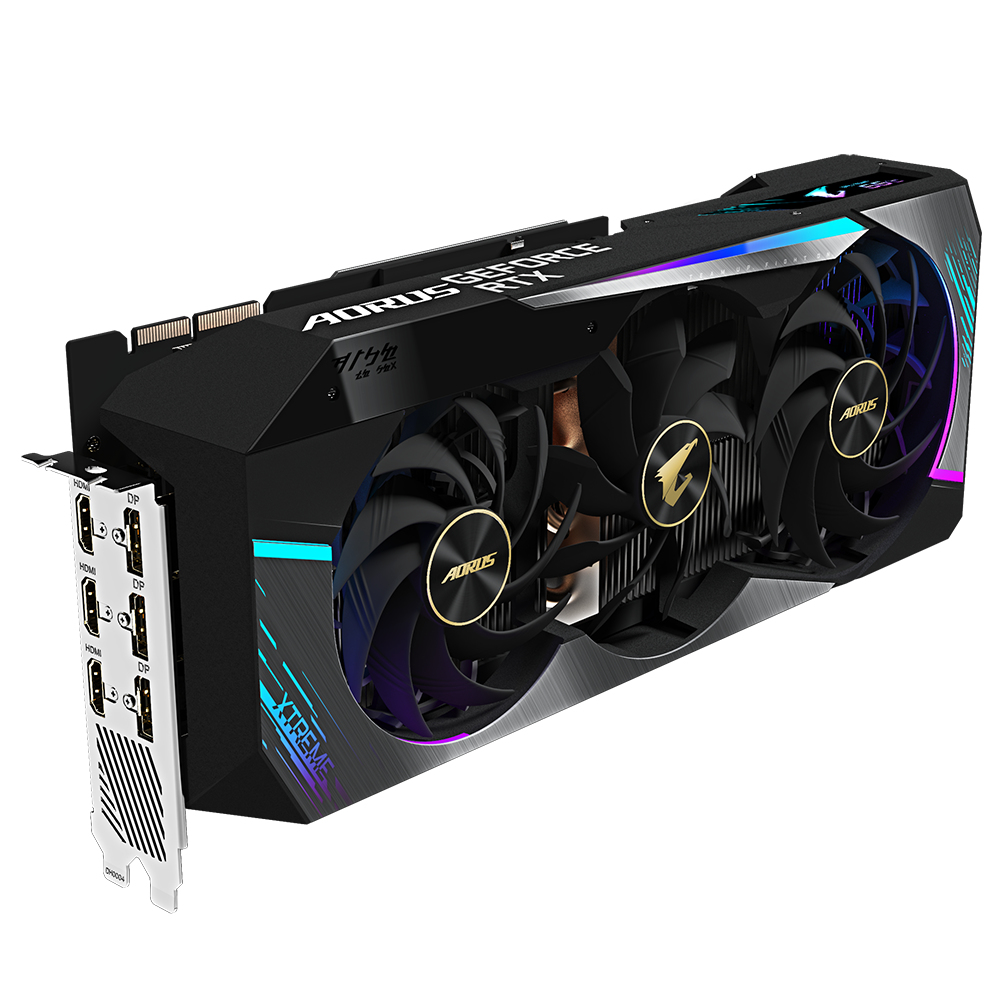

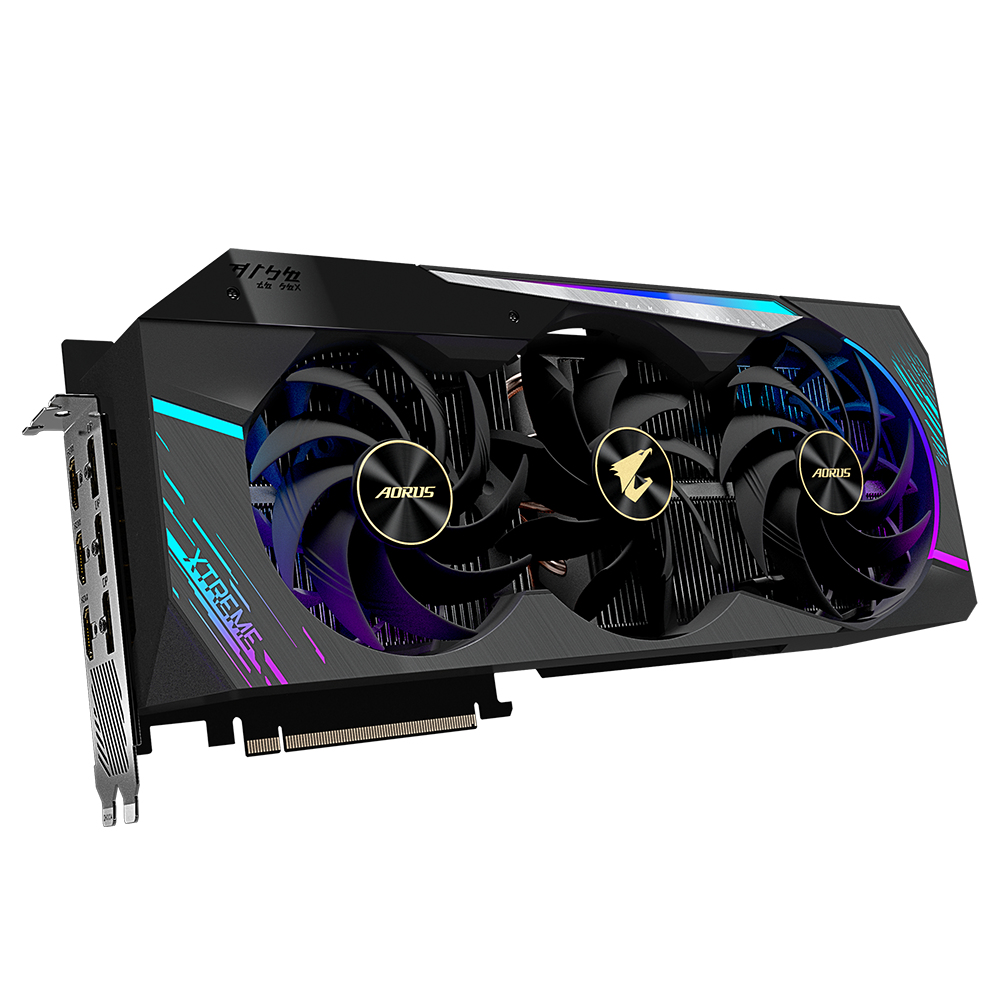

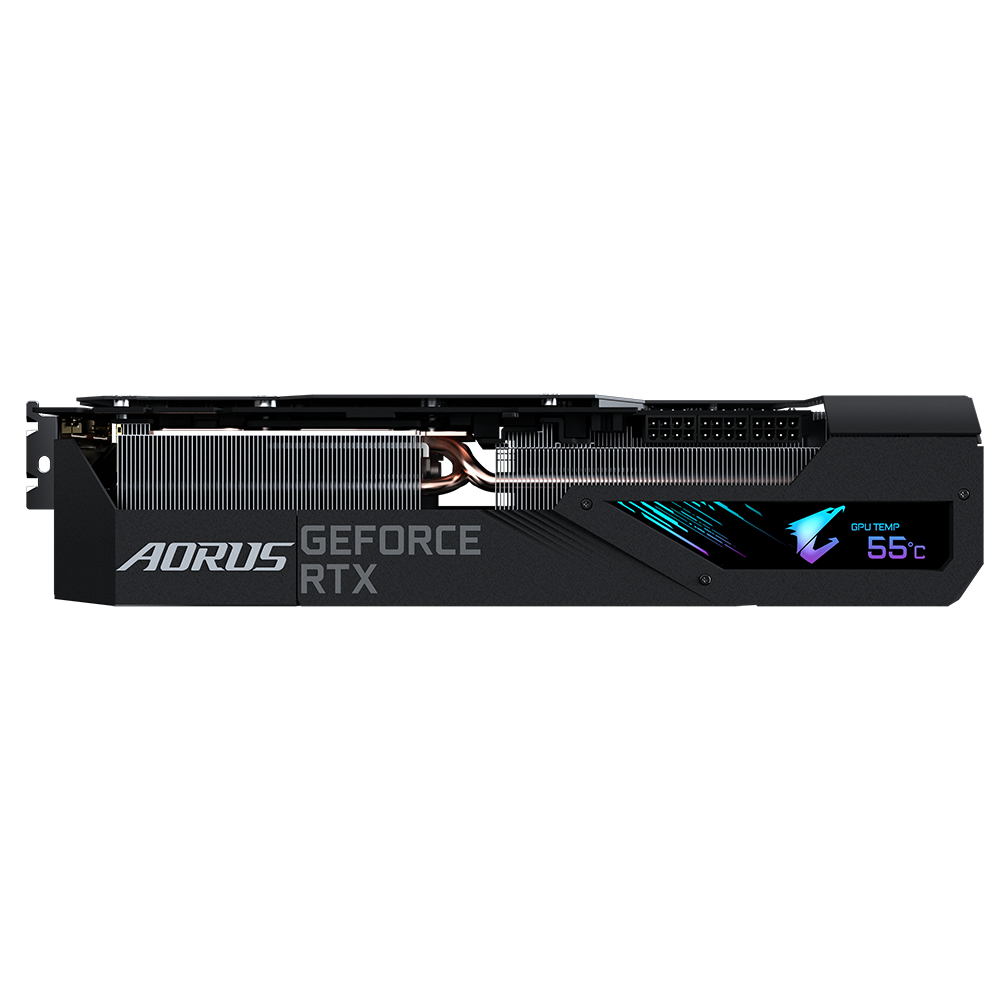

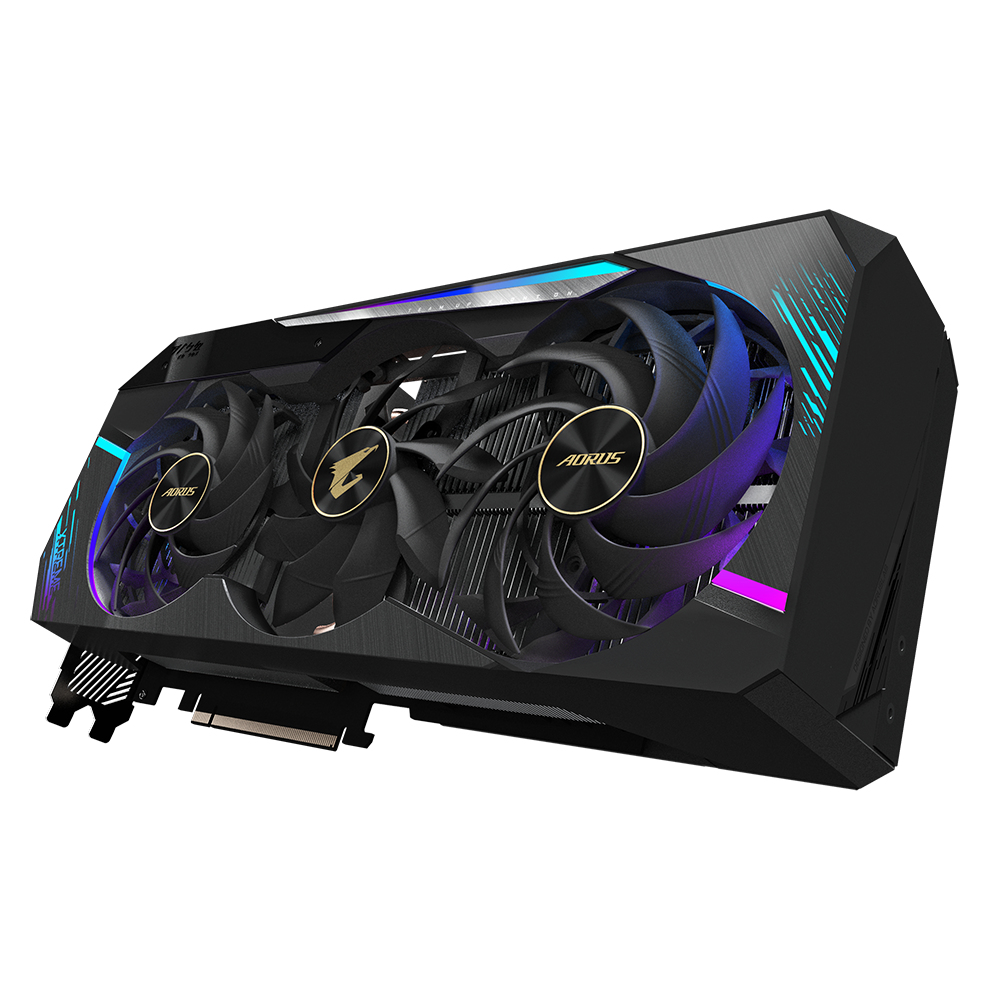

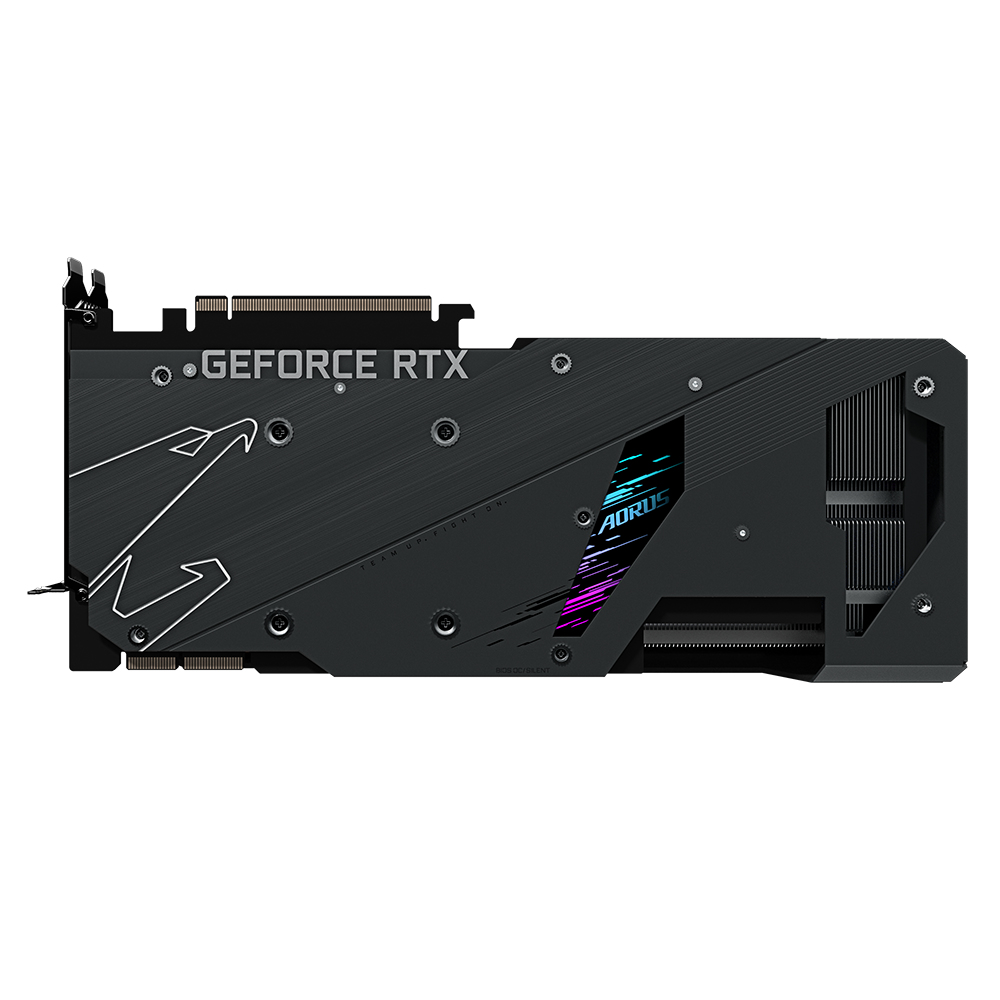

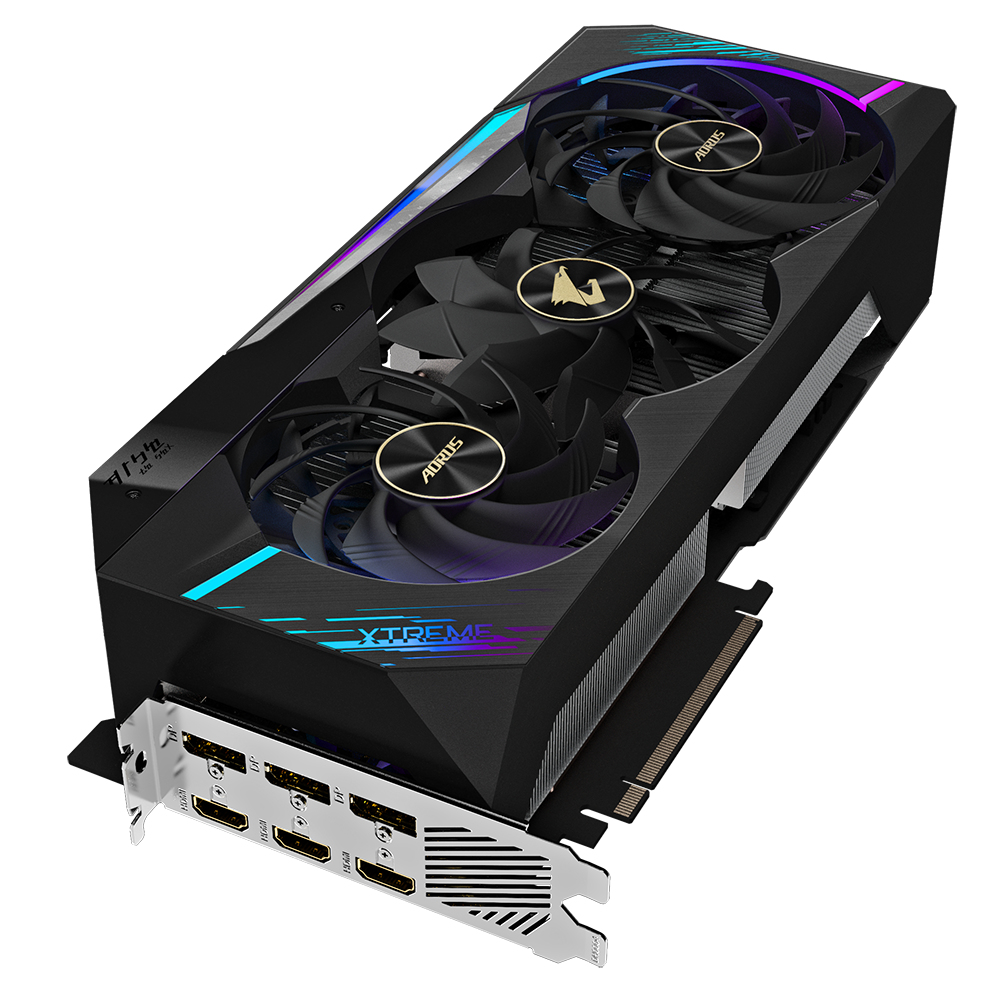

GeForce RTX 3090 XTREME 24G
Model GeForce RTX 3090 XTREME 24GPart no. GVN3090AX-00-10
41 specifications Checked today
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory24 GB
- HDMI ports quantity3
- DirectX version12.0
- Cooling typeActive
Overview
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 24 GB
- HDMI ports quantity
- 3
- DirectX version
- 12.0
- Cooling type
- Active
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GeForce RTX 3090 XTREME 24G
- Part number
- GVN3090AX-00-10
- Also known as
- GIGABYTE AORUS GeForce RTX 3090 XTREME 24G NVIDIA 24 GB GDDR6X
Specifications
41 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 3090 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 10496 |
| Processor frequency | 1860 MHz |
| FireStream | No |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | 2-Way NVLink |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 24 GB |
| Graphics card memory type | GDDR6X |
| Memory bus | 384 bit |
| Memory clock speed | 19500 MHz |
| Memory bandwidth (max) | 936 GB/s |

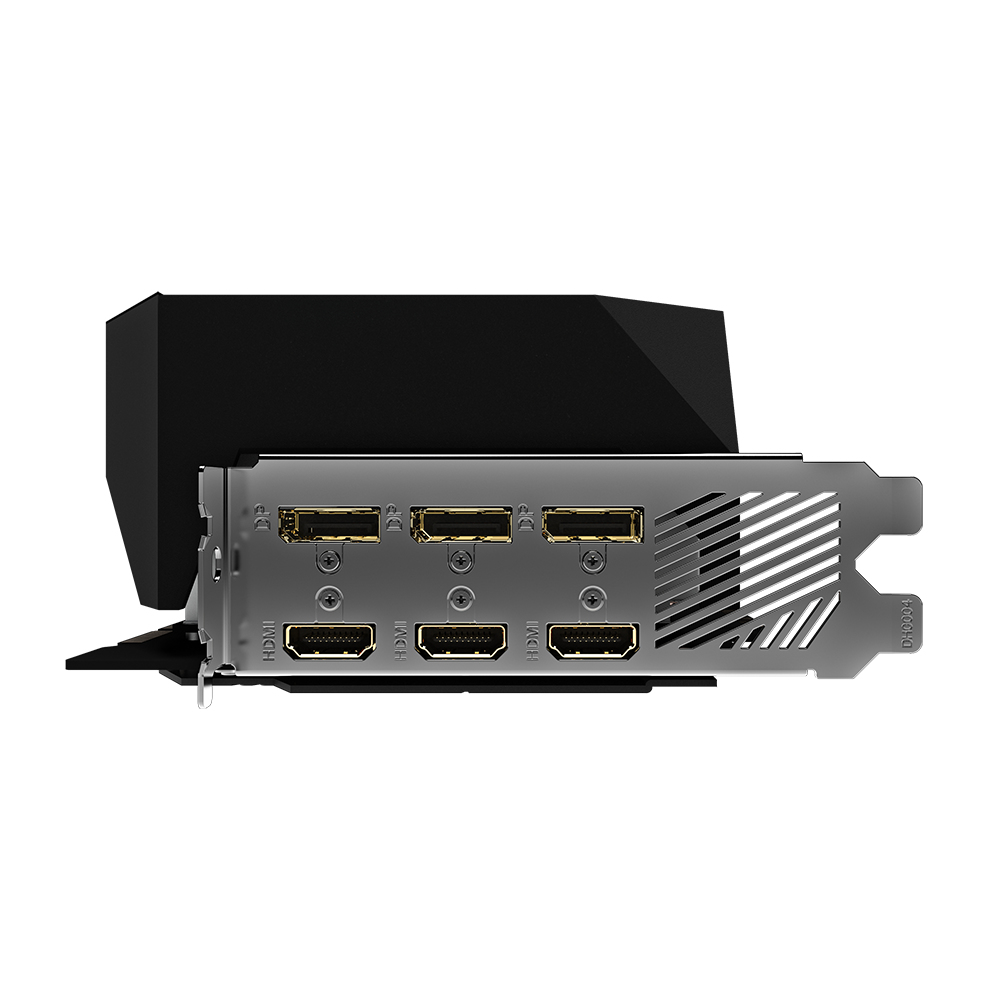

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.0/2.1 |
| DisplayPort version | 1.4a |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |

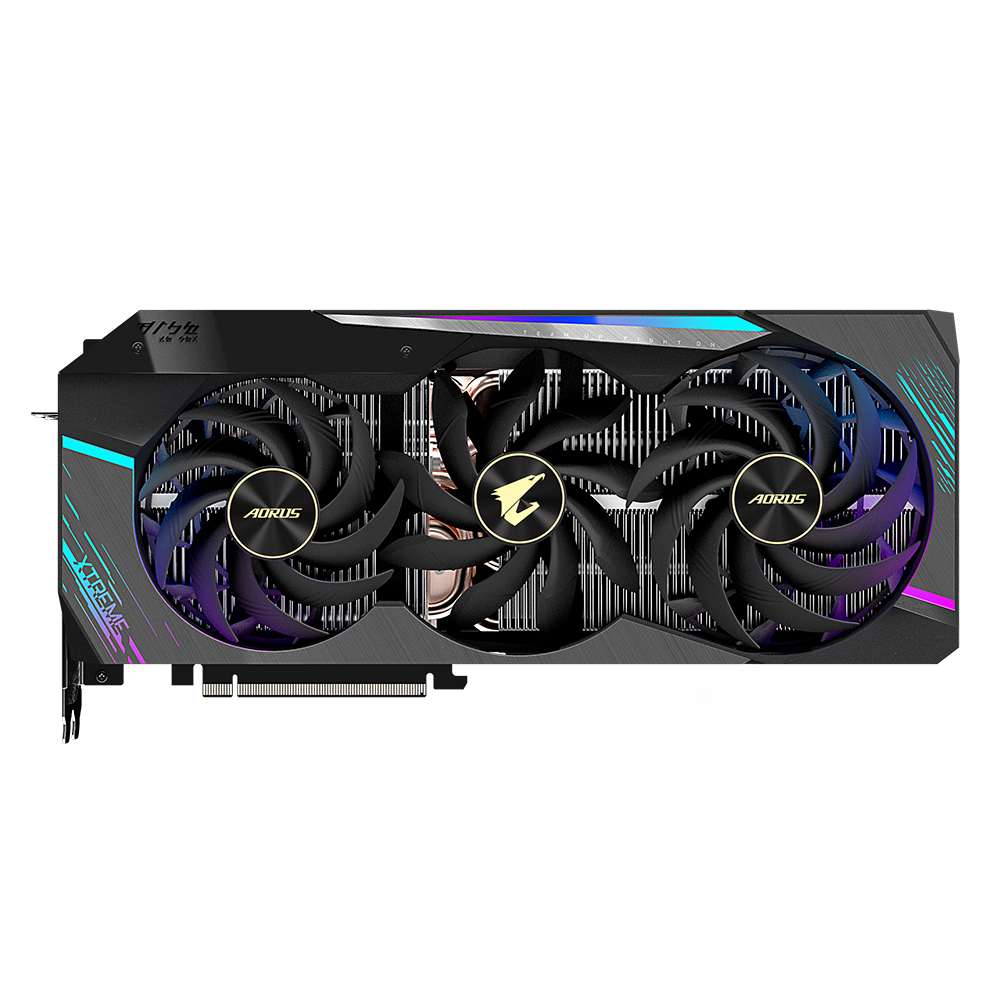

Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | GIGABYTE Max-Covered |
| Number of fans | 3 fan(s) |
| Fan diameter | 11.5 cm |
| Number of slots | 2 |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 850 W |
| Supplementary power connectors | 3x 8-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 319 mm |
| Depth | 70 mm |
| Height | 140 mm |

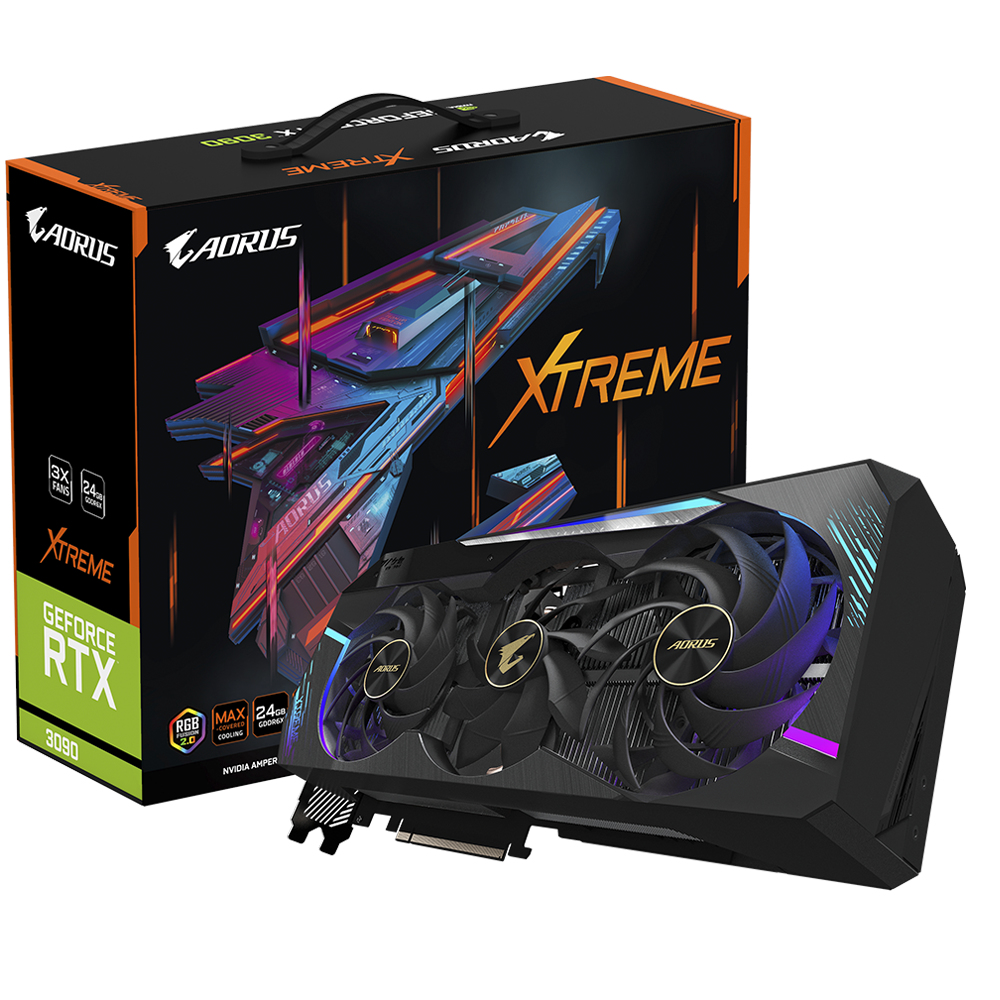

Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
