GeForce RTX 3090 VISION OC 24G
Model GeForce RTX 3090 VISION OC 24GPart no. GV-N3090VISION OC-24GDEAN 889523024508
37 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- ColourWhite
- Graphics processor familyNVIDIA
- Discrete graphics card memory24 GB
- Interface typePCI Express x16 4.0
- DirectX version12.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Colour
- White
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 24 GB
- Interface type
- PCI Express x16 4.0
- DirectX version
- 12.0
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GeForce RTX 3090 VISION OC 24G
- Part number
- GV-N3090VISION OC-24GD
- EAN / UPC
- 889523024508, 4719331307585
- Also known as
- GIGABYTE GeForce RTX 3090 VISION OC 24G NVIDIA 24 GB GDDR6X
Specifications
37 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 3090 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 10496 |
| Processor frequency (OC mode) | 1755 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | 2-Way NVLink |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 24 GB |
| Graphics card memory type | GDDR6X |
| Memory bus | 384 bit |
| Memory clock speed | 19500 MHz |
| Memory bandwidth (max) | 936 GB/s |

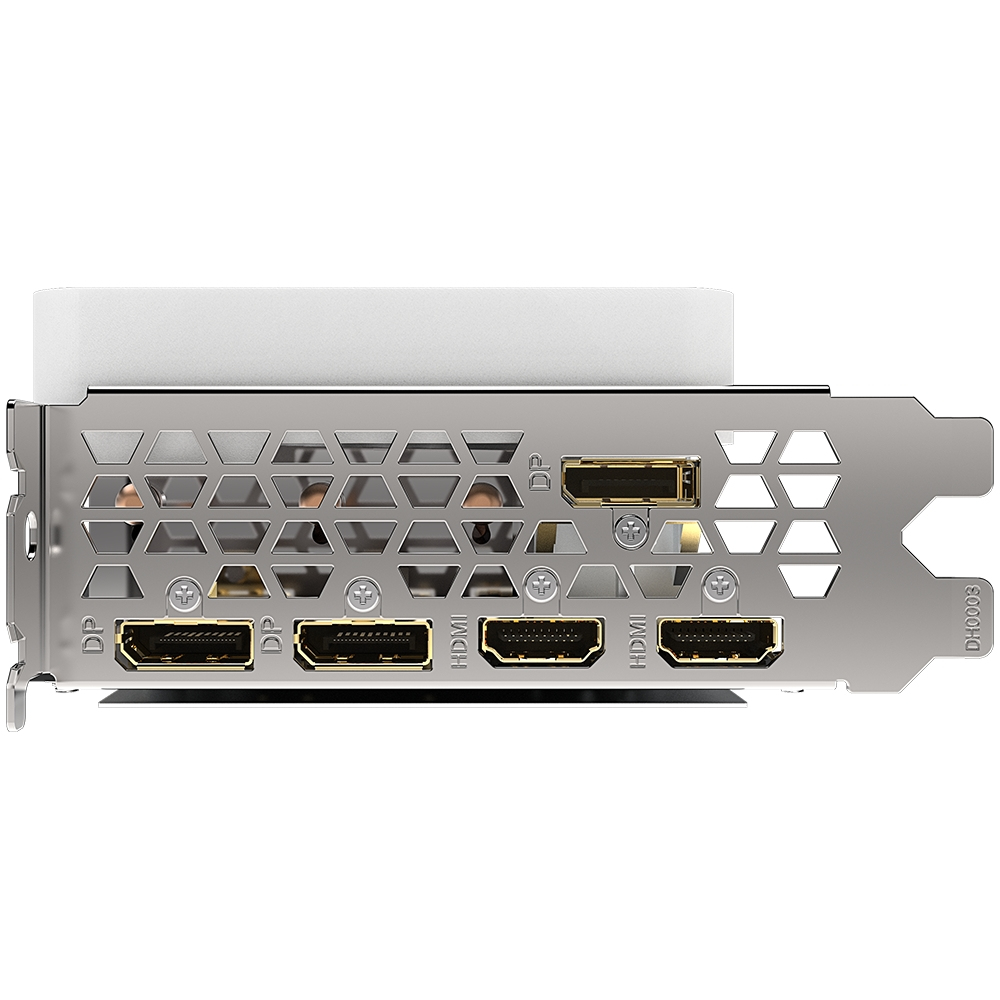

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 4.0 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4a |
Performance
| Specification | Value |
|---|---|
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Fan diameter | 9 cm |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | White |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Supplementary power connectors | 2x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 320 mm |
| Depth | 55 mm |
| Height | 126 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
