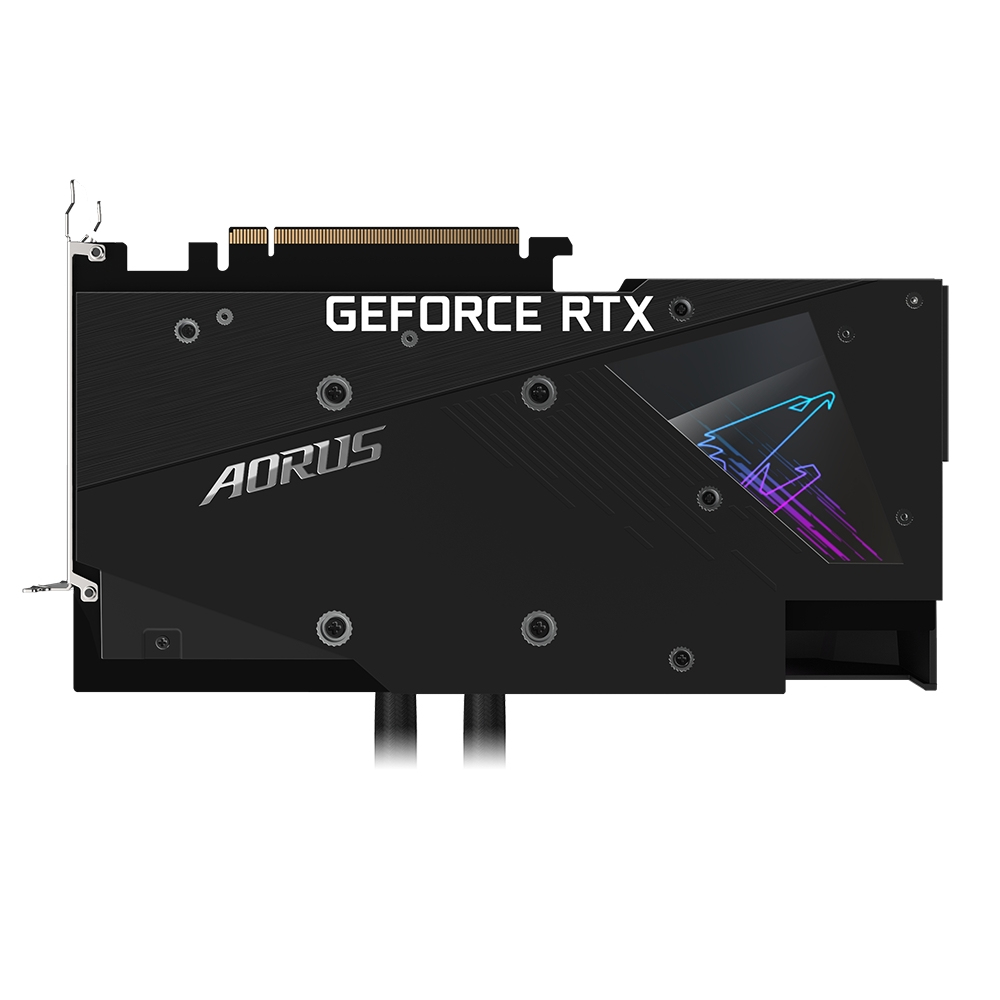

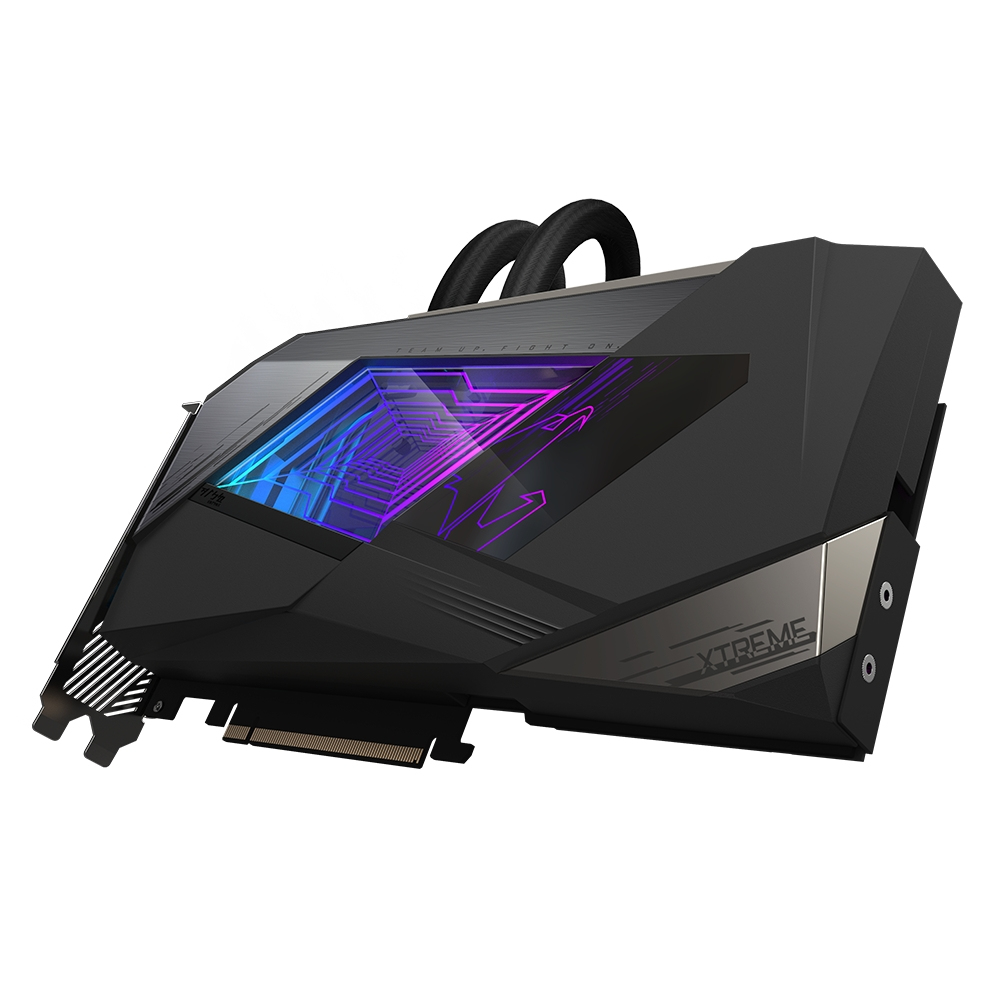

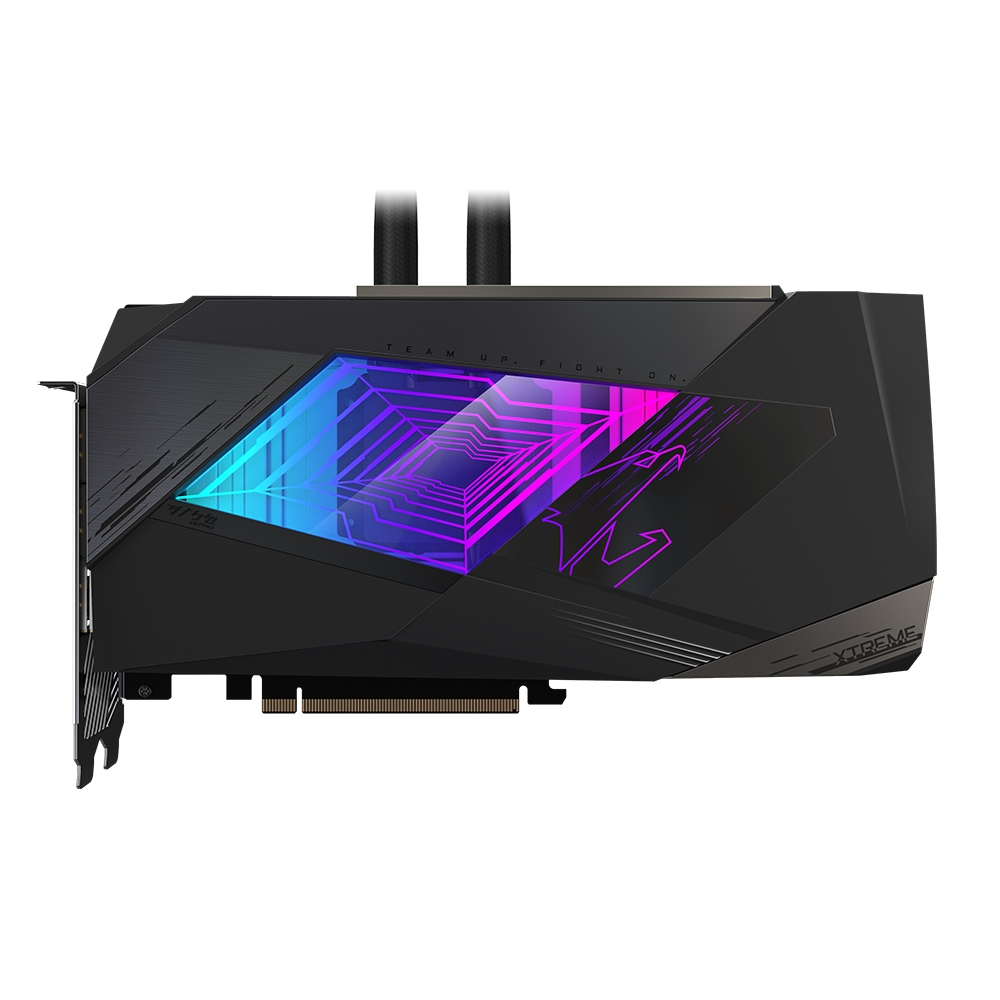

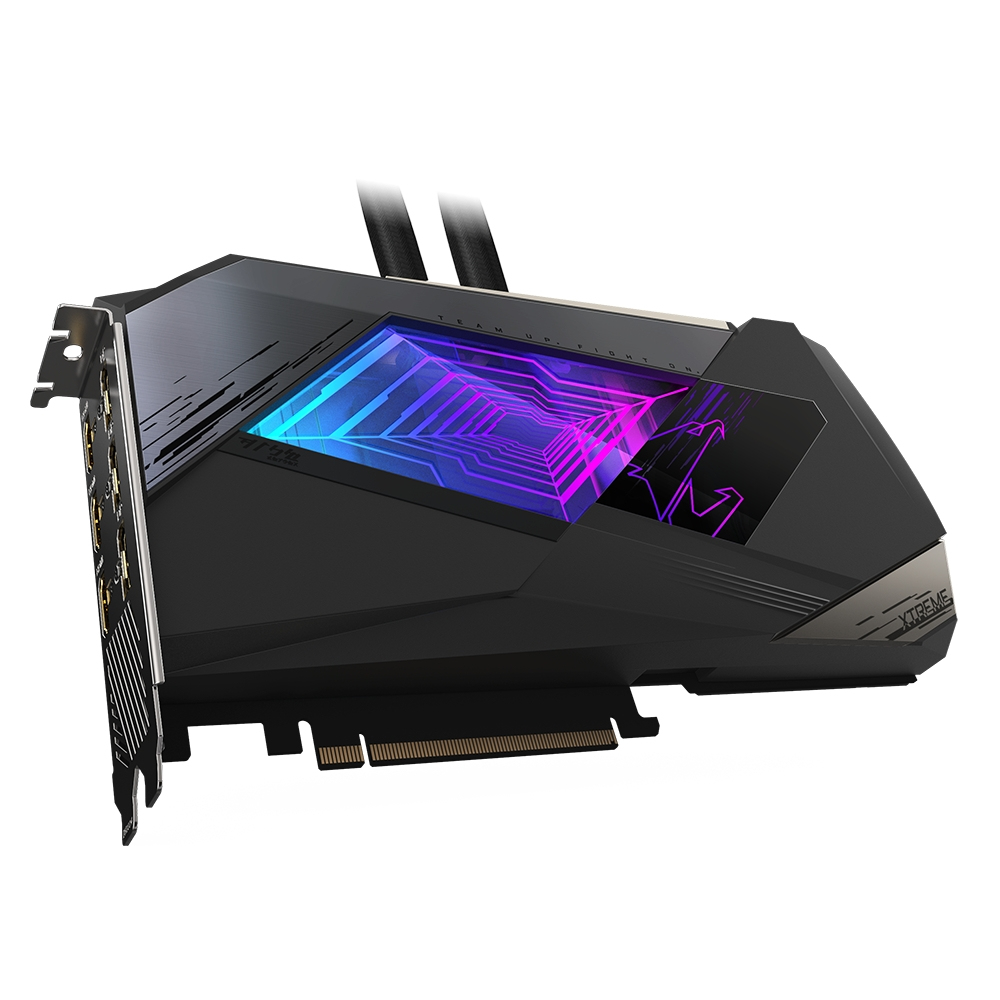

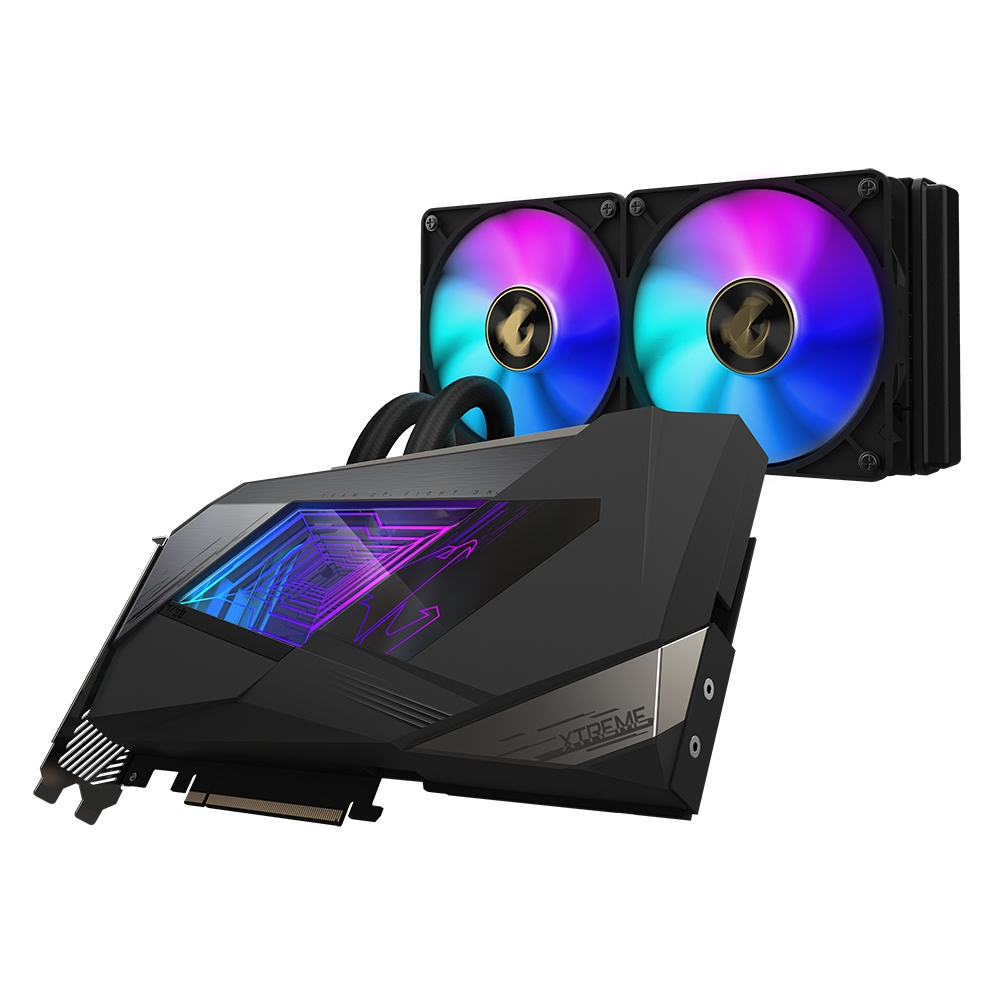

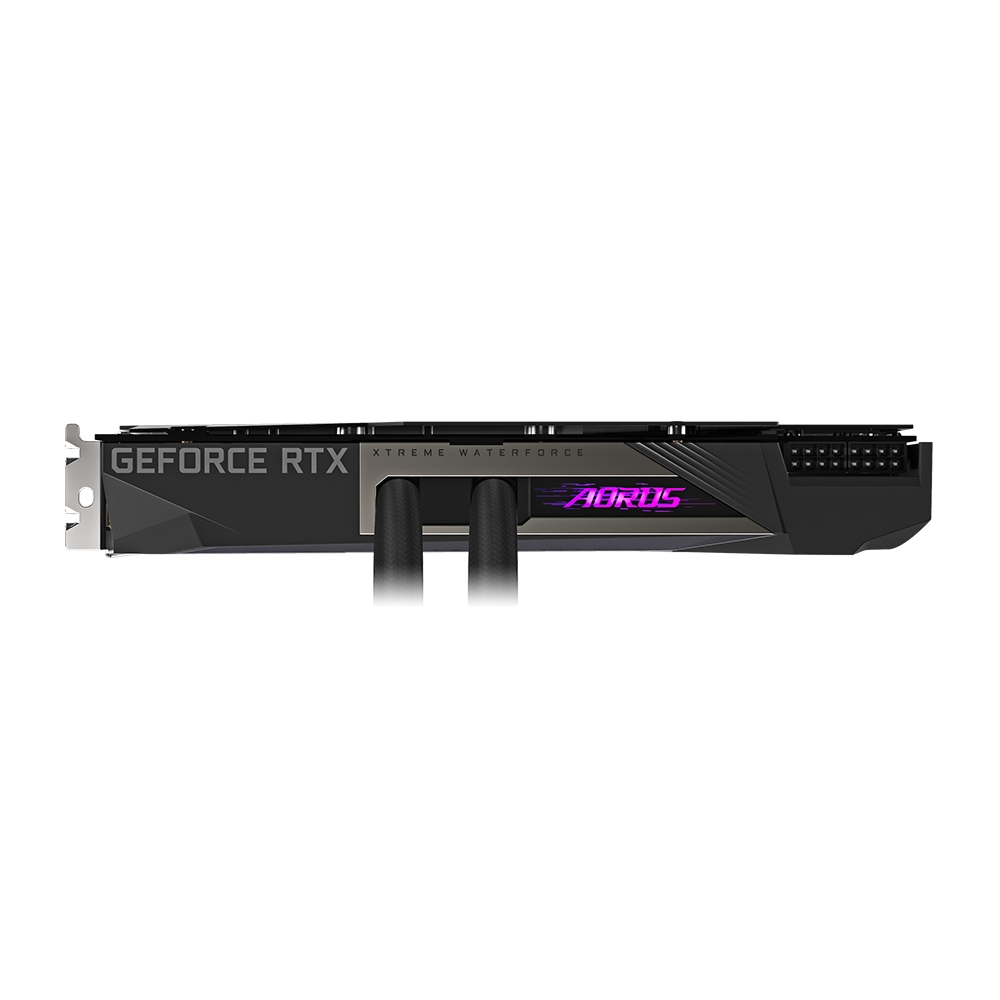

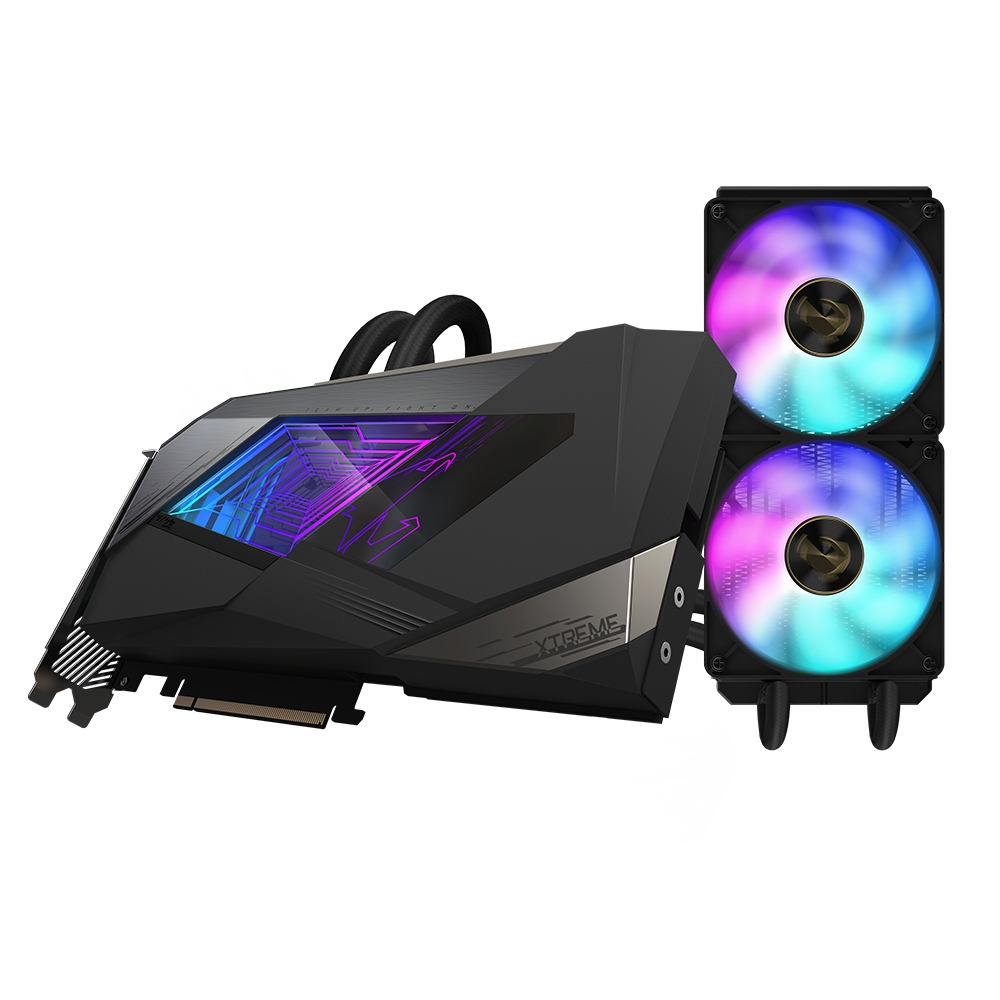

GeForce RTX 3080 XTREME WATERFORCE 10G
Model GeForce RTX 3080 XTREME WATERFORCE 10GPart no. GV-N3080AORUSX W-10GDEAN 889523024676
42 specifications Checked today
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory10 GB
- Interface typePCI Express x16 4.0
- TV tuner integratedNo
- Cooling typeliquid
Overview
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 10 GB
- Interface type
- PCI Express x16 4.0
- TV tuner integrated
- No
- Cooling type
- liquid
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GeForce RTX 3080 XTREME WATERFORCE 10G
- Part numbers
- GV-N3080AORUSX W-10GD, GV-N3080AORUSX W-10G
- EAN / UPC
- 889523024676, 4719331307622, 4719331309718
- Also known as
- GIGABYTE AORUS GeForce RTX 3080 XTREME WATERFORCE 10G NVIDIA 10 GB GDDR6X
Specifications
42 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 3080 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 8704 |
| Processor frequency | 1845 MHz |
| FireStream | No |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 10 GB |
| Graphics card memory type | GDDR6X |
| Memory bus | 320 bit |
| Memory clock speed | 19000 MHz |
| Memory bandwidth (max) | 760 GB/s |

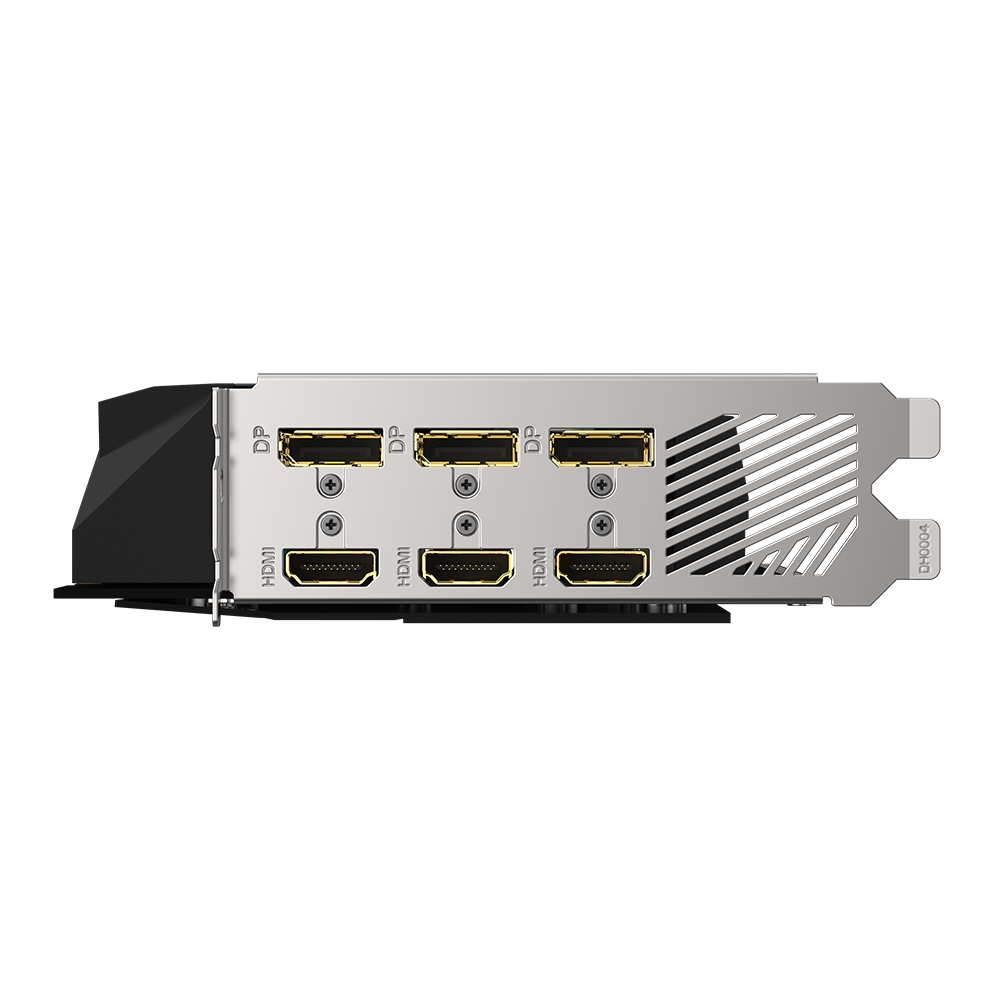

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 4.0 |
| HDMI ports quantity | 3 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.0/2.1 |
| DisplayPort version | 1.4a |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
Design
| Specification | Value |
|---|---|

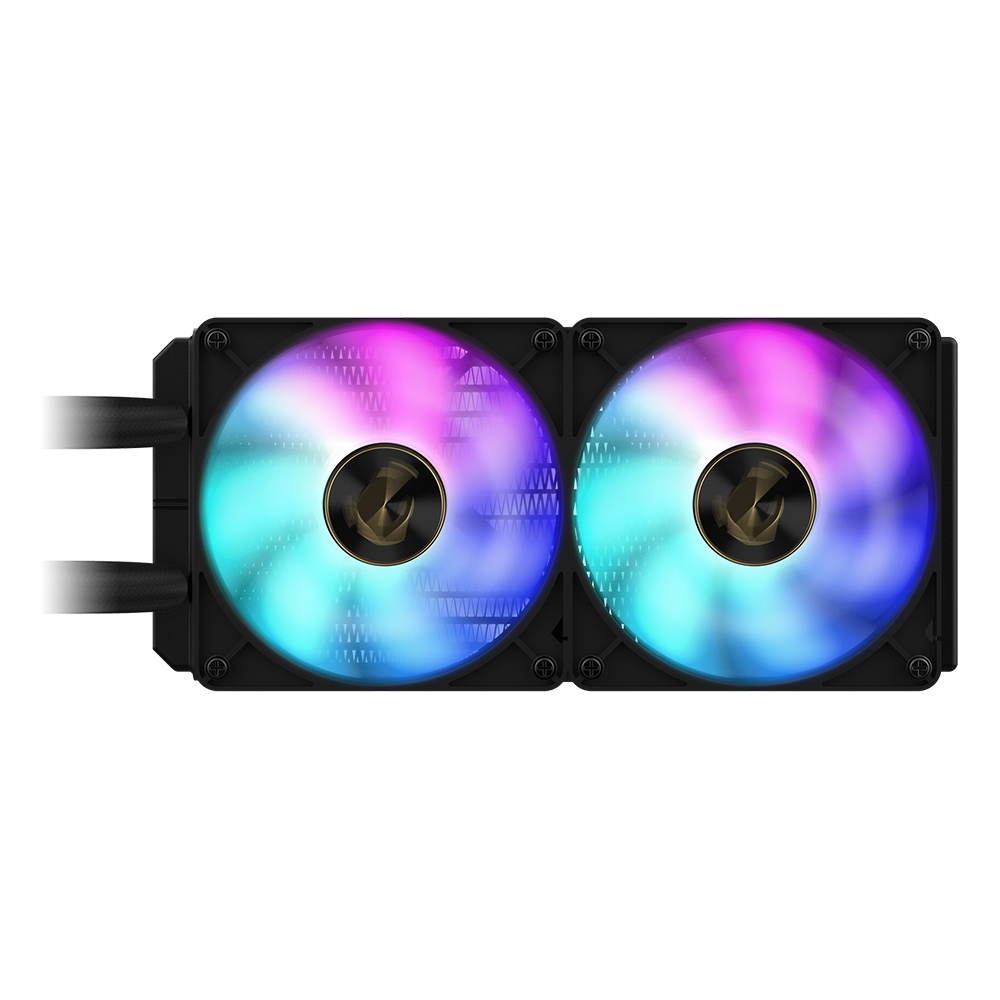

| Cooling type | liquid |
| Cooling technology | Gigabyte WATERFORCE |
| Number of fans | 2 fan(s) |
| Fan diameter | 12 cm |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Supplementary power connectors | 2x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 252 mm |
| Depth | 40 mm |
| Height | 135 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
