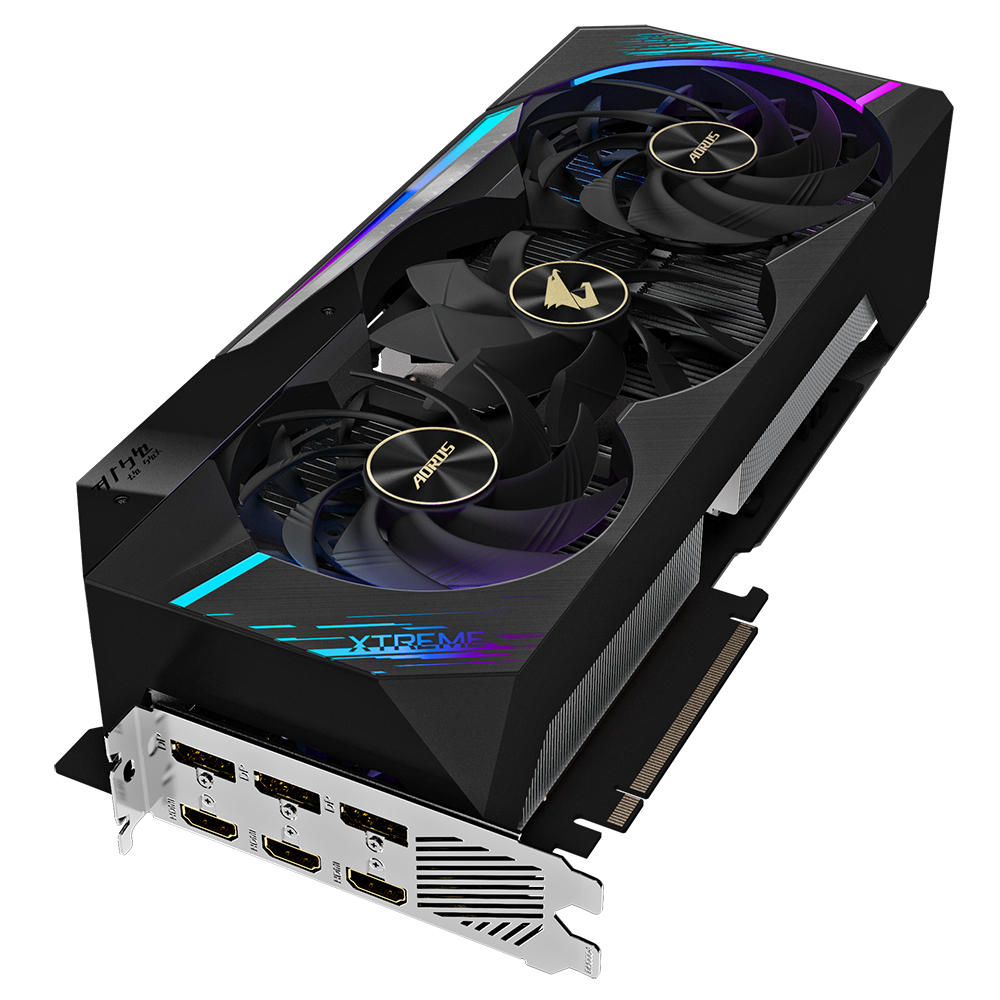

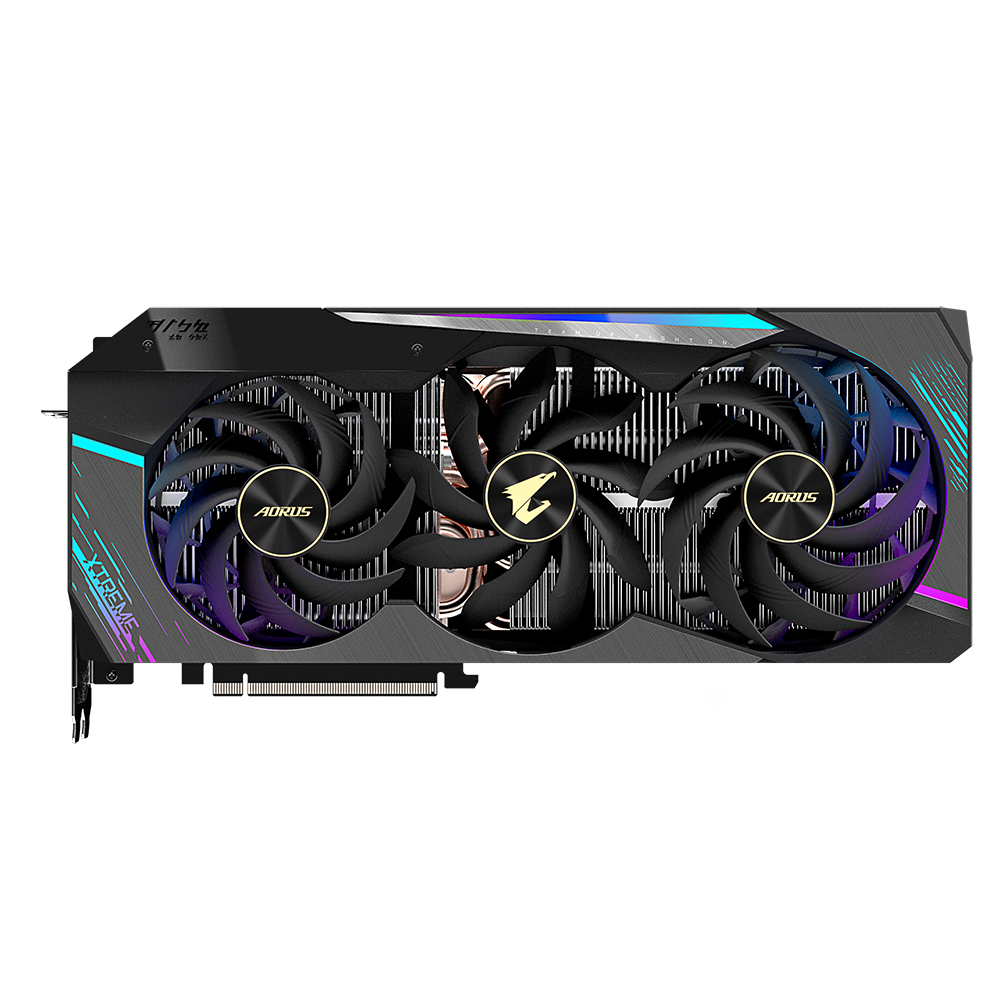

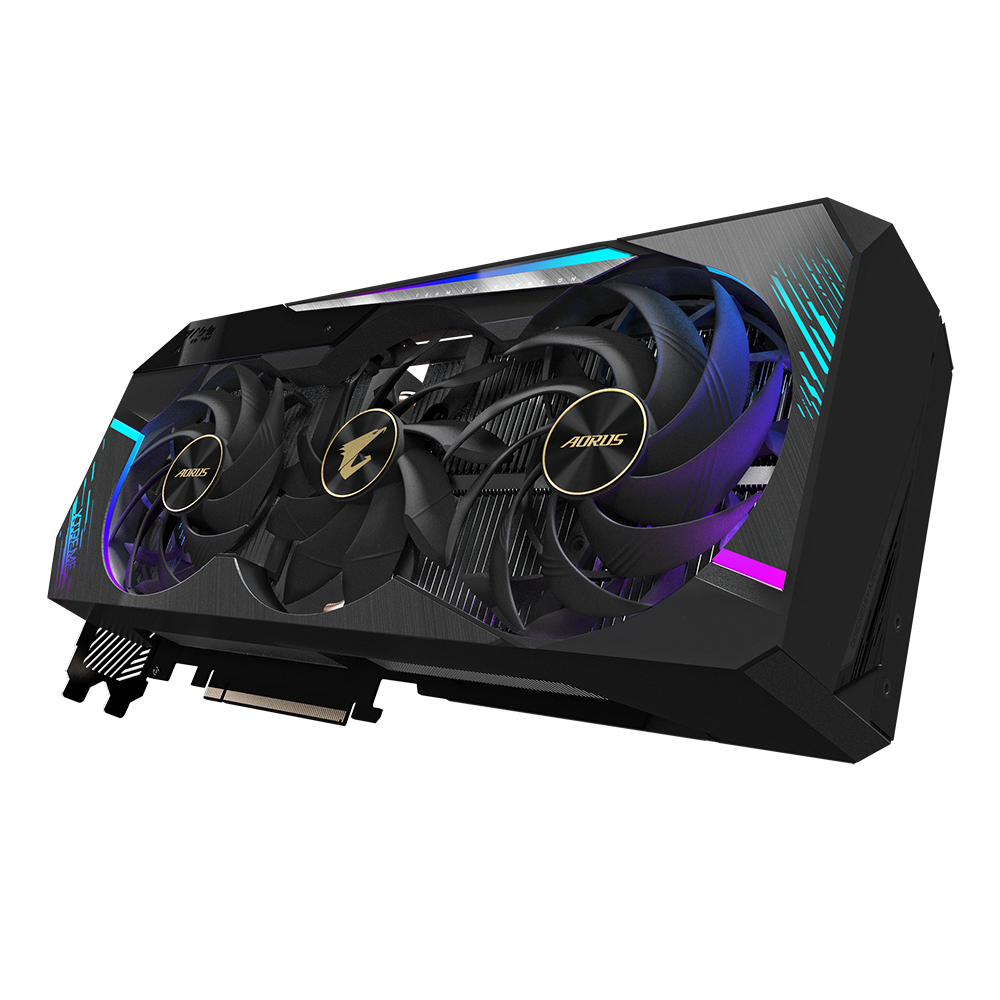

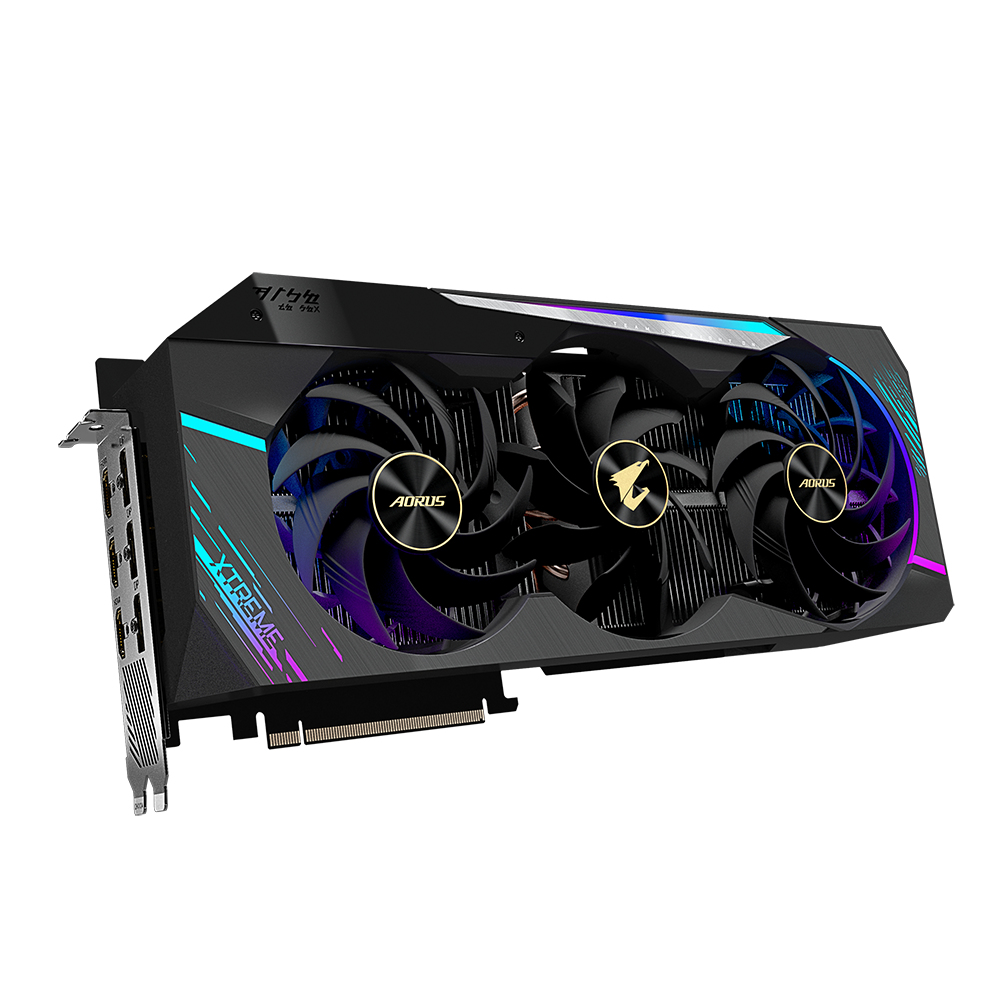

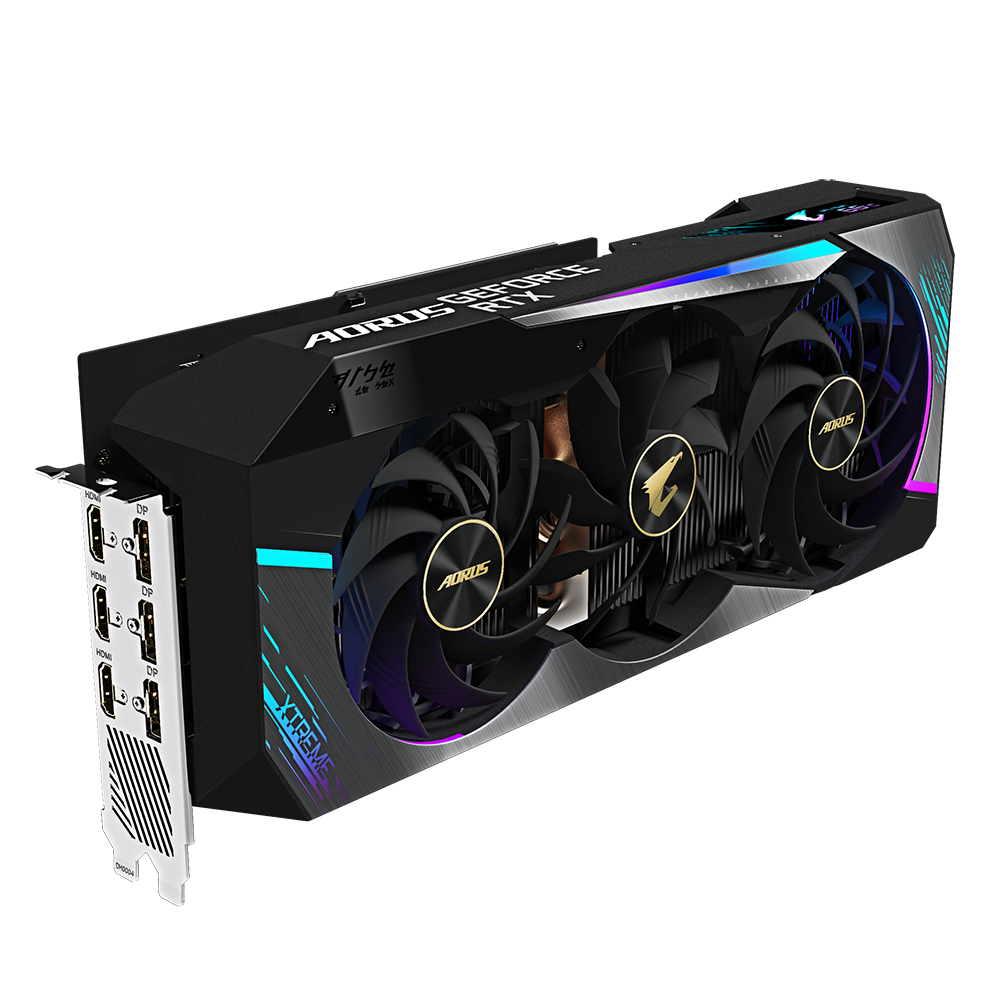

GIGABYTE GeForce RTX 3080 XTREME 10G

GeForce RTX 3080 XTREME 10G

Model GeForce RTX 3080 XTREME 10GPart no. GVN3080AX-00-10

39 specifications Checked today

ColourBlack
Graphics processor familyNVIDIA
Discrete graphics card memory10 GB
HDMI ports quantity3
DirectX version12.0
Cooling typeActive

See all specifications

Overview

Colour: Black
Graphics processor family: NVIDIA
Discrete graphics card memory: 10 GB
HDMI ports quantity: 3
DirectX version: 12.0
Cooling type: Active

Brand: GIGABYTE
Category: GPU
Model: GeForce RTX 3080 XTREME 10G
Part number: GVN3080AX-00-10
Also known as: GIGABYTE AORUS GeForce RTX 3080 XTREME 10G NVIDIA 10 GB GDDR6X

Specifications

39 specifications in 10 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 3080
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	8704
Processor frequency	1905 MHz
FireStream	No
Maximum displays per videocard	4

Memory

Specification	Value
Discrete graphics card memory	10 GB
Graphics card memory type	GDDR6X
Memory bus	320 bit
Memory clock speed	19000 MHz
Memory bandwidth (max)	760 GB/s

Ports & interfaces

Specification	Value

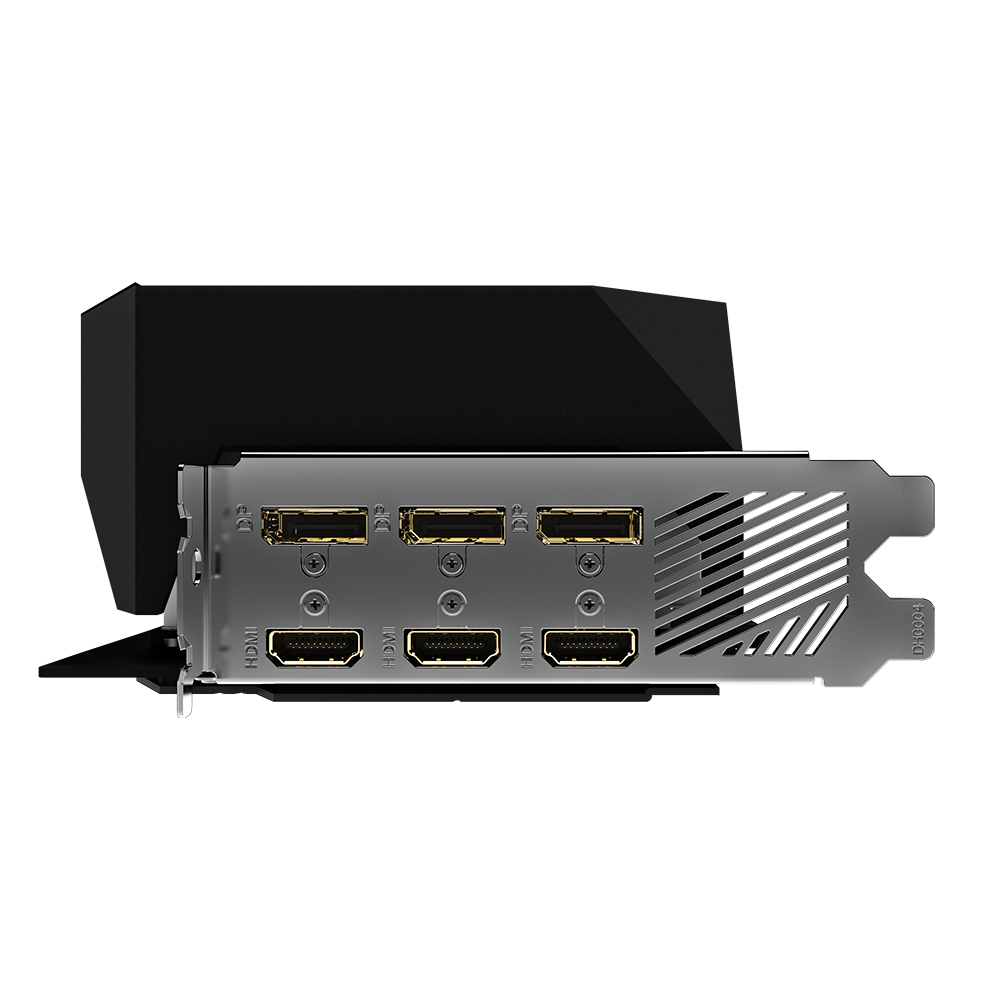

HDMI ports quantity	3
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	3
HDMI version	2.0/2.1
DisplayPort version	1.4a
VGA (D-Sub) ports quantity	0

Performance

Specification	Value
DirectX version	12.0
OpenGL version	4.6
Dual Link DVI	No

Design

Specification	Value
Cooling type	Active
Cooling technology	GIGABYTE Max-Covered
Number of fans	3 fan(s)
Fan diameter	11.5 cm
Number of slots	2
Illumination	Yes
Illumination colour	Multi
Product colour	Black

Power

Specification	Value
Minimum system power supply	850 W
Supplementary power connectors	3x 8-pin

System requirements

Specification	Value
Windows operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Specification	Value
Depth	70 mm
Height	140 mm

Packaging data

Specification	Value
Package type	Box

Packaging content

Specification	Value
Quick installation guide	Yes
