GIGABYTE GeForce RTX 3080 TURBO 10G (rev. 2.0)

GeForce RTX 3080 TURBO 10G (rev. 2.0)

Model GeForce RTX 3080 TURBO 10G (rev. 2.0)Part no. GV-N3080TURBO-10GD V2EAN 4719331309701

34 specifications Checked today

ColourBlack
Graphics processor familyNVIDIA
Discrete graphics card memory10 GB
Interface typePCI Express x16 4.0
TV tuner integratedNo
Cooling typeActive

See all specifications

Overview

Colour: Black
Graphics processor family: NVIDIA
Discrete graphics card memory: 10 GB
Interface type: PCI Express x16 4.0
TV tuner integrated: No
Cooling type: Active

Brand: GIGABYTE
Category: GPU
Model: GeForce RTX 3080 TURBO 10G (rev. 2.0)
Part numbers: GV-N3080TURBO-10GD V2, 9VN3080T-00-20
EAN / UPC: 4719331309701
Also known as: GIGABYTE GeForce RTX 3080 TURBO 10G (rev. 2.0) NVIDIA 10 GB GDDR6X

Specifications

34 specifications in 10 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 3080
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	8704
Processor frequency	1710 MHz
Maximum displays per videocard	4

Memory

Specification	Value
Discrete graphics card memory	10 GB
Graphics card memory type	GDDR6X
Memory bus	320 bit
Memory clock speed	19000 MHz
Memory bandwidth (max)	760 GB/s

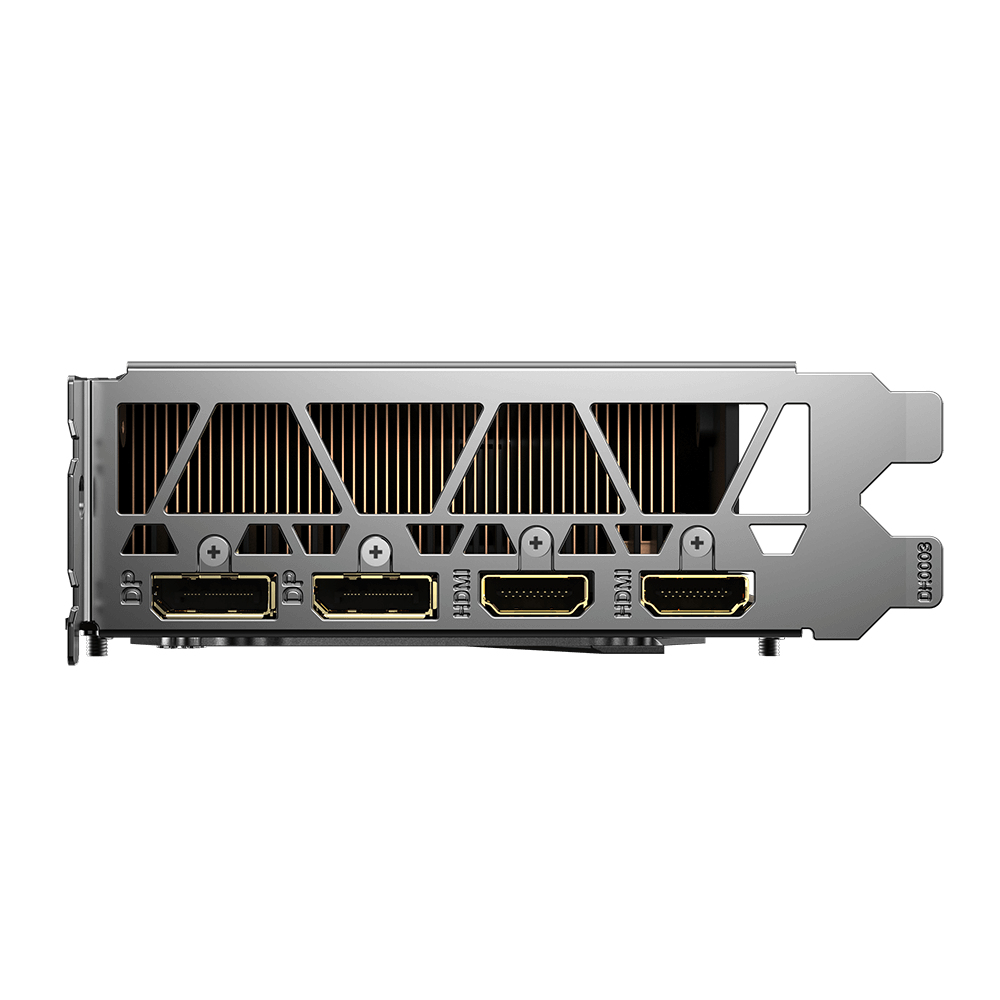

Ports & interfaces

Specification	Value
Interface type	PCI Express x16 4.0
HDMI ports quantity	2
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	2
HDMI version	2.1
DisplayPort version	1.4a

Performance

Specification	Value
TV tuner integrated	No
DirectX version	12 Ultimate
OpenGL version	4.6
Dual Link DVI	No

Design

Specification	Value
Cooling type	Active
Number of fans	1 fan(s)
Product colour	Black

Power

Specification	Value
Minimum system power supply	750 W

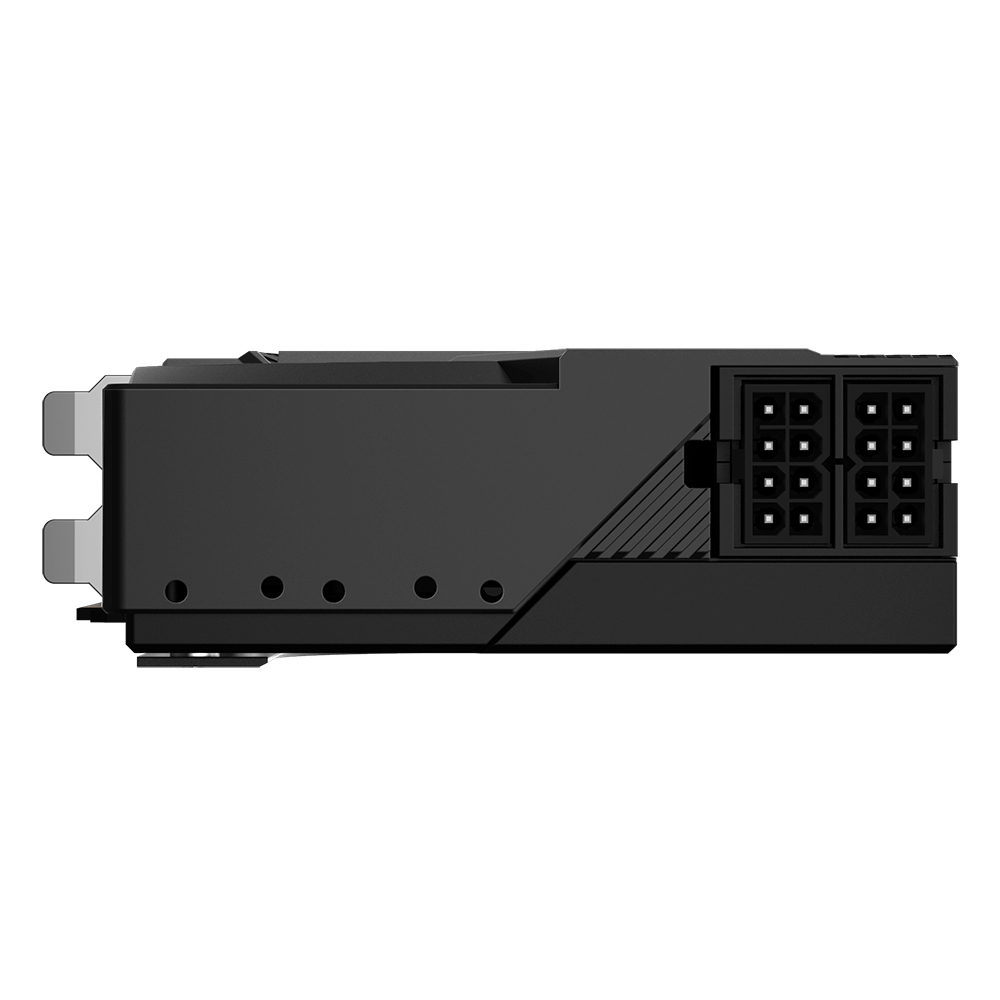

Supplementary power connectors	2x 8-pin

Weight & dimensions

Specification	Value
Length	267 mm
Depth	40 mm
Height	111 mm

Packaging data

Specification	Value
Package type	Box

Packaging content

Specification	Value
User guide	Yes

Logistics data

Specification	Value
Harmonized System (HS) code	84733020
