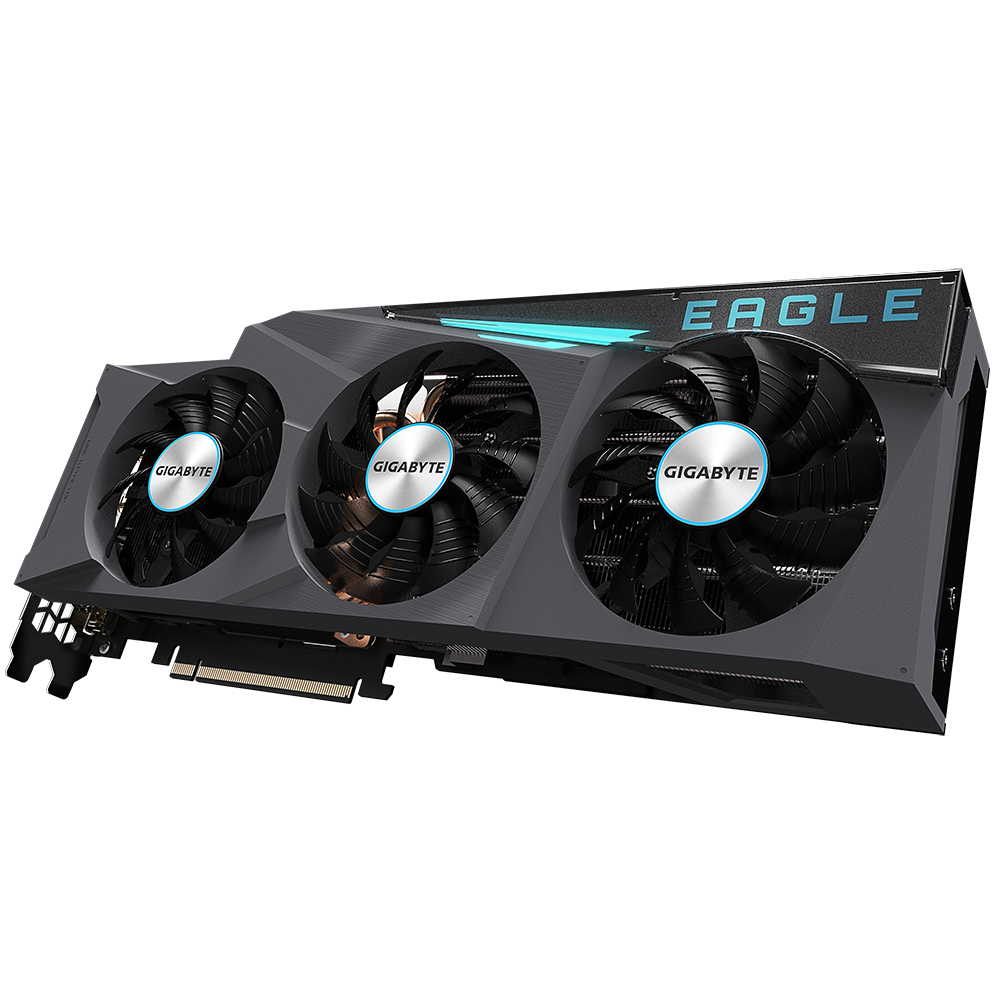

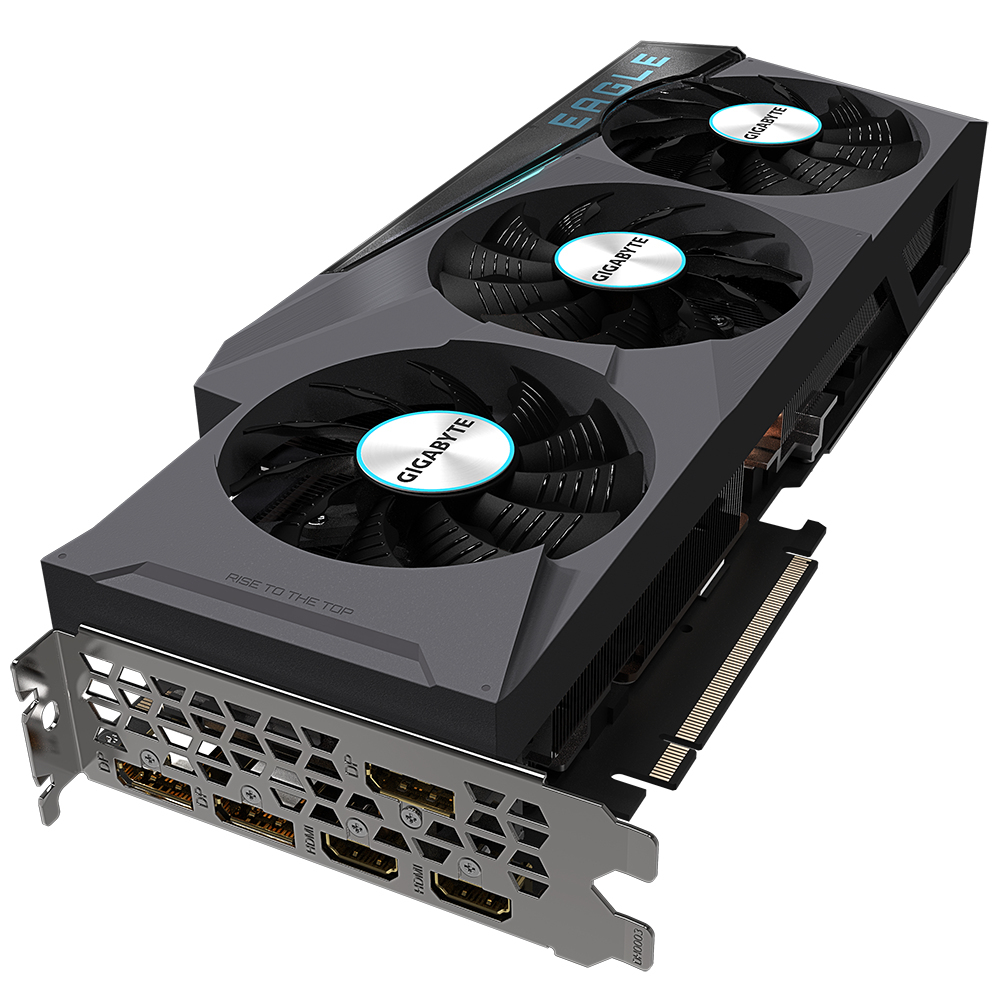

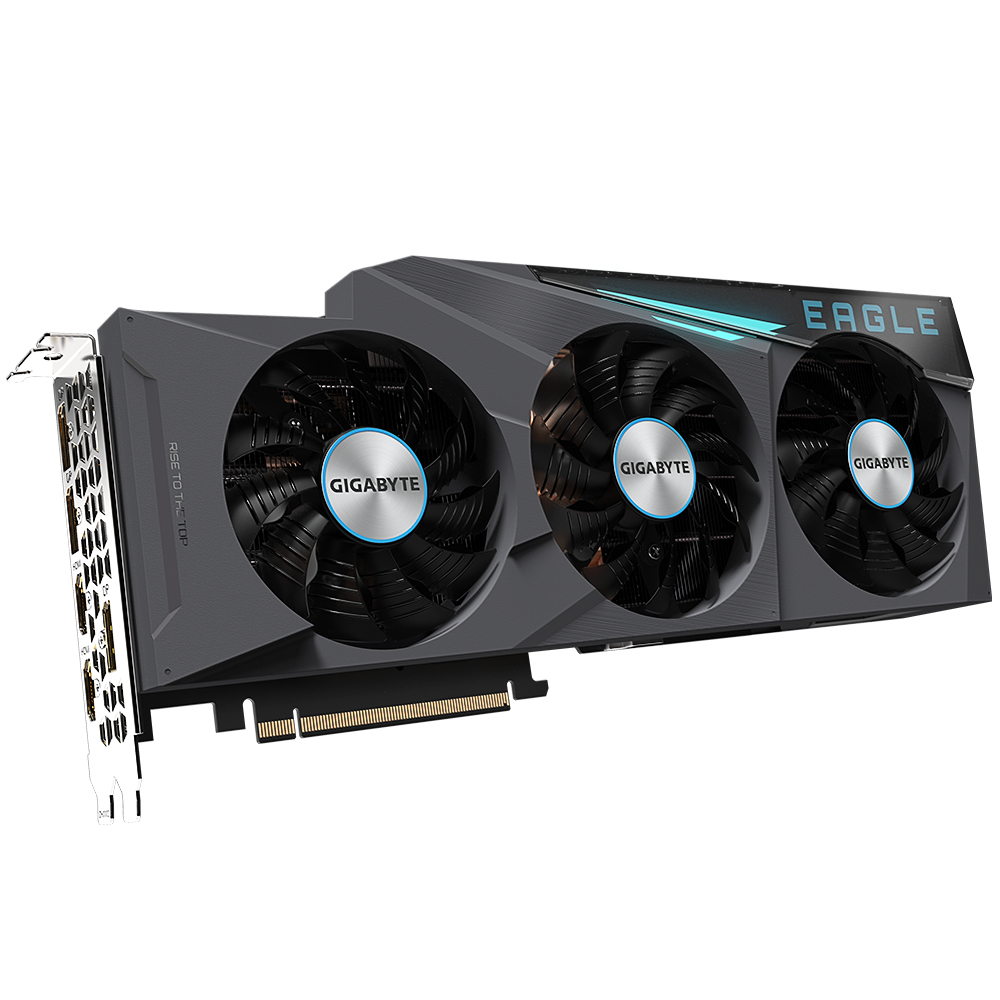

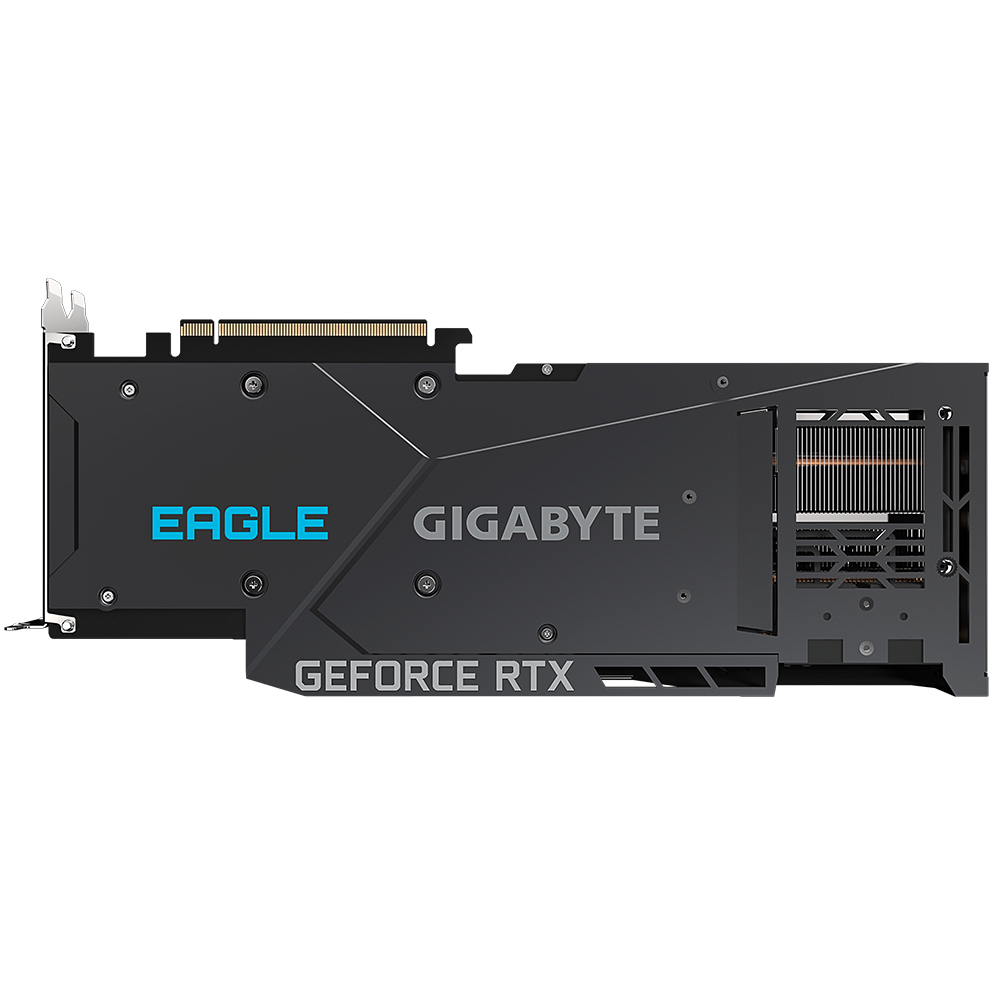

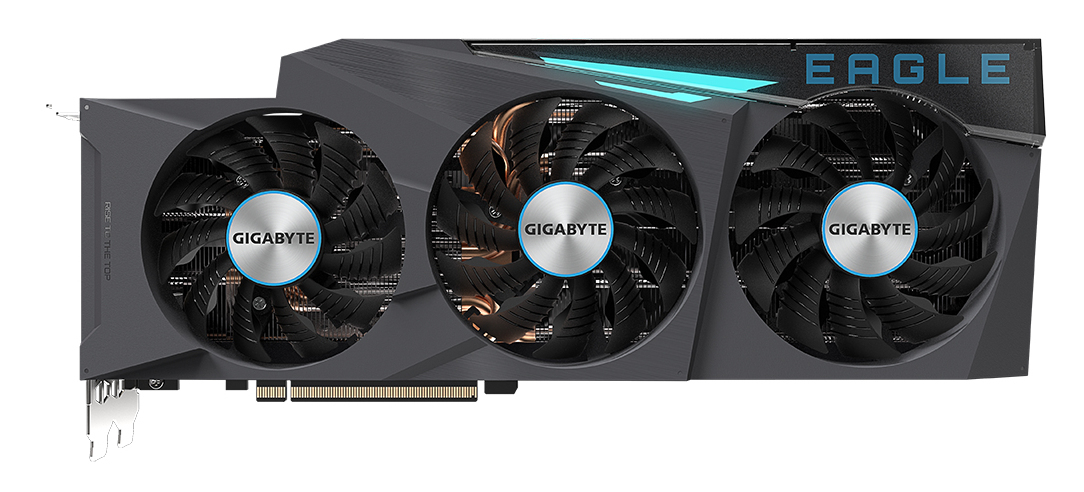

GIGABYTE GeForce RTX 3080 Ti EAGLE OC 12G

GeForce RTX 3080 Ti EAGLE OC 12G

Model GeForce RTX 3080 Ti EAGLE OC 12GPart no. GVN38TEO-00-10

38 specifications Checked today

ColourBlack
Graphics processor familyNVIDIA
Discrete graphics card memory12 GB
Interface typePCI Express x16 4.0
TV tuner integratedNo
Cooling typeActive

See all specifications

Overview

Colour: Black
Graphics processor family: NVIDIA
Discrete graphics card memory: 12 GB
Interface type: PCI Express x16 4.0
TV tuner integrated: No
Cooling type: Active

Brand: GIGABYTE
Category: GPU
Model: GeForce RTX 3080 Ti EAGLE OC 12G
Part number: GVN38TEO-00-10
Also known as: GIGABYTE EAGLE GeForce RTX 3080 Ti OC 12G NVIDIA 12 GB GDDR6X

Specifications

38 specifications in 9 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 3080 Ti
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	10240
Processor frequency	1680 MHz
Maximum displays per videocard	4

Memory

Specification	Value
Discrete graphics card memory	12 GB
Graphics card memory type	GDDR6X
Memory bus	384 bit
Memory clock speed	19000 MHz
Memory bandwidth (max)	912 GB/s

Ports & interfaces

Specification	Value
Interface type	PCI Express x16 4.0

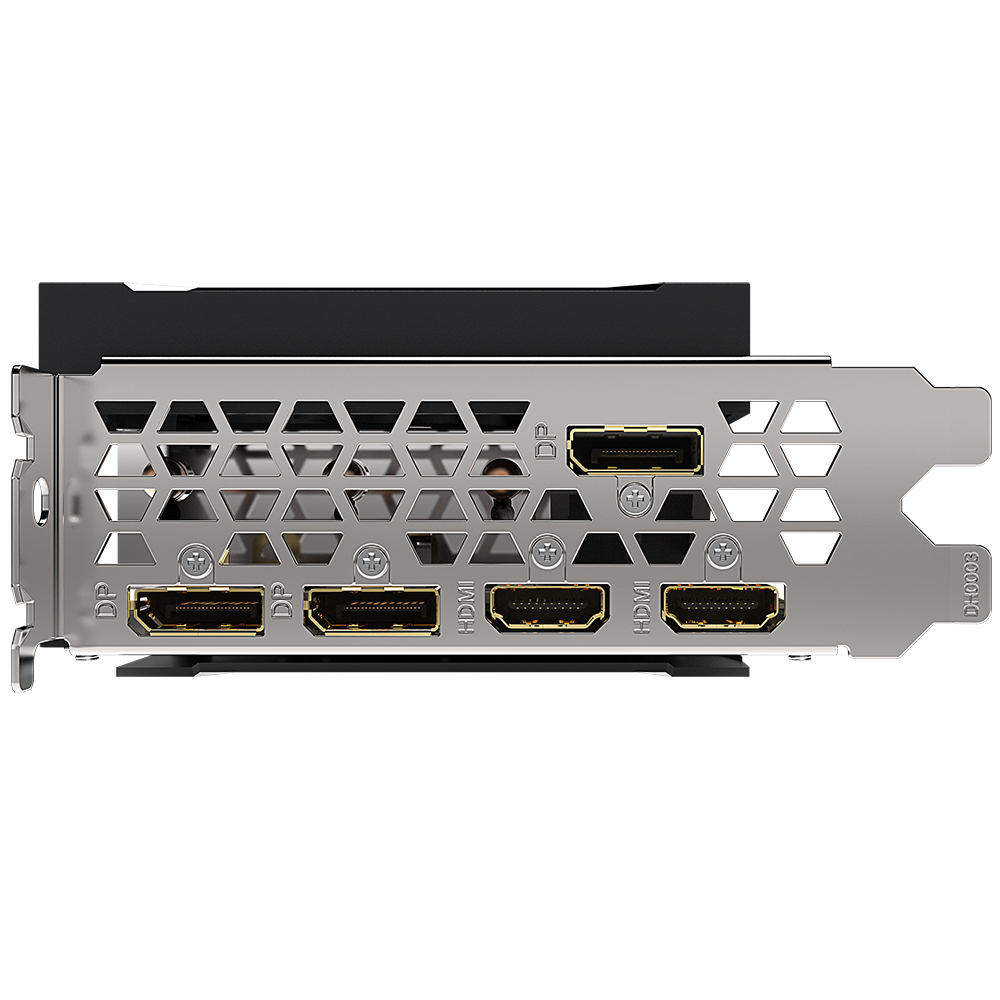

HDMI ports quantity	2
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	3
HDMI version	2.1
DisplayPort version	1.4a

Performance

Specification	Value
TV tuner integrated	No
DirectX version	12 Ultimate
OpenGL version	4.6
Dual Link DVI	No

Design

Specification	Value
Cooling type	Active
Cooling technology	GIGABYTE WINDFORCE 3X
Number of fans	3 fan(s)
Fan diameter	9 cm
Bracket height	Full-Height (FH)
Illumination	Yes
Illumination colour	Multi
Product colour	Black

Power

Specification	Value
Minimum system power supply	750 W

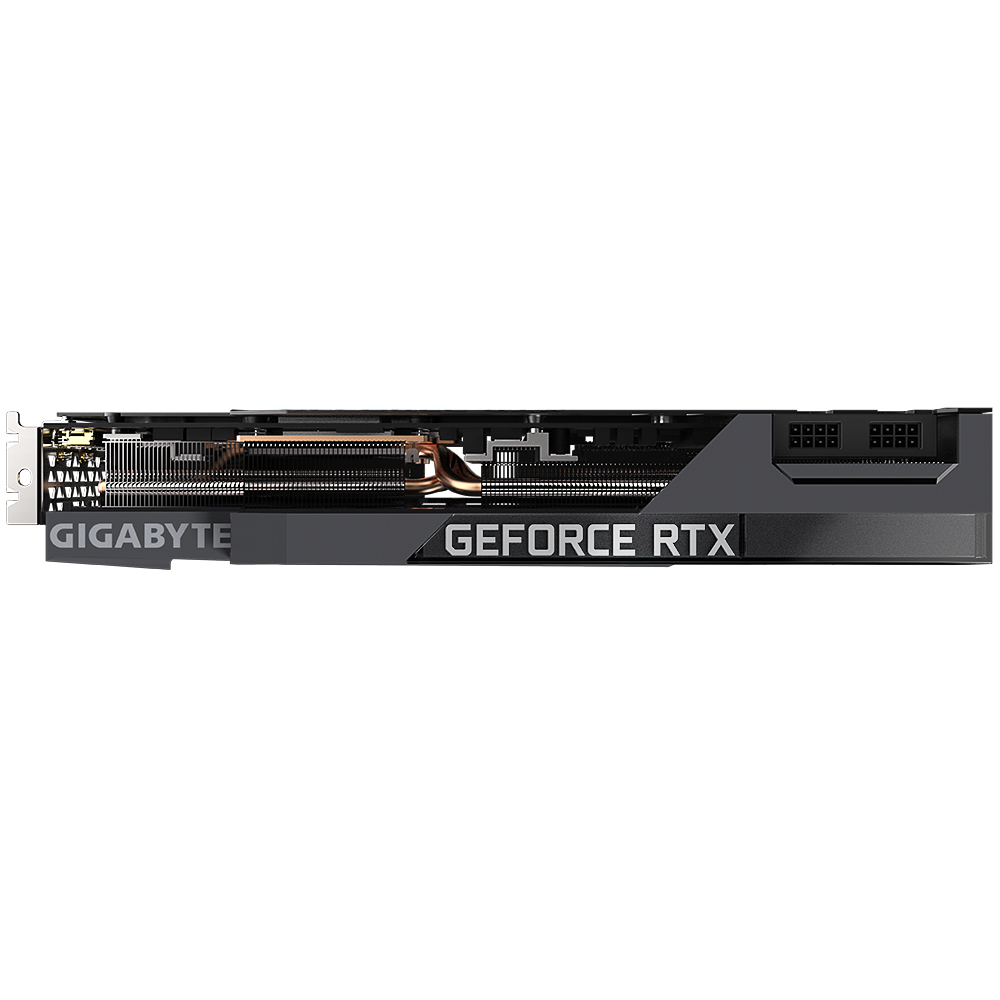

Supplementary power connectors	2x 8-pin

Weight & dimensions

Specification	Value
Length	320 mm
Depth	56 mm
Height	128 mm

Packaging data

Specification	Value

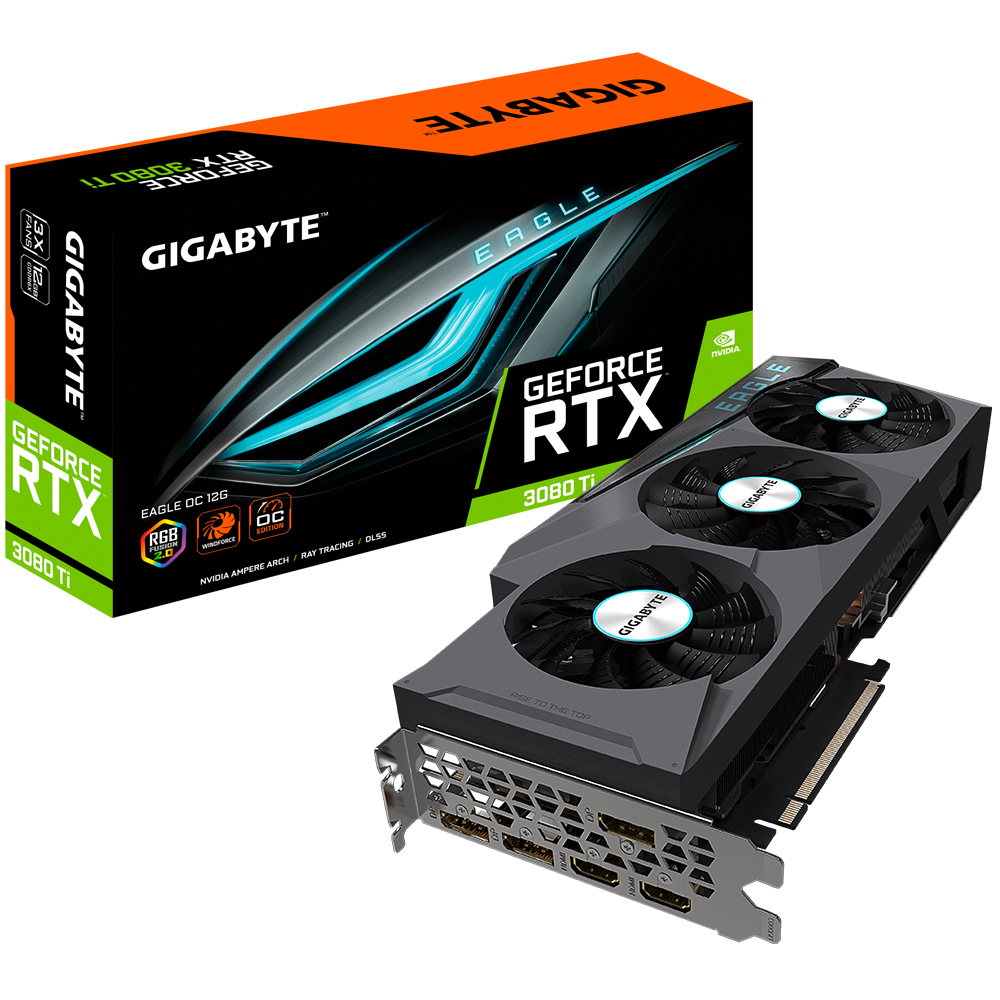

Package type	Box

Packaging content

Specification	Value
Quick installation guide	Yes
