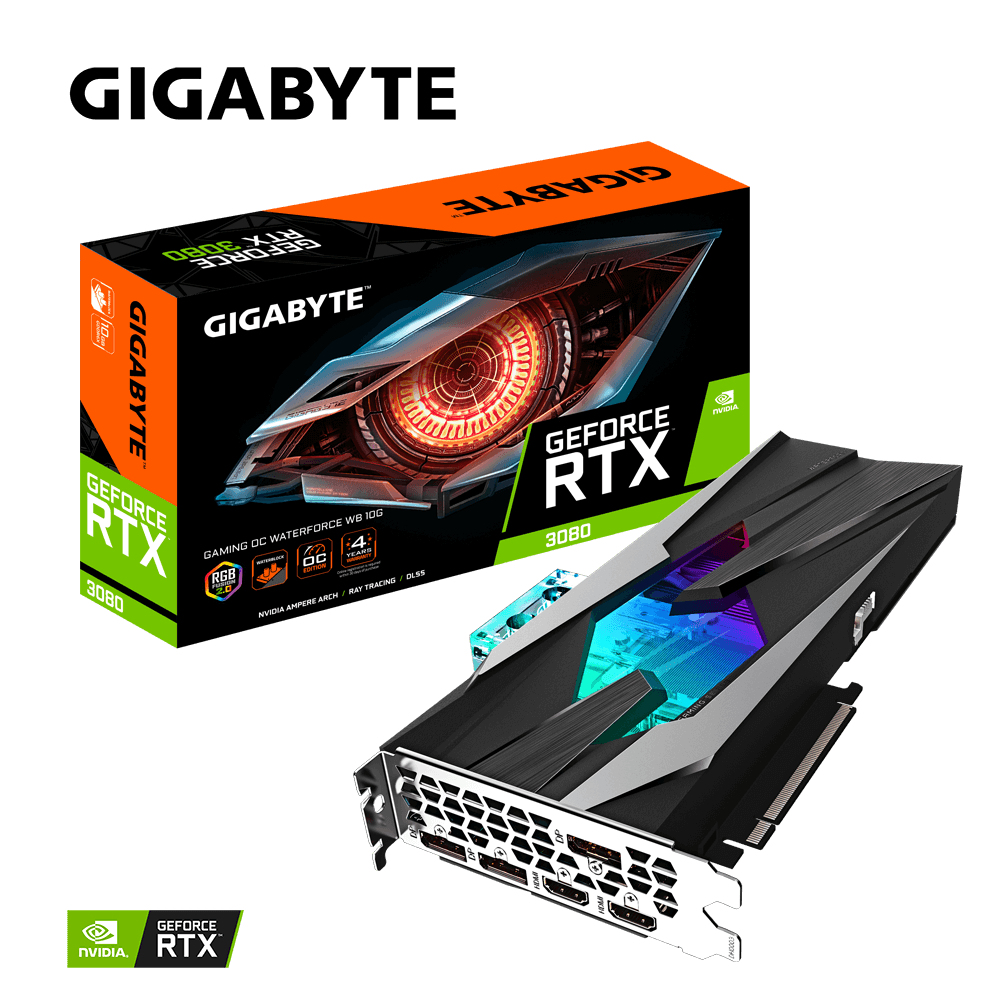

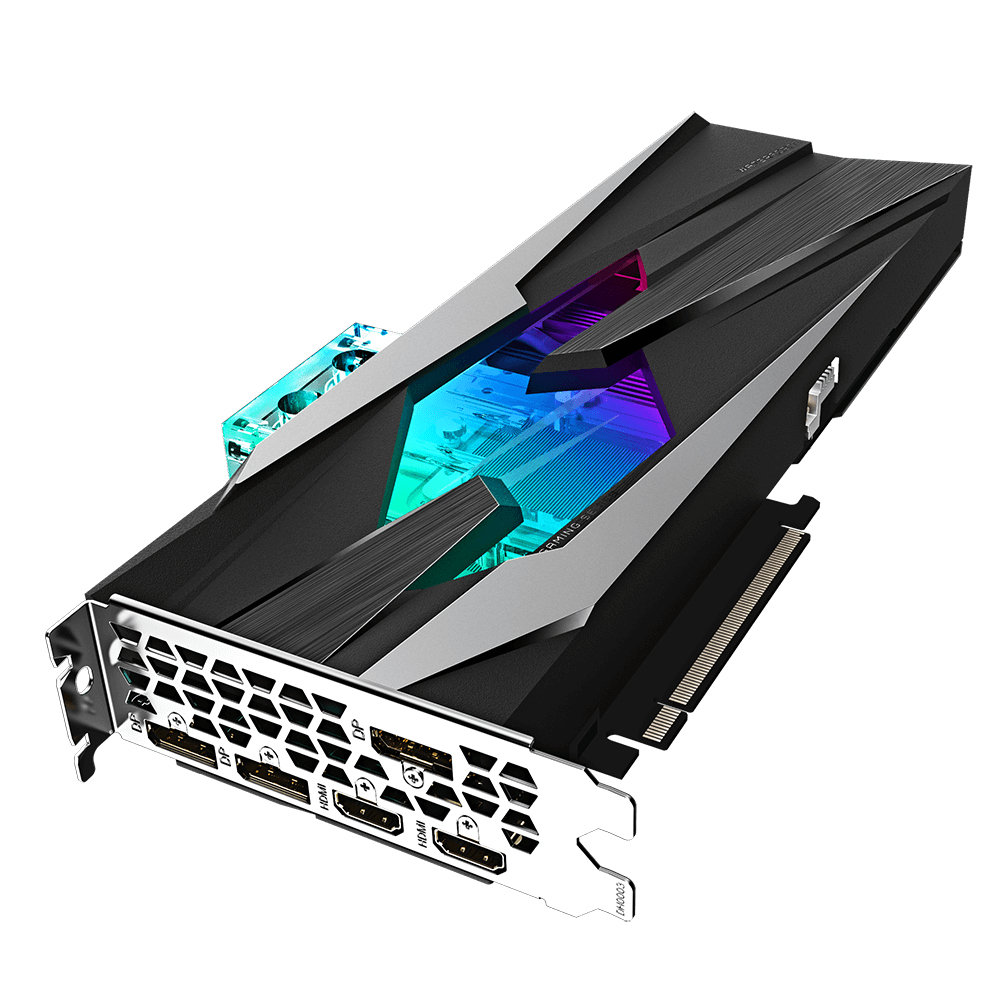

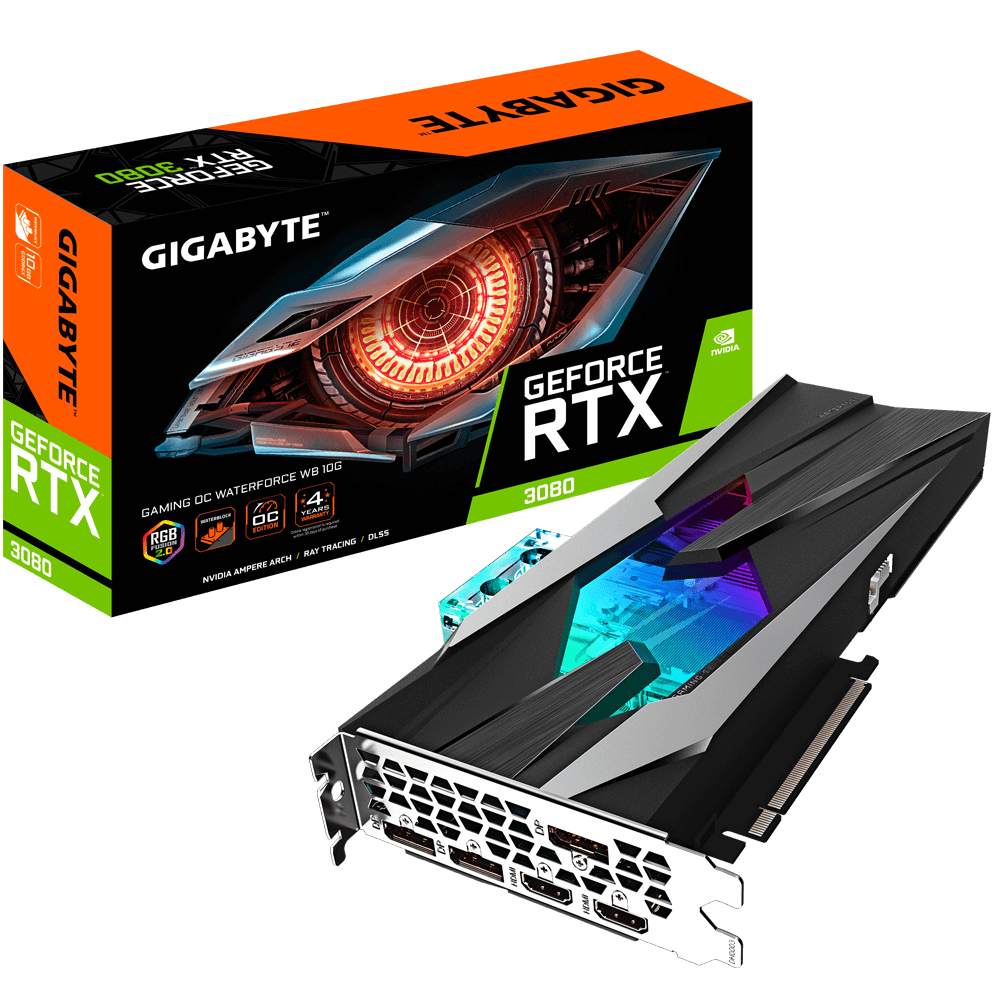

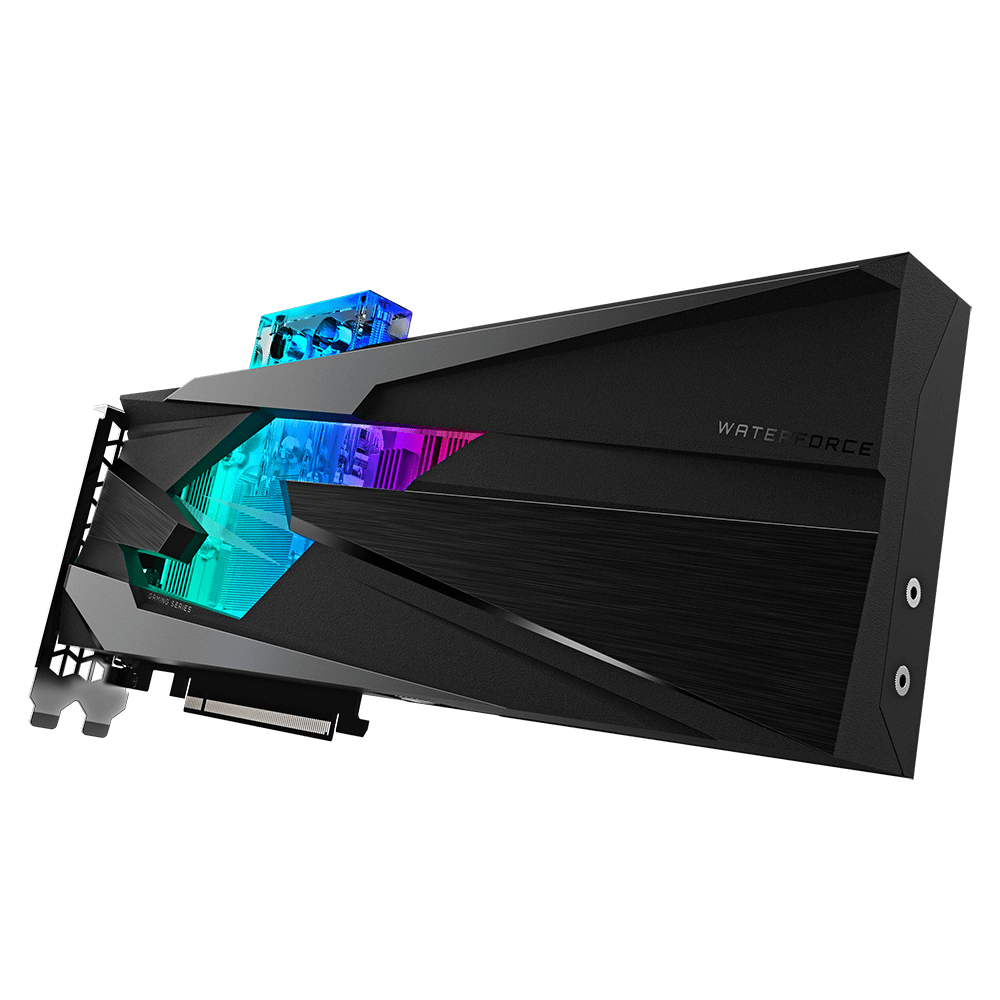

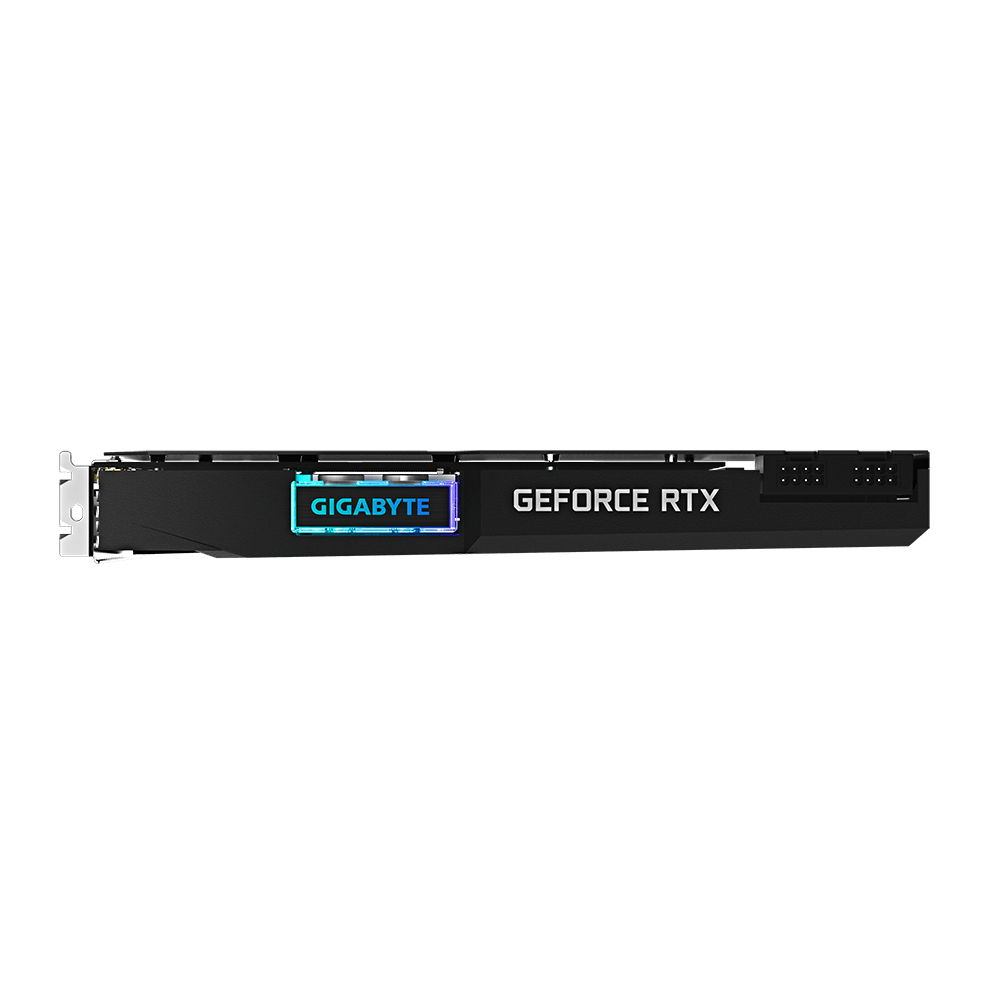

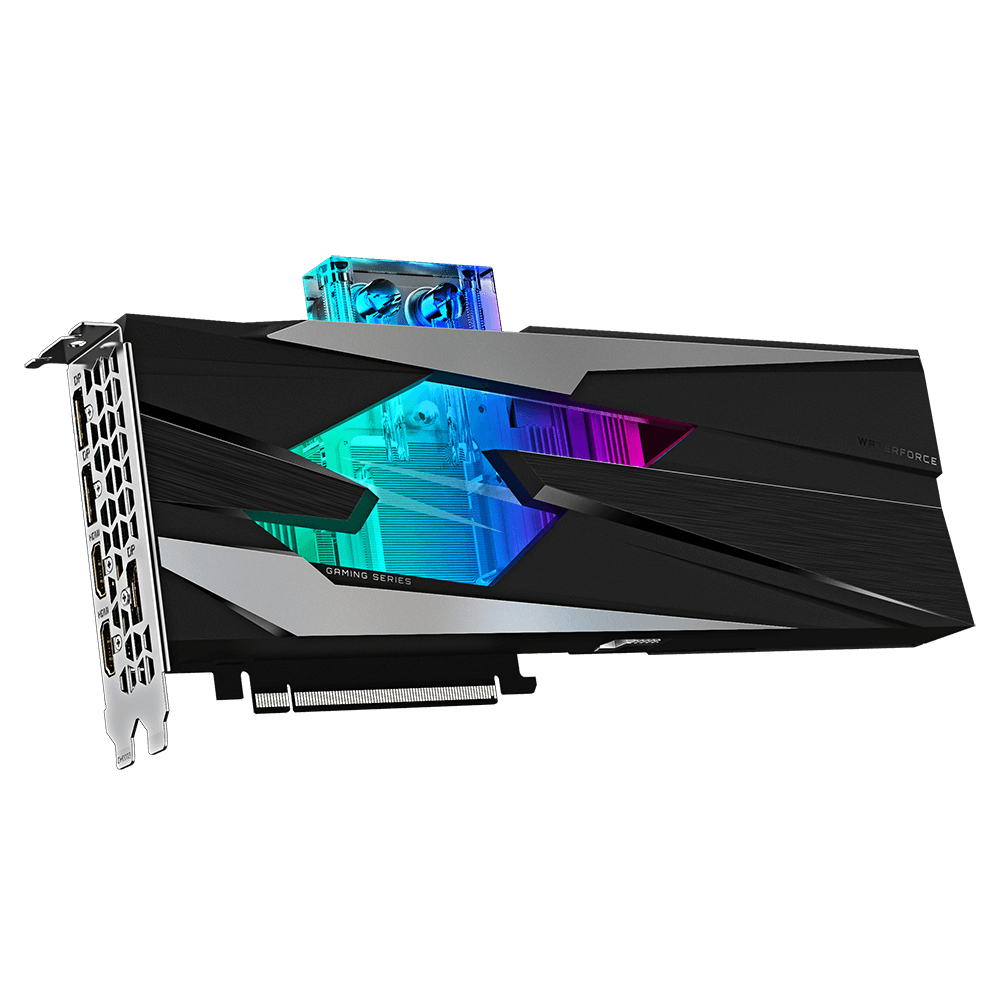

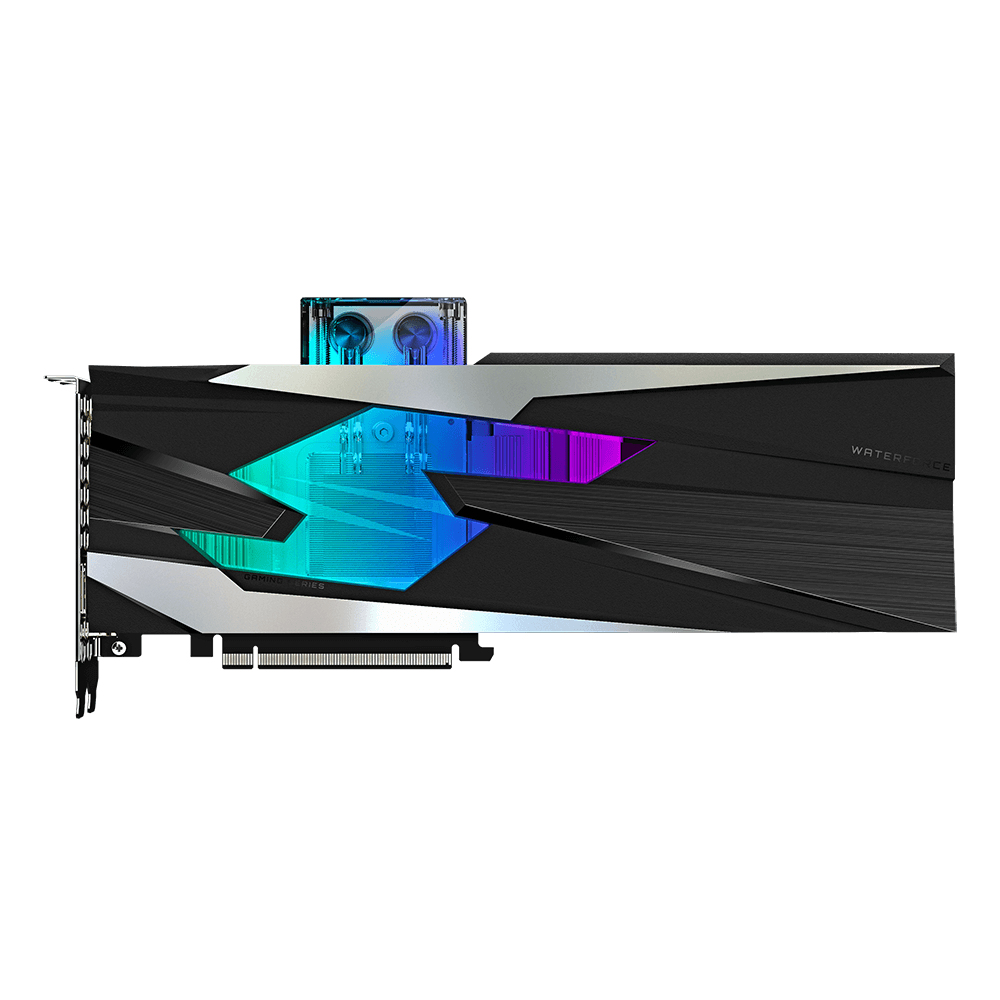

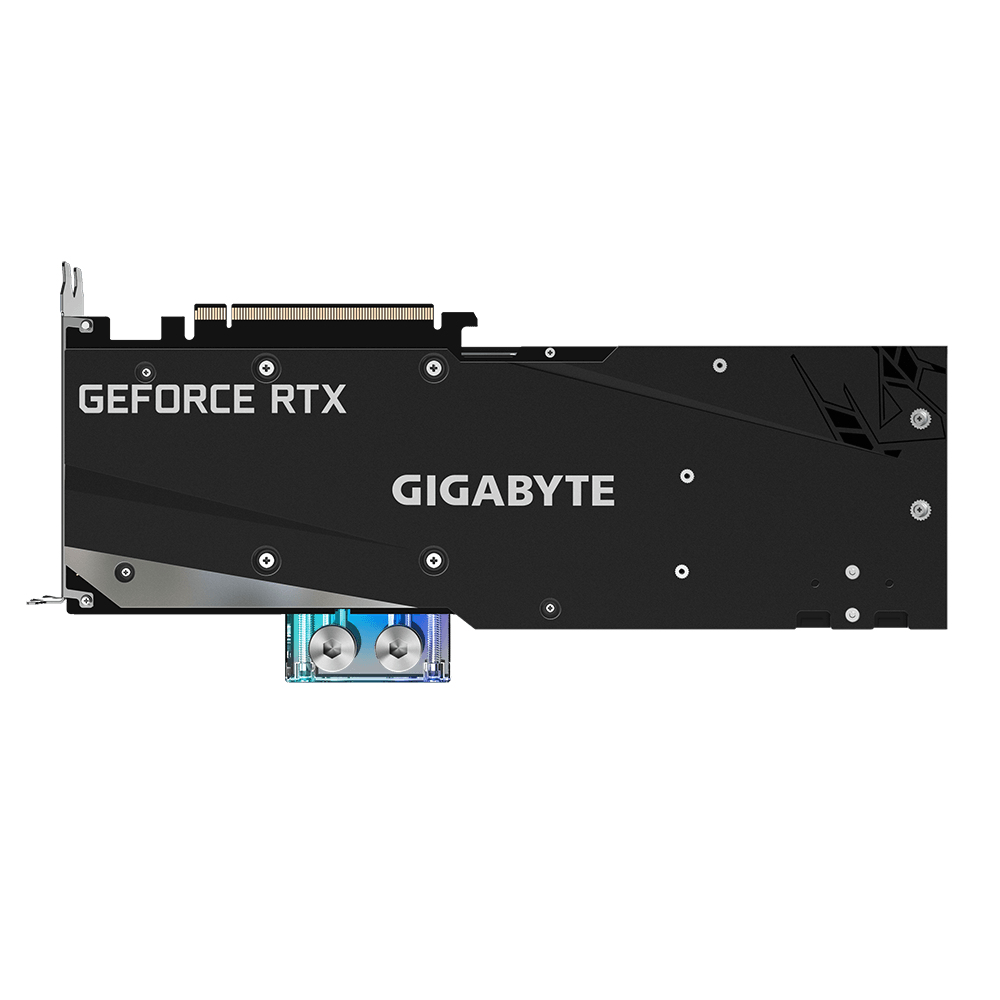

GeForce RTX 3080 GAMING OC WATERFORCE WB 10G
Model GeForce RTX 3080 GAMING OC WATERFORCE WB 10GPart no. GVN3080GAMINGOC10GDEAN 4719331308520
27 specifications Checked today
- Graphics processor familyNVIDIA
- Discrete graphics card memory10 GB
- Interface typePCI Express x16 4.0
- DirectX version12.0
- Cooling typeliquid
- Minimum system power supply750 W
Overview
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 10 GB
- Interface type
- PCI Express x16 4.0
- DirectX version
- 12.0
- Cooling type
- liquid
- Minimum system power supply
- 750 W
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GeForce RTX 3080 GAMING OC WATERFORCE WB 10G
- Part numbers
- GVN3080GAMINGOC10GD, GV-N3080GAMINGOC WB-10GD, GV-N3080GAMINGOC WB-10GD 1.0
- EAN / UPC
- 4719331308520
- Also known as
- GIGABYTE GAMING GeForce RTX 3080 OC WATERFORCE WB 10G NVIDIA 10 GB GDDR6X
Specifications
27 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 3080 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 8704 |
| Processor frequency | 1710 MHz |
| Processor boost clock speed | 1800 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 10 GB |
| Graphics card memory type | GDDR6X |
| Memory bus | 320 bit |
| Memory clock speed | 19000 MHz |
| Memory bandwidth (max) | 760 GB/s |

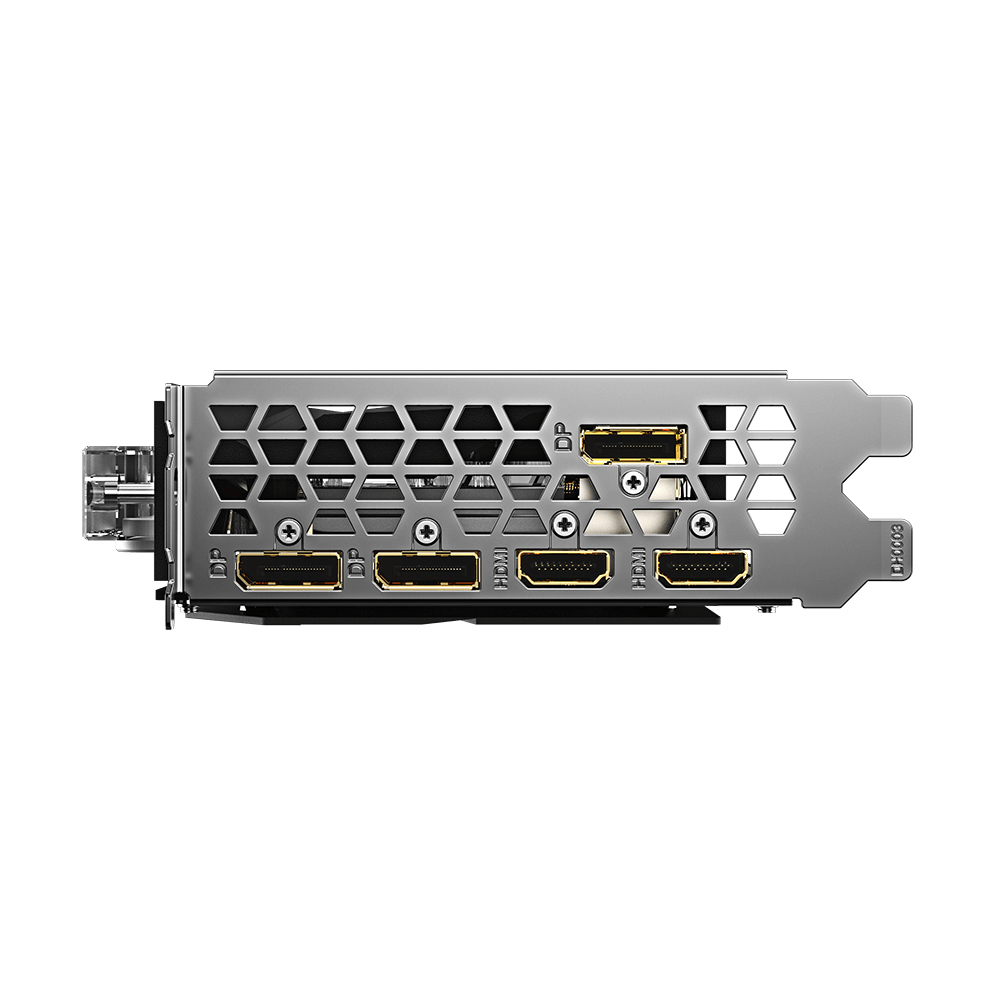

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 4.0 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4a |
Performance
| Specification | Value |
|---|---|
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
Design
| Specification | Value |
|---|---|
| Cooling type | liquid |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Supplementary power connectors | 2x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 310 mm |
| Depth | 40 mm |
| Height | 134 mm |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
