GeForce RTX 3070 Ti VISION OC 8G
Model GeForce RTX 3070 Ti VISION OC 8GPart no. GVN307TVO-00-10
37 specifications Checked today
- ColourSilver, White
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express x16 4.0
- DirectX version12 Ultimate
- Cooling typeActive
Overview
- Colour
- Silver, White
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express x16 4.0
- DirectX version
- 12 Ultimate
- Cooling type
- Active
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GeForce RTX 3070 Ti VISION OC 8G
- Part number
- GVN307TVO-00-10
- Also known as
- GIGABYTE GeForce RTX 3070 Ti VISION OC 8G NVIDIA 8 GB GDDR6X
Specifications
37 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 3070 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 6144 |
| Processor frequency | 1830 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6X |
| Memory bus | 256 bit |
| Memory clock speed | 19000 MHz |
| Memory bandwidth (max) | 608 GB/s |

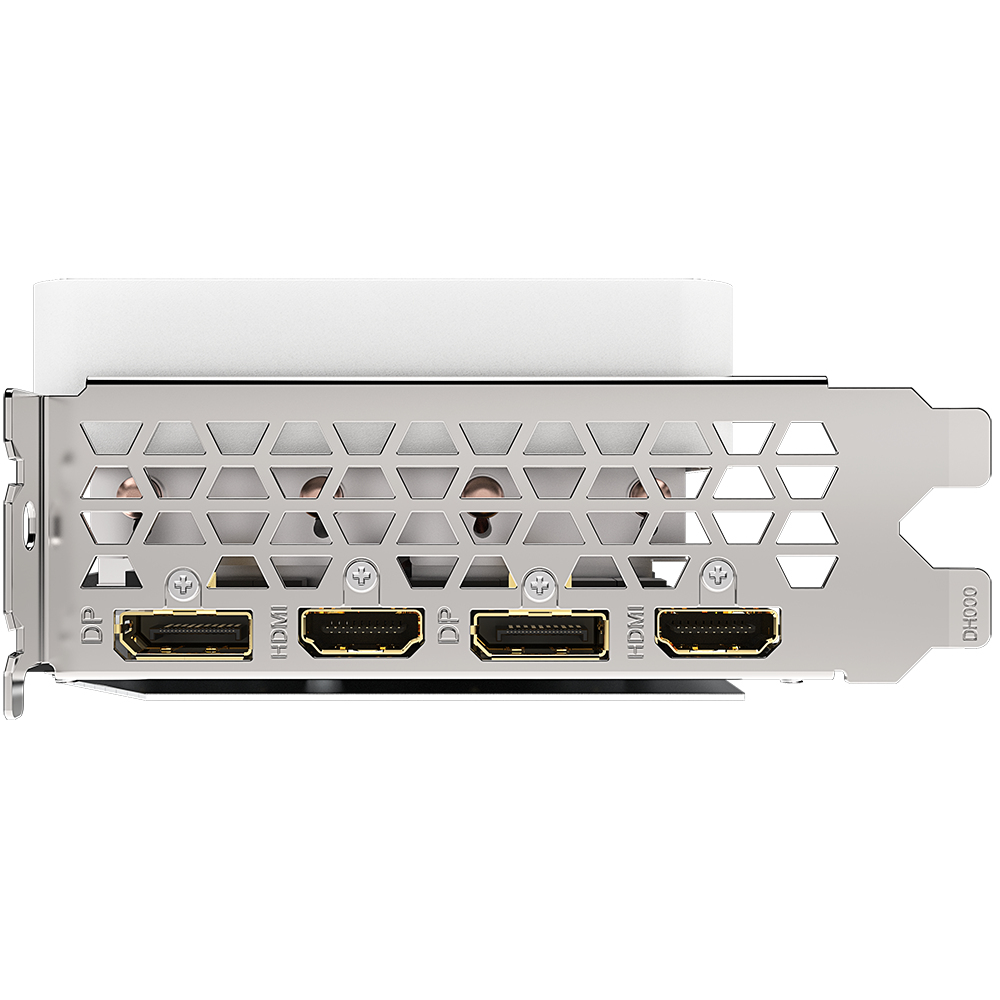

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 4.0 |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4a |
Performance
| Specification | Value |
|---|---|
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Fan diameter | 9 cm |
| Number of slots | 2 |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Silver, White |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Supplementary power connectors | 2x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 320 mm |
| Depth | 55 mm |
| Height | 126 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
