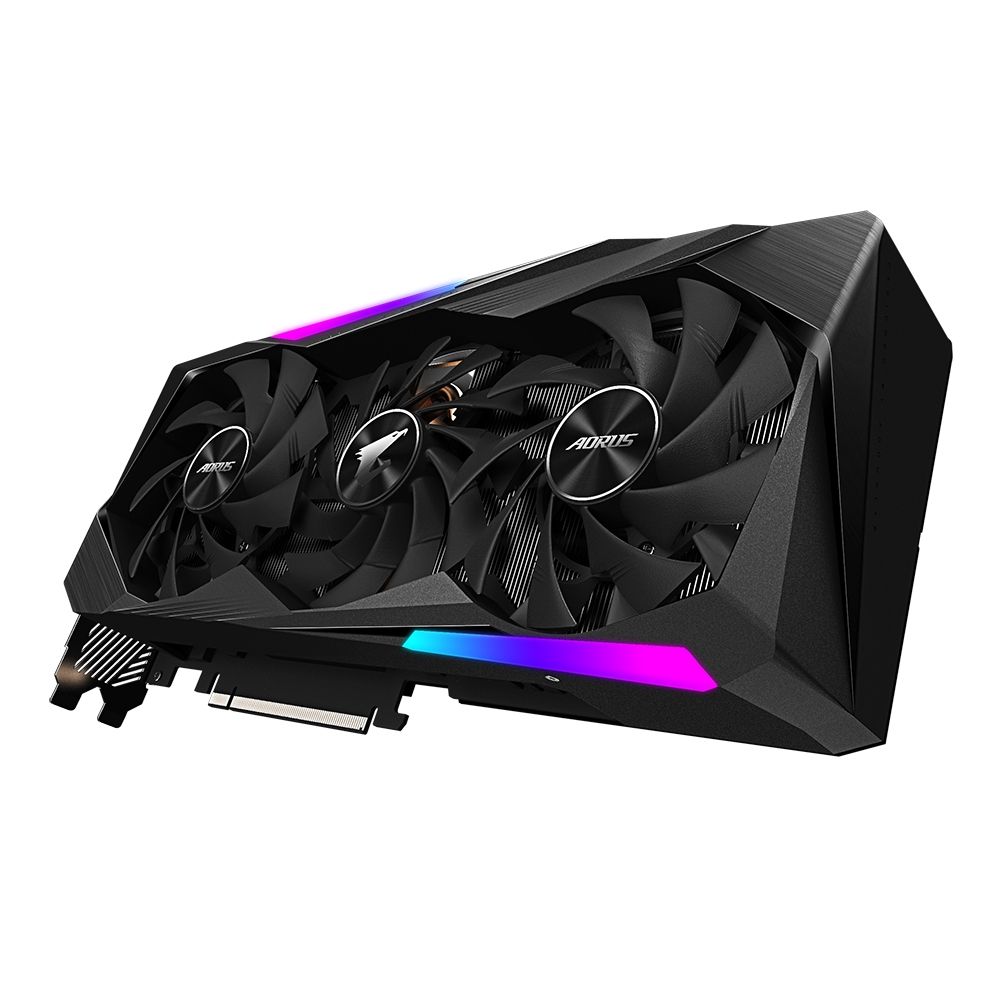

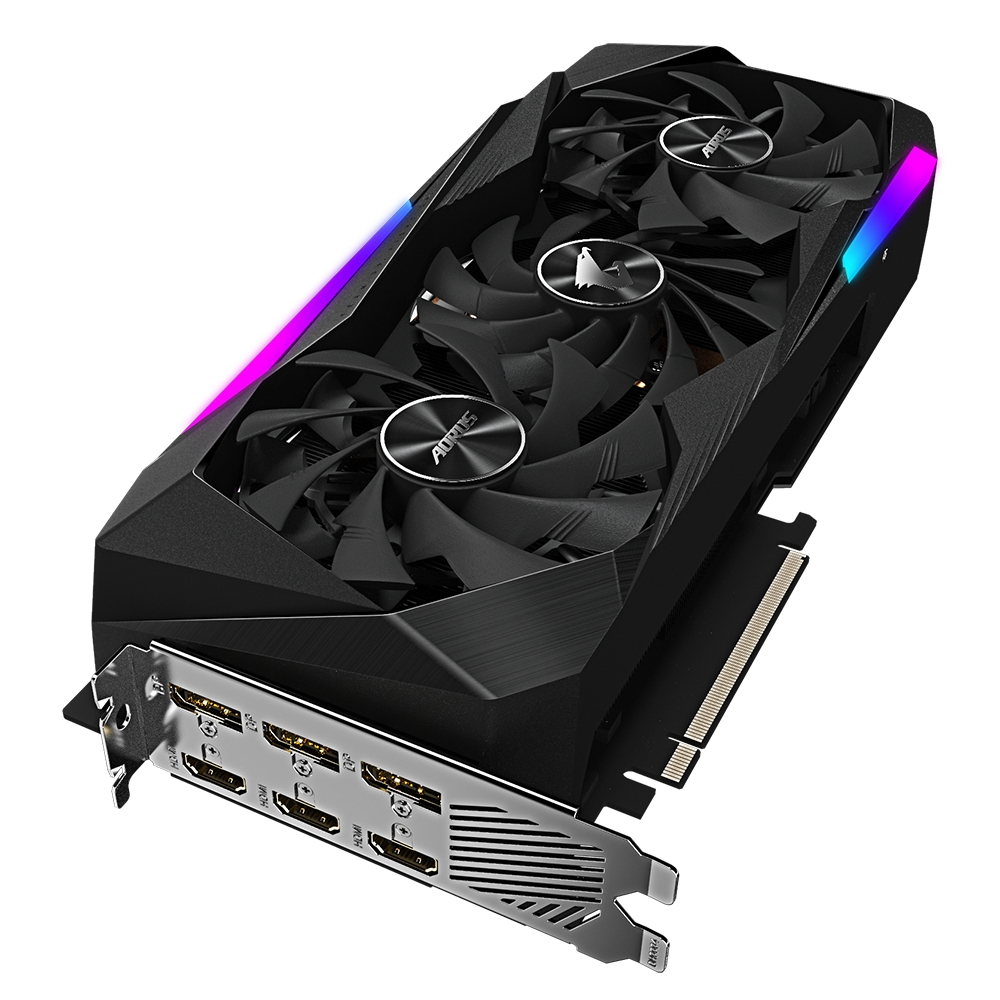

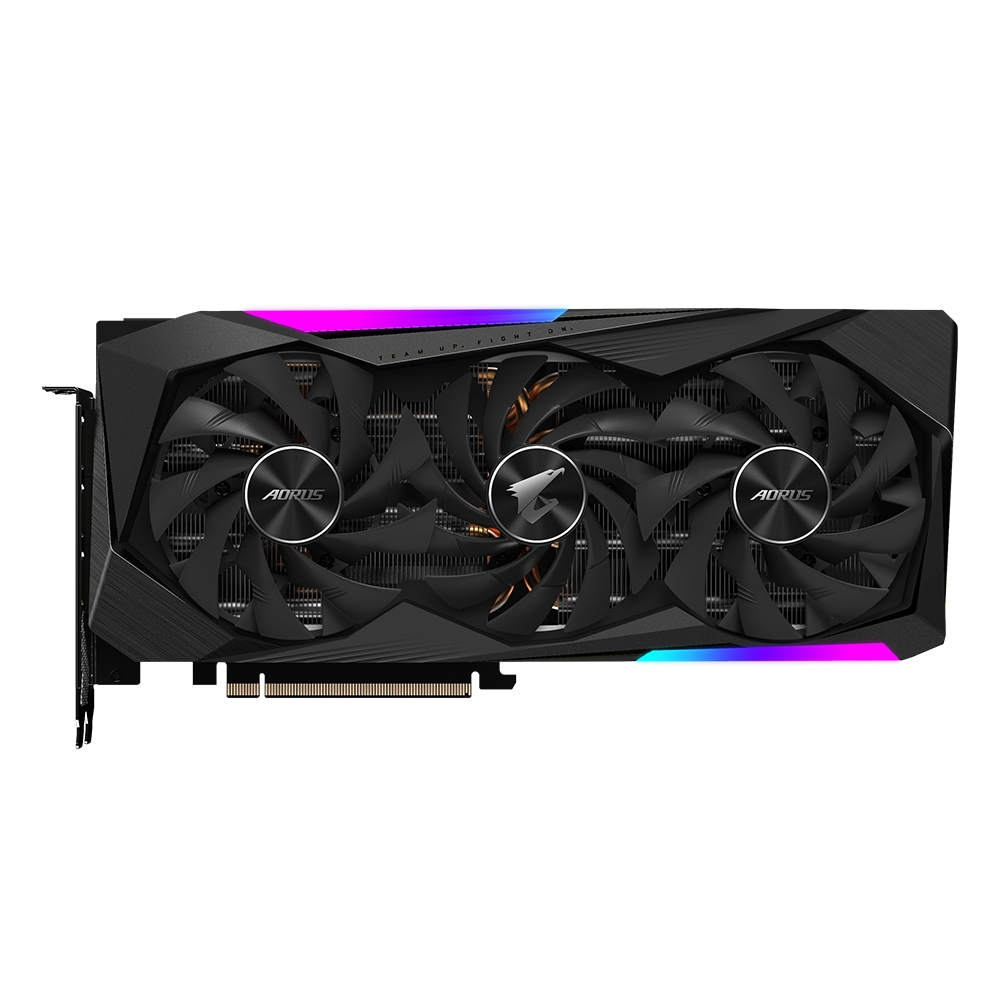

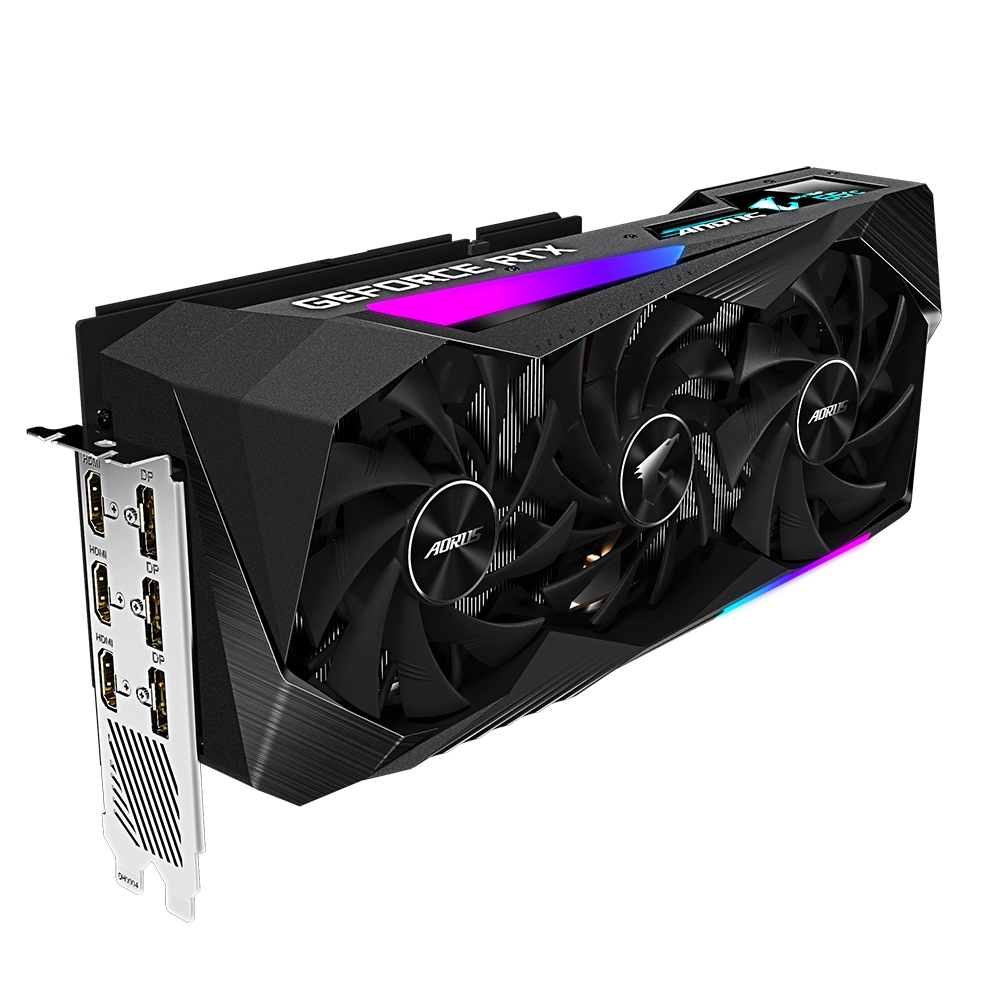

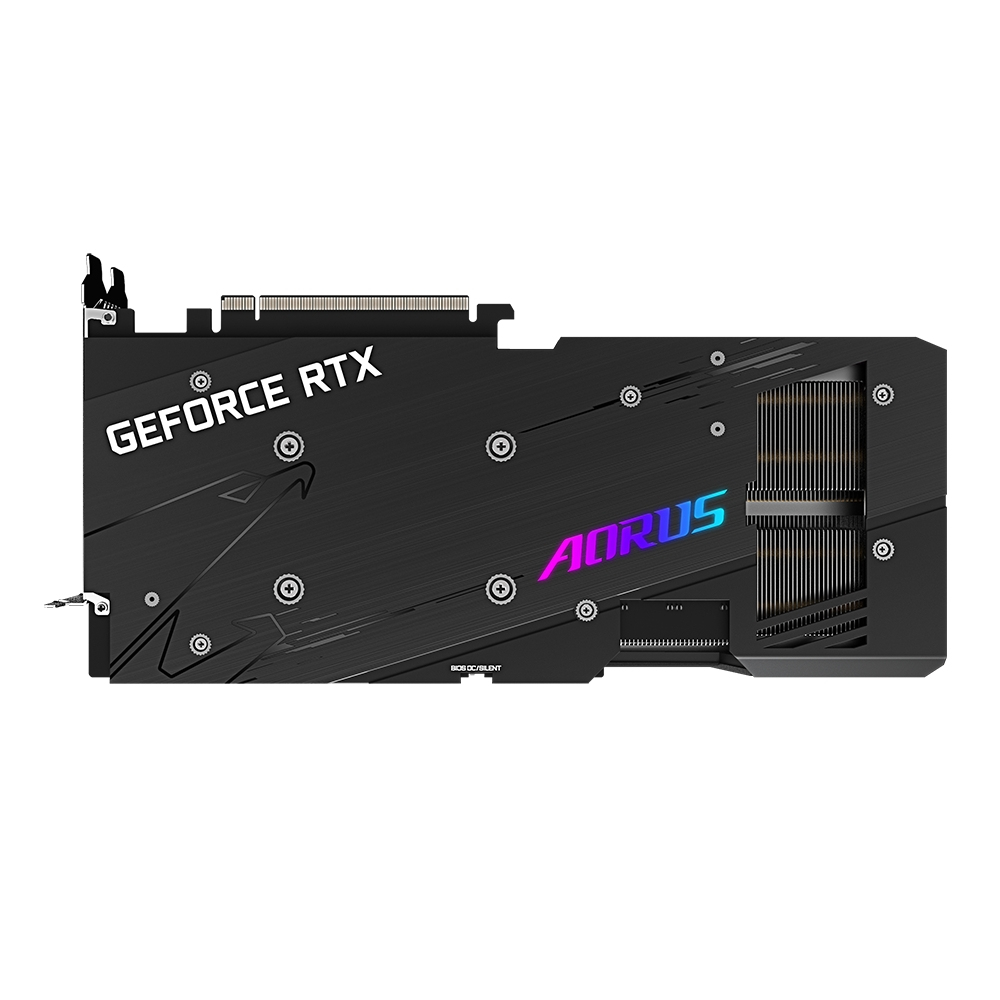

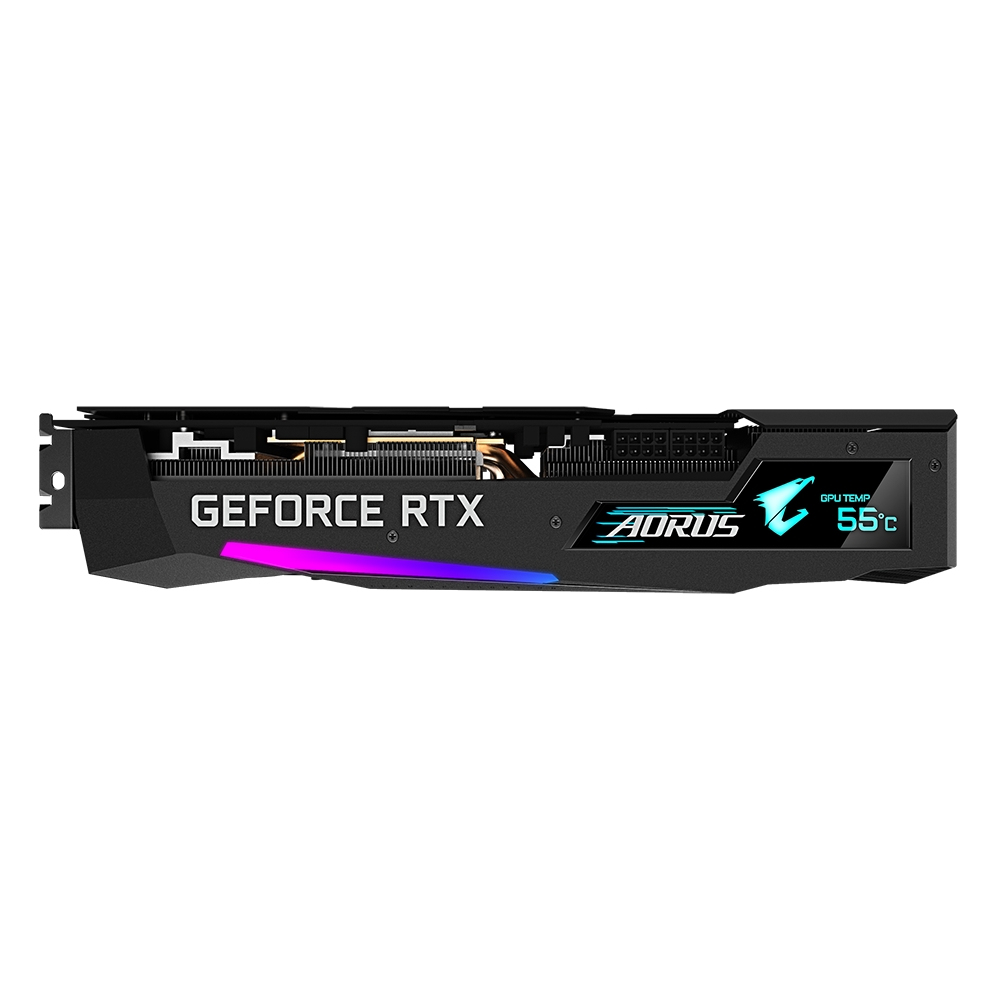

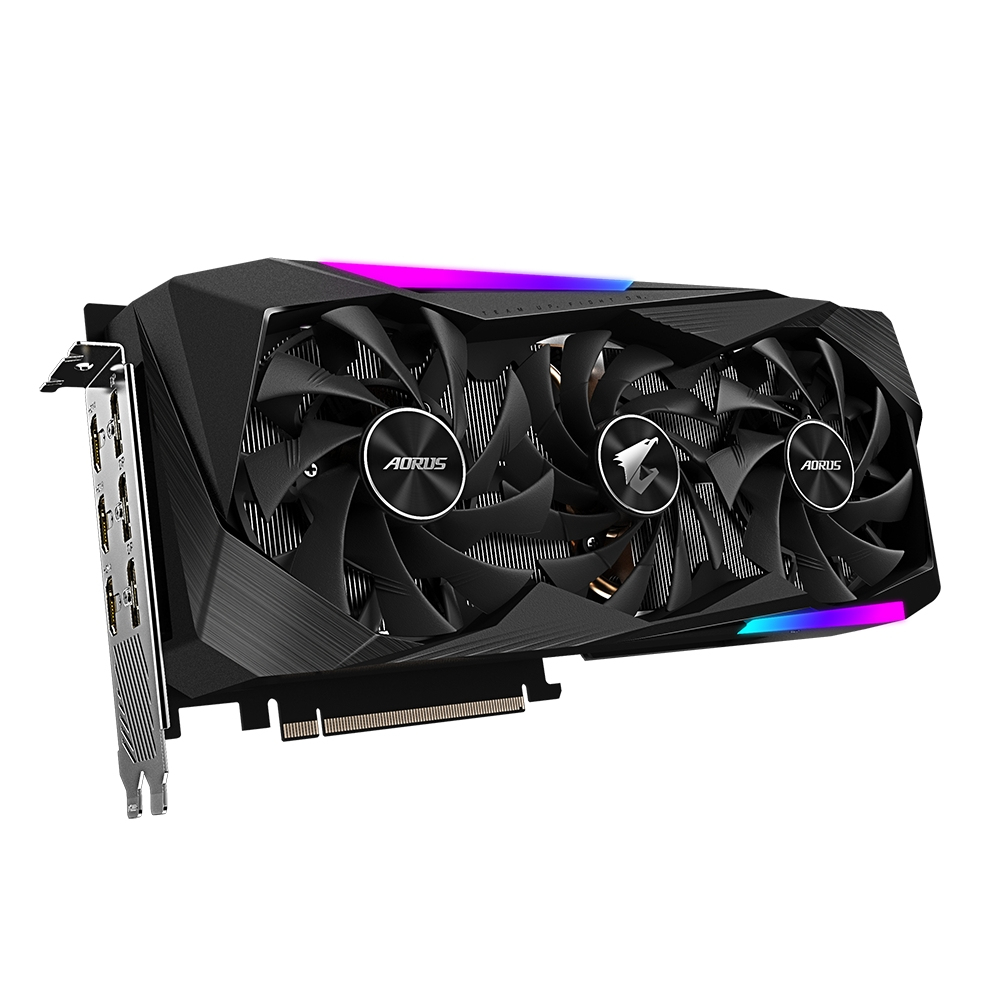

GIGABYTE GeForce RTX 3070 MASTER 8G

GeForce RTX 3070 MASTER 8G

Model GeForce RTX 3070 MASTER 8G

35 specifications Checked today

TypeFull-Height/Full-Length (FH/FL)
ColourBlack
Graphics processor familyNVIDIA
Discrete graphics card memory8 GB
Interface typePCI Express x16 4.0
DirectX version12.0

See all specifications

Overview

Type: Full-Height/Full-Length (FH/FL)
Colour: Black
Graphics processor family: NVIDIA
Discrete graphics card memory: 8 GB
Interface type: PCI Express x16 4.0
DirectX version: 12.0

Brand: GIGABYTE
Category: GPU
Model: GeForce RTX 3070 MASTER 8G
Also known as: GIGABYTE AORUS GeForce RTX 3070 MASTER 8G NVIDIA 8 GB GDDR6

Specifications

35 specifications in 9 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 3070
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	5888
Processor frequency	1845 MHz
Maximum displays per videocard	4

Memory

Specification	Value
Discrete graphics card memory	8 GB
Graphics card memory type	GDDR6
Memory bus	256 bit
Memory clock speed	14000 MHz
Memory bandwidth (max)	448 GB/s

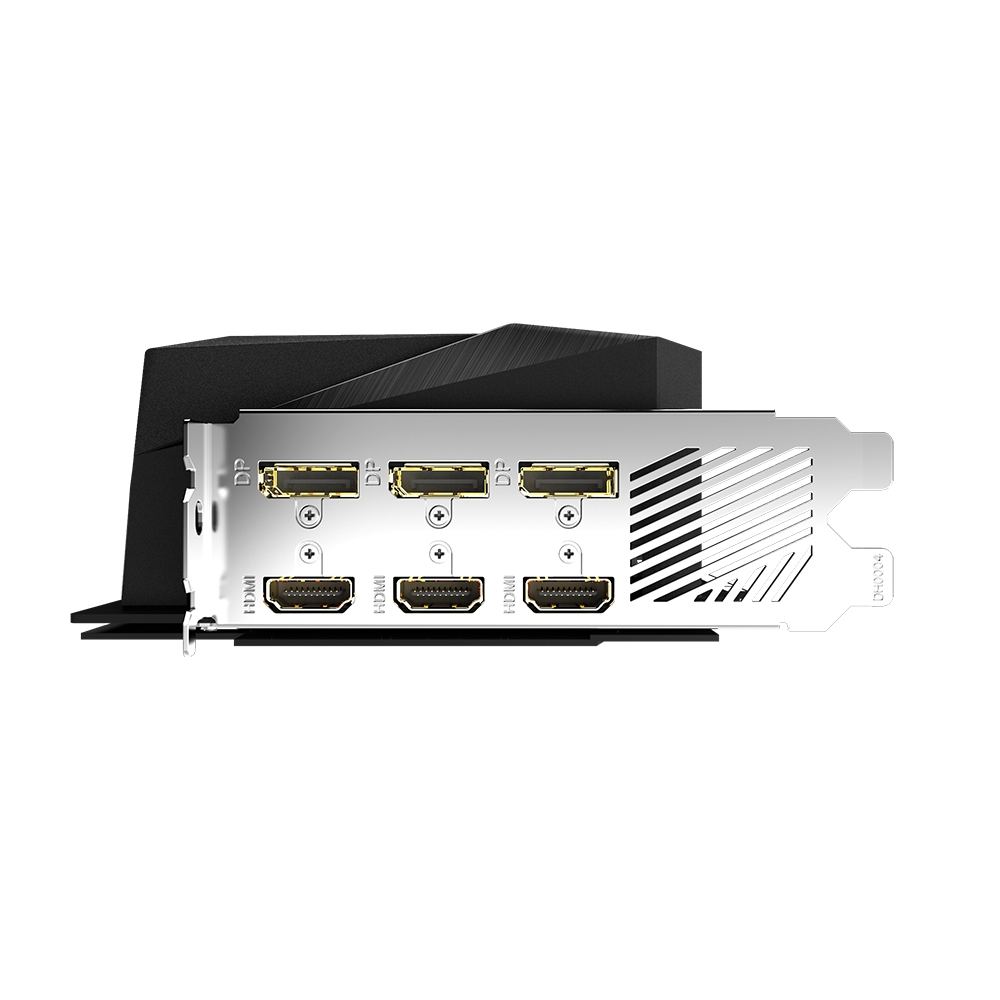

Ports & interfaces

Specification	Value
Interface type	PCI Express x16 4.0
HDMI ports quantity	2
DisplayPorts quantity	3
HDMI version	2.0/2.1
DisplayPort version	1.4a

Performance

Specification	Value
DirectX version	12.0
OpenGL version	4.6

Design

Specification	Value
Cooling type	Active
Cooling technology	GIGABYTE Max-Covered
Number of fans	3 fan(s)
Fan diameter	10 cm
Bracket height	Full-Height (FH)
Form factor	Full-Height/Full-Length (FH/FL)
Illumination	Yes
Illumination colour	Multi
Product colour	Black

Power

Specification	Value
Minimum system power supply	650 W
Supplementary power connectors	2x 8-pin

Weight & dimensions

Specification	Value
Length	290 mm
Depth	60 mm
Height	131 mm

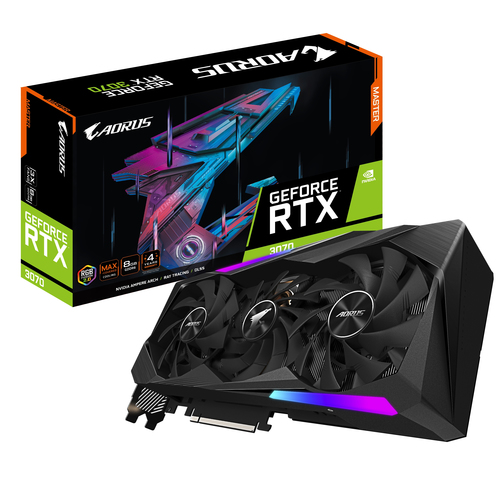

Packaging data

Specification	Value
Package type	Box

Packaging content

Specification	Value
Quick installation guide	Yes
