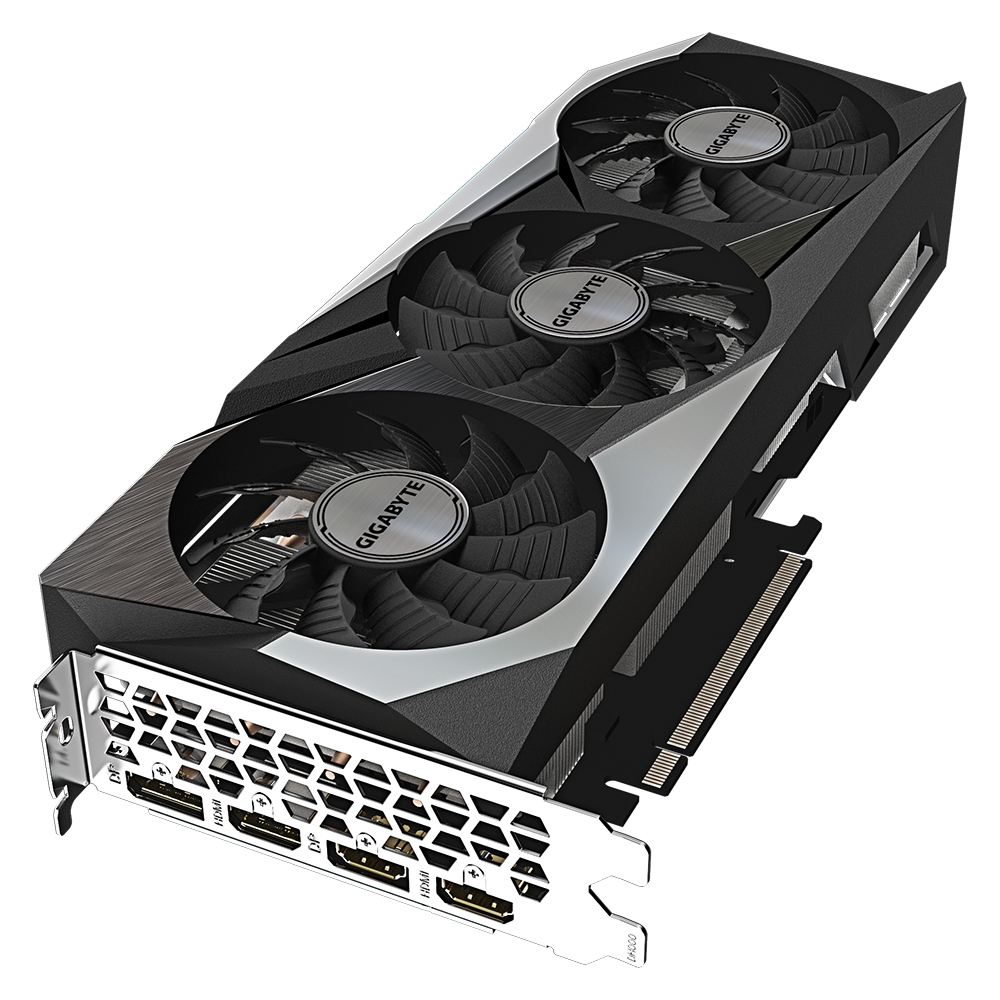

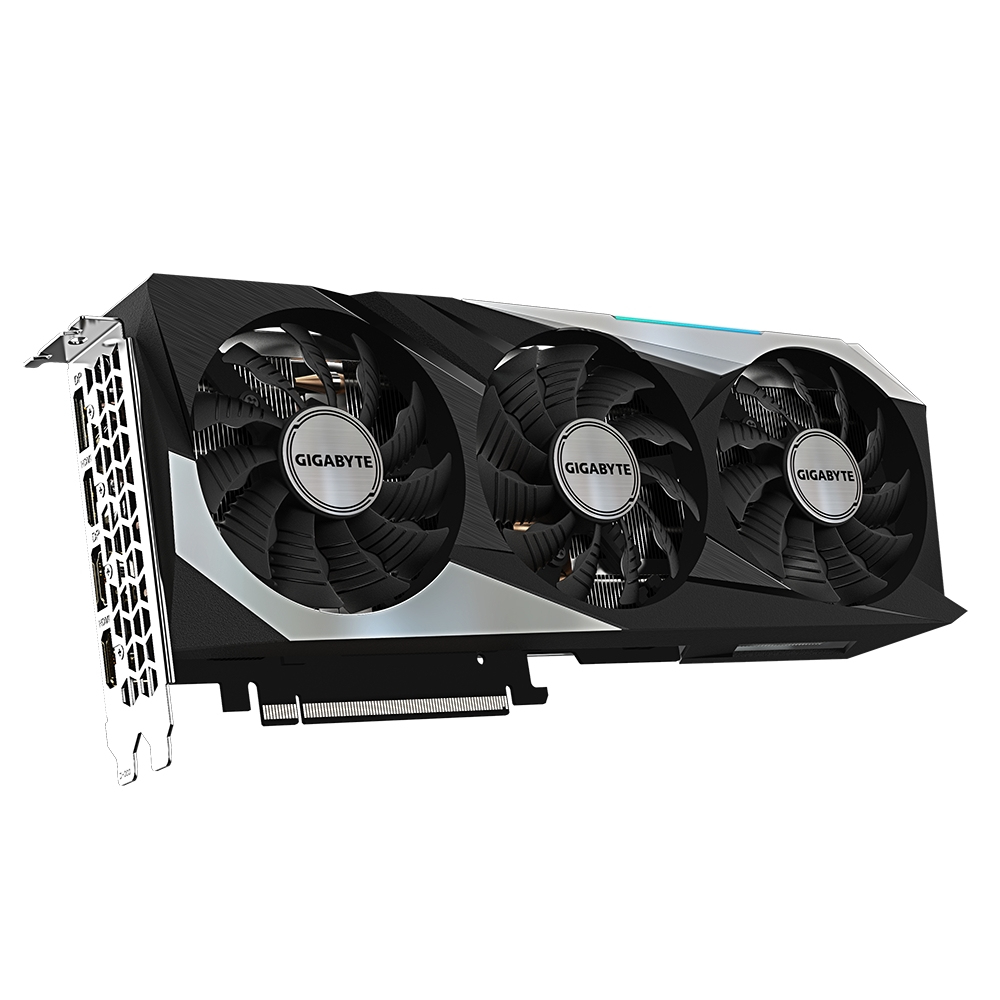

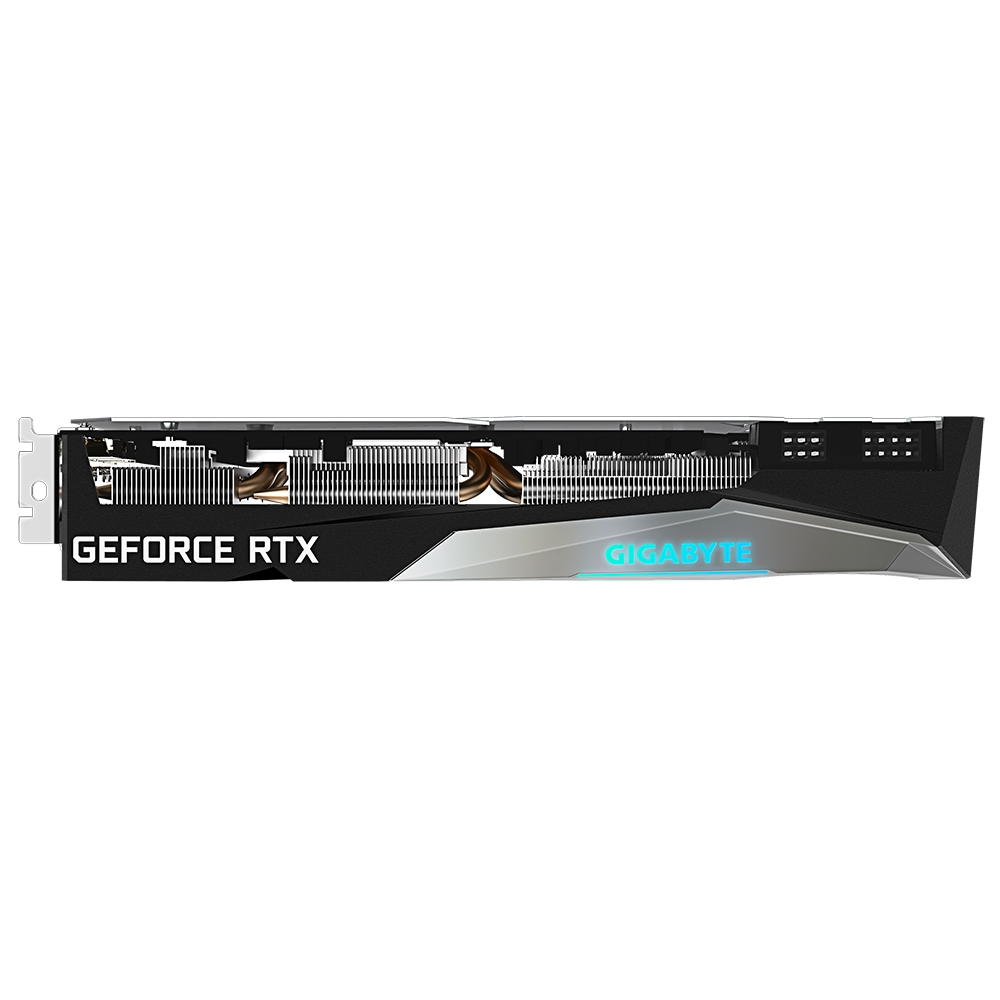

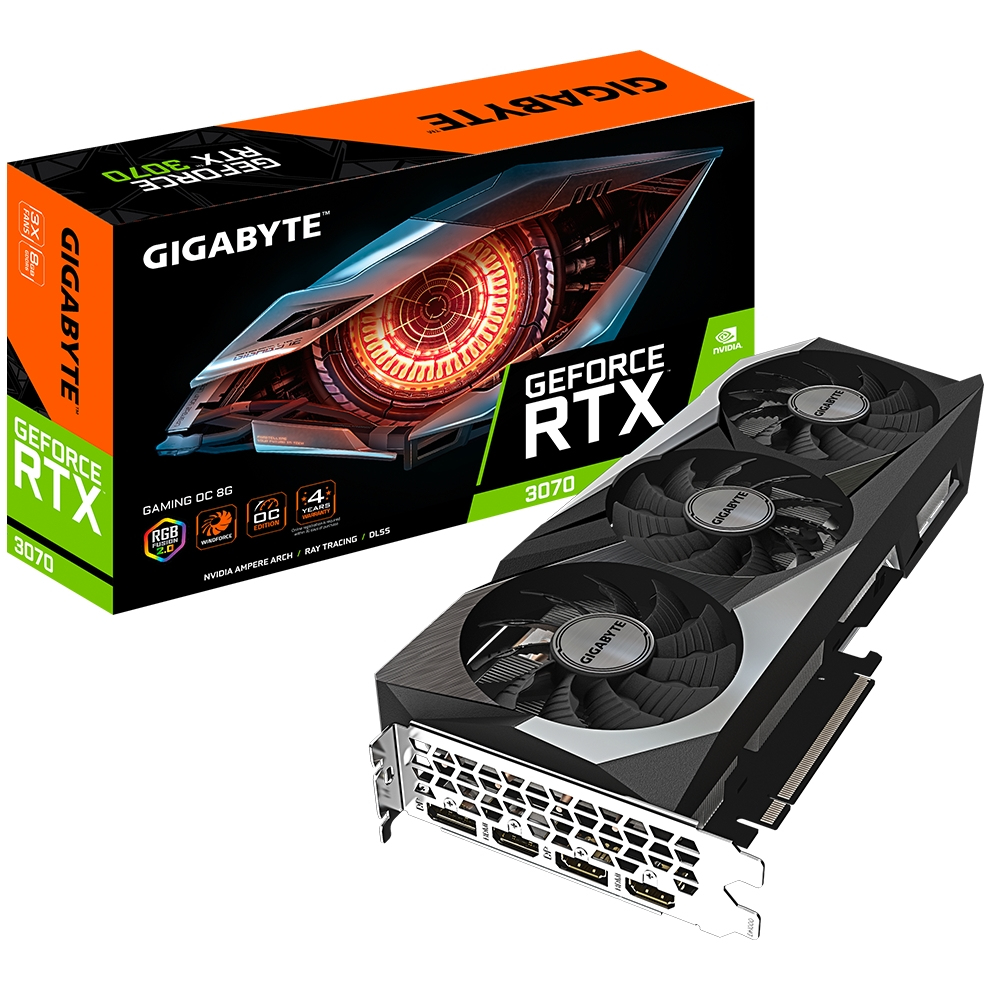

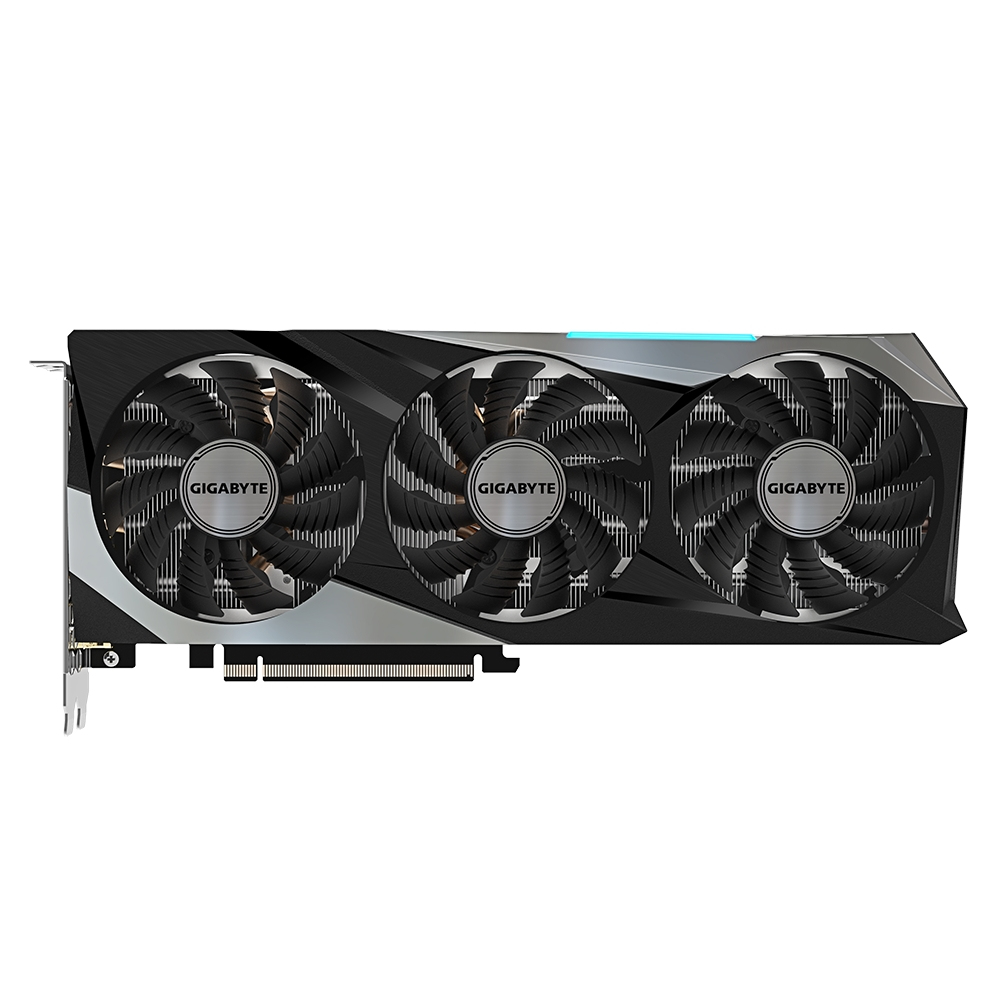

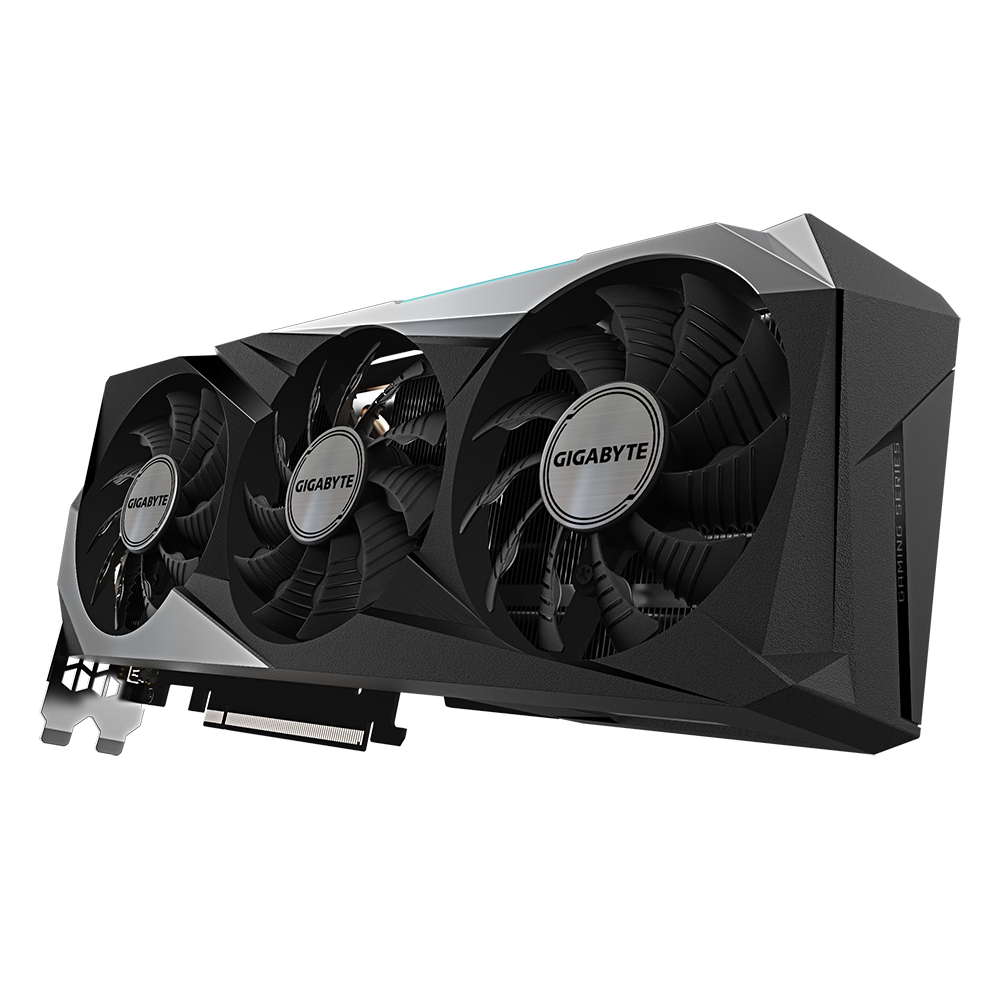

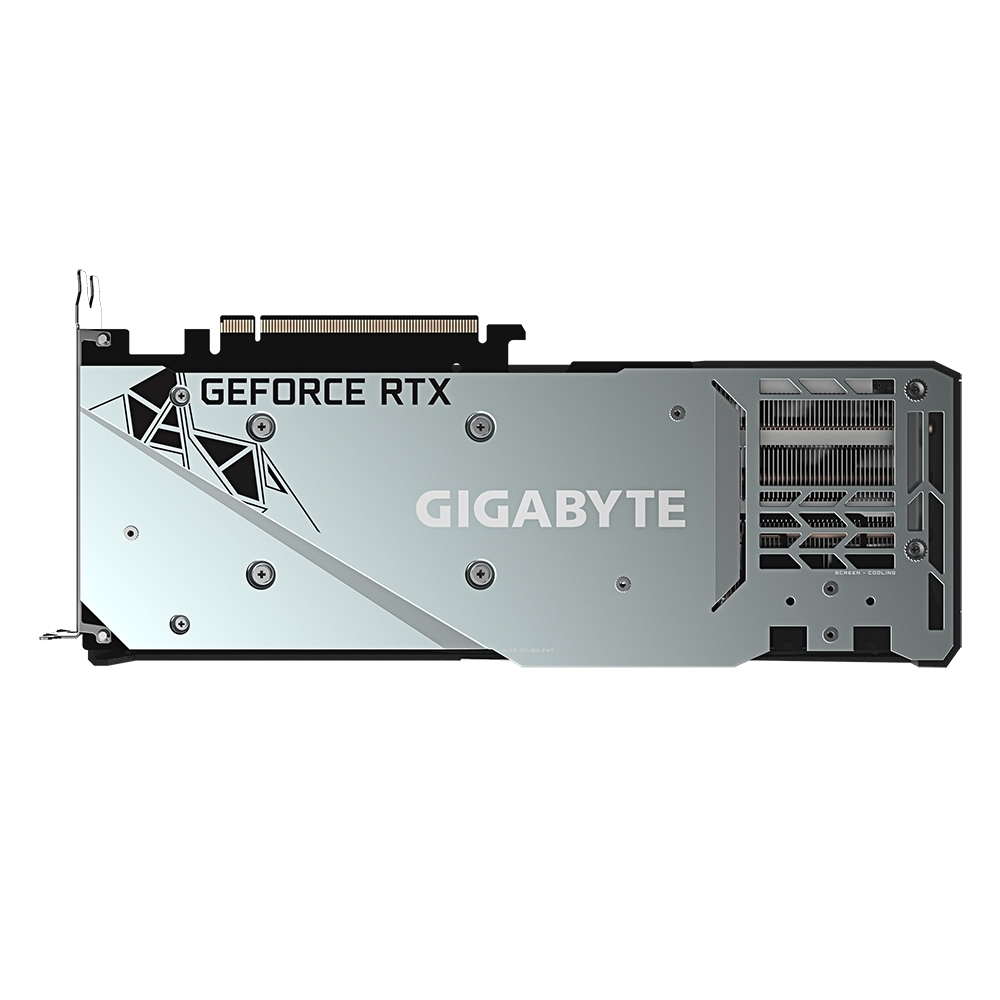

GIGABYTE GeForce RTX 3070 GAMING OC 8G

GeForce RTX 3070 GAMING OC 8G

Model GeForce RTX 3070 GAMING OC 8G

36 specifications Checked today

TypeFull-Height/Full-Length (FH/FL)
ColourBlack
Graphics processor familyNVIDIA
Discrete graphics card memory8 GB
Interface typePCI Express x16 4.0
DirectX version12.0

See all specifications

Overview

Type: Full-Height/Full-Length (FH/FL)
Colour: Black
Graphics processor family: NVIDIA
Discrete graphics card memory: 8 GB
Interface type: PCI Express x16 4.0
DirectX version: 12.0

Brand: GIGABYTE
Category: GPU
Model: GeForce RTX 3070 GAMING OC 8G
Also known as: GIGABYTE GAMING GeForce RTX 3070 OC 8G NVIDIA 8 GB GDDR6

Specifications

36 specifications in 10 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 3070
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	5888
Processor boost clock speed	1815 MHz
Maximum displays per videocard	4

Memory

Specification	Value
Discrete graphics card memory	8 GB
Graphics card memory type	GDDR6
Memory bus	256 bit
Memory clock speed	14000 MHz
Memory bandwidth (max)	448 GB/s

Ports & interfaces

Specification	Value
Interface type	PCI Express x16 4.0

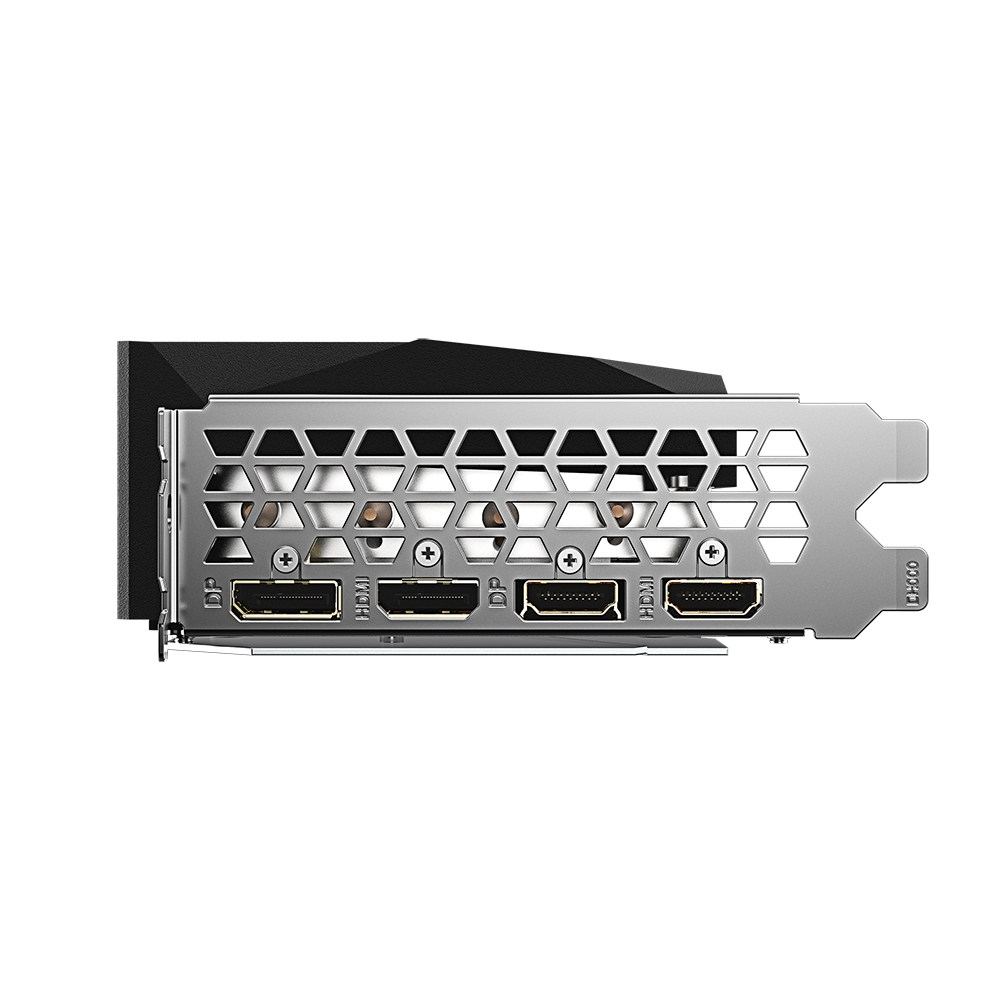

HDMI ports quantity	2
DisplayPorts quantity	2
HDMI version	2.1
DisplayPort version	1.4a

Performance

Specification	Value
DirectX version	12.0
OpenGL version	4.6

Design

Specification	Value
Cooling type	Active
Cooling technology	GIGABYTE WINDFORCE 3X
Number of fans	3 fan(s)
Fan diameter	8 cm
Bracket height	Full-Height (FH)
Form factor	Full-Height/Full-Length (FH/FL)
Illumination	Yes
Illumination colour	Multi
Product colour	Black

Power

Specification	Value
Minimum system power supply	650 W
Supplementary power connectors	1x 6-pin, 1x 8-pin

Weight & dimensions

Specification	Value
Length	286 mm
Depth	51 mm
Height	115 mm

Packaging data

Specification	Value
Package type	Box

Packaging content

Specification	Value
Quick installation guide	Yes

Logistics data

Specification	Value
Harmonized System (HS) code	84733020
