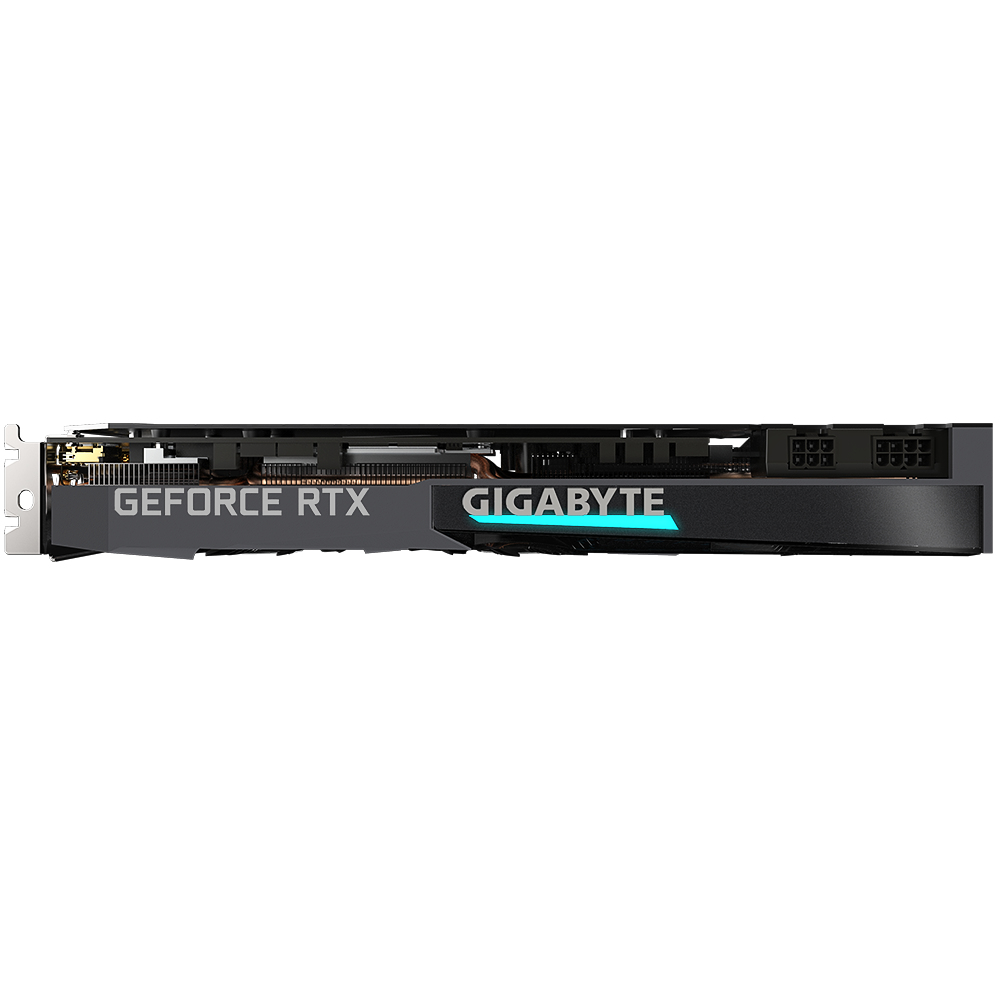

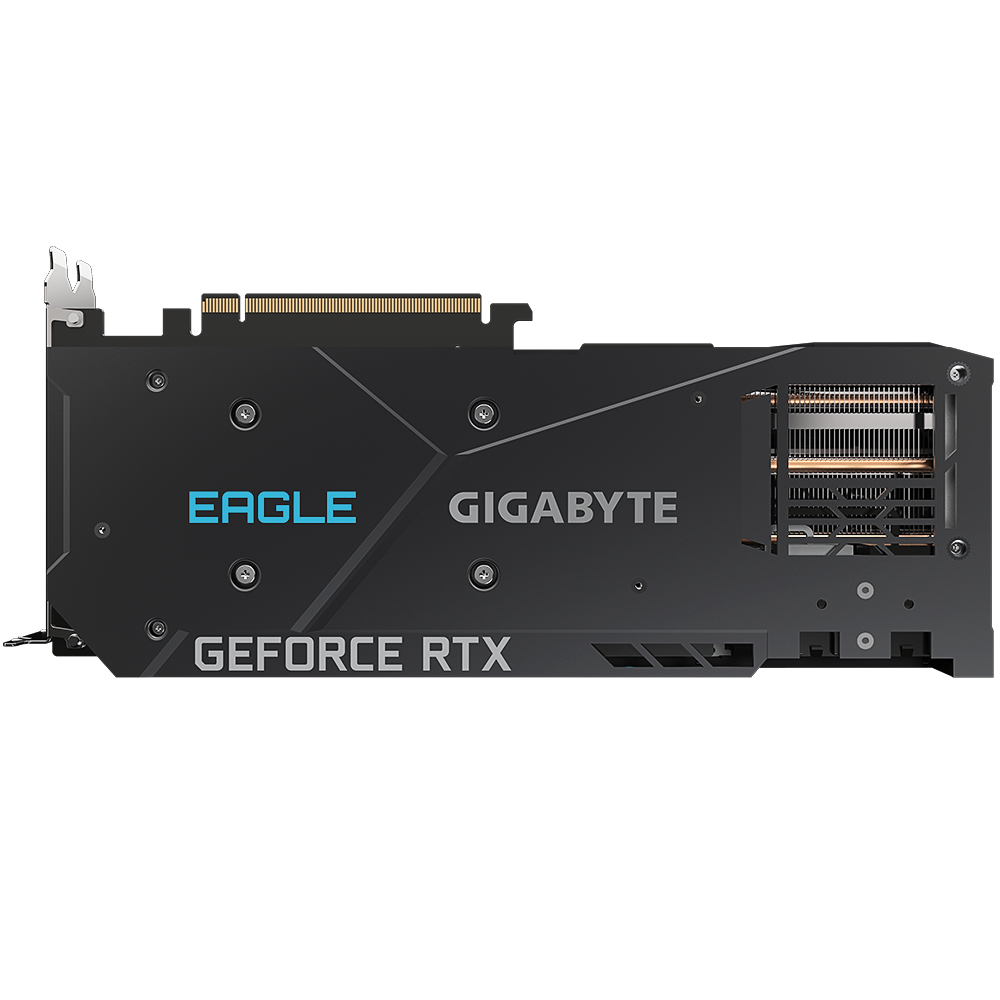

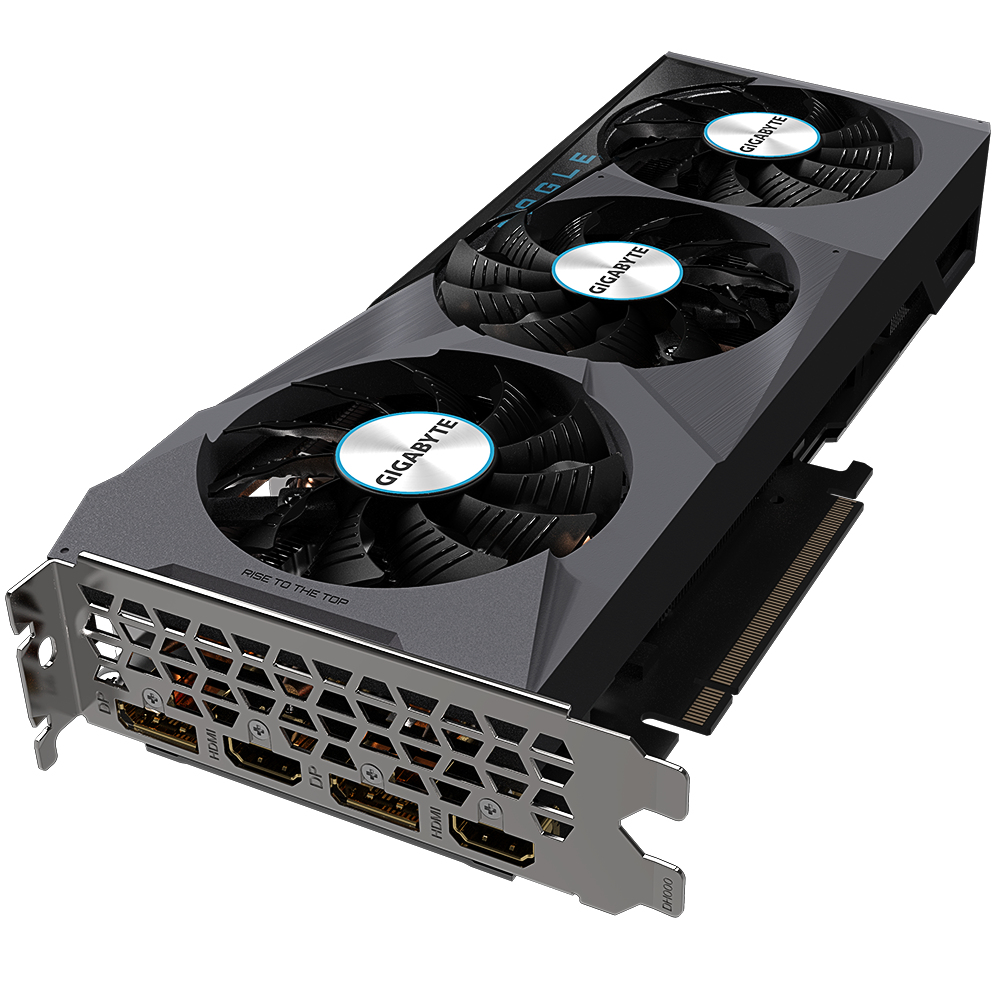

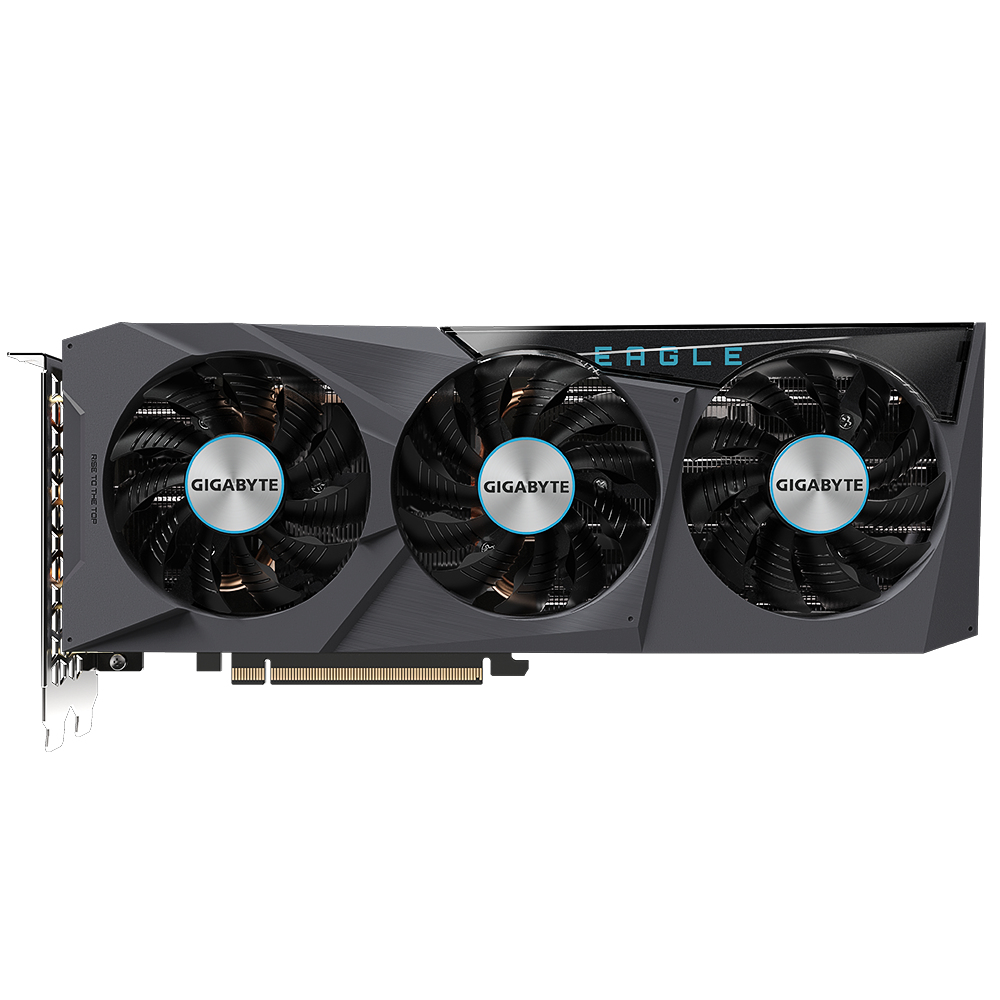

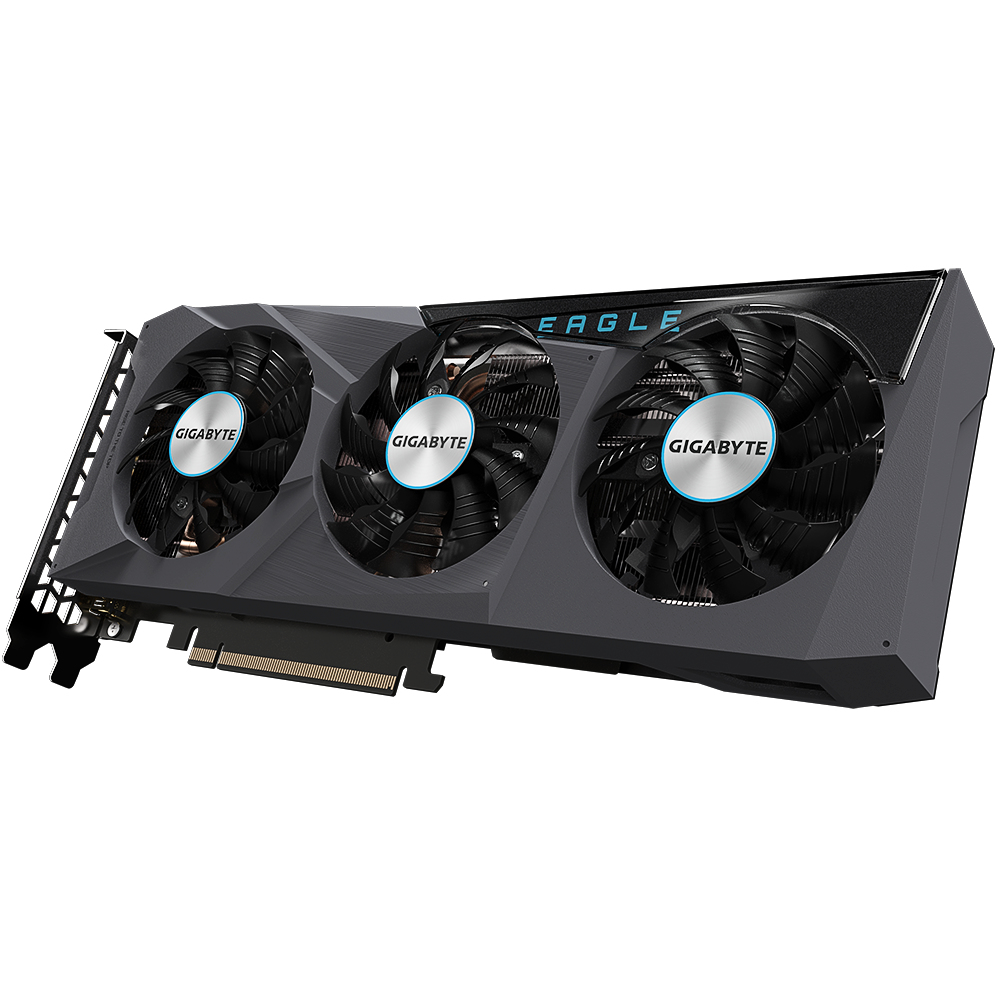

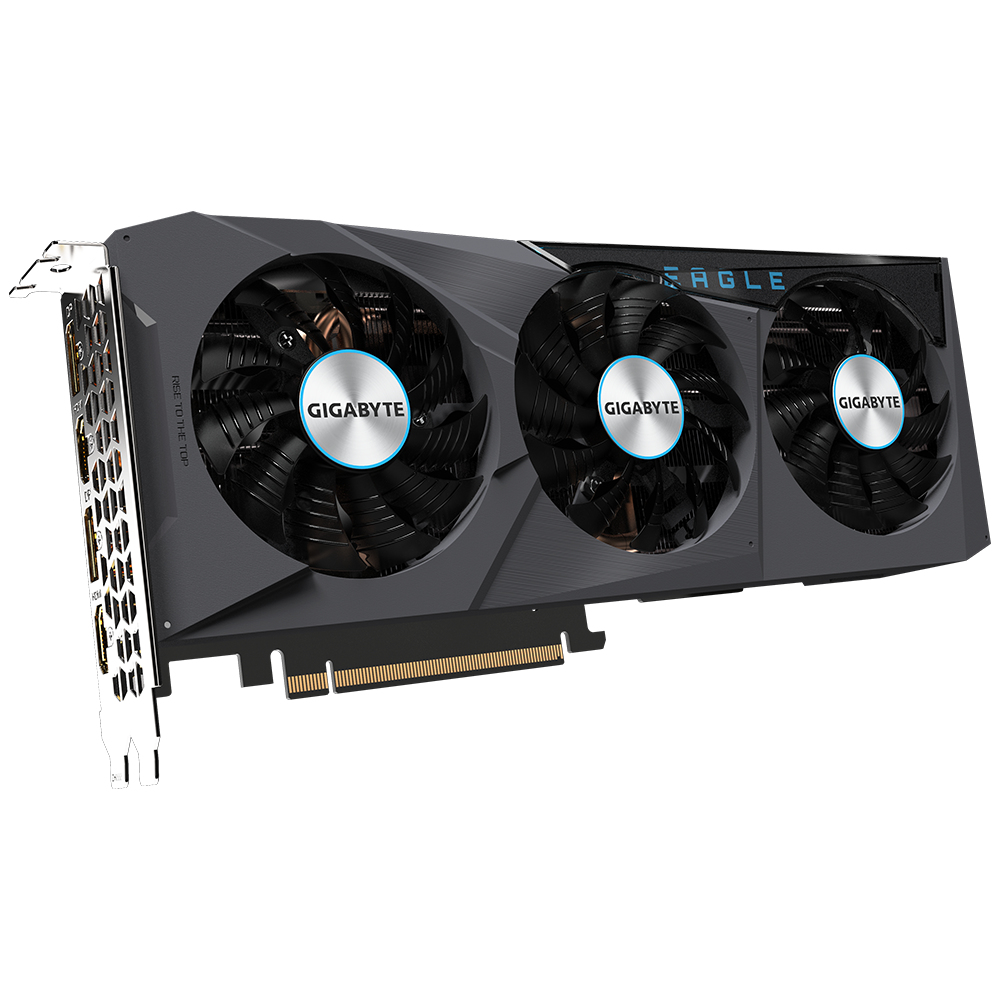

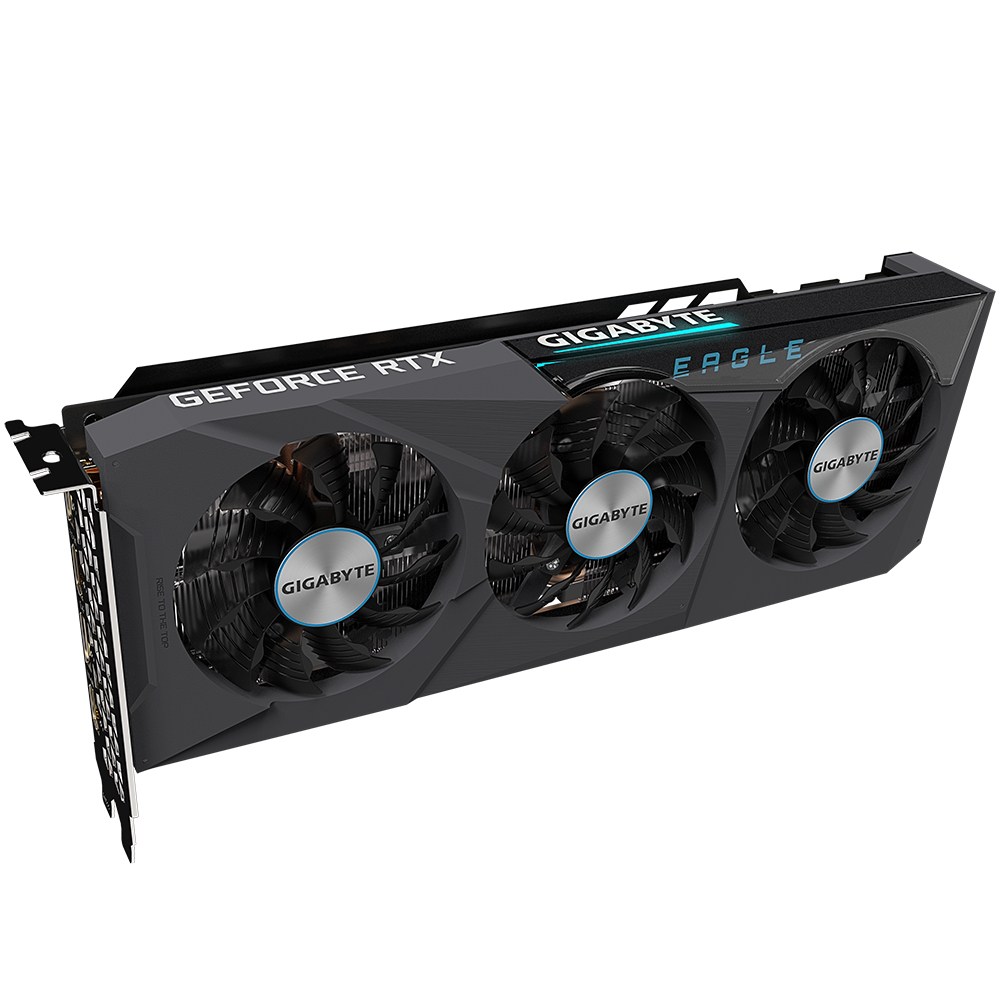

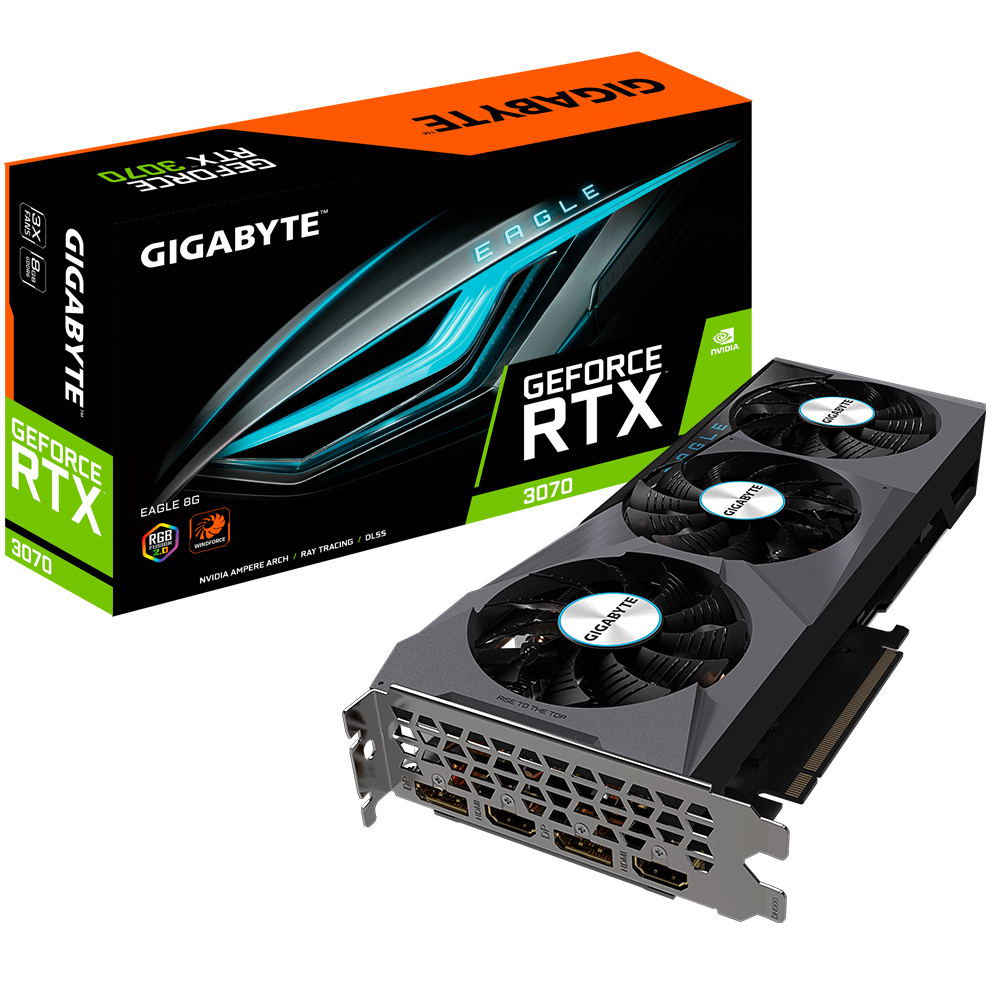

GIGABYTE GeForce RTX 3070 EAGLE 8G

GeForce RTX 3070 EAGLE 8G

Model GeForce RTX 3070 EAGLE 8GPart no. GVN3070E-00-10

42 specifications Checked today

ColourBlack
Graphics processor familyNVIDIA
Discrete graphics card memory8 GB
Interface typePCI Express x16 4.0
TV tuner integratedYes
Cooling typeActive

See all specifications

Overview

Colour: Black
Graphics processor family: NVIDIA
Discrete graphics card memory: 8 GB
Interface type: PCI Express x16 4.0
TV tuner integrated: Yes
Cooling type: Active

Brand: GIGABYTE
Category: GPU
Model: GeForce RTX 3070 EAGLE 8G
Part number: GVN3070E-00-10
Also known as: GIGABYTE EAGLE GeForce RTX 3070 8G NVIDIA 8 GB GDDR6

Specifications

42 specifications in 10 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 3070
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	5888
Processor frequency	1725 MHz
FireStream	No
Maximum displays per videocard	4

Memory

Specification	Value
Discrete graphics card memory	8 GB
Graphics card memory type	GDDR6
Memory bus	256 bit
Memory clock speed	14000 MHz
Memory bandwidth (max)	448 GB/s

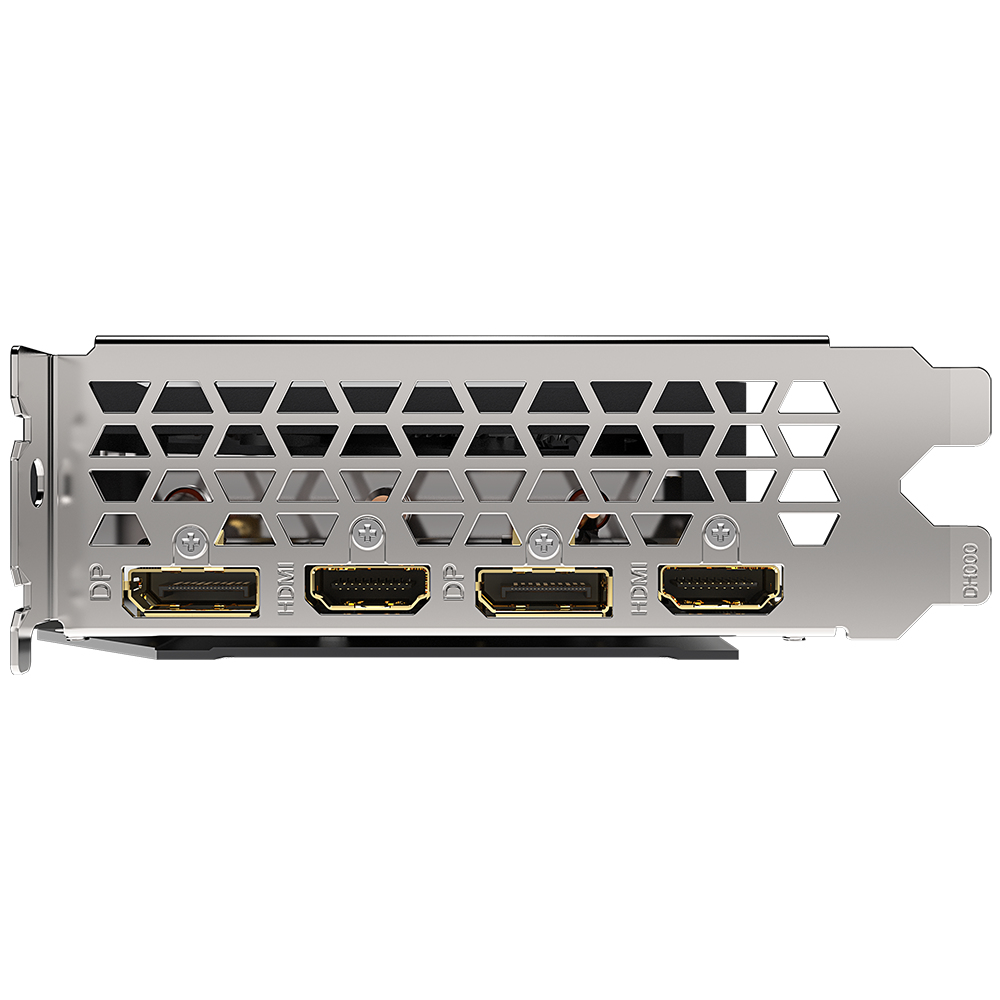

Ports & interfaces

Specification	Value
Interface type	PCI Express x16 4.0
HDMI ports quantity	2
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	2
HDMI version	2.1
DisplayPort version	1.4a
VGA (D-Sub) ports quantity	0

Performance

Specification	Value
TV tuner integrated	Yes
DirectX version	12.0
OpenGL version	4.6
Dual Link DVI	No

Design

Specification	Value
Cooling type	Active
Cooling technology	GIGABYTE WINDFORCE 3X
Number of fans	3 fan(s)
Fan diameter	8 cm
Number of slots	2
Illumination	Yes
Illumination colour	Multi
Product colour	Black

Power

Specification	Value
Minimum system power supply	650 W
Supplementary power connectors	1x 6-pin, 1x 8-pin

System requirements

Specification	Value
Windows operating systems supported	Yes
Mac operating systems supported	Yes

Weight & dimensions

Specification	Value
Length	282 mm
Depth	41 mm
Height	115 mm

Packaging data

Specification	Value
Package type	Box

Packaging content

Specification	Value
User guide	Yes
