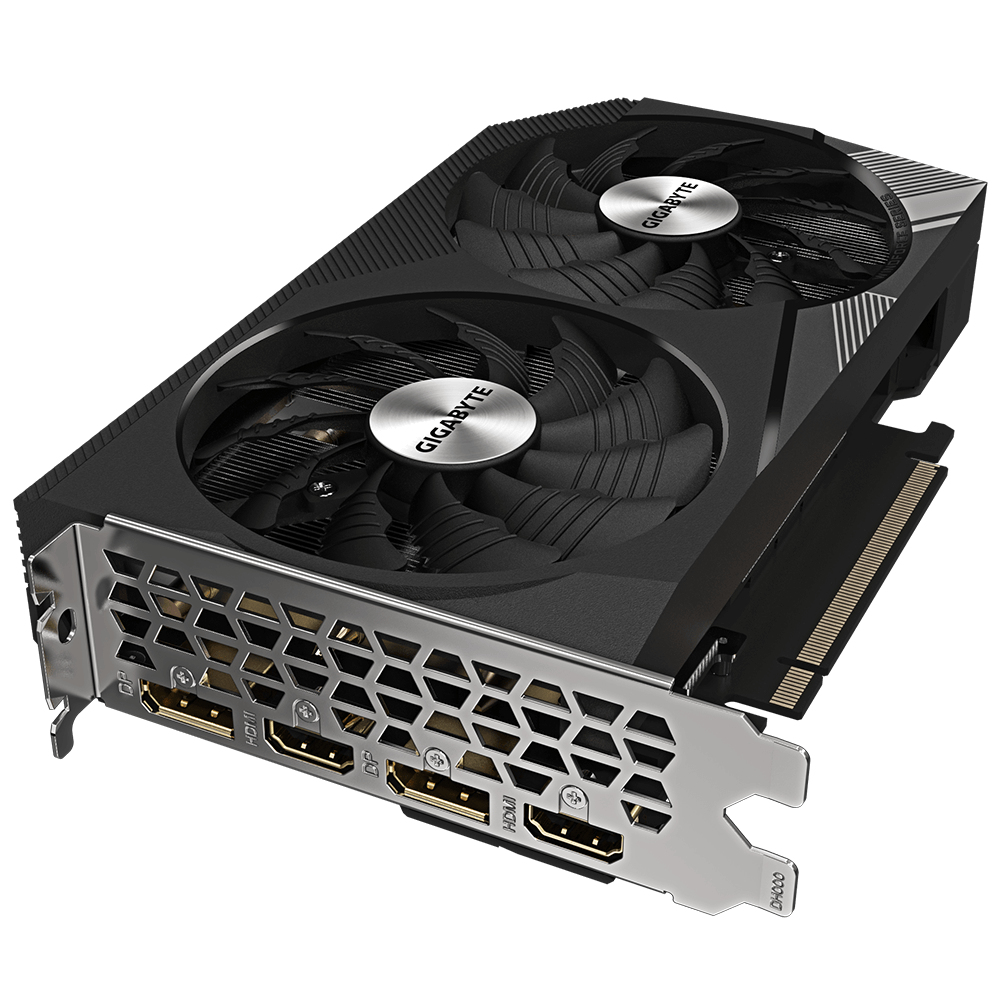

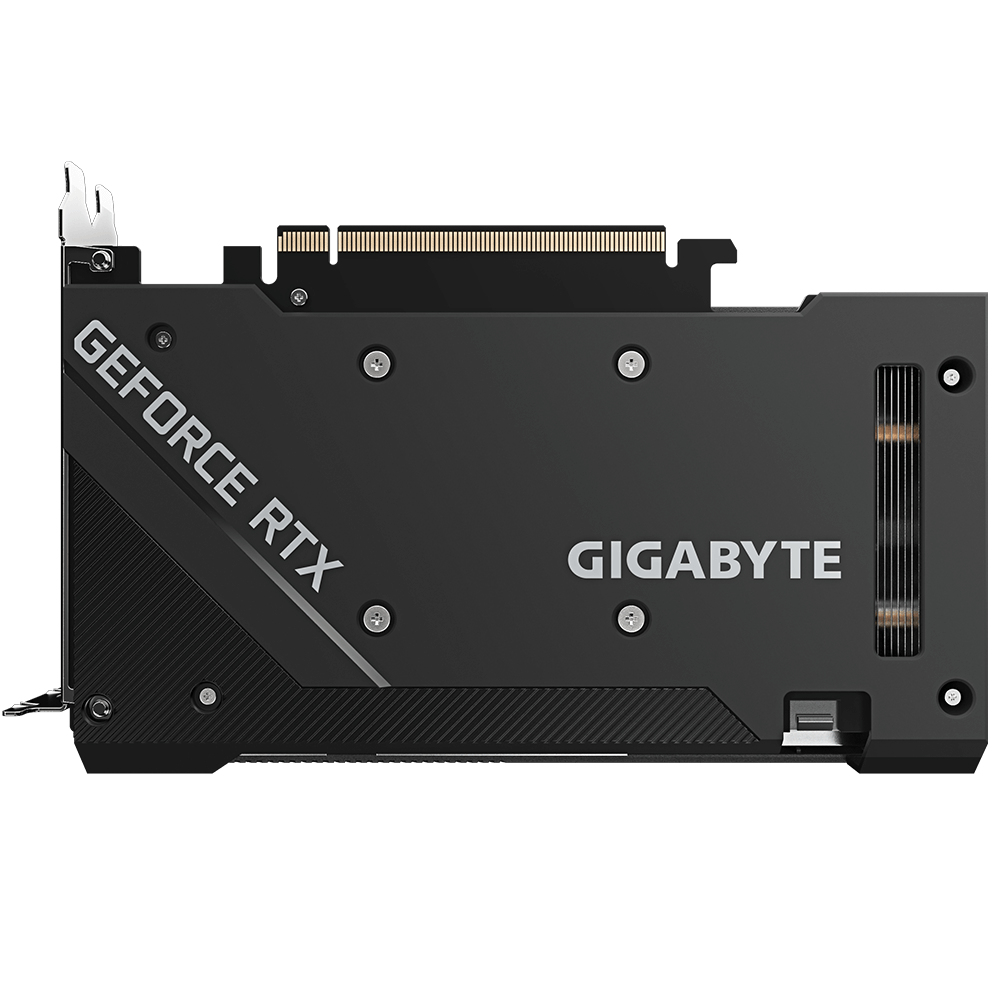

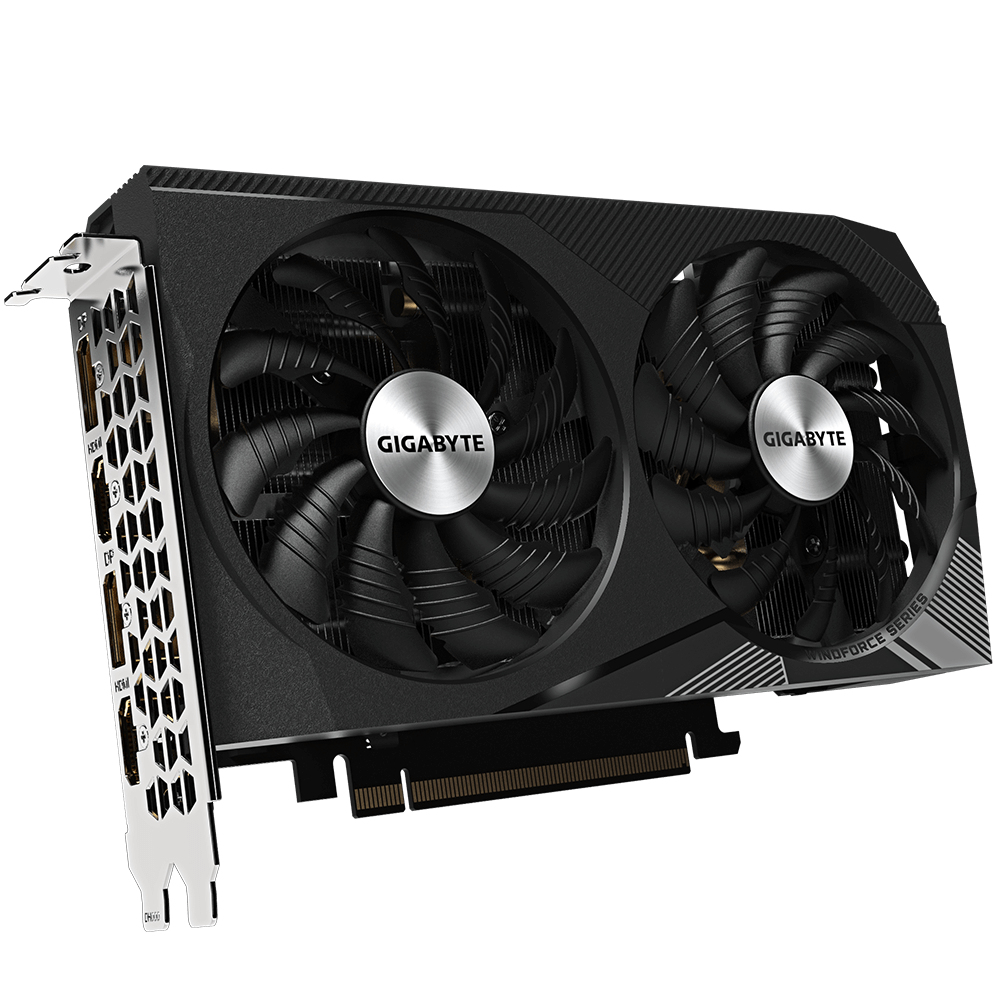

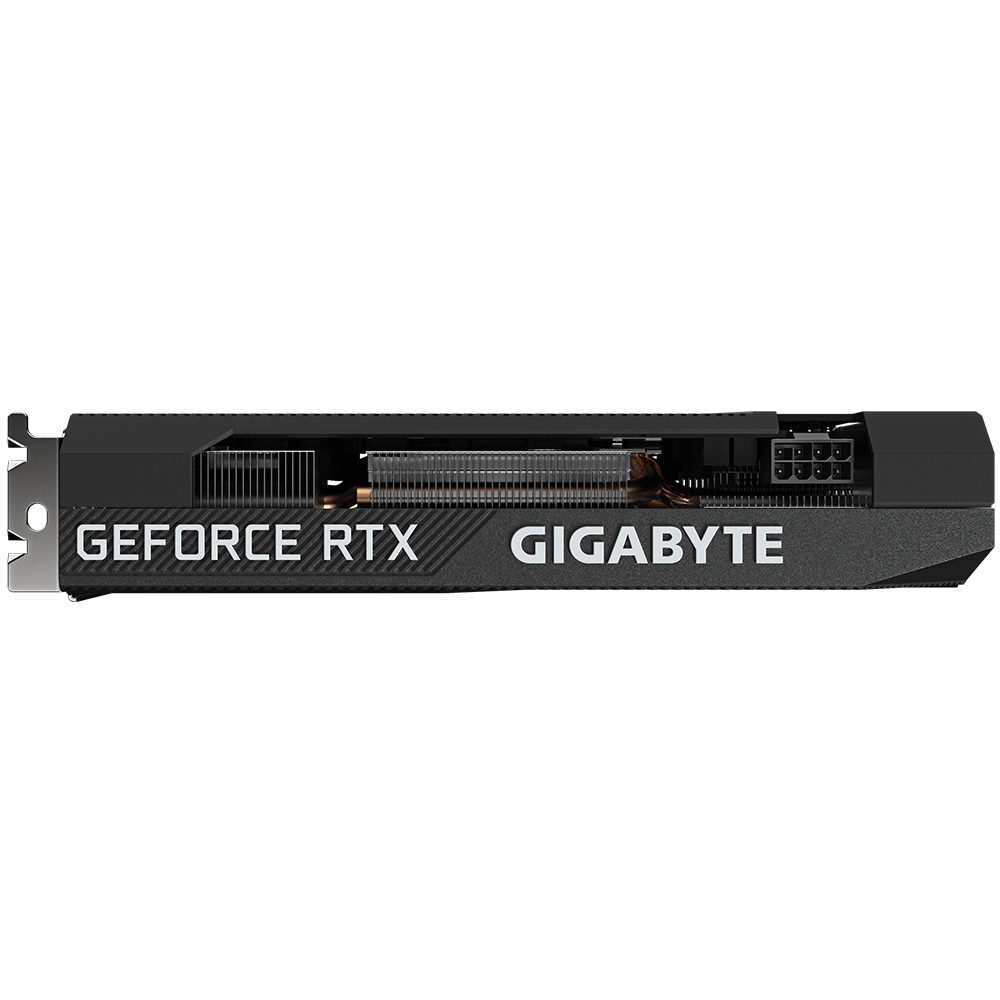

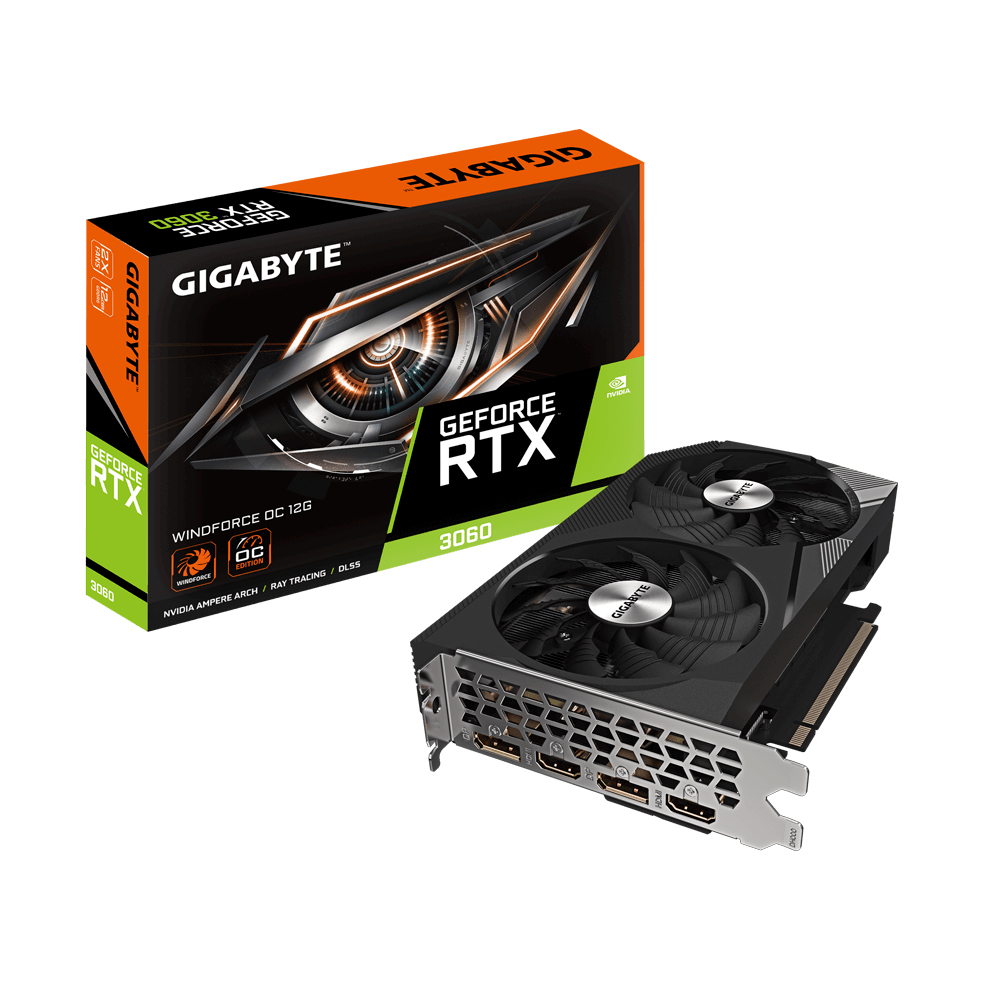

GeForce RTX 3060 WINDFORCE OC 12G (rev. 2.0)
Model GeForce RTX 3060 WINDFORCE OC 12G (rev. 2.0)Part no. GV-N3060WF2OC-12GD 2.0EAN 4719331312862
40 specifications Checked today
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory12 GB
- Interface typePCI Express x16 4.0
- TV tuner integratedNo
- Cooling typeActive
Overview
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 12 GB
- Interface type
- PCI Express x16 4.0
- TV tuner integrated
- No
- Cooling type
- Active
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GeForce RTX 3060 WINDFORCE OC 12G (rev. 2.0)
- Part number
- GV-N3060WF2OC-12GD 2.0
- EAN / UPC
- 4719331312862
- Also known as
- GIGABYTE GeForce RTX 3060 WINDFORCE OC 12G (rev. 2.0) NVIDIA 12 GB GDDR6
Specifications
40 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 3060 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 3584 |
| Processor frequency | 1792 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 12 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 192 bit |
| Memory clock speed | 15000 MHz |
| Number of pipelines | 3 |
| Memory bandwidth (max) | 360 GB/s |

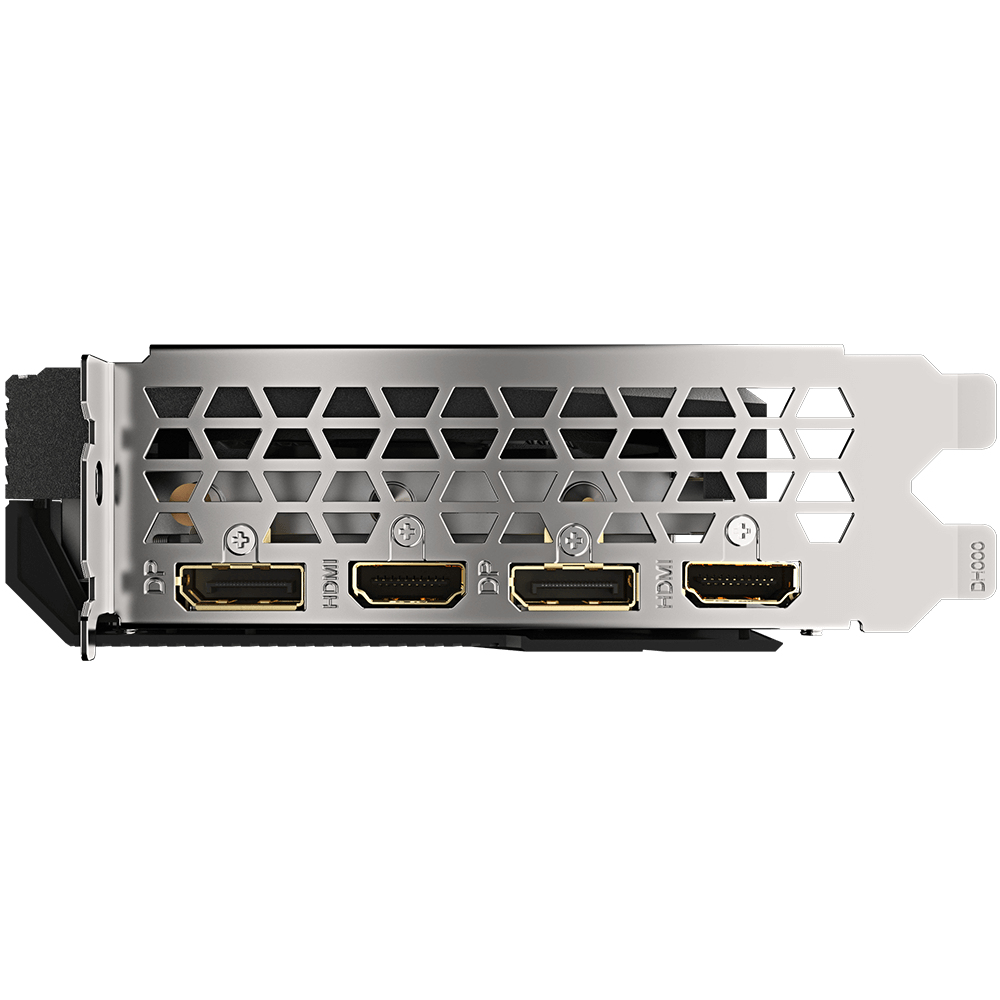

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 4.0 |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4a |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Low Hash Rate (LHR) | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 2X |
| Number of fans | 2 fan(s) |
| Fan diameter | 9 cm |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 550 W |
| Supplementary power connectors | 1x 8-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64, Windows 7 x64 |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 198 mm |
| Depth | 39 mm |
| Height | 121 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
