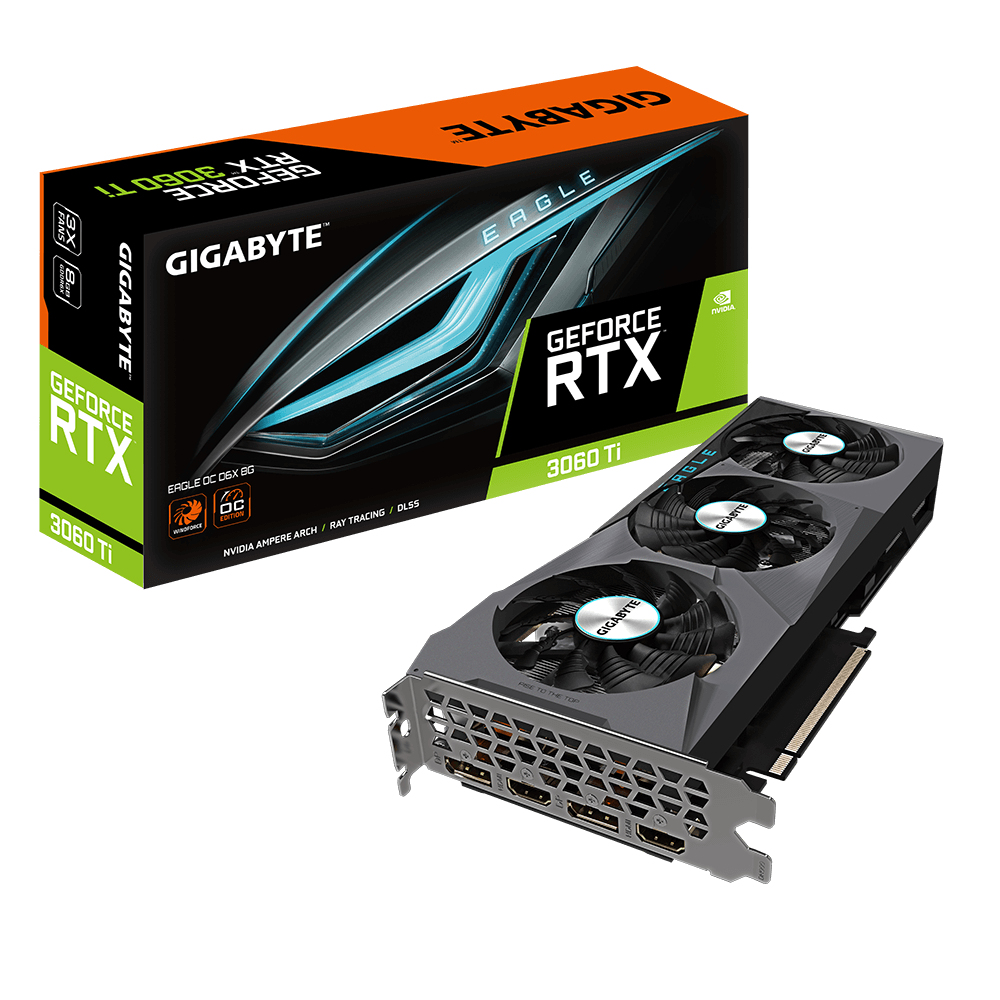

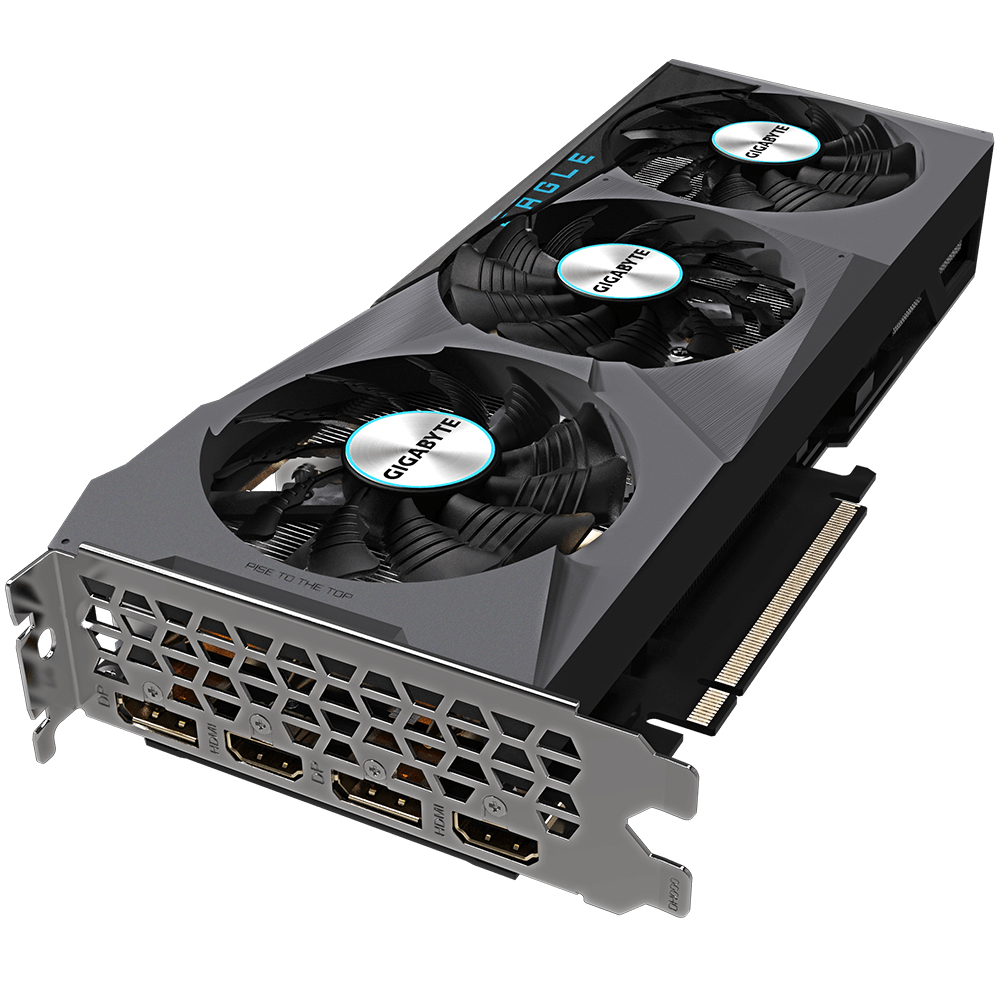

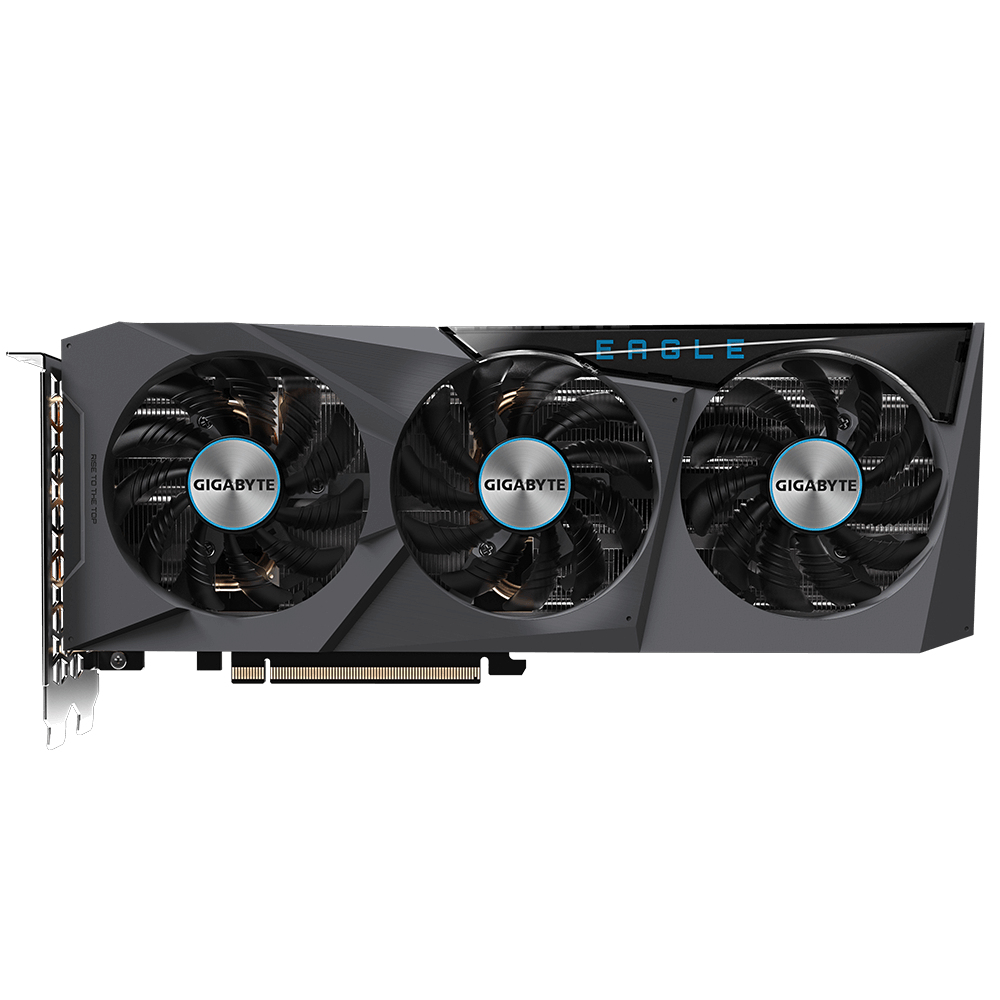

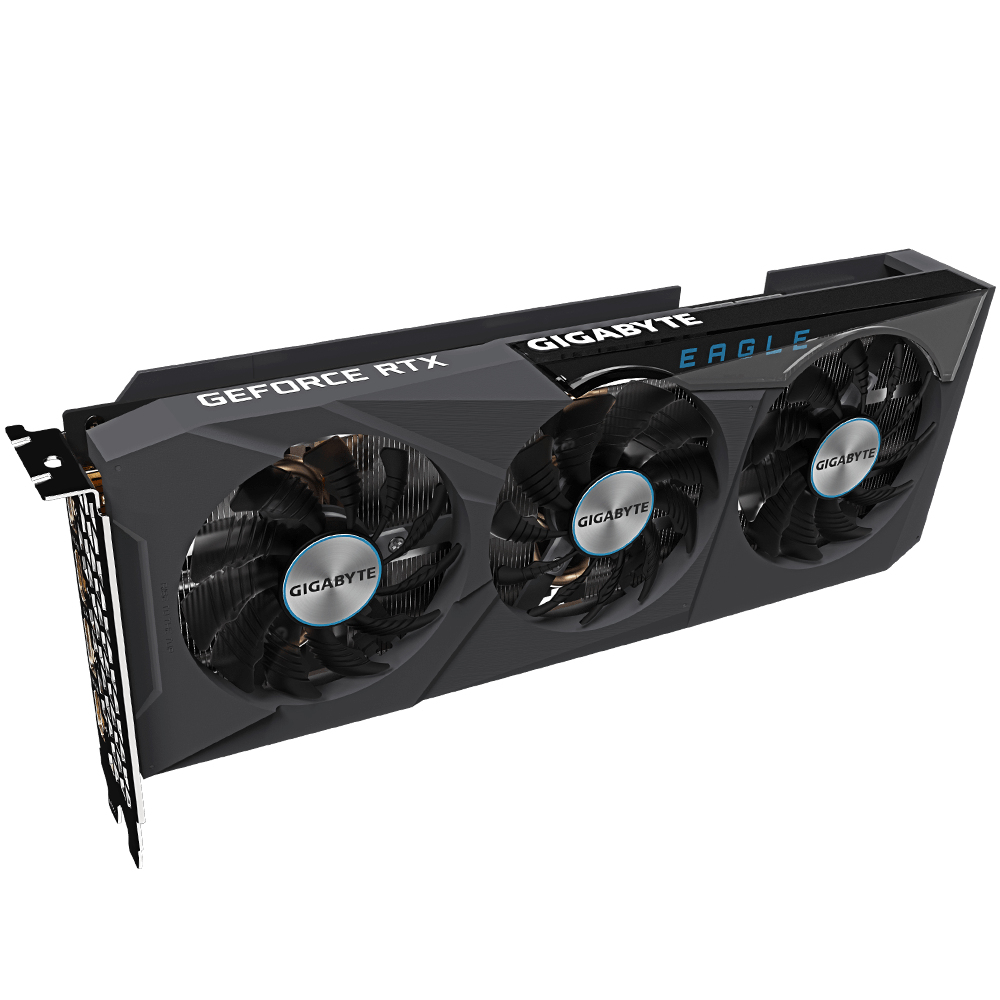

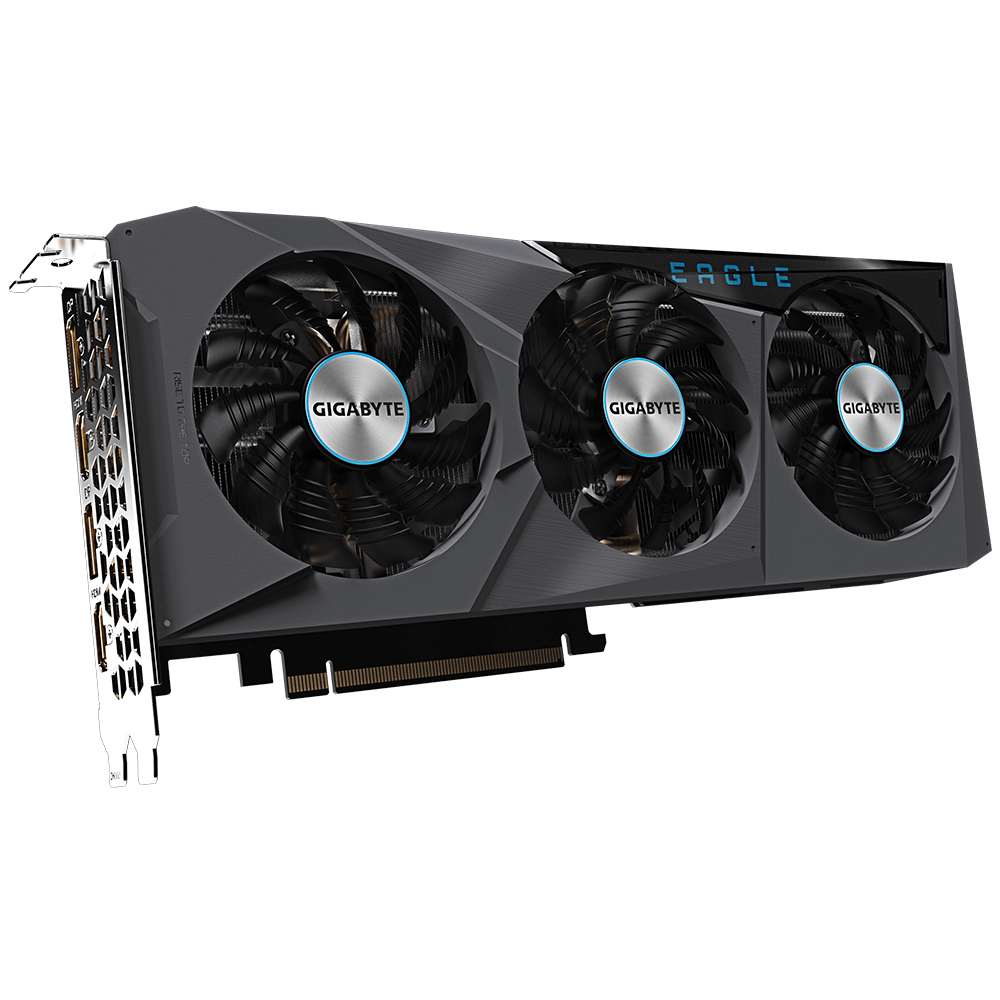

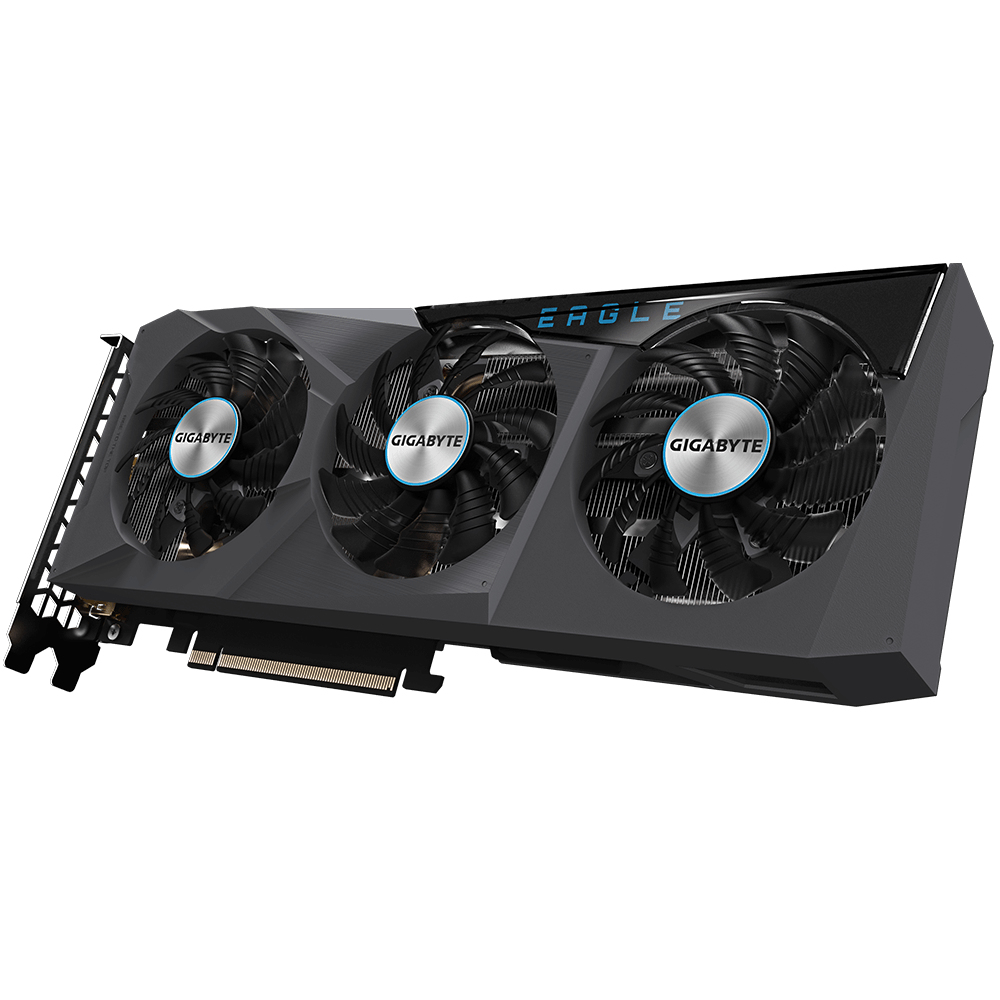

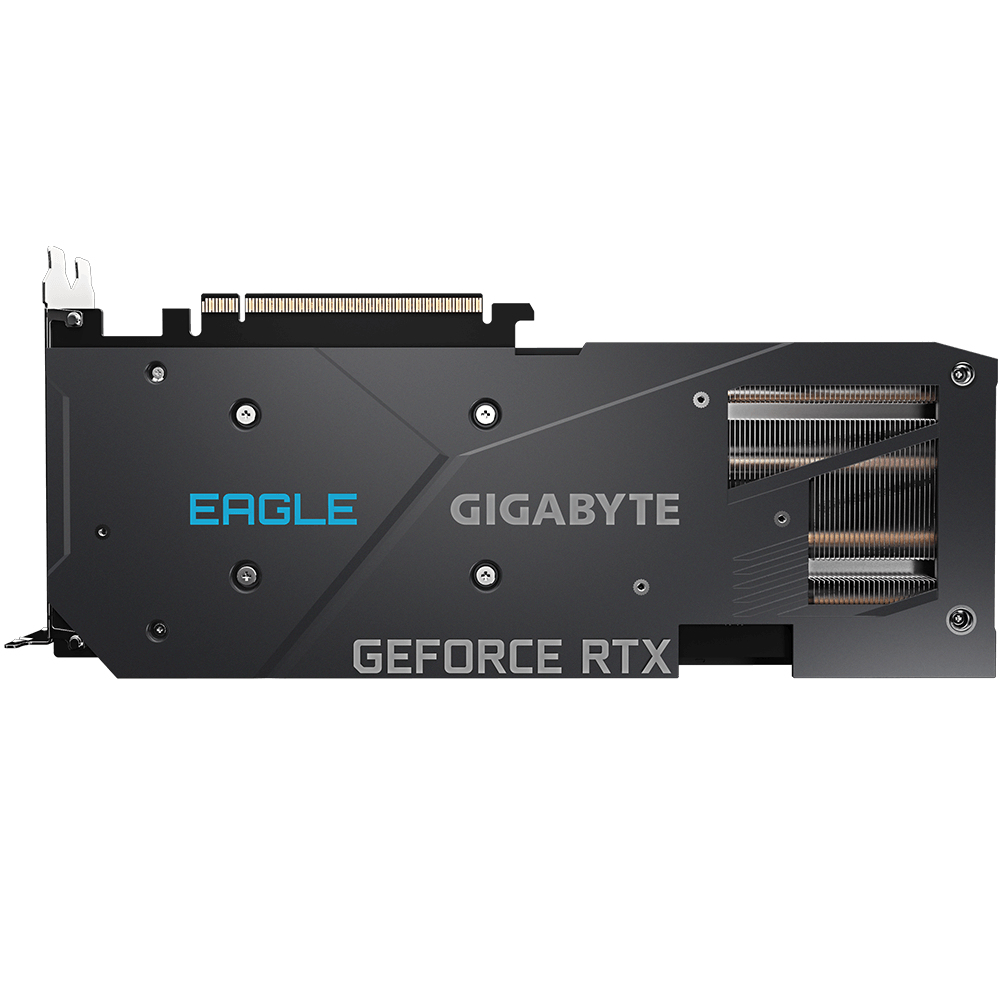

GeForce RTX 3060 Ti EAGLE OC
Model GeForce RTX 3060 Ti EAGLE OCPart no. GV-N306TXEAGLE OC-8GDEAN 4719331312787
41 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- ColourBlack, Grey
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express 4.0
- TV tuner integratedNo
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Colour
- Black, Grey
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express 4.0
- TV tuner integrated
- No
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GeForce RTX 3060 Ti EAGLE OC
- Part number
- GV-N306TXEAGLE OC-8GD
- EAN / UPC
- 4719331312787
- Also known as
- GIGABYTE EAGLE GeForce RTX 3060 Ti OC NVIDIA 8 GB GDDR6X
Specifications
41 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 3060 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 4864 |
| Processor frequency | 1680 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6X |
| Memory bus | 256 bit |
| Memory clock speed | 19000 MHz |
| Number of pipelines | 4 |
| Memory bandwidth (max) | 608 GB/s |

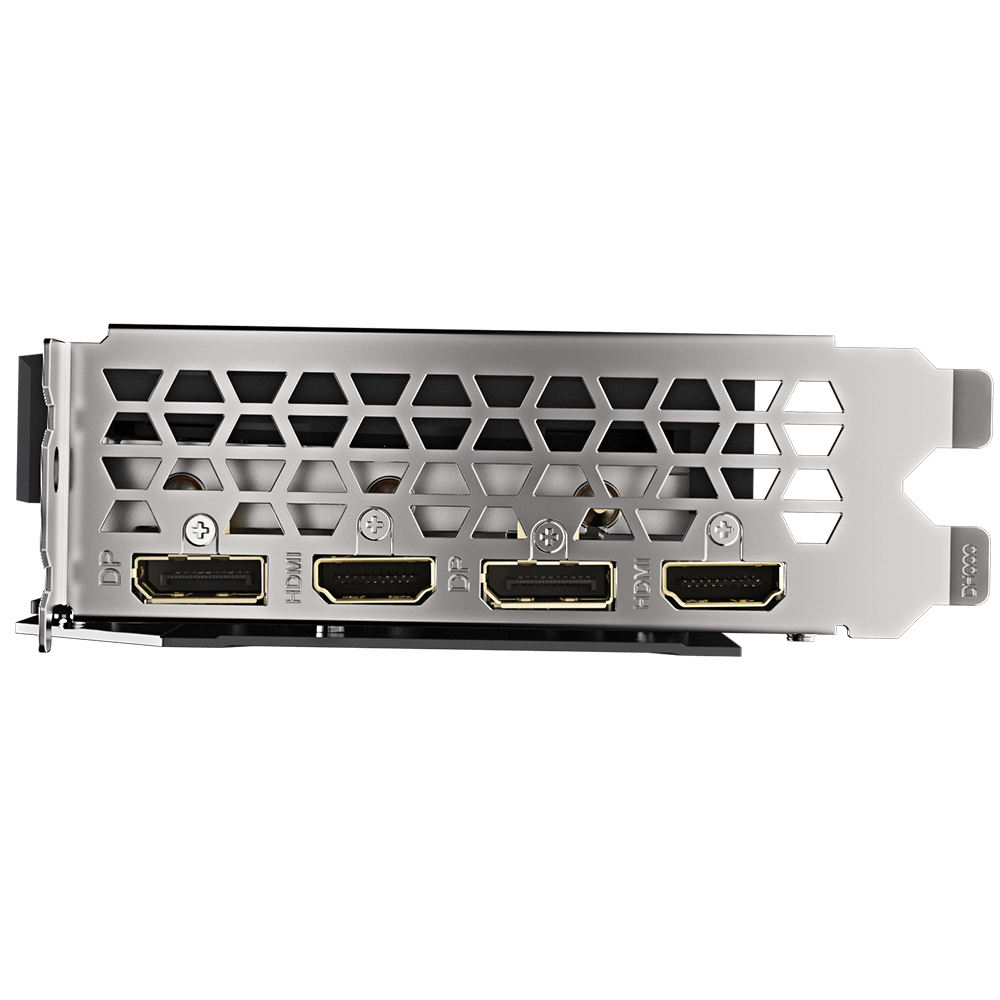

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4a |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Fan diameter | 8 cm |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Black, Grey |

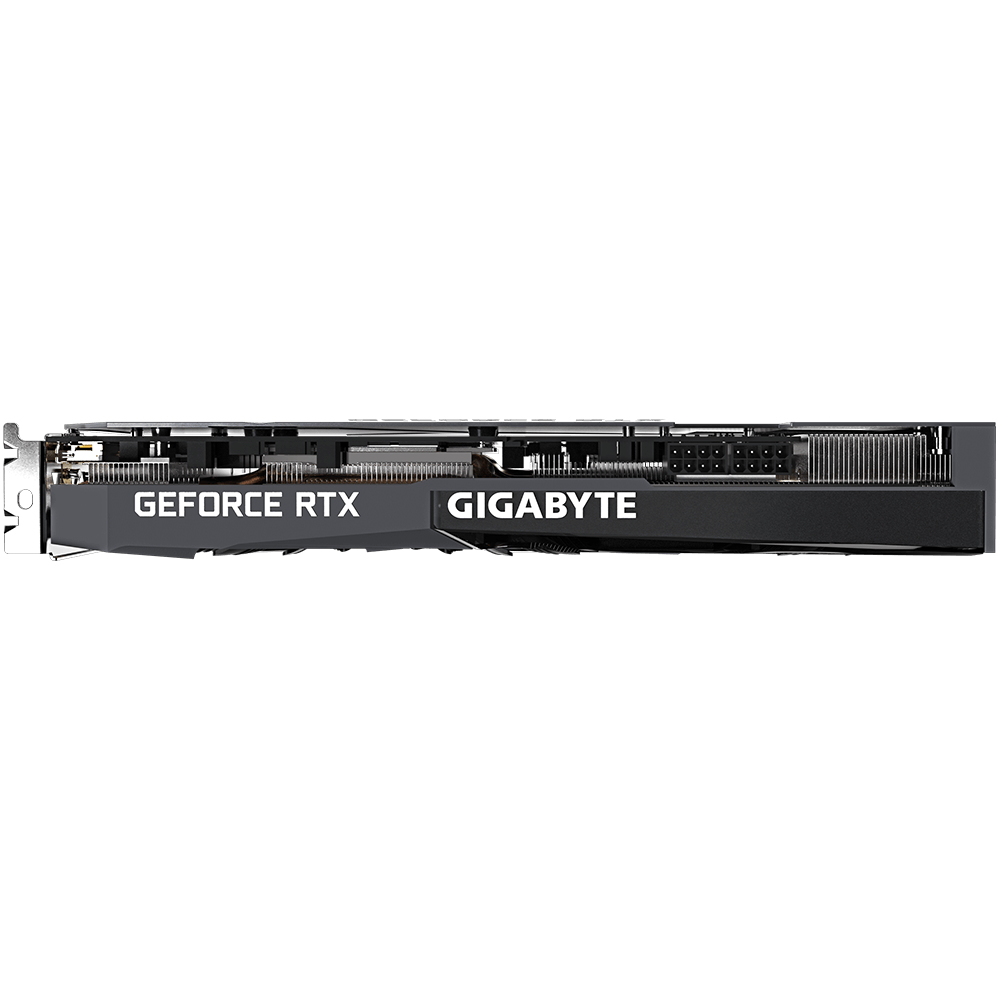

Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Supplementary power connectors | 2x 8-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 282 mm |
| Depth | 41 mm |
| Height | 115 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
