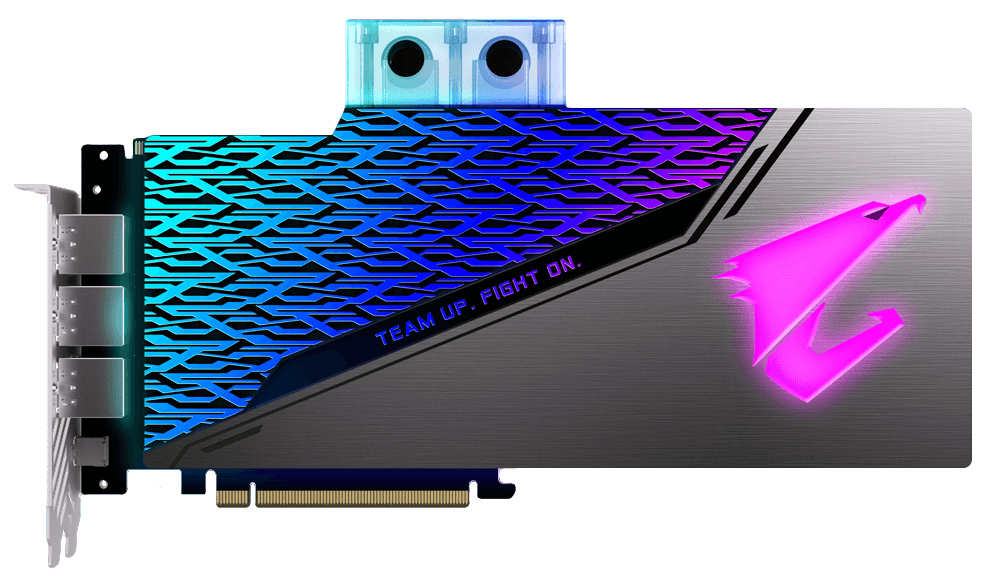

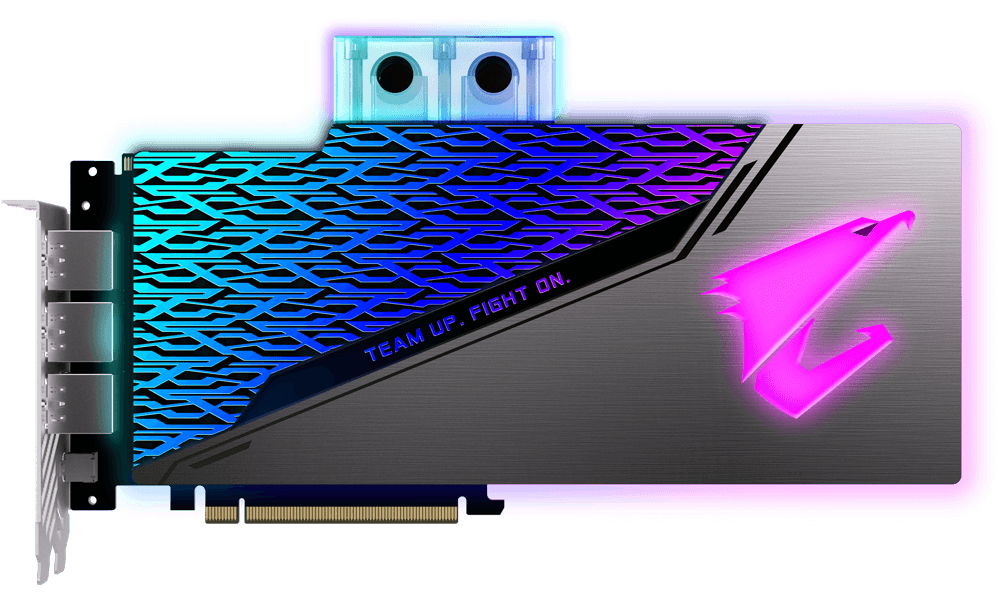

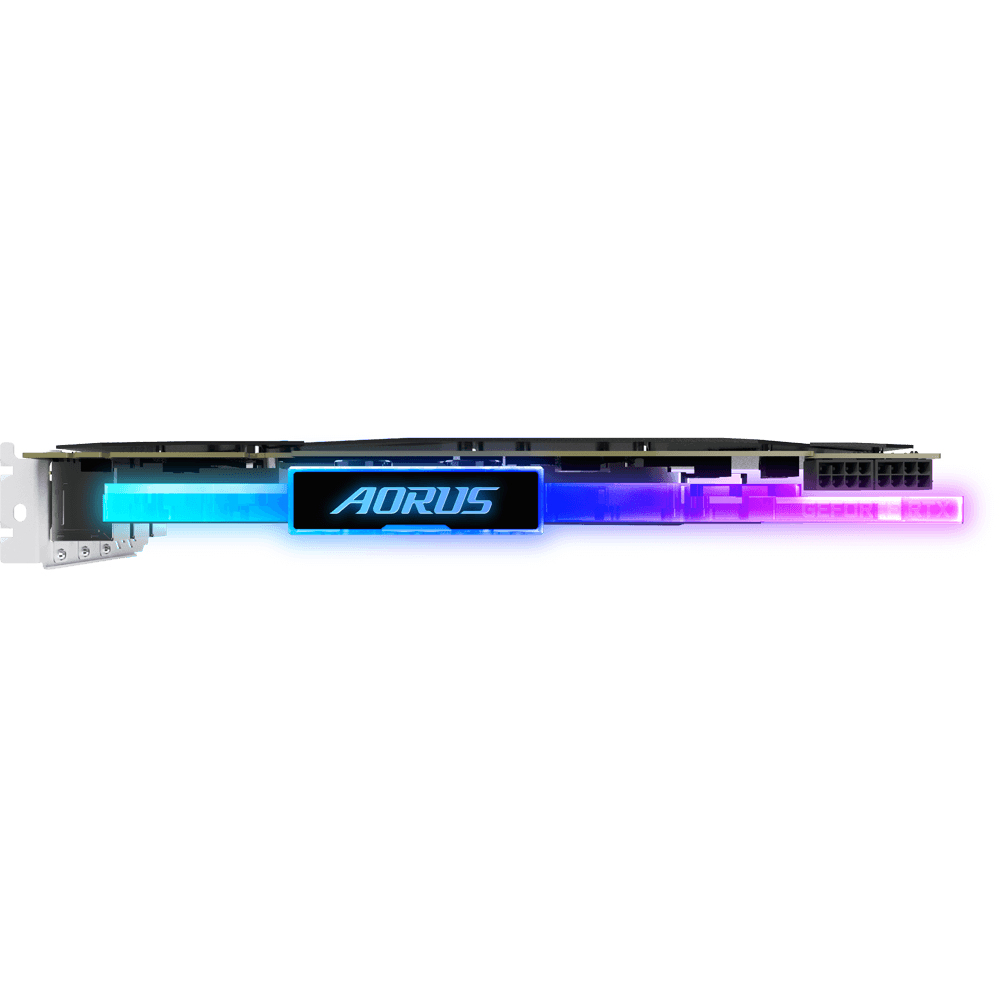

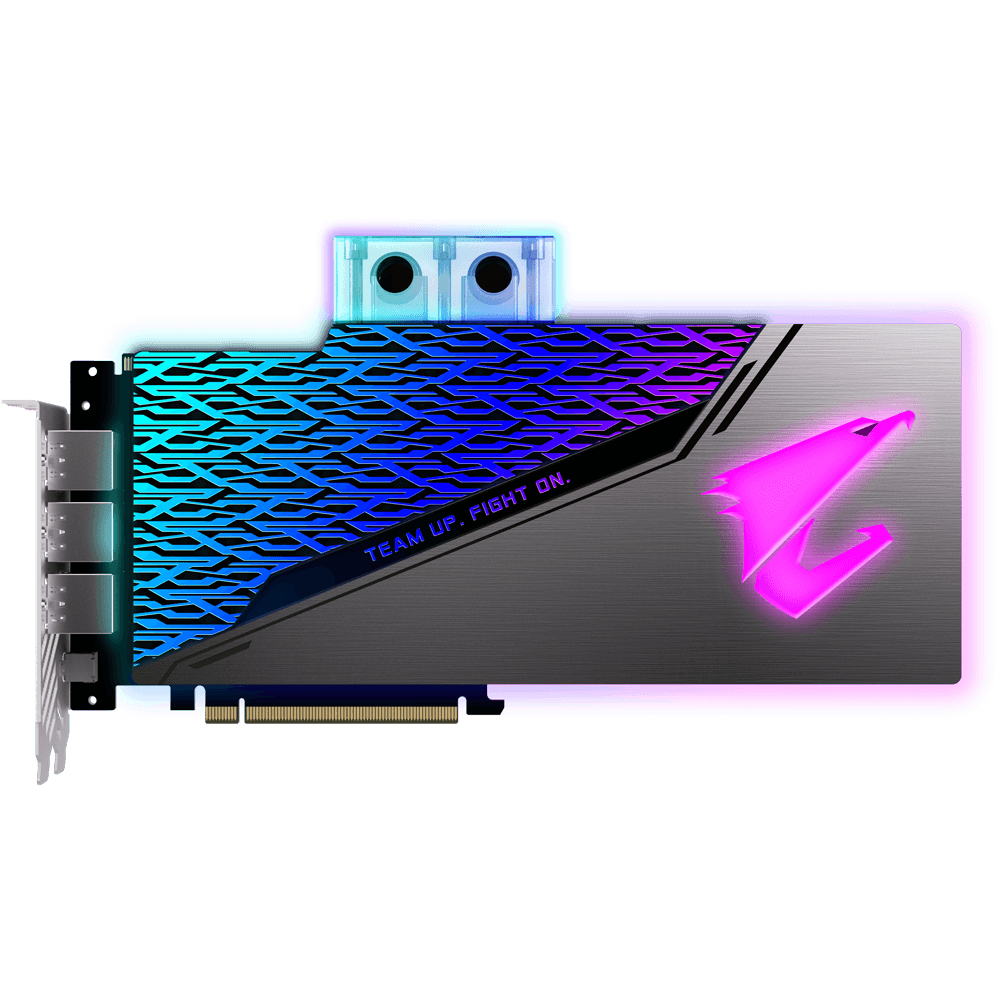

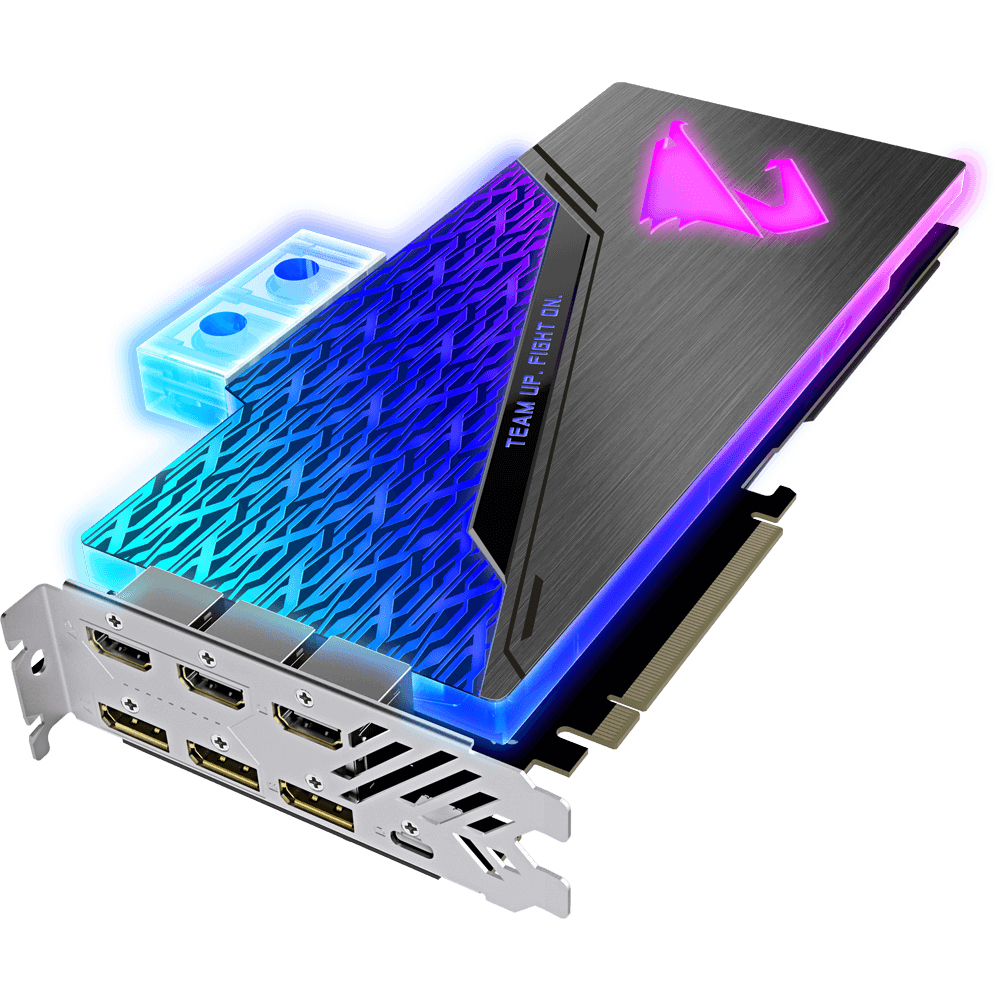

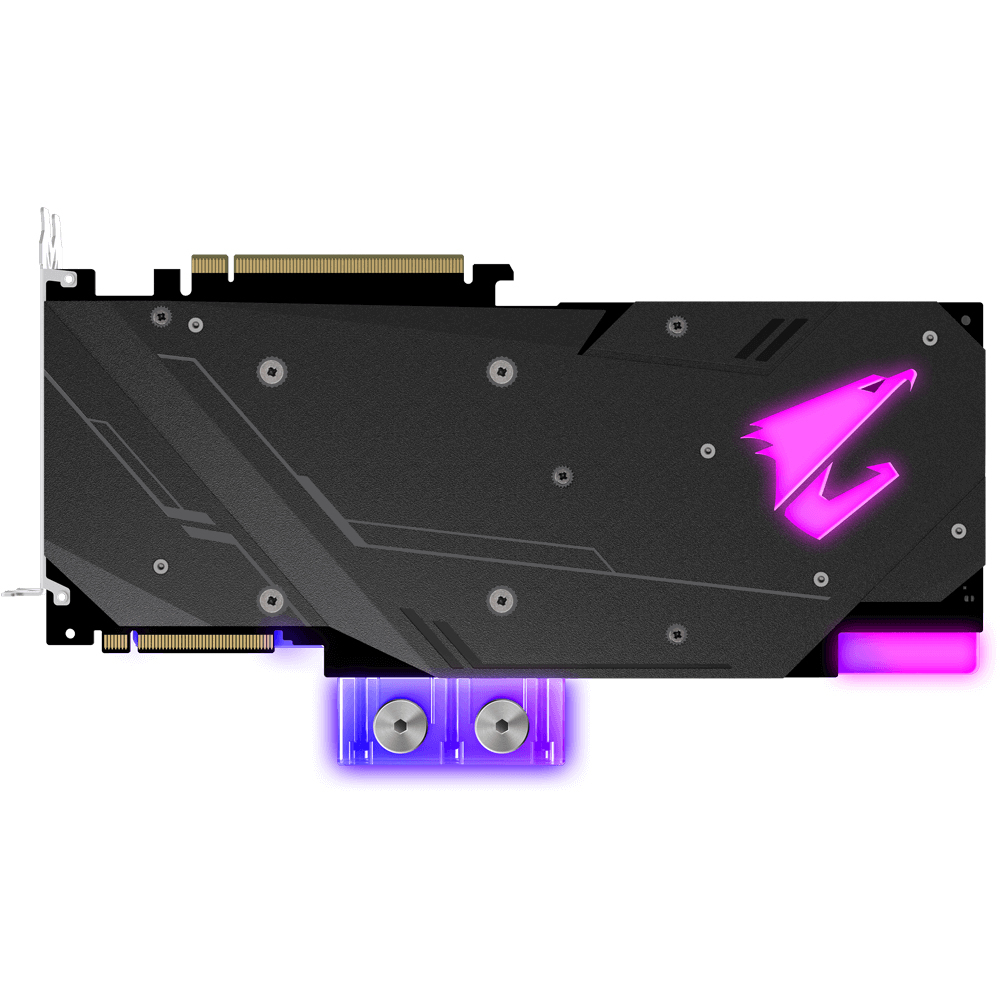

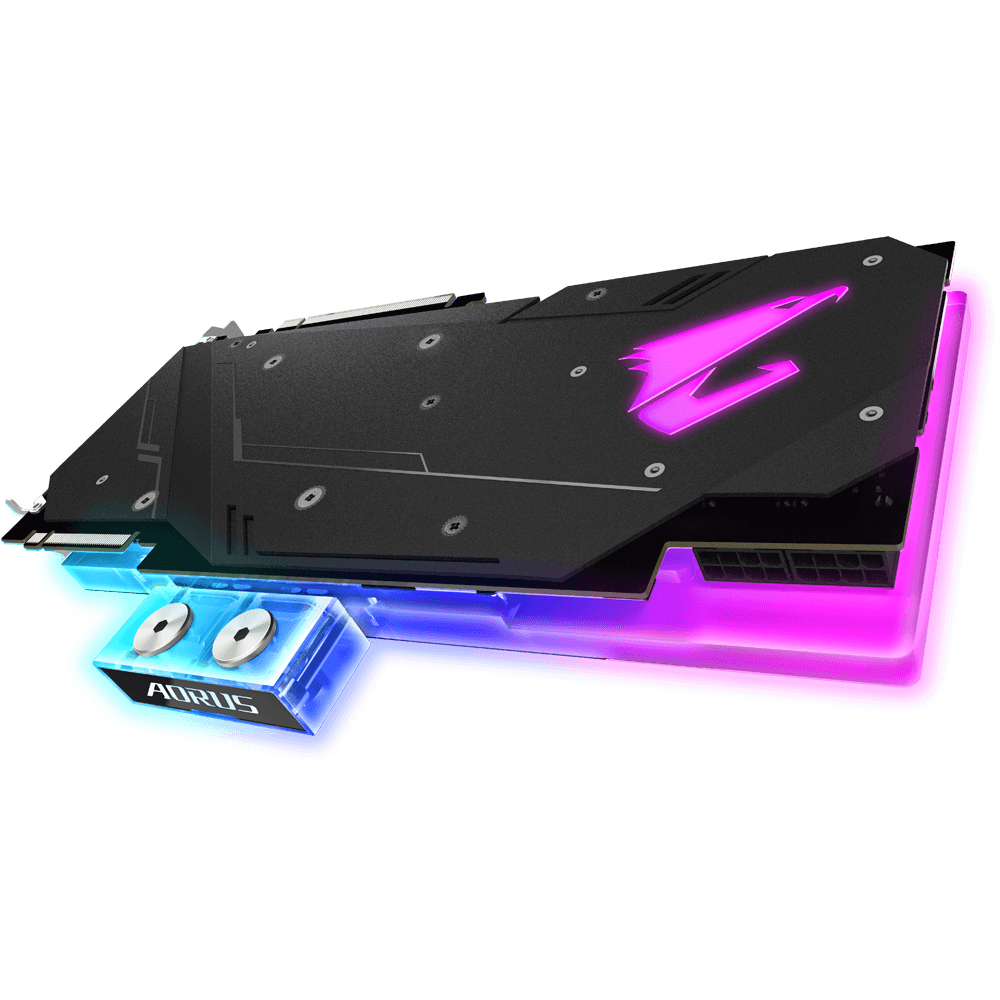

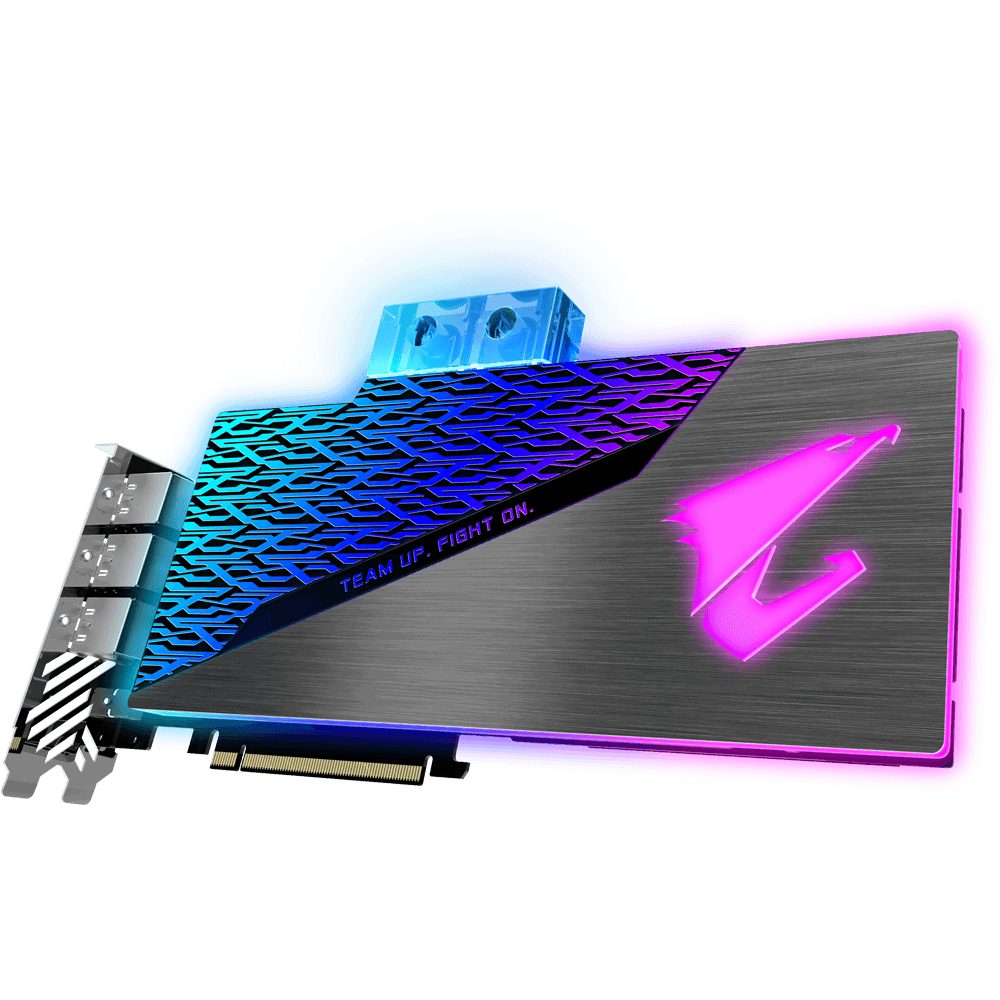

GeForce RTX 2080 SUPER WATERFORCE WB 8G
Model GeForce RTX 2080 SUPER WATERFORCE WB 8GPart no. GVN208SAWB-00-G
38 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- ColourGrey
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express x16 3.0
- DirectX version12.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Colour
- Grey
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express x16 3.0
- DirectX version
- 12.0
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GeForce RTX 2080 SUPER WATERFORCE WB 8G
- Part number
- GVN208SAWB-00-G
- Also known as
- GIGABYTE AORUS GeForce RTX 2080 SUPER WATERFORCE WB 8G NVIDIA 8 GB GDDR6
Specifications
38 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 2080 SUPER |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 3072 |
| Processor frequency | 1860 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | 2-Way NVLink |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Memory clock speed | 15500 MHz |
| Memory bandwidth (max) | 496 GB/s |

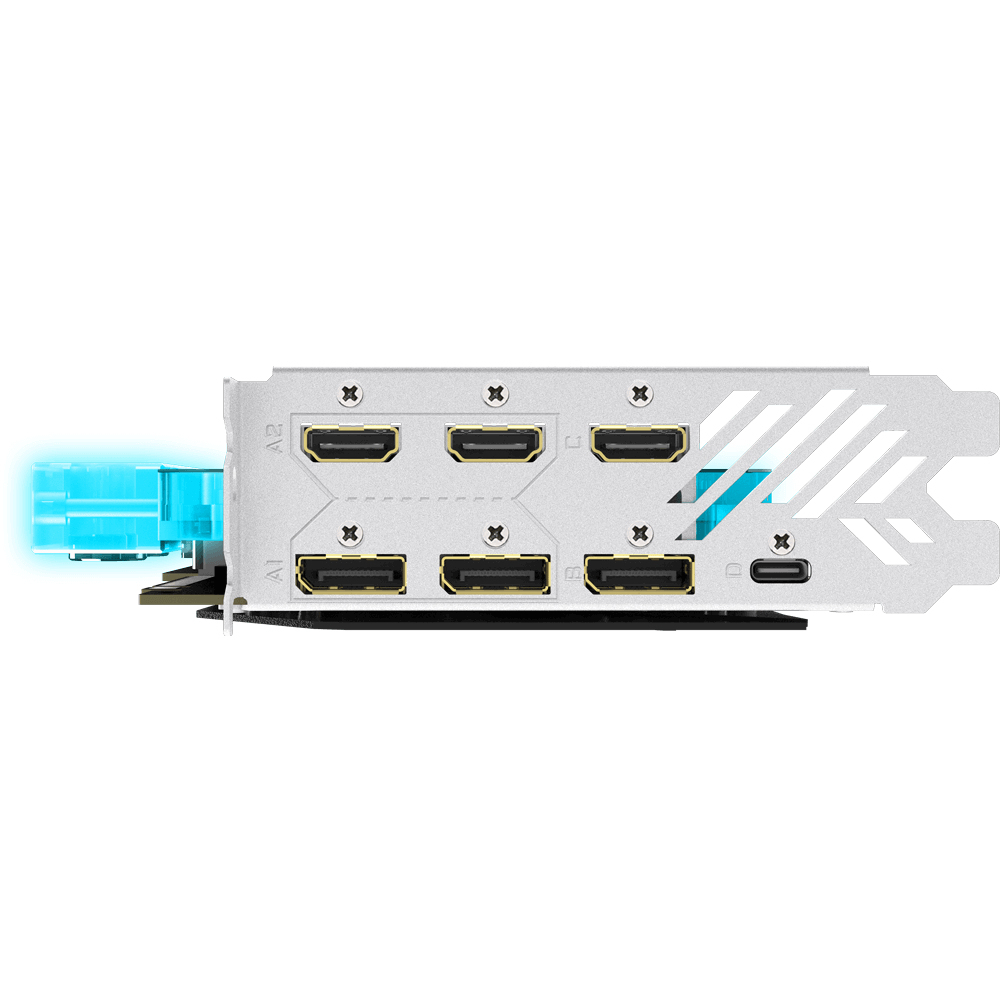

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 3.0 |
| HDMI ports quantity | 3 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
| USB Type-C ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| DirectX version | 12.0 |
| OpenGL version | 4.5 |
Design
| Specification | Value |
|---|---|
| Cooling type | liquid |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Illumination | Yes |
| Illumination colour | Blue, Green, Red |
| Product colour | Grey |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 650 W |
| Supplementary power connectors | 2x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 291.3 mm |
| Depth | 28.7 mm |
| Height | 159.1 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| User guide | Yes |
