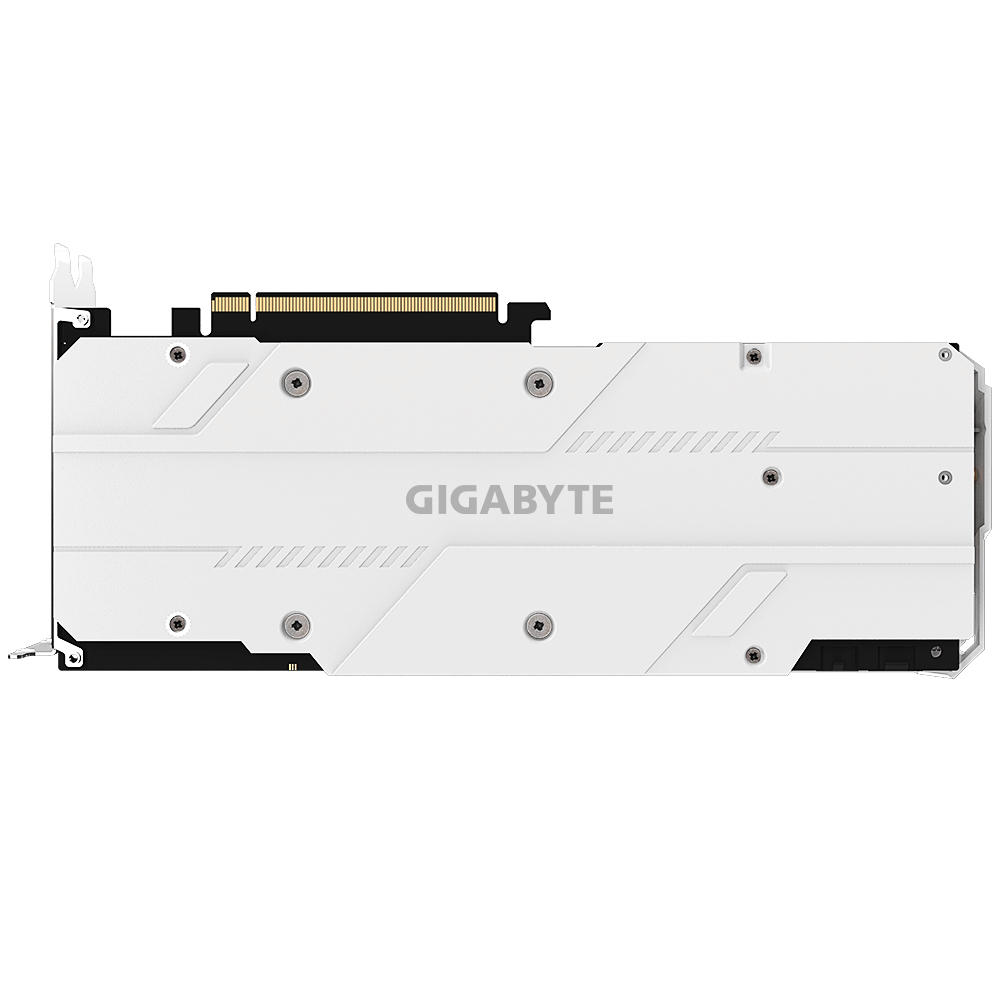

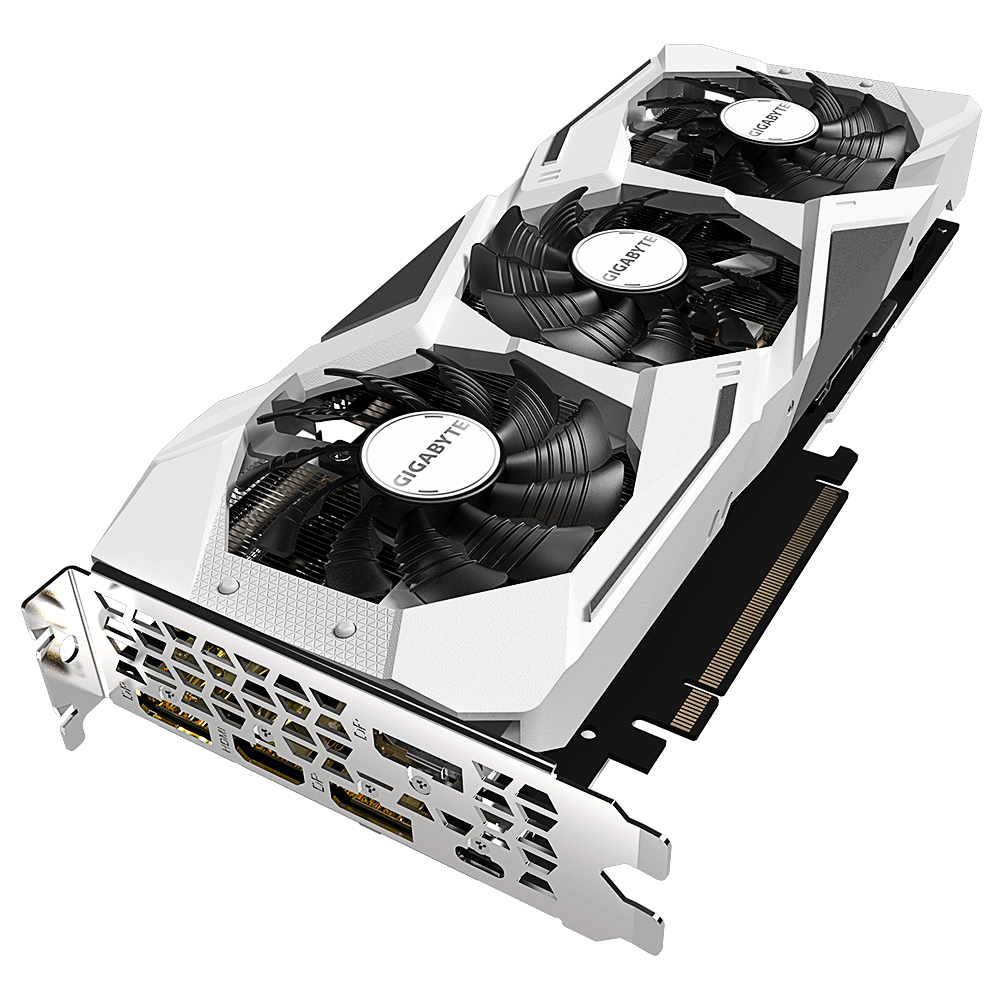

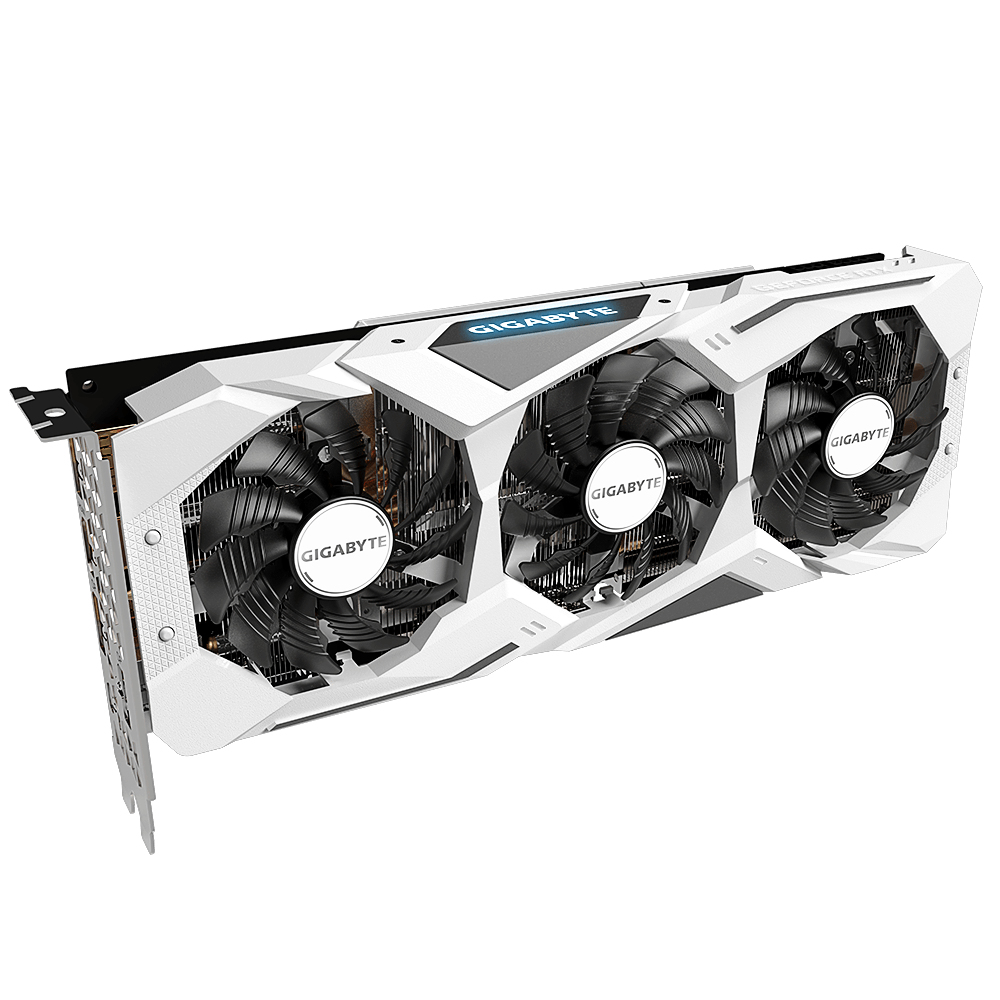

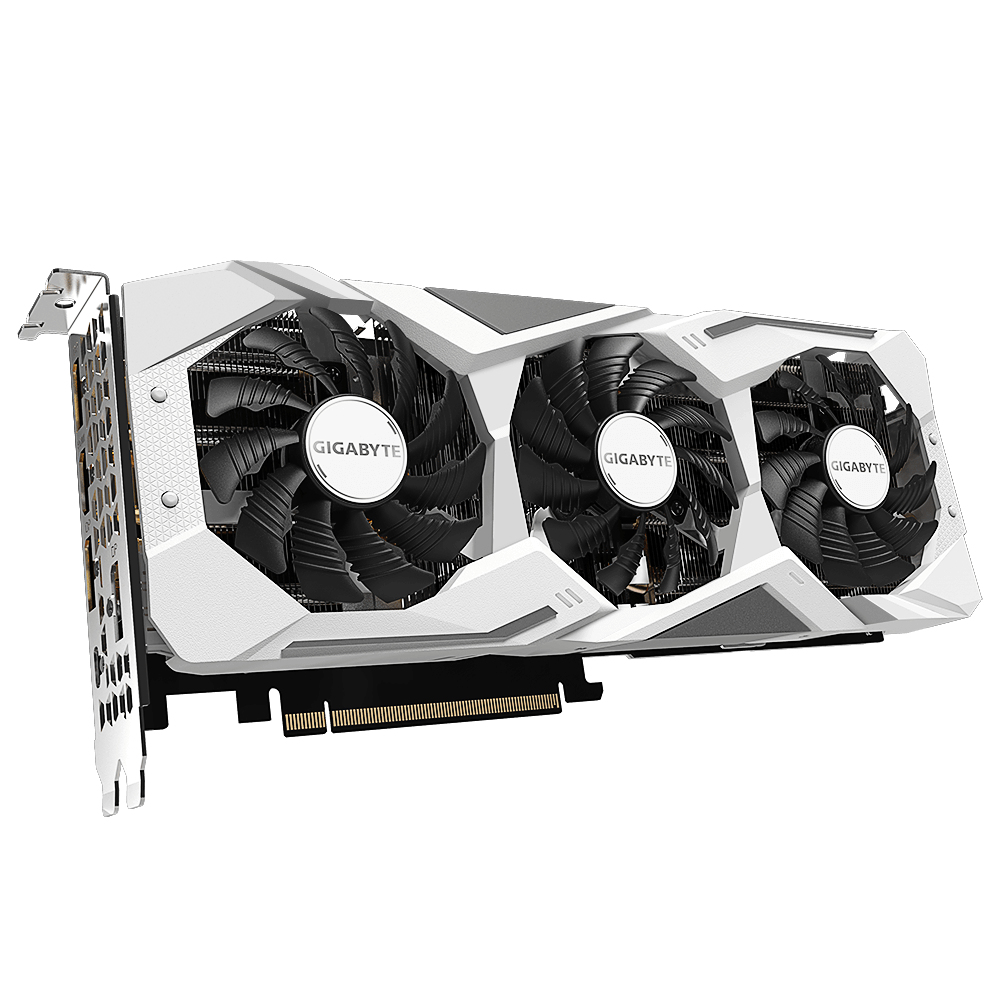

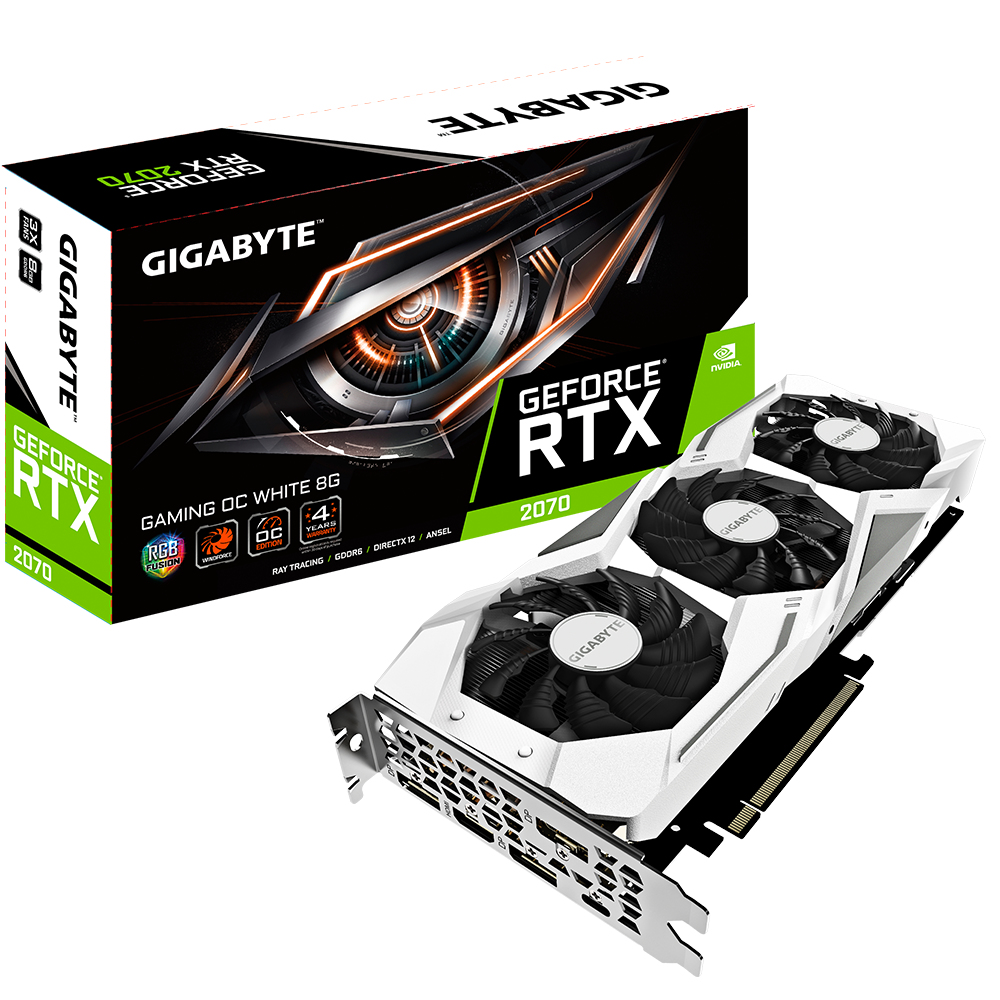

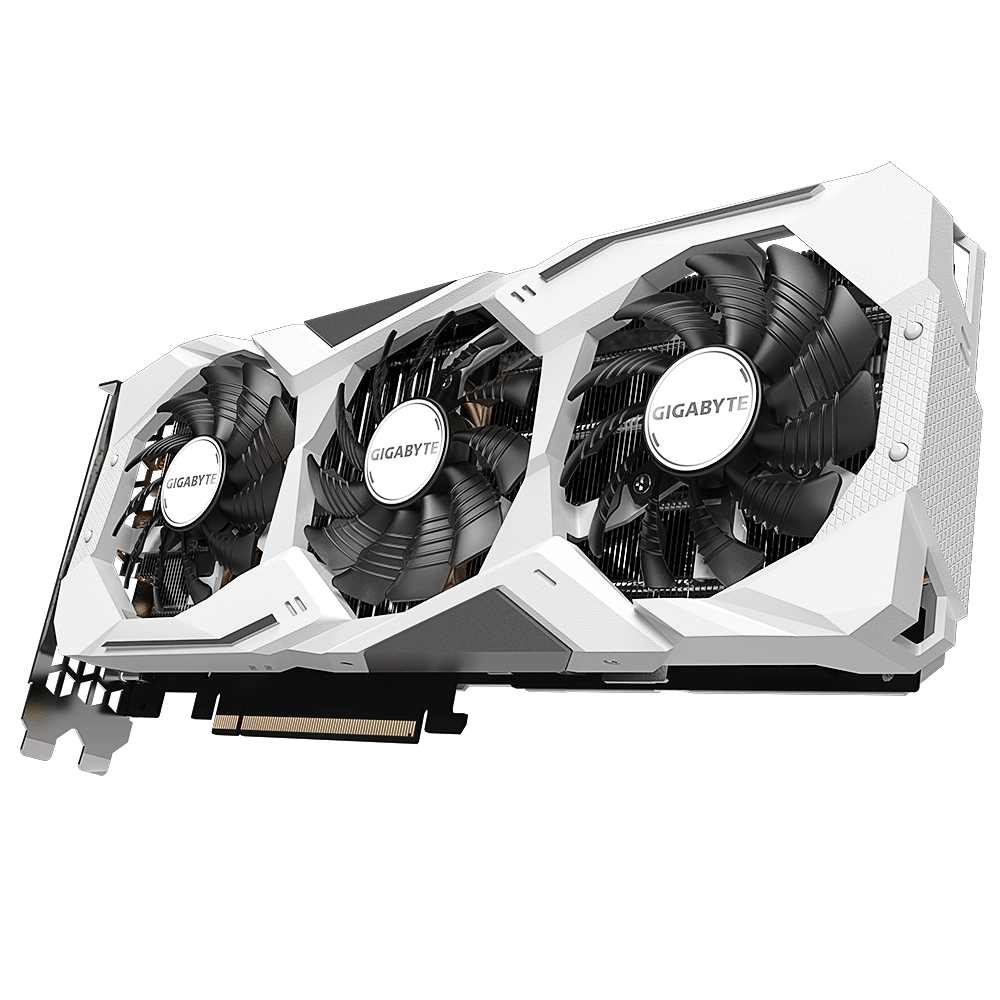

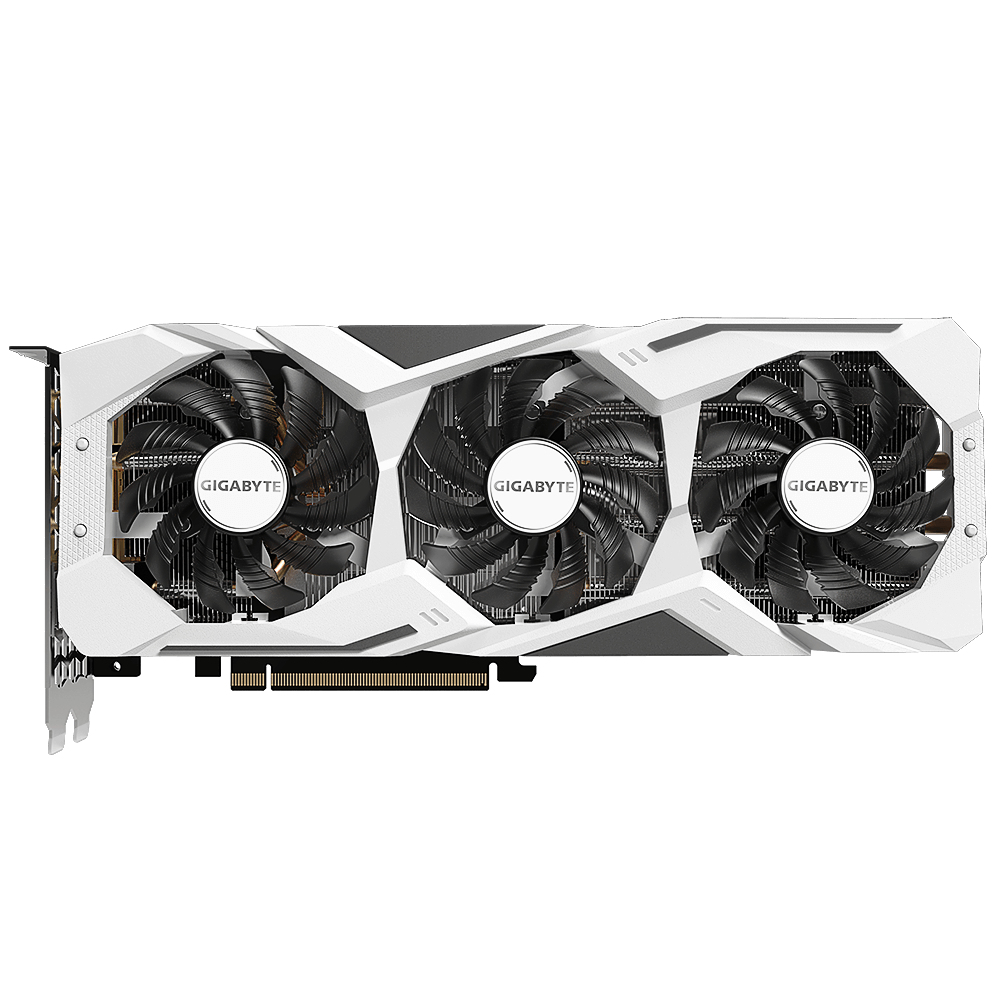

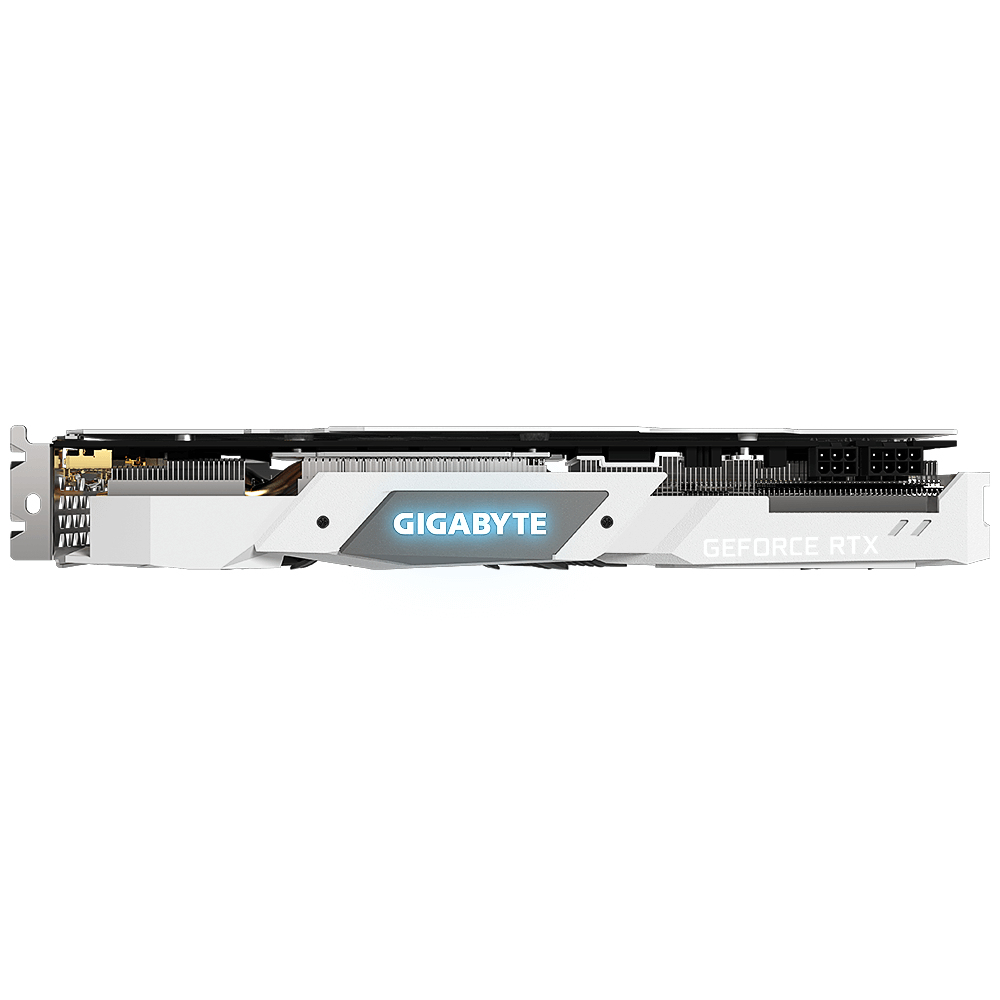

GeForce RTX 2070 GAMING OC WHITE 8G
Model GeForce RTX 2070 GAMING OC WHITE 8GPart no. GVN2070GW-00-GEAN 889523015421
42 specifications Checked today
- ColourBlack, White
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express x16 3.0
- TV tuner integratedNo
- Cooling typeActive
Overview
- Colour
- Black, White
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express x16 3.0
- TV tuner integrated
- No
- Cooling type
- Active
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GeForce RTX 2070 GAMING OC WHITE 8G
- Part numbers
- GVN2070GW-00-G, GVN2070GAMINGCW
- EAN / UPC
- 889523015421
- Also known as
- GIGABYTE GAMING GeForce RTX 2070 OC WHITE 8G NVIDIA 8 GB GDDR6
Specifications
42 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 2070 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 2304 |
| Processor boost clock speed | 1725 MHz |
| Processor boost clock speed (OC mode) | 1740 MHz |
| FireStream | No |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Memory clock speed | 14000 MHz |
| Memory bandwidth (max) | 448 GB/s |

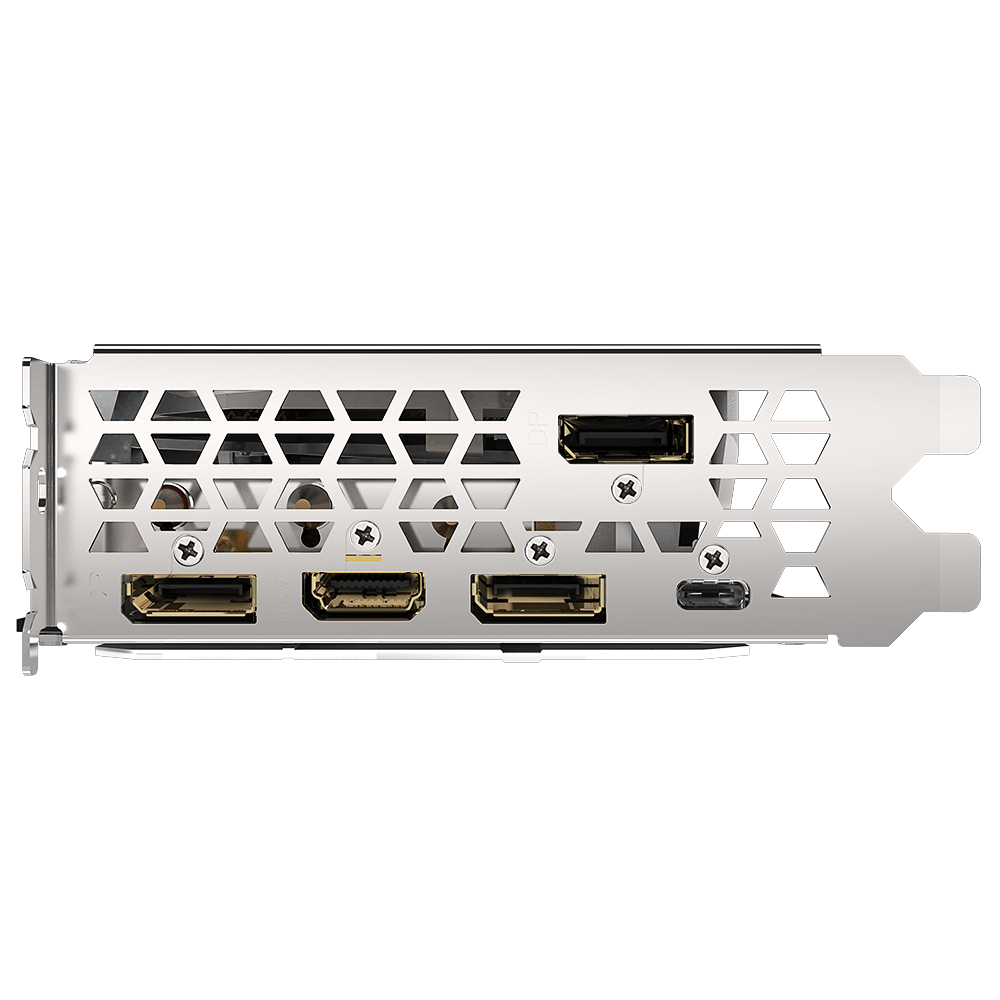

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 3.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
| USB Type-C ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Fan diameter | 8 cm |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Black, White |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 550 W |
| Supplementary power connectors | 1x 6-pin, 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 280.4 mm |
| Depth | 40.2 mm |
| Height | 116.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
