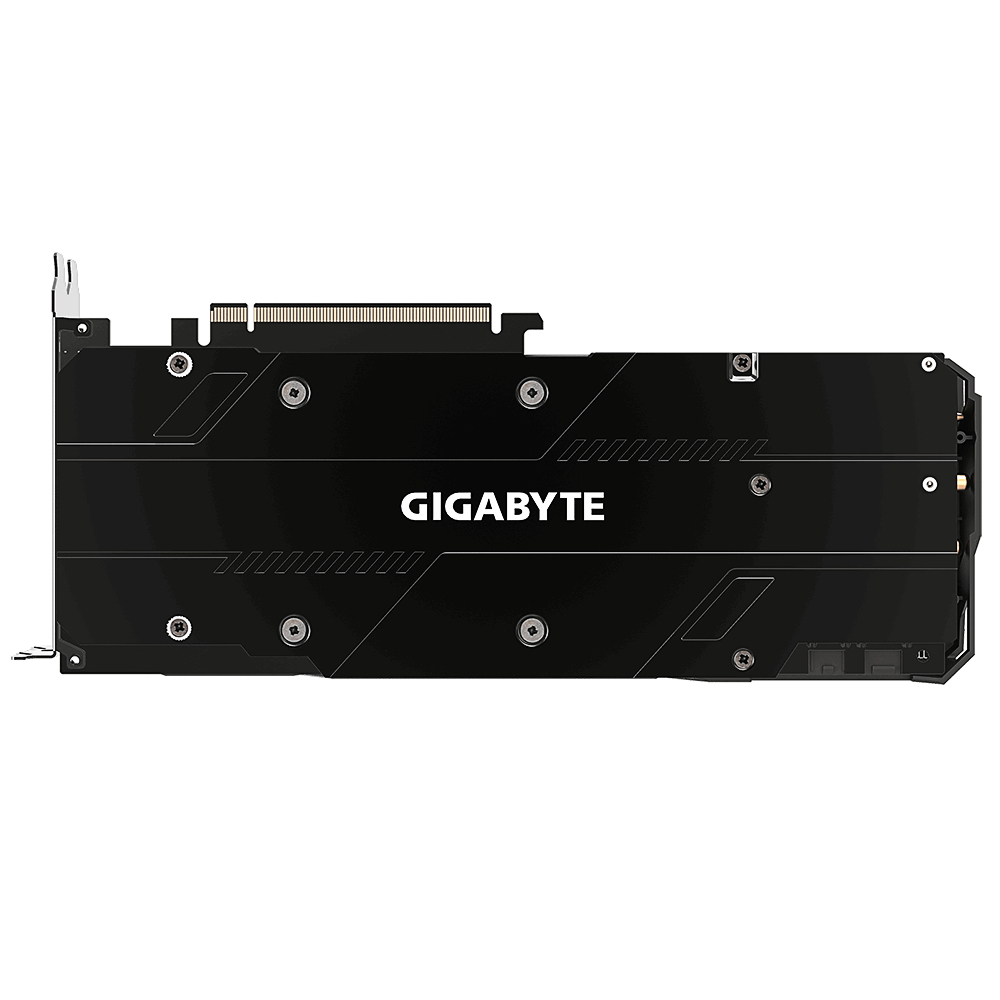

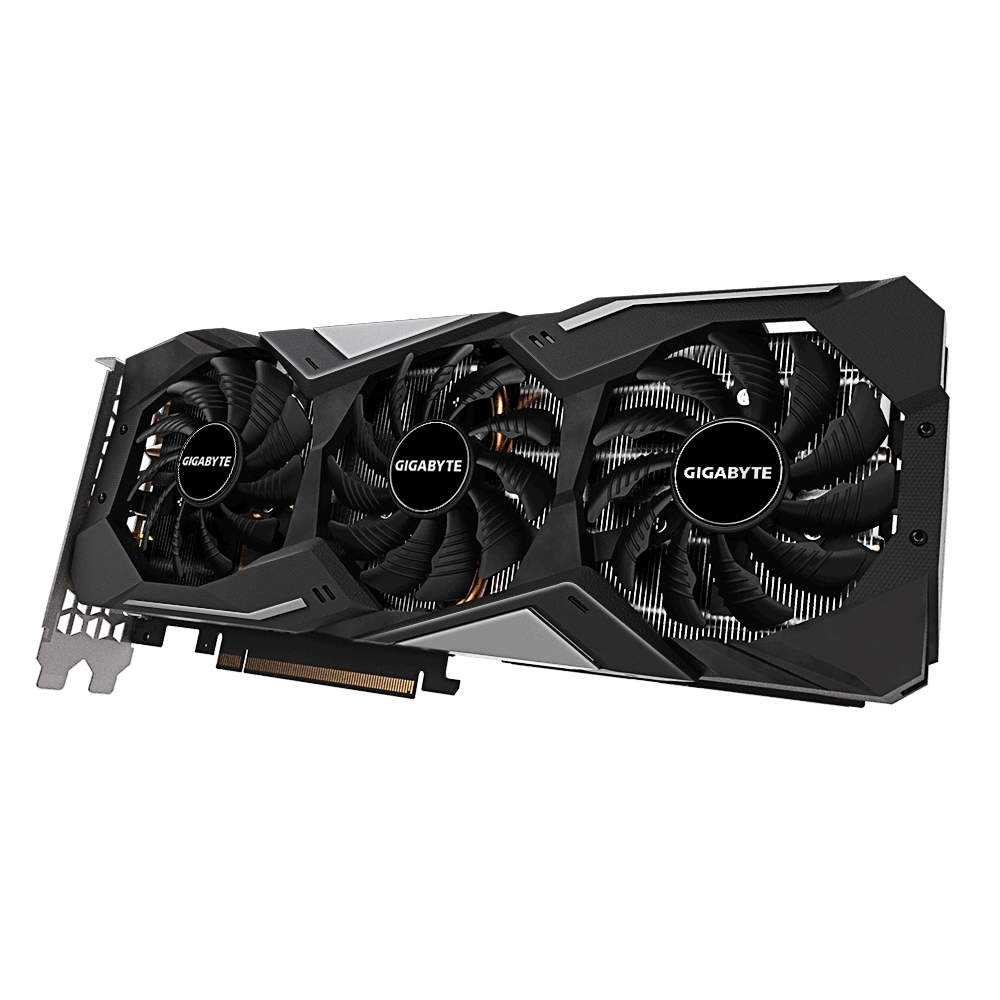

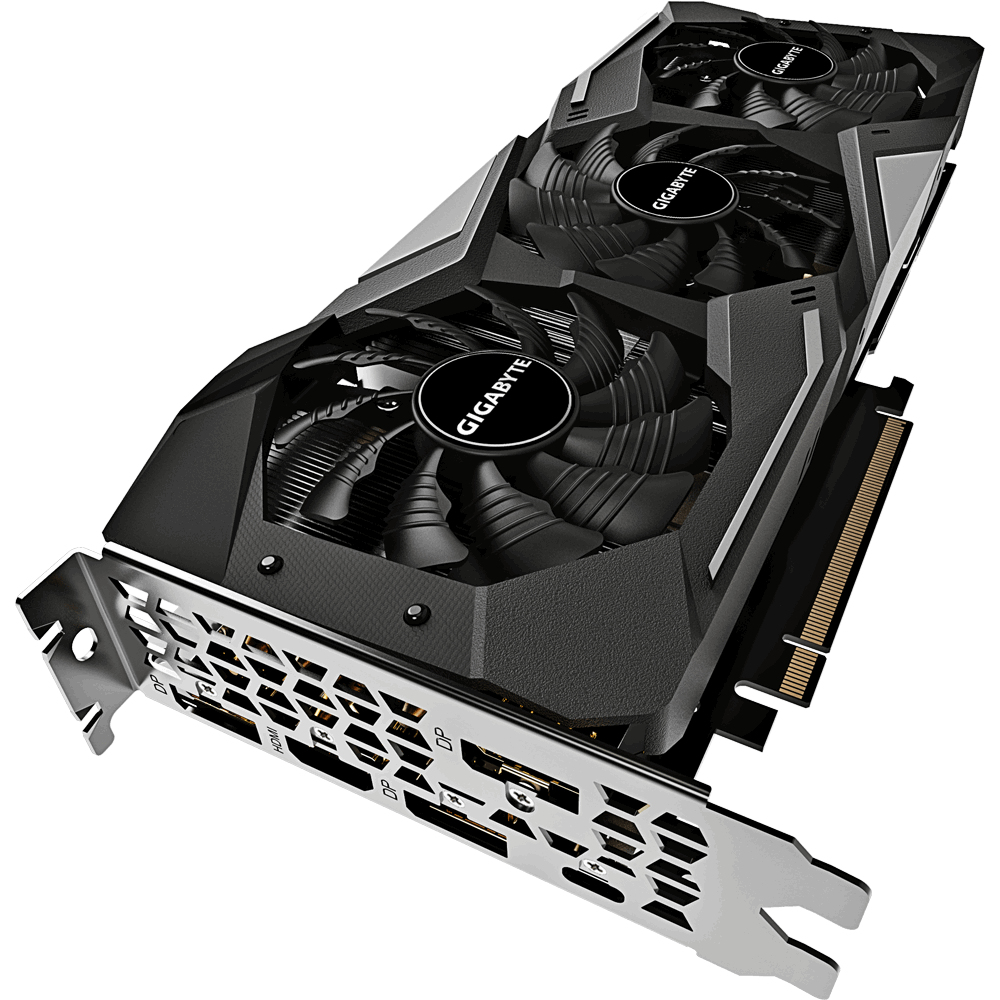

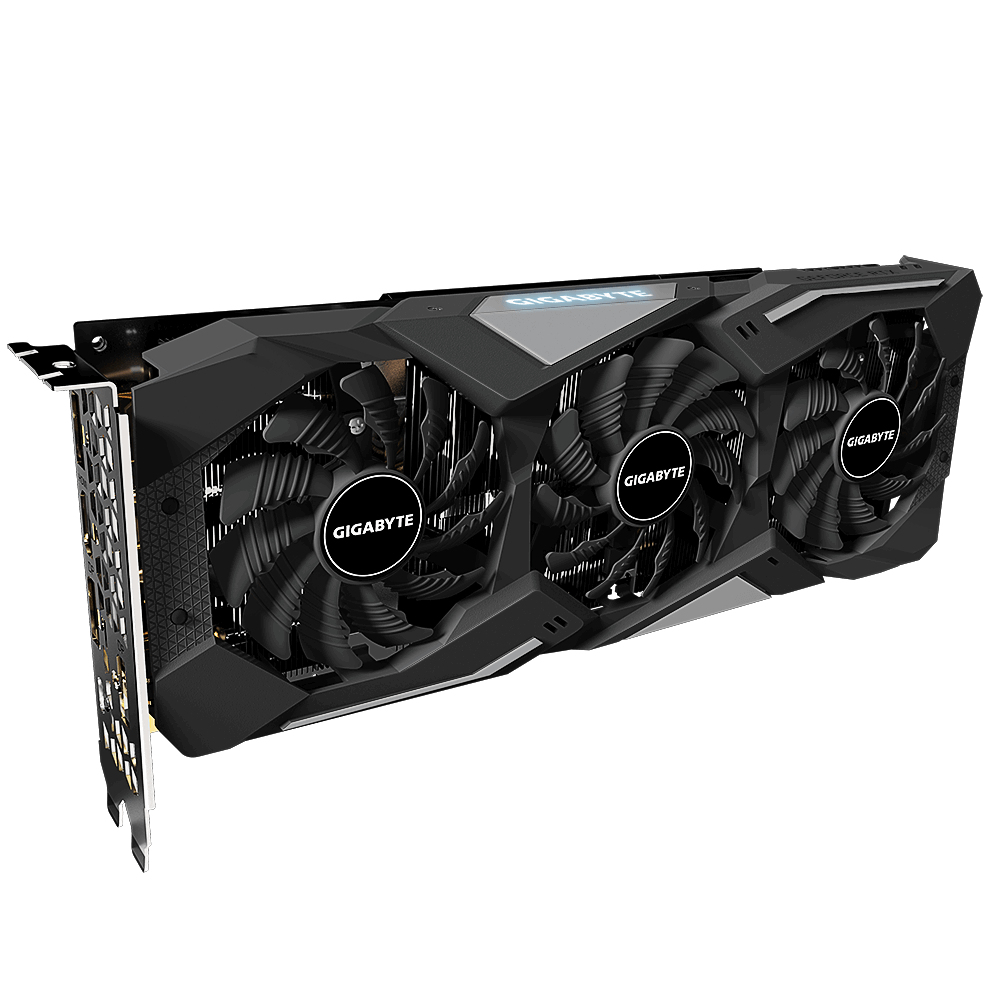

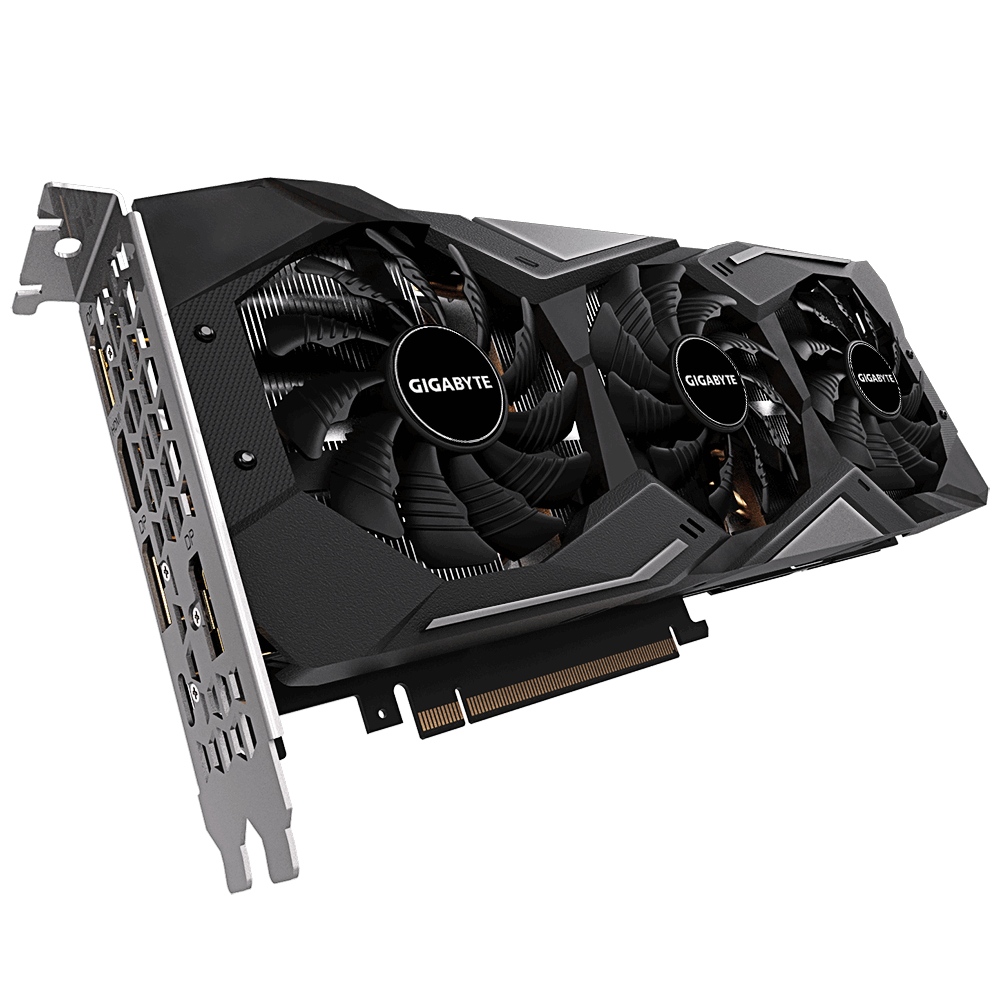

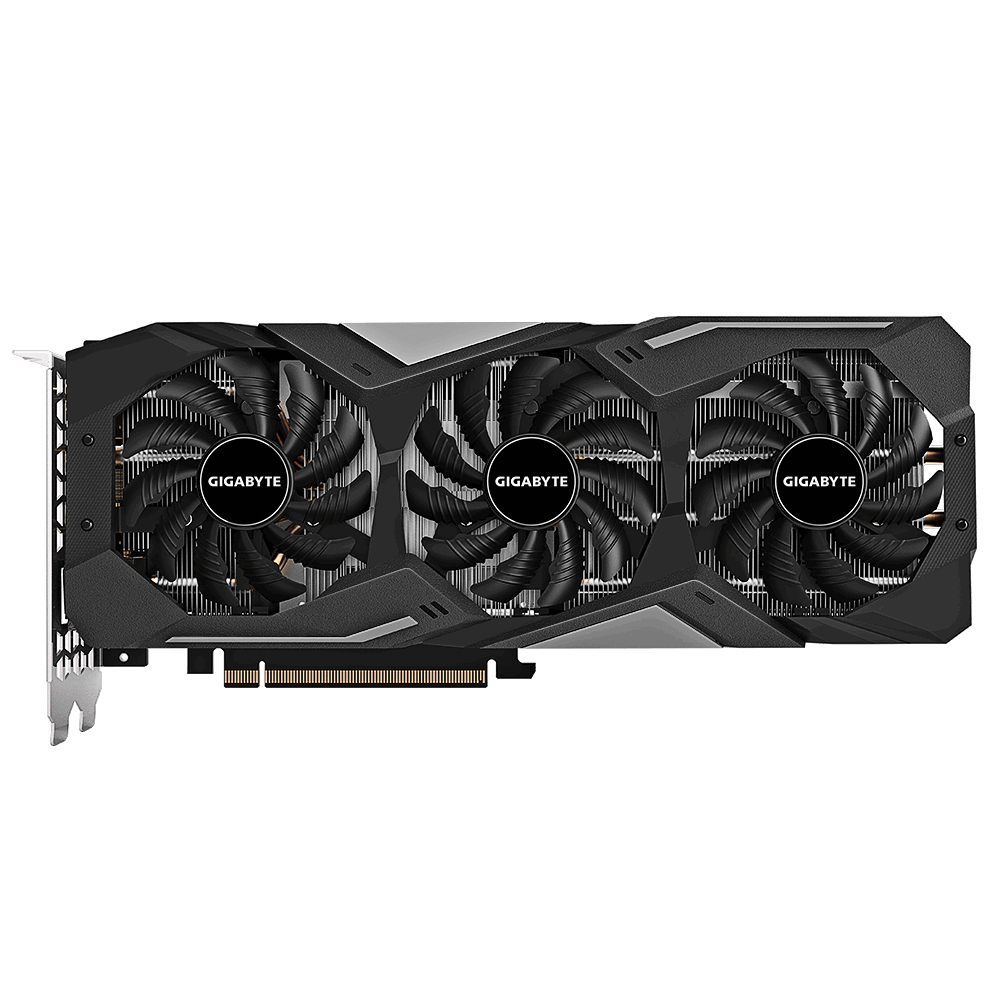

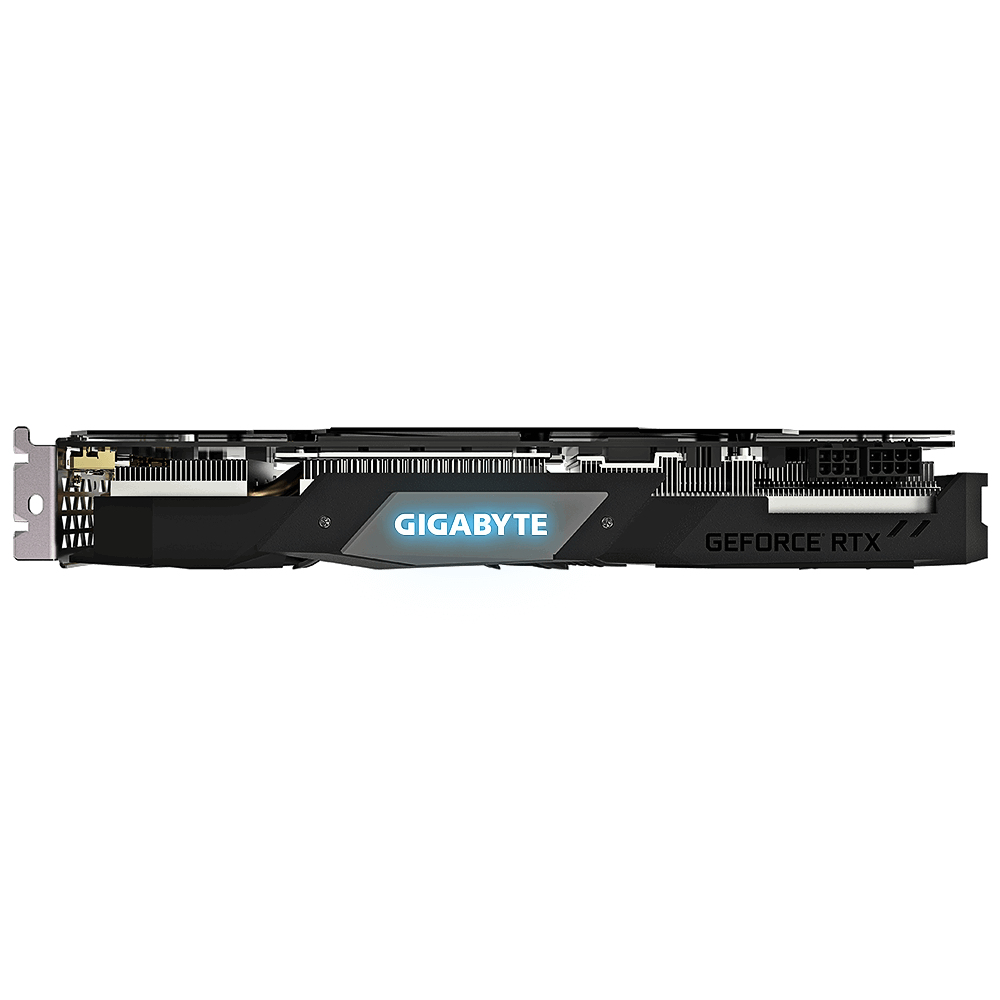

GIGABYTE GeForce RTX 2060 Super Gaming OC 8G

GeForce RTX 2060 Super Gaming OC 8G

Model GeForce RTX 2060 Super Gaming OC 8GPart no. GVN206SGOD-00-G

40 specifications Checked today

Graphics processor familyNVIDIA
Discrete graphics card memory8 GB
Interface typePCI Express x16 3.0
PhysXYes
Cooling typeActive
Minimum system power supply550 W

See all specifications

Overview

Graphics processor family: NVIDIA
Discrete graphics card memory: 8 GB
Interface type: PCI Express x16 3.0
PhysX: Yes
Cooling type: Active
Minimum system power supply: 550 W

Brand: GIGABYTE
Category: GPU
Model: GeForce RTX 2060 Super Gaming OC 8G
Part number: GVN206SGOD-00-G
Also known as: GIGABYTE GAMING GeForce RTX 2060 Super OC 8G NVIDIA 8 GB GDDR6

Specifications

40 specifications in 9 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce RTX 2060 SUPER
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	2176
Processor frequency	1815 MHz
FireStream	No
Parallel processing technology support	Not supported

Memory

Specification	Value
Discrete graphics card memory	8 GB
Graphics card memory type	GDDR6
Memory bus	256 bit
Memory clock speed	14000 MHz
Memory bandwidth (max)	448 GB/s

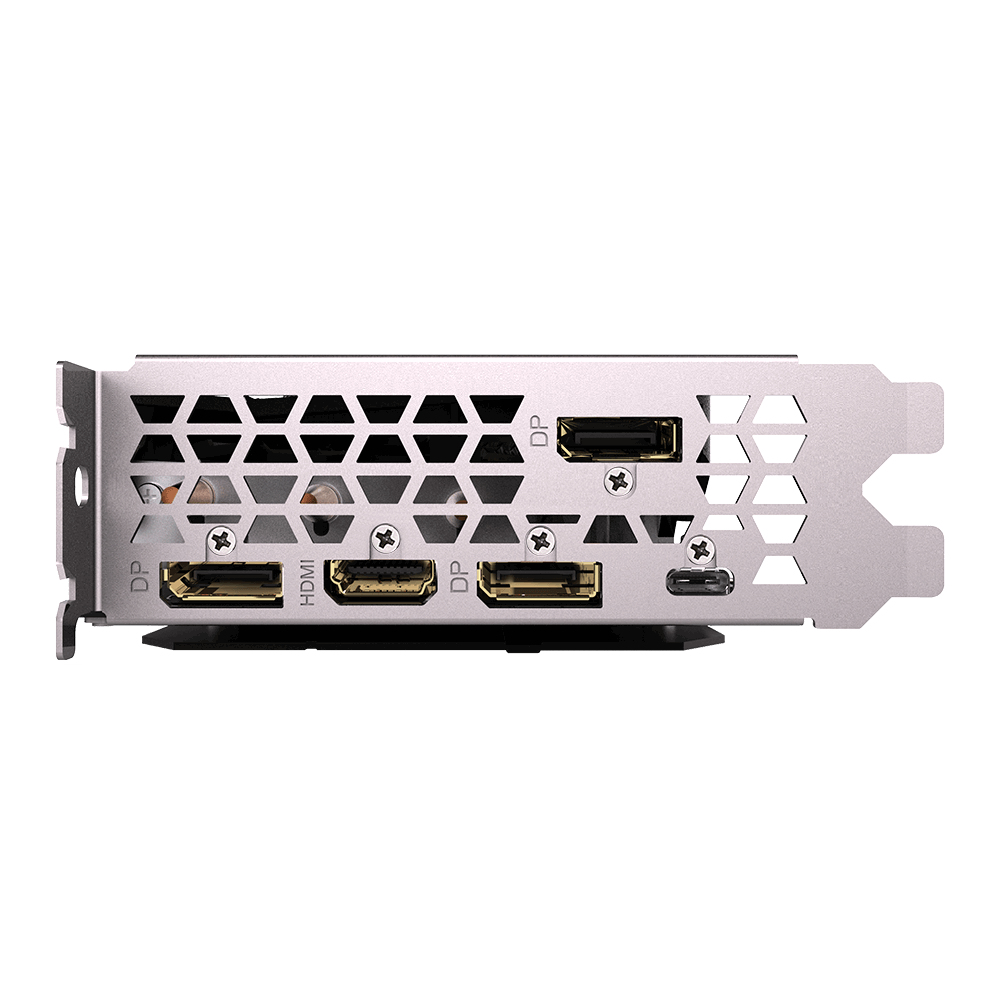

Ports & interfaces

Specification	Value
Interface type	PCI Express x16 3.0
HDMI ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
DisplayPorts quantity	3
HDMI version	2.0b
DisplayPort version	1.4
USB Type-C ports quantity	1
VGA (D-Sub) ports quantity	0

Performance

Specification	Value
PhysX	Yes
TV tuner integrated	No
DirectX version	12.0
Shader model version	No
OpenGL version	4.6
Dual Link DVI	No

Design

Specification	Value
Cooling type	Active
Cooling technology	GIGABYTE WINDFORCE 3X
Number of fans	3 fan(s)
Fan diameter	8 cm

Power

Specification	Value
Minimum system power supply	550 W
Supplementary power connectors	1x 6-pin, 1x 8-pin

Weight & dimensions

Specification	Value
Length	280.4 mm
Depth	40.2 mm
Height	116.5 mm

Packaging data

Specification	Value

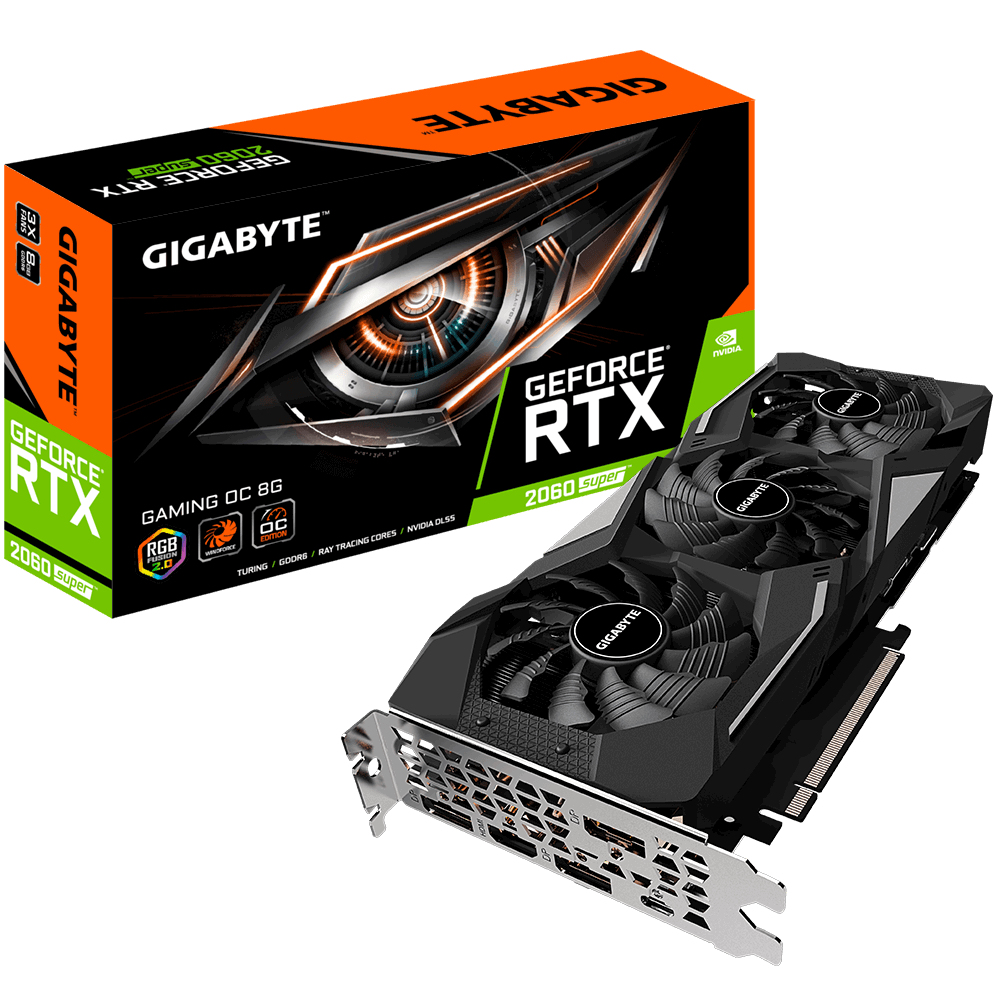

Package type	Box

Packaging content

Specification	Value
Drivers included	Yes
User guide	Yes
