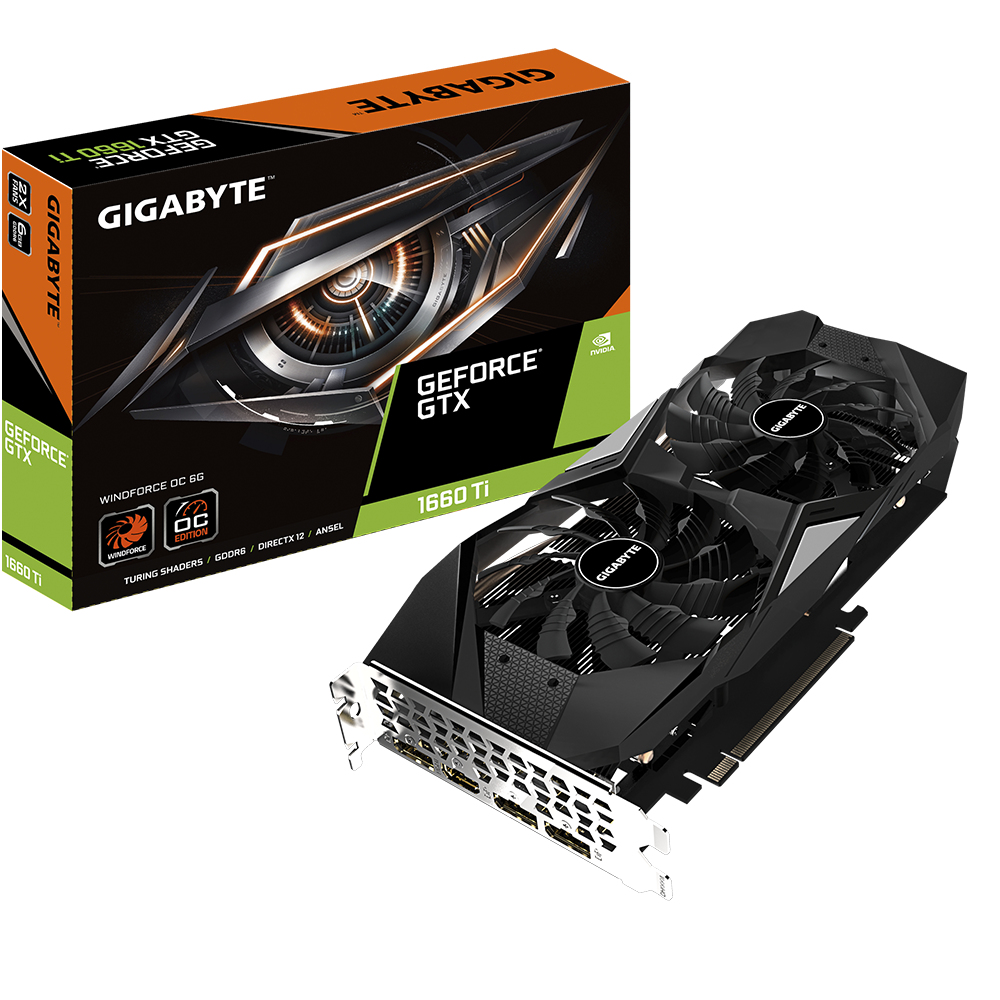

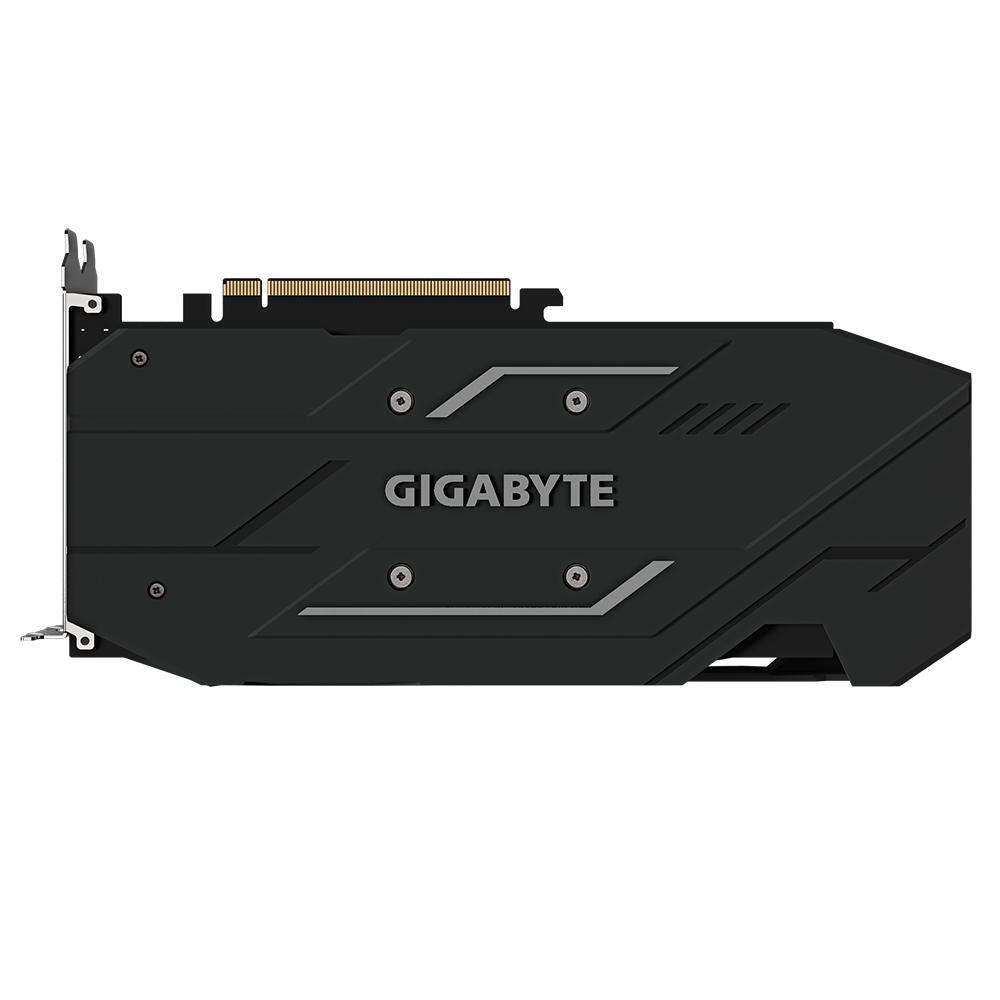

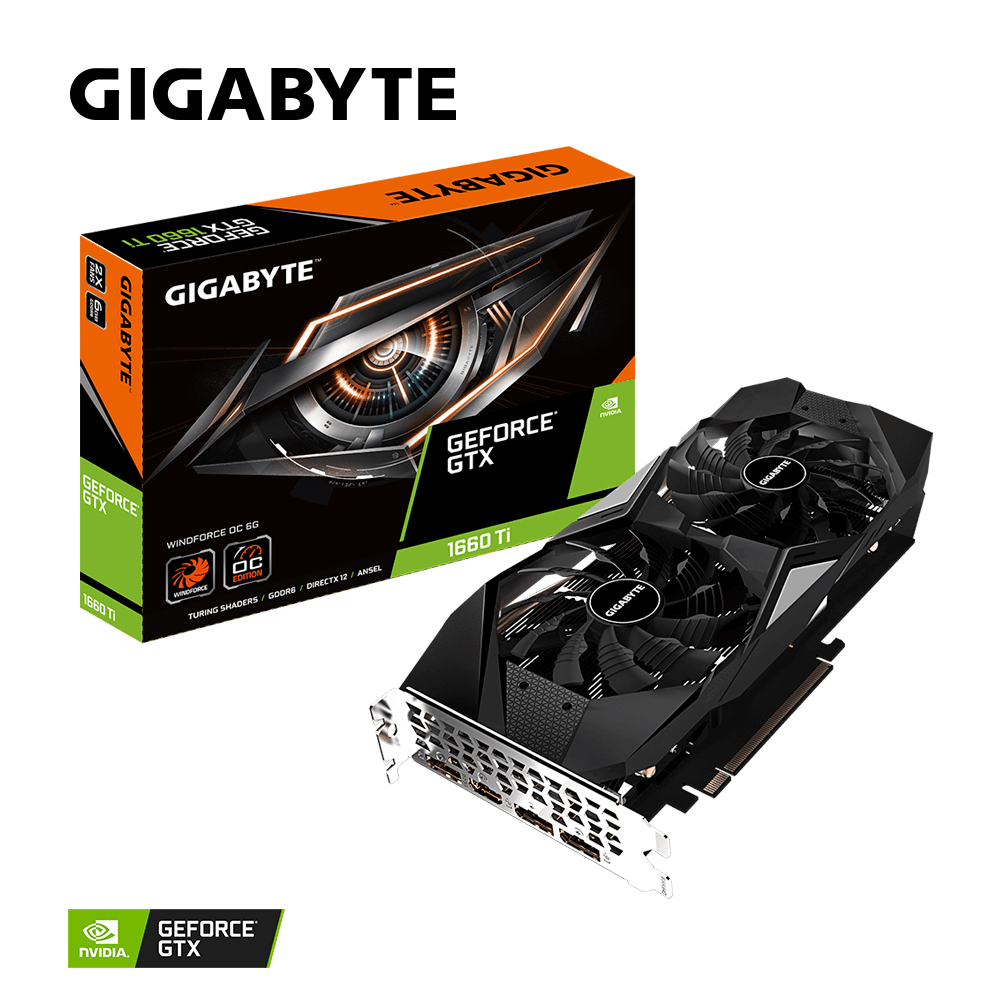

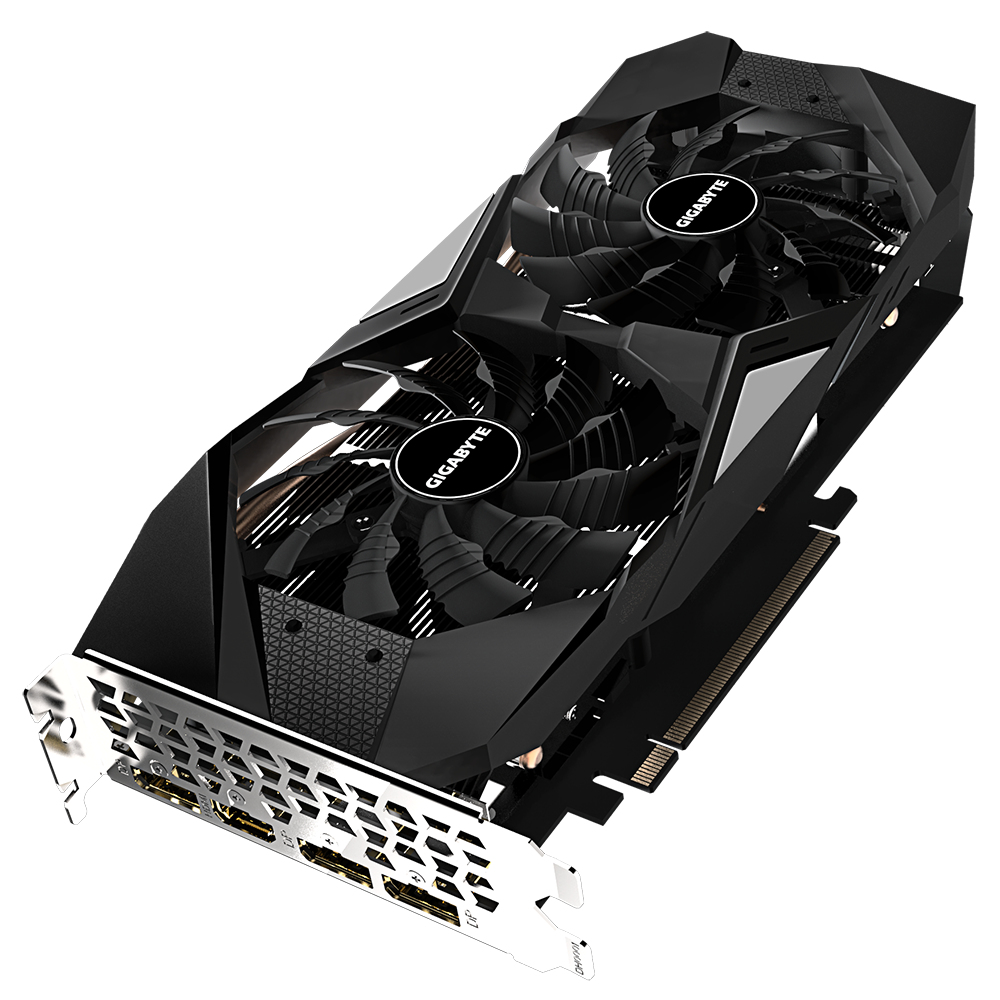

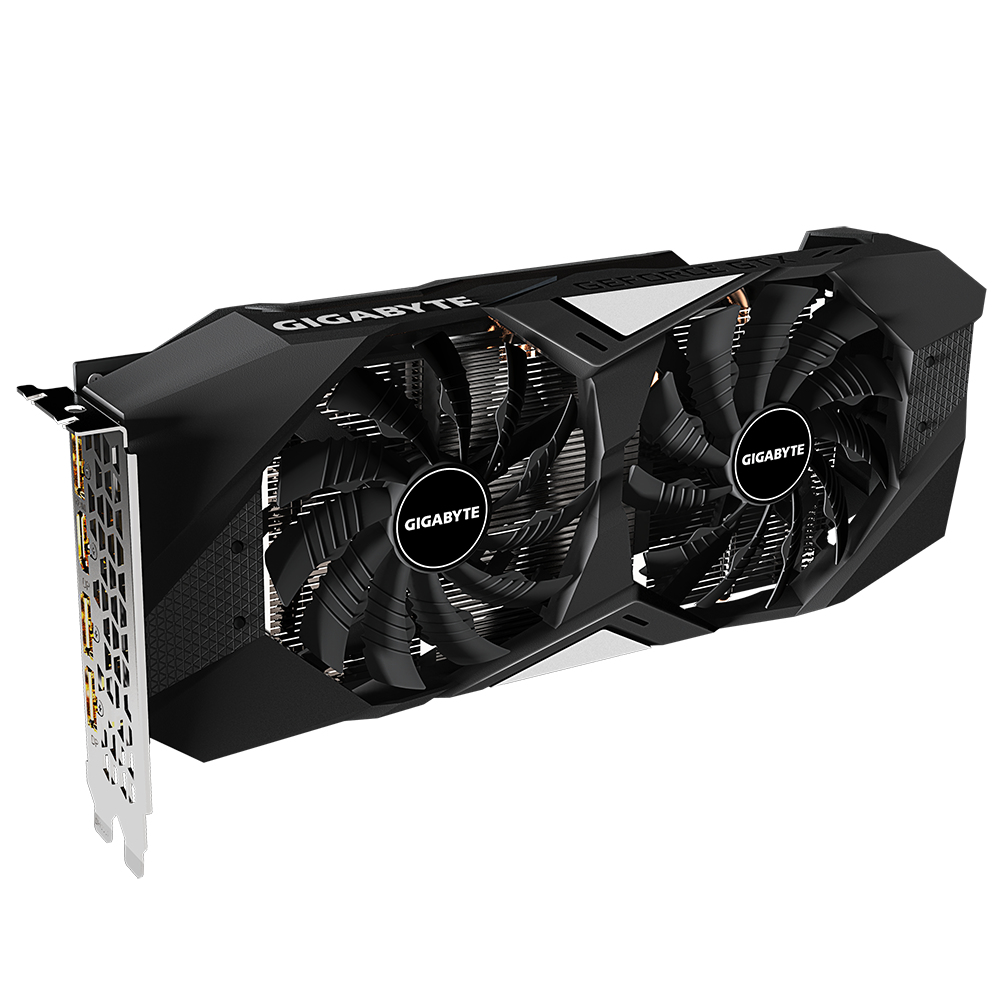

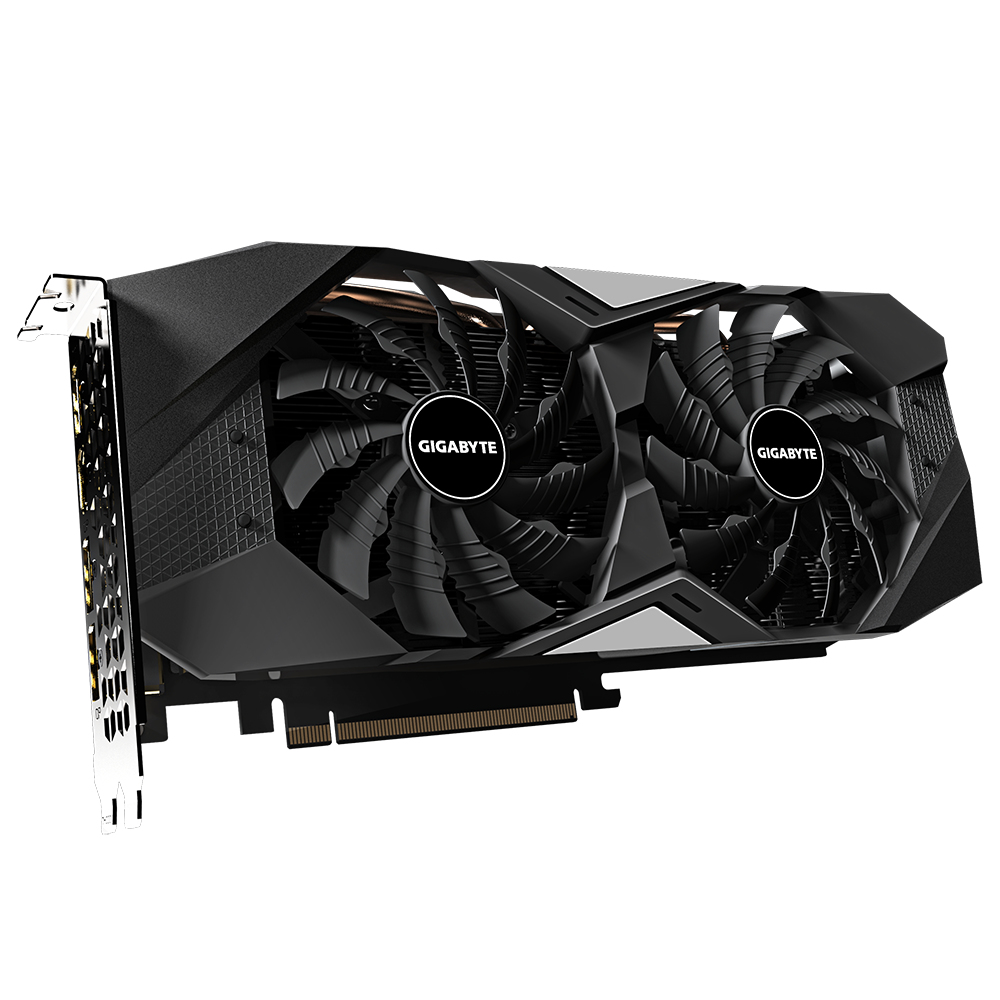

GeForce GTX 1660 Ti WINDFORCE OC 6G
Model GeForce GTX 1660 Ti WINDFORCE OC 6GPart no. GVN166TWF2OC6GDEAN 4719331304676
28 specifications Checked today
- Graphics processor familyNVIDIA
- Discrete graphics card memory6 GB
- Interface typePCI Express x16 3.0
- DirectX version12.0
- Cooling typeActive
- Minimum system power supply450 W
Overview
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 6 GB
- Interface type
- PCI Express x16 3.0
- DirectX version
- 12.0
- Cooling type
- Active
- Minimum system power supply
- 450 W
- Brand
- GIGABYTE
- Category
- GPU
- Model
- GeForce GTX 1660 Ti WINDFORCE OC 6G
- Part numbers
- GVN166TWF2OC6GD, GV-N1660TWF2-6GD
- EAN / UPC
- 4719331304676
- Also known as
- GIGABYTE GeForce GTX 1660 Ti WINDFORCE OC 6G NVIDIA 6 GB GDDR6
Specifications
28 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce GTX 1660 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 1536 |
| Processor frequency | 1845 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 6 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 192 bit |
| Memory clock speed | 12000 MHz |
| Memory bandwidth (max) | 288 GB/s |

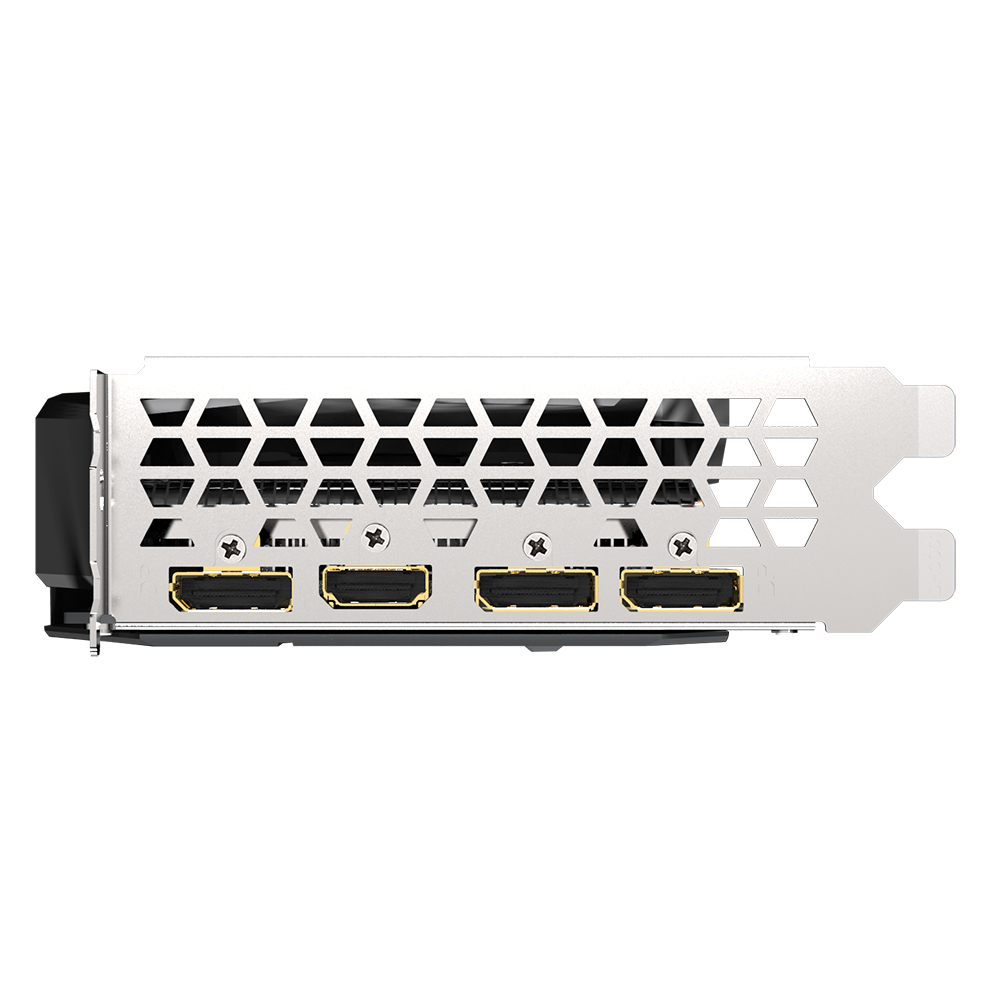

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 3.0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
Performance
| Specification | Value |
|---|---|
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |

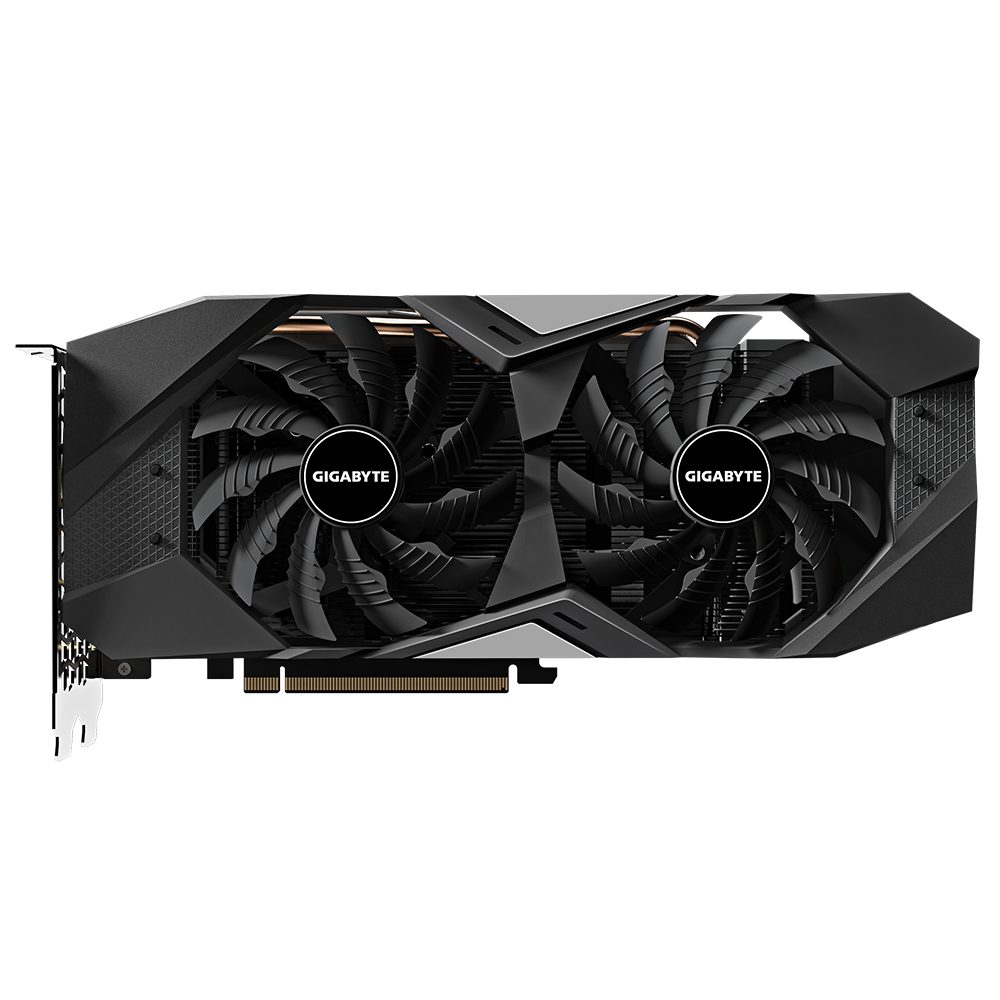

| Number of fans | 2 fan(s) |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 450 W |

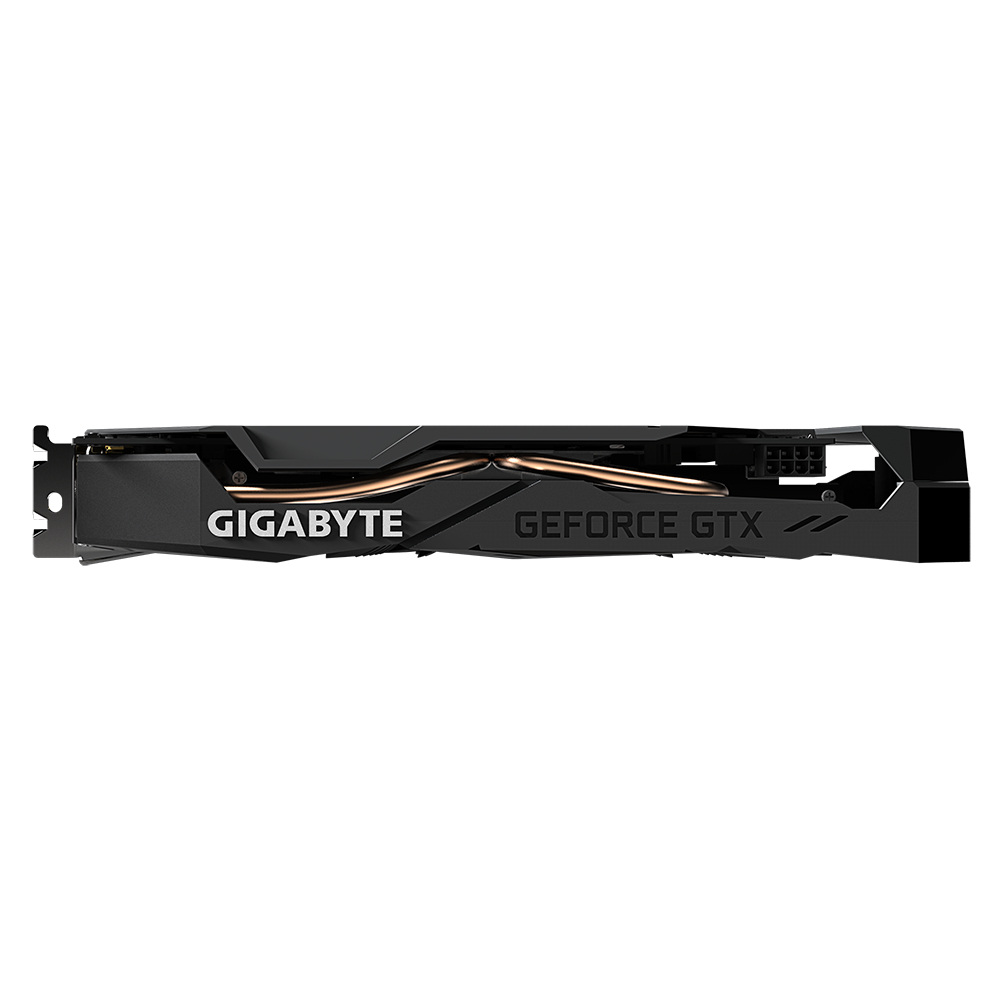

| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 264.9 mm |
| Depth | 40.4 mm |
| Height | 120.6 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| User guide | Yes |
