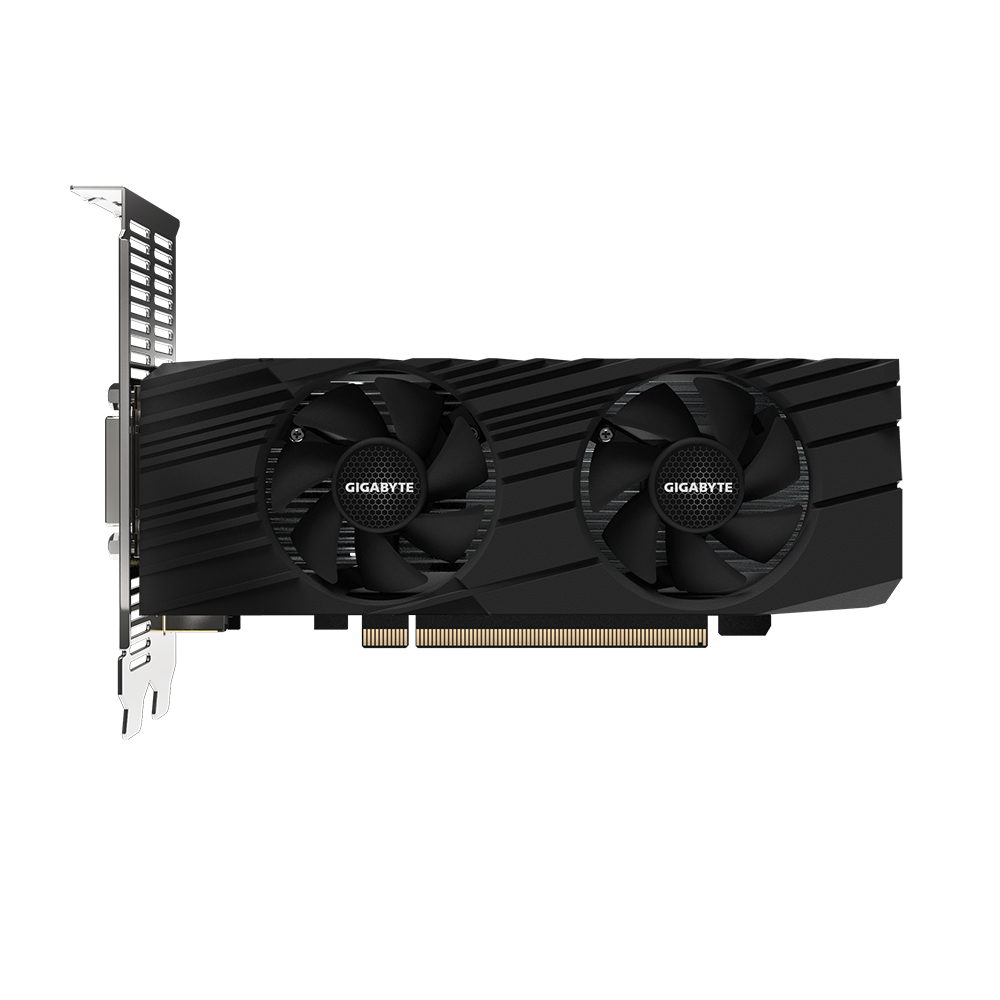

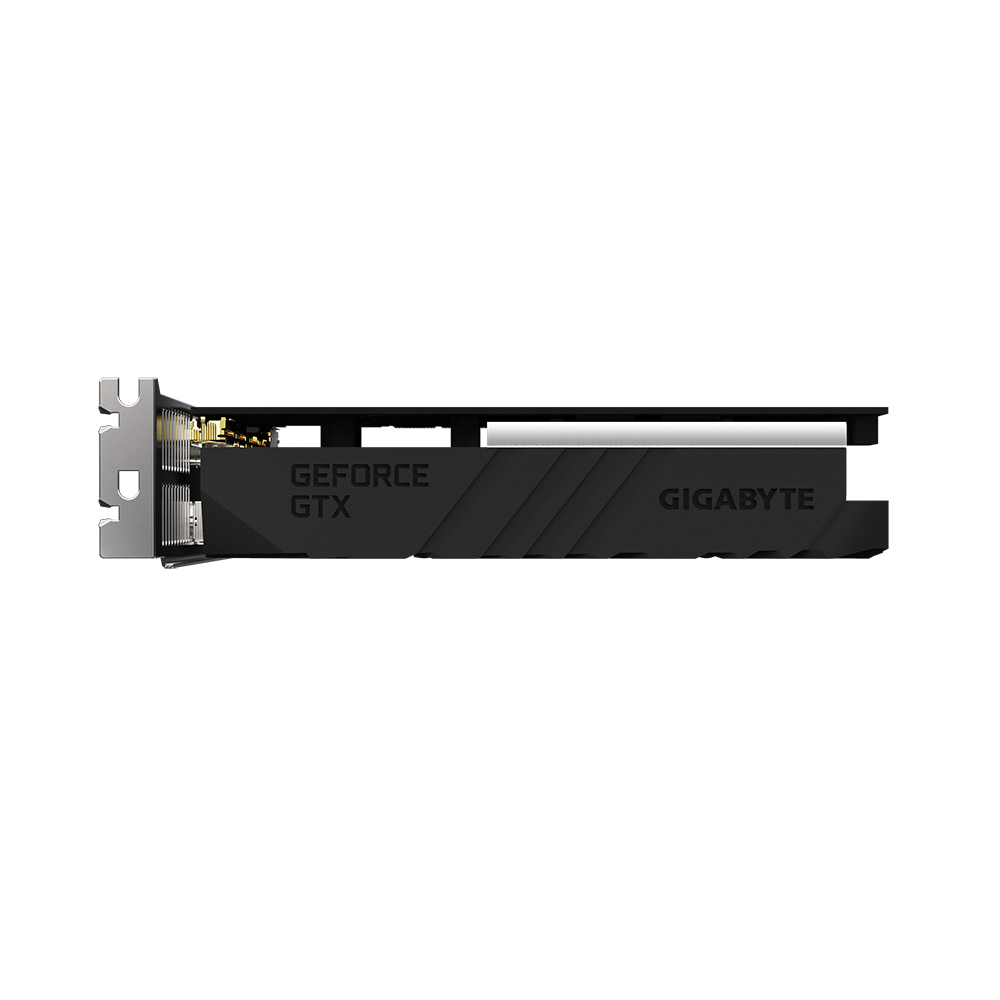

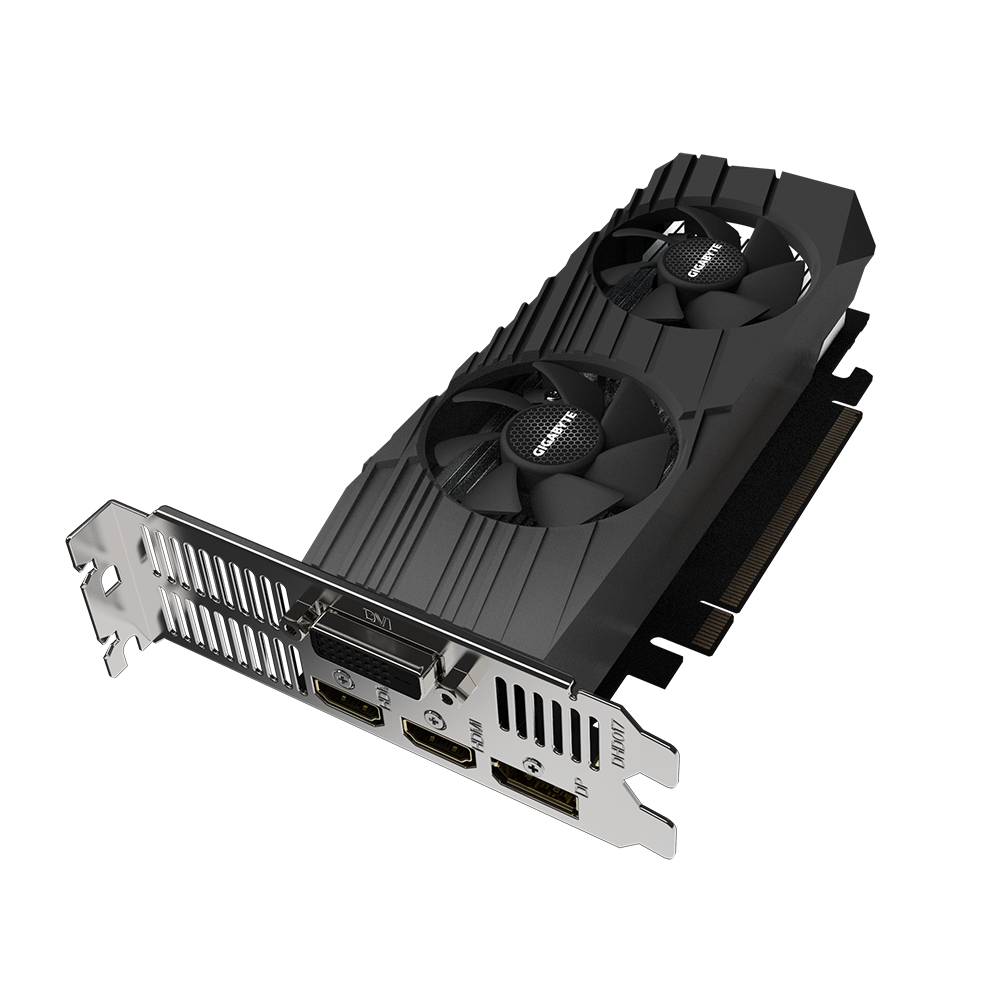

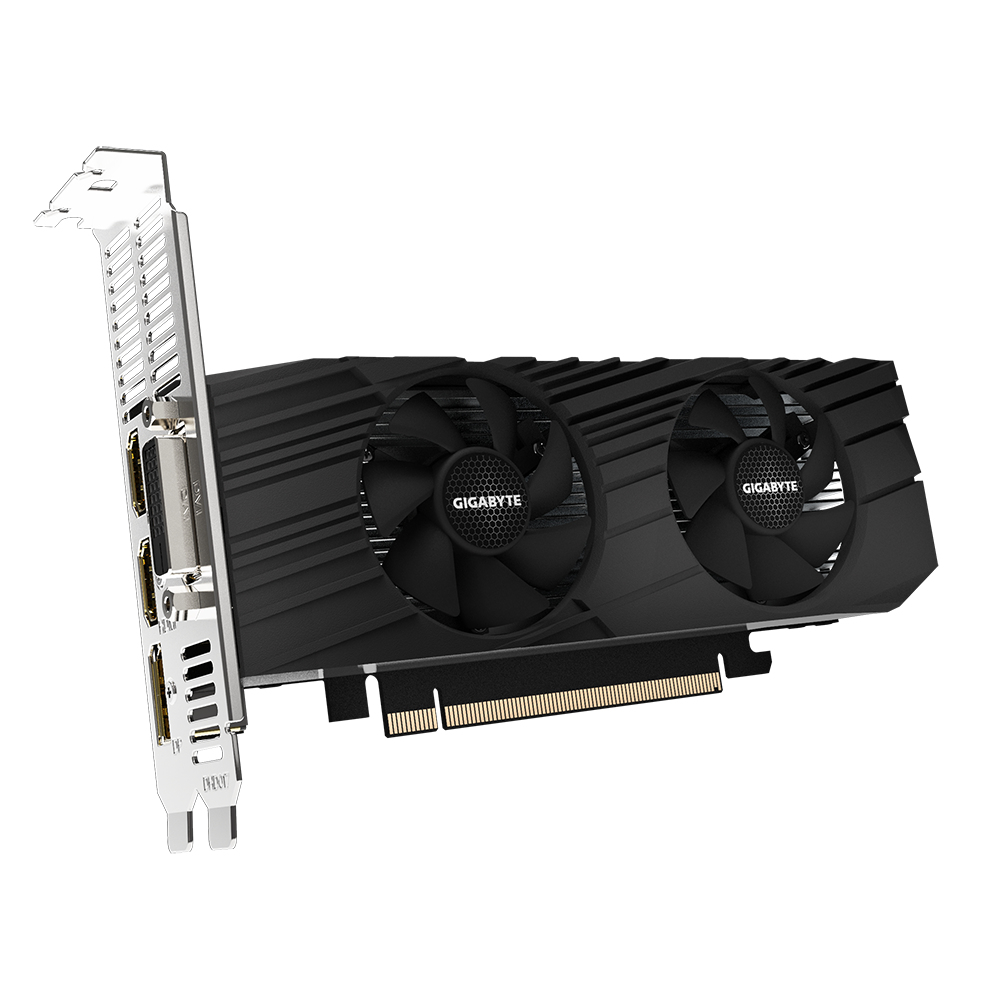

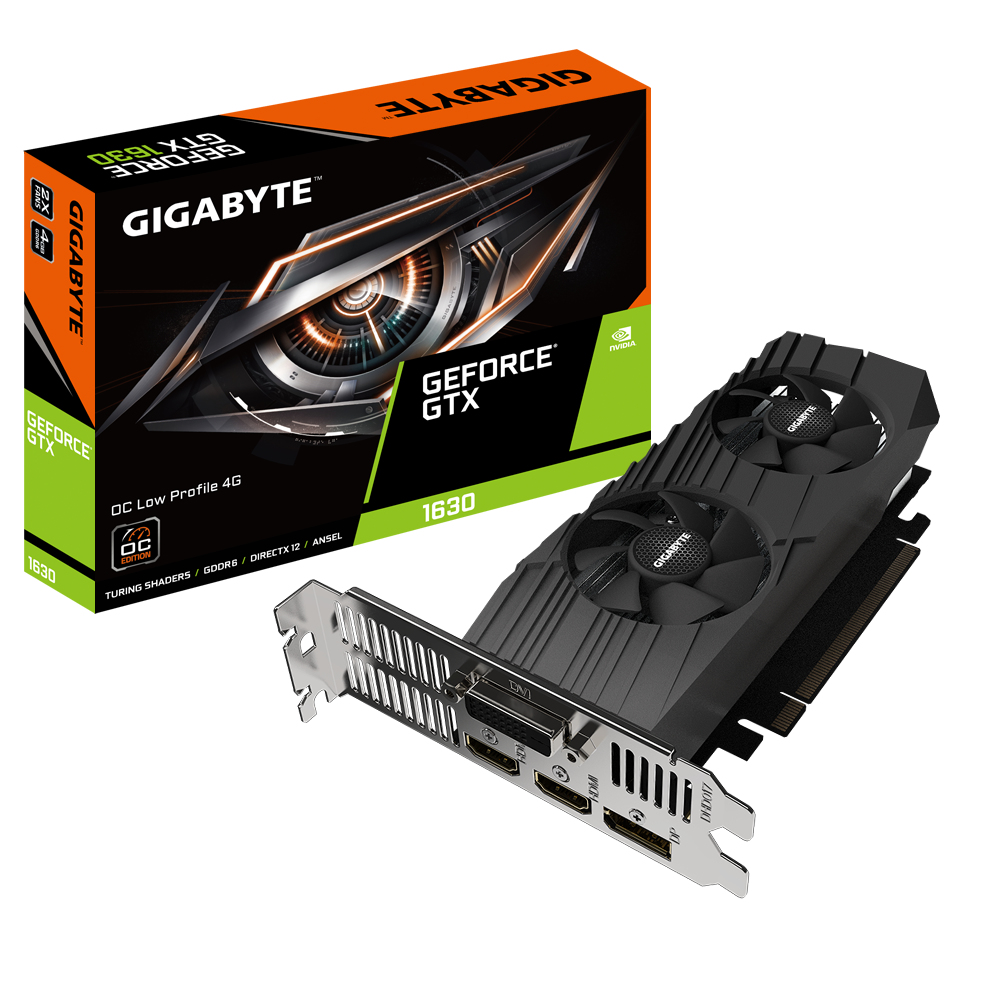

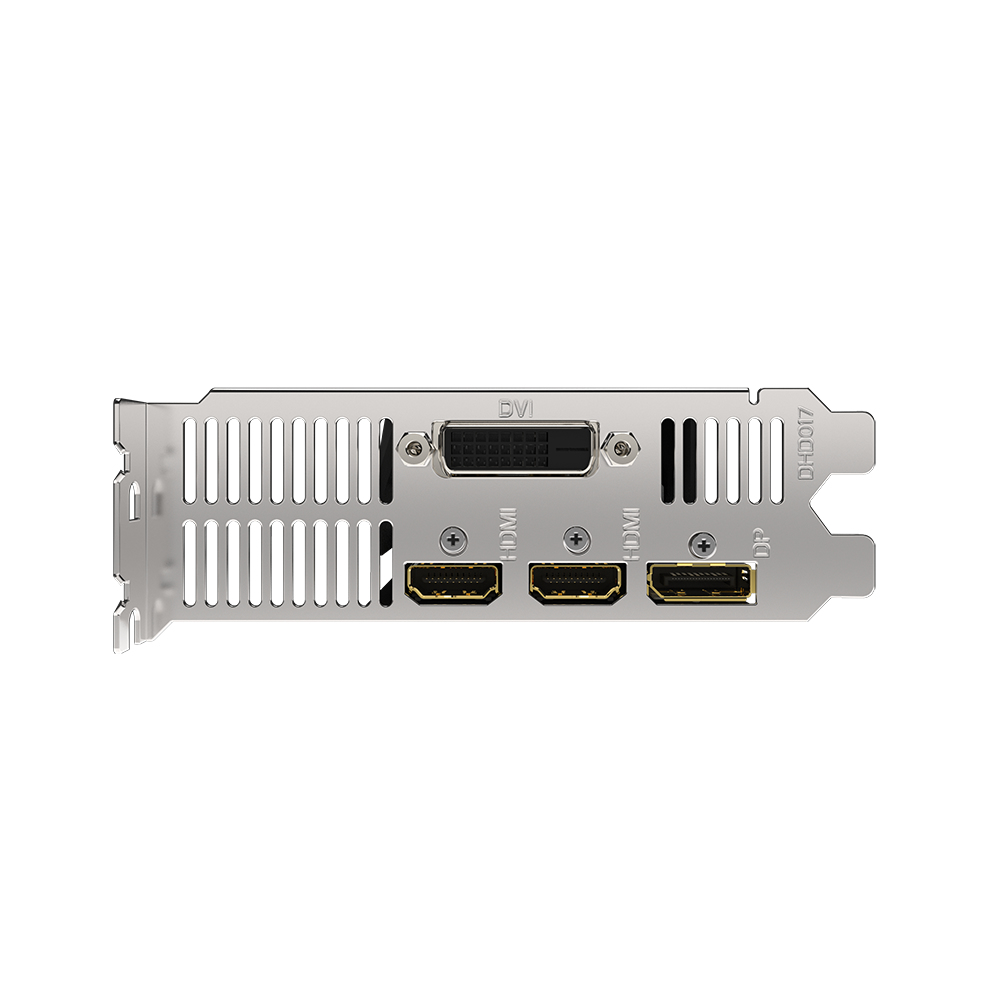

GeForce GTX 1630 OC Low Profile 4G

Model GeForce GTX 1630 OC Low Profile 4GPart no. GV-N1630OC-4GLEAN 4719331311148

37 specifications Checked today

ColourBlack
Graphics processor familyNVIDIA
Discrete graphics card memory4 GB
Interface typePCI Express x16 3.0
TV tuner integratedNo
Cooling typeActive

See all specifications

Overview

Colour: Black
Graphics processor family: NVIDIA
Discrete graphics card memory: 4 GB
Interface type: PCI Express x16 3.0
TV tuner integrated: No
Cooling type: Active

Brand: GIGABYTE
Category: GPU
Model: GeForce GTX 1630 OC Low Profile 4G
Part number: GV-N1630OC-4GL
EAN / UPC: 4719331311148
Also known as: GIGABYTE GeForce GTX 1630 OC Low Profile 4G NVIDIA 4 GB GDDR6

Specifications

37 specifications in 10 groups

Processor

Specification	Value
Graphics processor family	NVIDIA
Graphics processor	GeForce GTX 1630
Maximum resolution	7680 x 4320 pixels
CUDA	Yes
CUDA cores	512
Processor frequency	1800 MHz
Maximum displays per videocard	4
Parallel processing technology support	Not supported

Memory

Specification	Value
Discrete graphics card memory	4 GB
Graphics card memory type	GDDR6
Memory bus	64 bit
Memory clock speed	12000 MHz
Memory bandwidth (max)	96 GB/s

Ports & interfaces

Specification	Value
Interface type	PCI Express x16 3.0
HDMI ports quantity	2
DVI-D ports quantity	1
DVI-I ports quantity	0
DisplayPorts quantity	1
HDMI version	2.0b
DisplayPort version	1.4

Performance

Specification	Value
TV tuner integrated	No
DirectX version	12.0
OpenGL version	4.6
Dual Link DVI	Yes
NVIDIA G-SYNC	Yes
NVIDIA Ansel	Yes

Design

Specification	Value
Cooling type	Active
Number of fans	2 fan(s)
Bracket height	Low-Profile (LP)
Product colour	Black

Power

Specification	Value
Minimum system power supply	300 W

System requirements

Specification	Value
Windows operating systems supported	Windows 10 x64, Windows 11 x64

Weight & dimensions

Specification	Value
Length	166.9 mm
Depth	39 mm
Height	69 mm

Packaging data

Specification	Value
Package type	Box

Packaging content

Specification	Value
User guide	Yes
