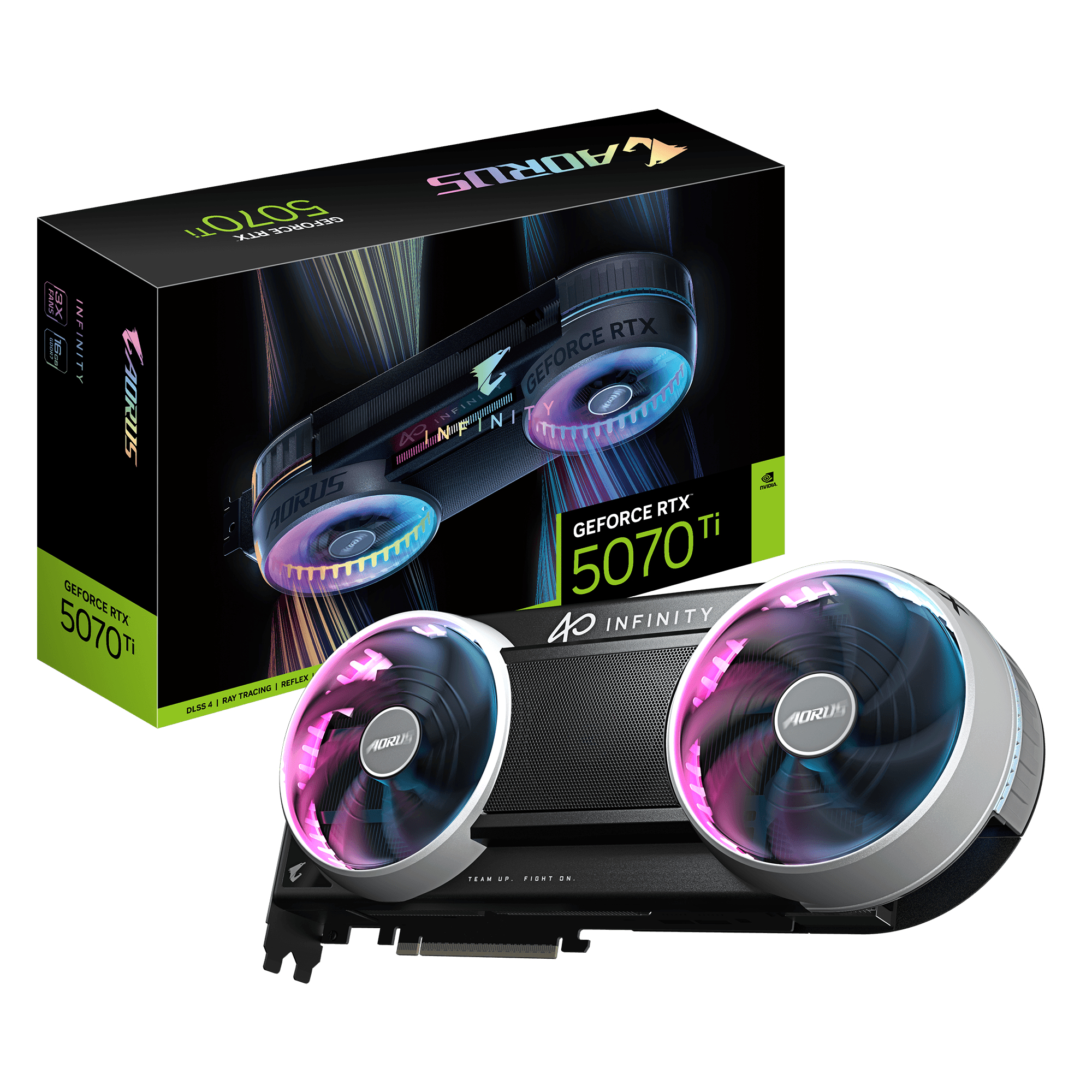

AORUS GeForce RTX 5070 Ti INFINITY 16G
Model AORUS GeForce RTX 5070 Ti INFINITY 16GPart no. GV-N507TAORUS IF-16GDEAN 889523060391
49 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight1.3 kg
- ColourBlack, Grey
- Graphics processor familyNVIDIA
- Discrete graphics card memory16 GB
- Interface typePCI Express x16 5.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 1.3 kg
- Colour
- Black, Grey
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 16 GB
- Interface type
- PCI Express x16 5.0
- Brand
- GIGABYTE
- Category
- GPU
- Model
- AORUS GeForce RTX 5070 Ti INFINITY 16G
- Part number
- GV-N507TAORUS IF-16GD
- EAN / UPC
- 889523060391, 4719331357528
- Also known as
- GIGABYTE AORUS GeForce RTX 5070 Ti INFINITY 16G Graphics Card
Specifications
49 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5070 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 8960 |
| Processor frequency | 2670 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Memory clock speed | 28000 MHz |
| Data transfer rate | 28 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 5.0 |

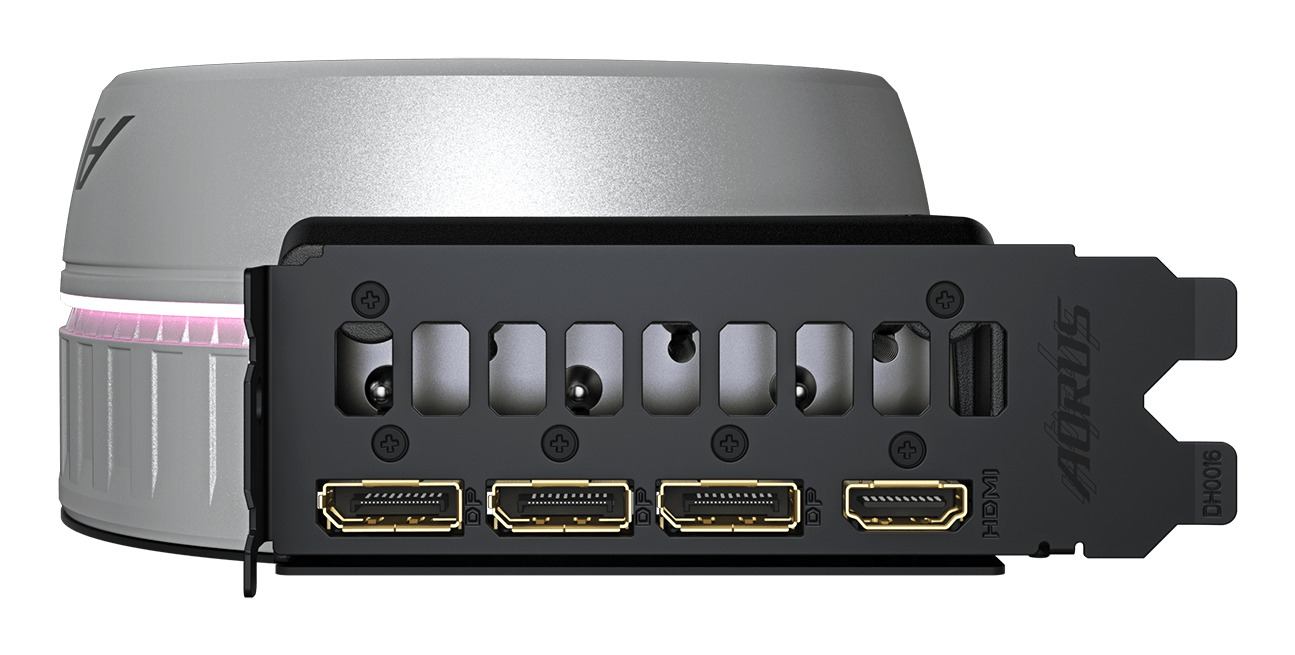

| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1b |
| DisplayPort version | 2.1b |
| Mini DisplayPorts quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Warranty period | 3 year(s) |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2.7 |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Black, Grey |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Supplementary power connectors | 1x 16-pin |
| Thermal Design Power (TDP) | 205 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.3 kg |
| Length | 327 mm |
| Depth | 56 mm |
| Height | 132 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 230 mm |
| Package depth | 435 mm |
| Package height | 90 mm |
| Package weight | 2.2 kg |
| Package type | Box |
