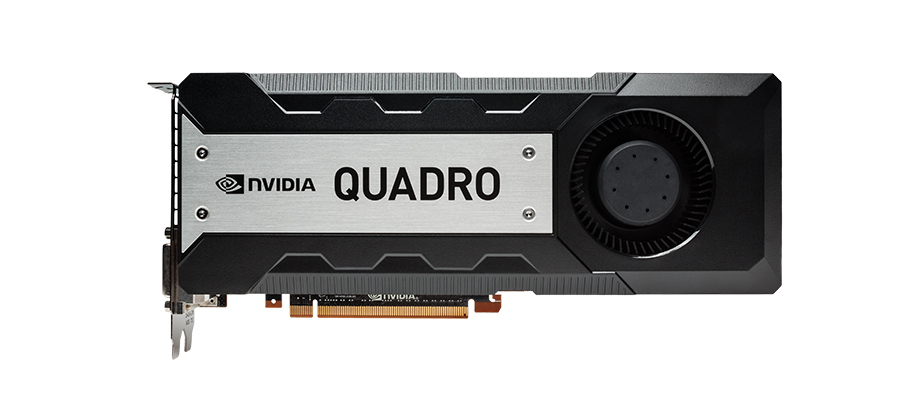

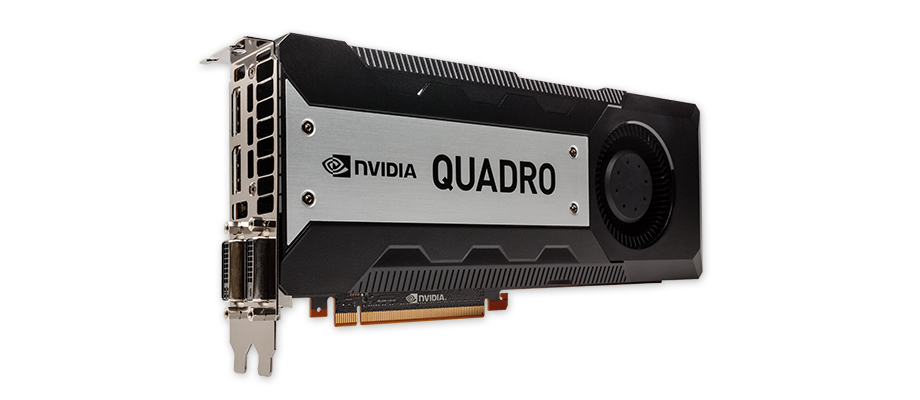

Dell 490-BCGB graphics card NVIDIA Quadro K6000
12 GB GDDR5
Model 490-BCGBEAN 5397063765966
34 specifications Checked 4 days ago
- Graphics processor familyNVIDIA
- Discrete graphics card memory12 GB
- Interface typePCI Express x16 3.0
- PhysXNo
- Cooling typeActive
- Power consumption (typical)225 W
Overview
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 12 GB
- Interface type
- PCI Express x16 3.0
- PhysX
- No
- Cooling type
- Active
- Power consumption (typical)
- 225 W
- Brand
- Dell
- Category
- GPU
- Model
- 490-BCGB
- Part number
- 490-BCGB
- EAN / UPC
- 5397063765966
- Also known as
- DELL 490-BCGB graphics card NVIDIA Quadro K6000 12 GB GDDR5
Specifications
34 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | Quadro K6000 |
| Maximum resolution | 3840 x 2160 pixels |
| CUDA | Yes |
| CUDA cores | 2880 |
| Maximum analog resolution | 2048 x 1536 pixels |
| Maximum digital resolution | 3840 x 2160 pixels |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 12 GB |
| Graphics card memory type | GDDR5 |
| Memory bus | 384 bit |
| Memory bandwidth (max) | 288 GB/s |

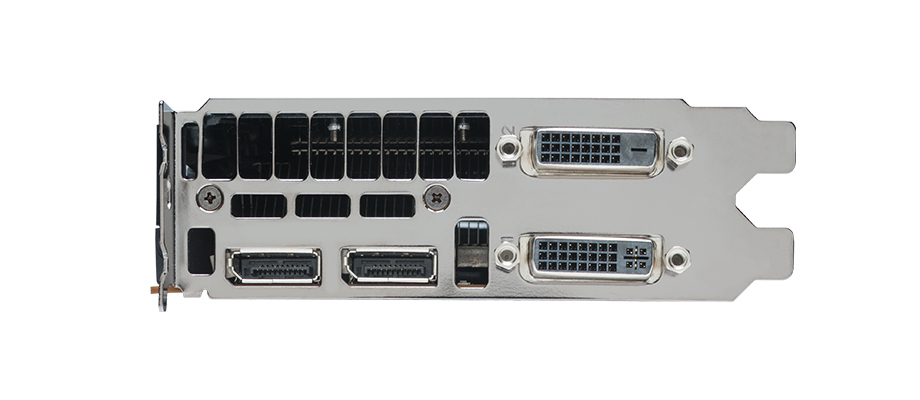

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 3.0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 1 |
| DisplayPorts quantity | 2 |
| DVI ports quantity | 2 |
| DisplayPort version | 1.2 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 11.2 |
| Shader model version | 5.0 |
| OpenGL version | 4.4 |
| HDCP | Yes |
| Dual Link DVI | Yes |
| NVIDIA 3D Vision | Yes |
| NVIDIA GameWorks VR | No |
| NVIDIA G-SYNC | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of slots | 2 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 225 W |
| Supplementary power connectors | 2x 6-pin |
What people say
Reviews & ratings
Dell 490-BCGB graphics card NVIDIA Quadro K6000
No reviews yet
Be the first to tell others how Dell 490-BCGB graphics card NVIDIA Quadro K6000 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Dell 490-BCGB graphics card NVIDIA Quadro K6000

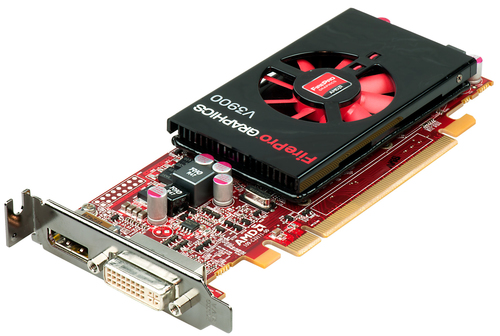

All gpu comparisons- Dell 490-BCGB graphics card NVIDIA Quadro K6000 vsDell 490-BBVK graphics card AMD FirePro V3900Compare specs
- Dell 490-BCGB graphics card NVIDIA Quadro K6000 vsDell 490-BCGD graphics card NVIDIA Quadro K2200Compare specs
- Dell 490-BCGB graphics card NVIDIA Quadro K6000 vsDell 490-BCGF graphics card NVIDIA Quadro K5200Compare specs

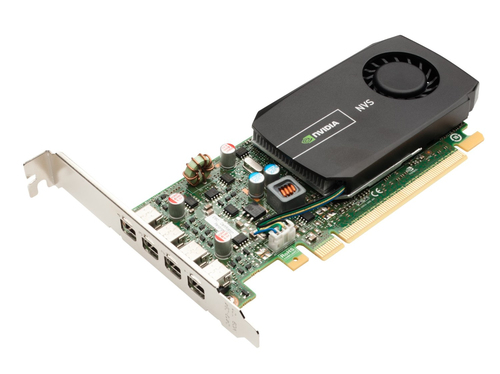

- Dell 490-BCGB graphics card NVIDIA Quadro K6000 vsDell 490-14320 graphics card NVIDIA NVS 510Compare specs
