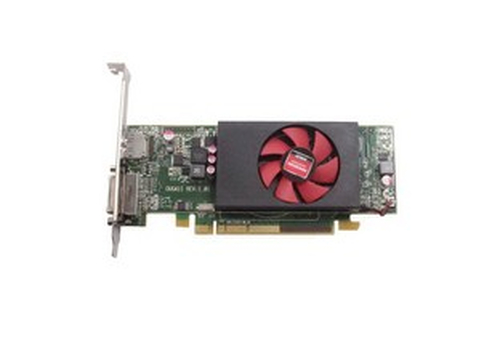

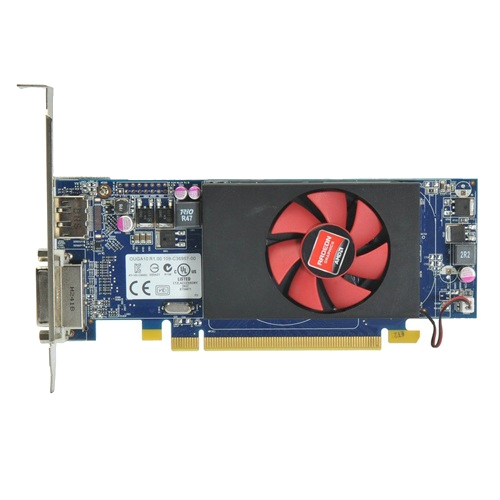

Dell 490-BBUH graphics card AMD Radeon HD8570
1 GB GDDR3
Model 490-BBUH
39 specifications Checked 5 days ago
- ColourBlack, Blue
- Graphics processor familyAMD
- Discrete graphics card memory1 GB
- Interface typePCI Express x16 3.0
- PhysXNo
- Cooling typeActive
Overview
- Colour
- Black, Blue
- Graphics processor family
- AMD
- Discrete graphics card memory
- 1 GB
- Interface type
- PCI Express x16 3.0
- PhysX
- No
- Cooling type
- Active
- Brand
- Dell
- Category
- GPU
- Model
- 490-BBUH
- Part number
- 490-BBUH
- Also known as
- DELL 490-BBUH graphics card AMD Radeon HD8570 1 GB GDDR3
Specifications
39 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon HD8570 |
| Maximum resolution | 4096 x 2160 pixels |
| CUDA | Yes |
| CUDA cores | 384 |
| Processor frequency | 730 MHz |
| Maximum analog resolution | 2048 x 1536 pixels |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum displays per videocard | 2 |
| Parallel processing technology support | 2-Way CrossFireX |
| Peak floating point performance (double precision) | 35 Gflops |
| Peak floating point performance (single precision) | 560 Gflops |
| Stream processors | 384 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 1 GB |
| Graphics card memory type | GDDR3 |
| Memory bus | 128 bit |
| Memory clock speed | 900 MHz |
| Memory bandwidth (max) | 28.8 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 3.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DVI ports quantity | 1 |
| DisplayPort version | 1.2 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 11.1 |
| Shader model version | 5.0 |
| OpenGL version | 4.2 |
| OpenCL version | 1.2 |
| HDCP | Yes |
| Dual Link DVI | Yes |
| HD3D Technology | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of slots | 1 |
| Product colour | Black, Blue |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
