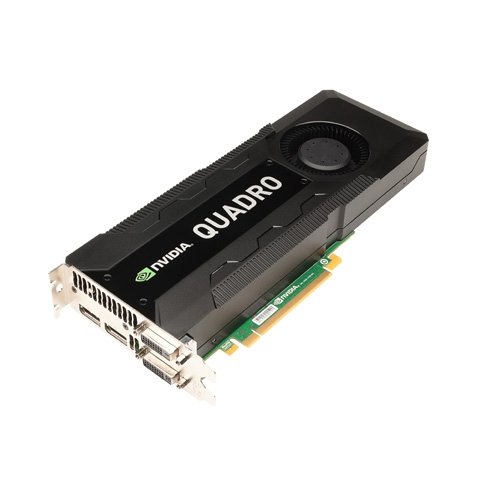

Dell 490-14225 graphics card NVIDIA Quadro K5000
4 GB GDDR5
Model 490-14225
37 specifications Checked 2 days ago
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory4 GB
- Interface typePCI Express 2.0
- PhysXNo
- Cooling typeActive
Overview
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 4 GB
- Interface type
- PCI Express 2.0
- PhysX
- No
- Cooling type
- Active
- Brand
- Dell
- Category
- GPU
- Model
- 490-14225
- Part number
- 490-14225
- Also known as
- DELL 490-14225 graphics card NVIDIA Quadro K5000 4 GB GDDR5
Specifications
37 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | Quadro K5000 |
| Maximum resolution | 4096 x 2160 pixels |
| CUDA | Yes |
| CUDA cores | 1536 |
| Maximum displays per videocard | 4 |
| Peak floating point performance (single precision) | 2.1 Gflops |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 4 GB |
| Graphics card memory type | GDDR5 |
| Memory bus | 256 bit |
| Memory bandwidth (max) | 173 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 2.0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 1 |
| DVI-I ports quantity | 1 |
| DisplayPorts quantity | 2 |
| DVI ports quantity | 2 |
| DisplayPort version | 1.2 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 11 |
| Shader model version | 5.0 |
| OpenGL version | 4.3 |
| Dual Link DVI | Yes |
| NVIDIA 3D Vision | Yes |
| Video formats supported | DIVX, H.264, MPEG2, MPEG4, VC-1 |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of slots | 2 |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 122 W |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.3 Panther, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 267 mm |
| Height | 111.2 mm |
Packaging content
| Specification | Value |
|---|---|
| Interface adapters included | DisplayPort male - mini DisplayPort female, DVI-I male - VGA female |
| User guide | Yes |
| Bundled software | NVIEW Display Management |
What people say
Reviews & ratings
Dell 490-14225 graphics card NVIDIA Quadro K5000
No reviews yet
Be the first to tell others how Dell 490-14225 graphics card NVIDIA Quadro K5000 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Dell 490-14225 graphics card NVIDIA Quadro K5000
All gpu comparisons- Dell 490-14225 graphics card NVIDIA Quadro K5000 vsDell 490-14226 graphics card NVIDIA NVS 510Compare specs
- Dell 490-14225 graphics card NVIDIA Quadro K5000 vsDell 490-14290 graphics card NVIDIA Quadro 2000Compare specs
- Dell 490-14225 graphics card NVIDIA Quadro K5000 vsDell 490-12473 graphics card NVIDIA Quadro 6000Compare specs

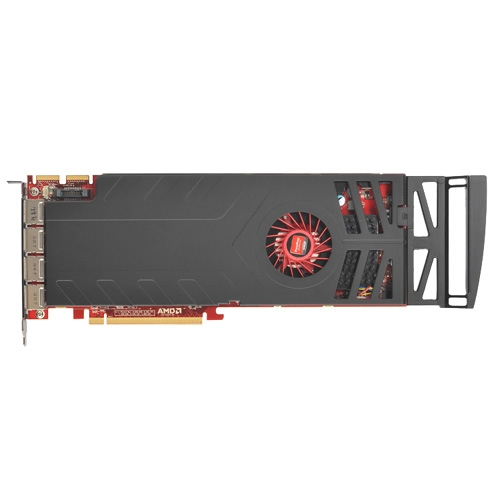

- Dell 490-14225 graphics card NVIDIA Quadro K5000 vsDell 490-13013 graphics card AMD FirePro V7900Compare specs
- Dell 490-14225 graphics card NVIDIA Quadro K5000 vsGIGABYTE GVN780O3GD-00-G2 graphics card NVIDIA GeForce GTX 780Compare specs

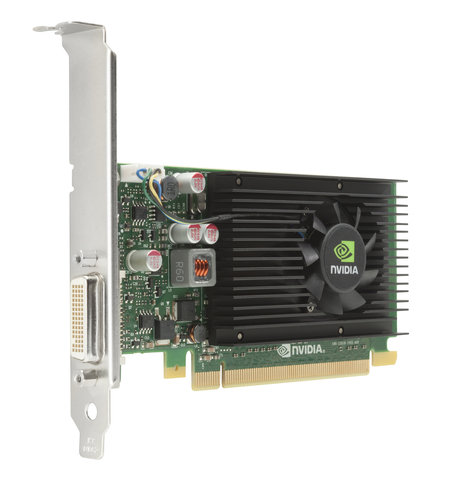

- Dell 490-14225 graphics card NVIDIA Quadro K5000 vsHP NVIDIA NVS 315Compare specs
- Dell 490-14225 graphics card NVIDIA Quadro K5000 vsHP NVIDIA NVS 315Compare specs

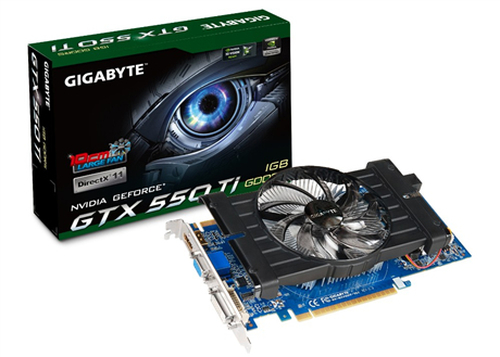

- Dell 490-14225 graphics card NVIDIA Quadro K5000 vsGIGABYTE GVN550D5GI-00-G graphics card NVIDIA GeForce GTX 550 TiCompare specs
Similar products
All gpus
CLUB3D
CGNX-XT56024B graphics card NVIDIA GeForce GTX 560 Ti
Model CGNX-XT56024B
- Type
- Full-Height/Half-Length (FH/HL)
- Weight
- 449 g
- Graphics processor family
- NVIDIA
MSI
V801-1253R graphics card NVIDIA GeForce GTX TITAN
Model V801-1253R
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 1.01 kg
- Colour
- Multicolour
GIGABYTE

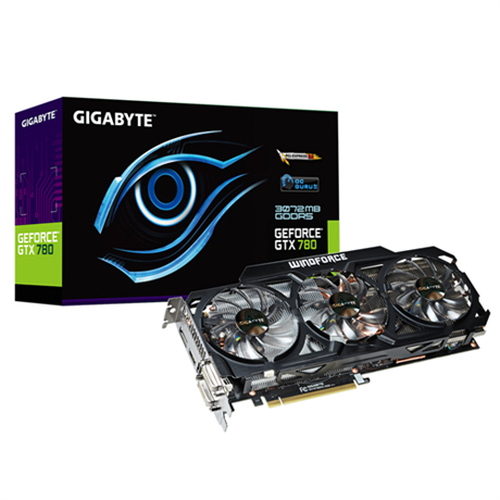

GAMING GV-N780D5-3GD-B graphics card NVIDIA GeForce GTX 780
