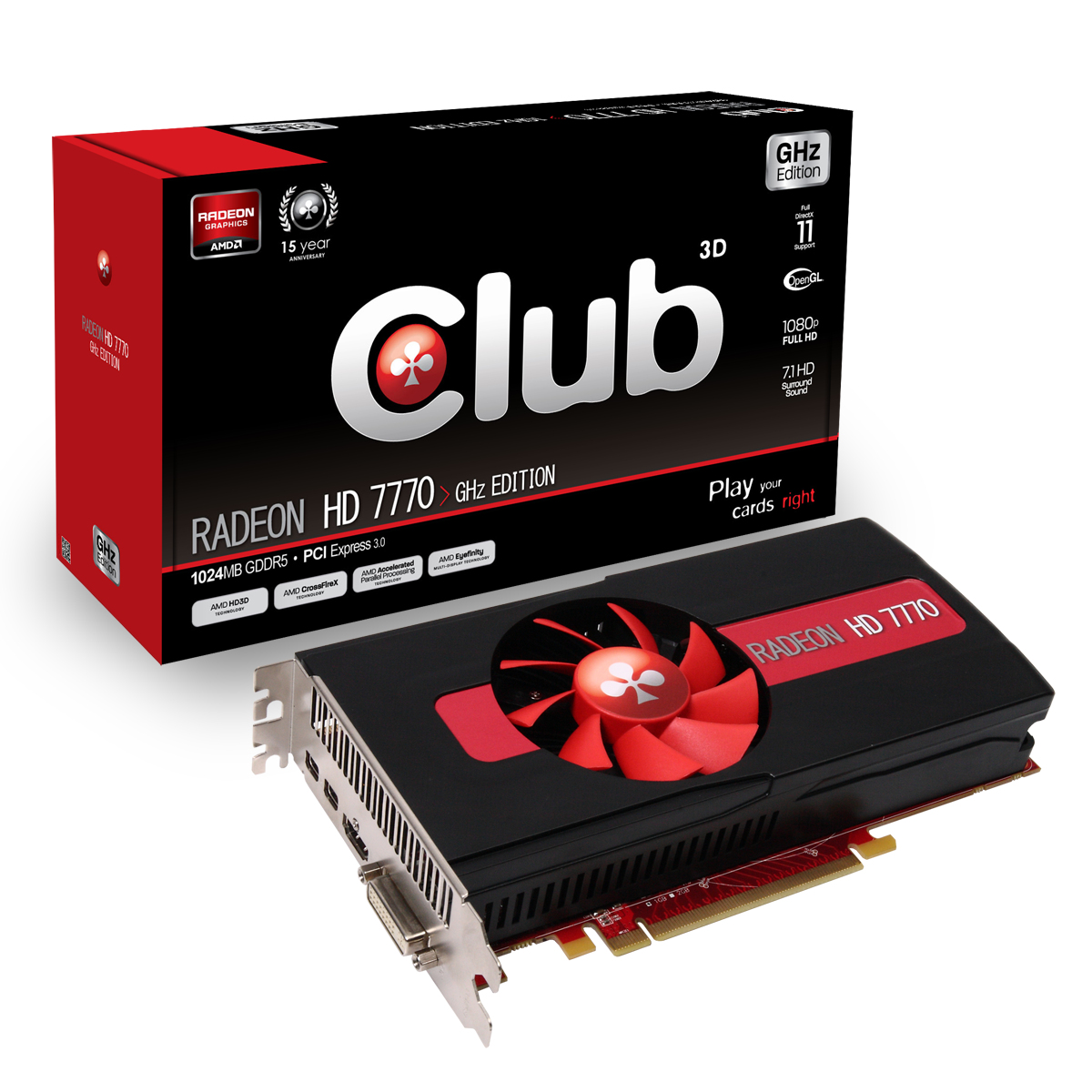

CLUB3D Radeon HD 7770 GHz Edition
Model Radeon HD 7770 GHz EditionPart no. CGAX-7772EAN 8717249410652
42 specifications Checked 5 days ago
- TypeATX
- Weight457 g
- Graphics processor familyAMD
- Discrete graphics card memory1 GB
- Interface typePCI Express 3.0
- PhysXNo
Overview
- Type
- ATX
- Weight
- 457 g
- Graphics processor family
- AMD
- Discrete graphics card memory
- 1 GB
- Interface type
- PCI Express 3.0
- PhysX
- No
- Brand
- CLUB3D
- Category
- GPU
- Model
- Radeon HD 7770 GHz Edition
- Part numbers
- CGAX-7772, CGAX-7772B
- EAN / UPC
- 8717249410652, 8717249411475
- Also known as
- CLUB3D Radeon HD 7770 GHz Edition AMD 1 GB GDDR5
Specifications
42 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Maximum resolution | 4096 x 2160 pixels |
| Processor frequency | 1000 MHz |
| Graphics card RAMDAC | 400 MHz |
| Maximum displays per videocard | 3 |
| Parallel processing technology support | 2-Way CrossFireX, APP |
| Stream processors | 640 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 1 GB |
| Graphics card memory type | GDDR5 |
| Memory bus | 128 bit |
| Memory clock speed | 4500 MHz |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 3.0 |
| HDMI ports quantity | 1 |
| DVI-I ports quantity | 1 |
| Mini HDMI ports quantity | 2 |
| HDMI version | 1.4a |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 11.1 |
| Shader model version | 5.0 |
| OpenGL version | 4.2 |
| HDCP | Yes |
| Dual Link DVI | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Form factor | ATX |
| Number of slots | 2 |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 450 W |
| Power consumption (typical) | 108 W |
| Supplementary power connectors | 1x 6-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Ho |
| Minimum RAM | 1024 MB |
| Minimum storage drive space | 200 MB |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 457 g |
| Length | 211 mm |
| Depth | 36 mm |
| Height | 107 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 255 mm |
| Package depth | 139 mm |
| Package height | 75 mm |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Other features
| Specification | Value |
|---|---|
| HDMI | Yes |
| Dimensions (WxDxH) | 211 x 107 x 36 mm |
