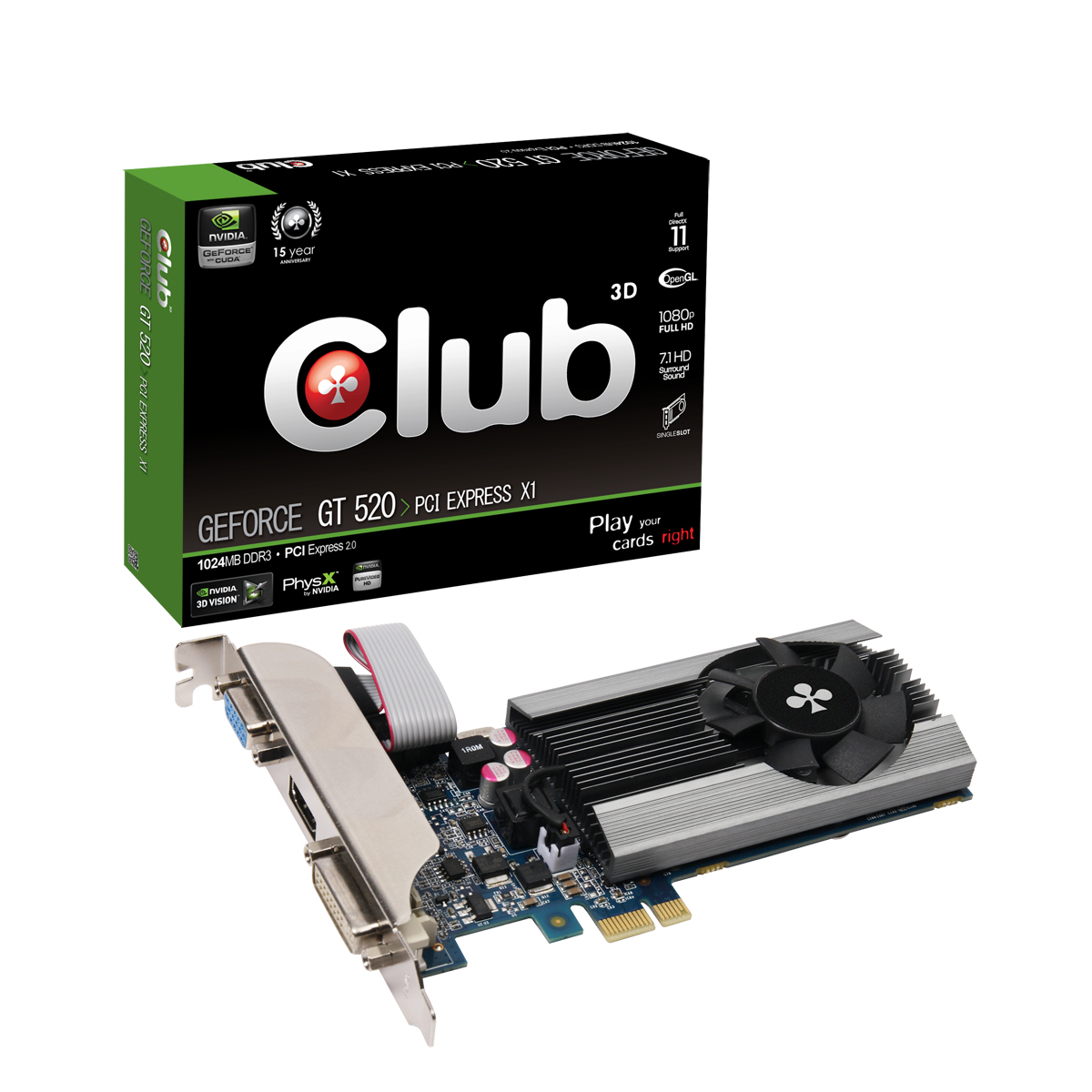

CLUB3D GeForce GT 520 PCI Express X1 Edition
Model GeForce GT 520 PCI Express X1 EditionPart no. CGNX-G522X1EAN 8717249410768
40 specifications Checked 5 days ago
- TypeHalf-Height/Half-Length (HH/HL)
- Weight161 g
- Graphics processor familyNVIDIA
- Discrete graphics card memory1 GB
- Interface typePCI Express x1
- PhysXYes
Overview
- Type
- Half-Height/Half-Length (HH/HL)
- Weight
- 161 g
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 1 GB
- Interface type
- PCI Express x1
- PhysX
- Yes
- Brand
- CLUB3D
- Category
- GPU
- Model
- GeForce GT 520 PCI Express X1 Edition
- Part number
- CGNX-G522X1
- EAN / UPC
- 8717249410768
- Also known as
- CLUB3D GeForce GT 520 PCI Express X1 Edition NVIDIA 1 GB
Specifications
40 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce GT 520 |
| Maximum resolution | 2560 x 1600 pixels |
| CUDA | Yes |
| Processor frequency | 810 MHz |
| Graphics card RAMDAC | 400 MHz |
| Maximum displays per videocard | 2 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 1 GB |
| Memory bus | 64 bit |
| Memory clock speed | 1066 MHz |
| Memory bandwidth (max) | 14.4 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 1 |
| DisplayPorts quantity | 0 |
| HDMI version | 1.4a |
| VGA (D-Sub) ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| PhysX | Yes |
| TV tuner integrated | No |
| DirectX version | 11 |
| Shader model version | 5.0 |
| OpenGL version | 4.2 |
| HDCP | Yes |
| Dual Link DVI | Yes |
| NVIDIA 3D Vision | Yes |
| Full HD | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Form factor | Half-Height/Half-Length (HH/HL) |
| Number of slots | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 29 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Ho |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 161 g |
| Length | 148 mm |
| Depth | 16 mm |
| Height | 63 mm |
Other features
| Specification | Value |
|---|---|
| Mac compatibility | No |
| HDMI | Yes |
| Dimensions (WxDxH) | 148 x 16 x 63 mm |
