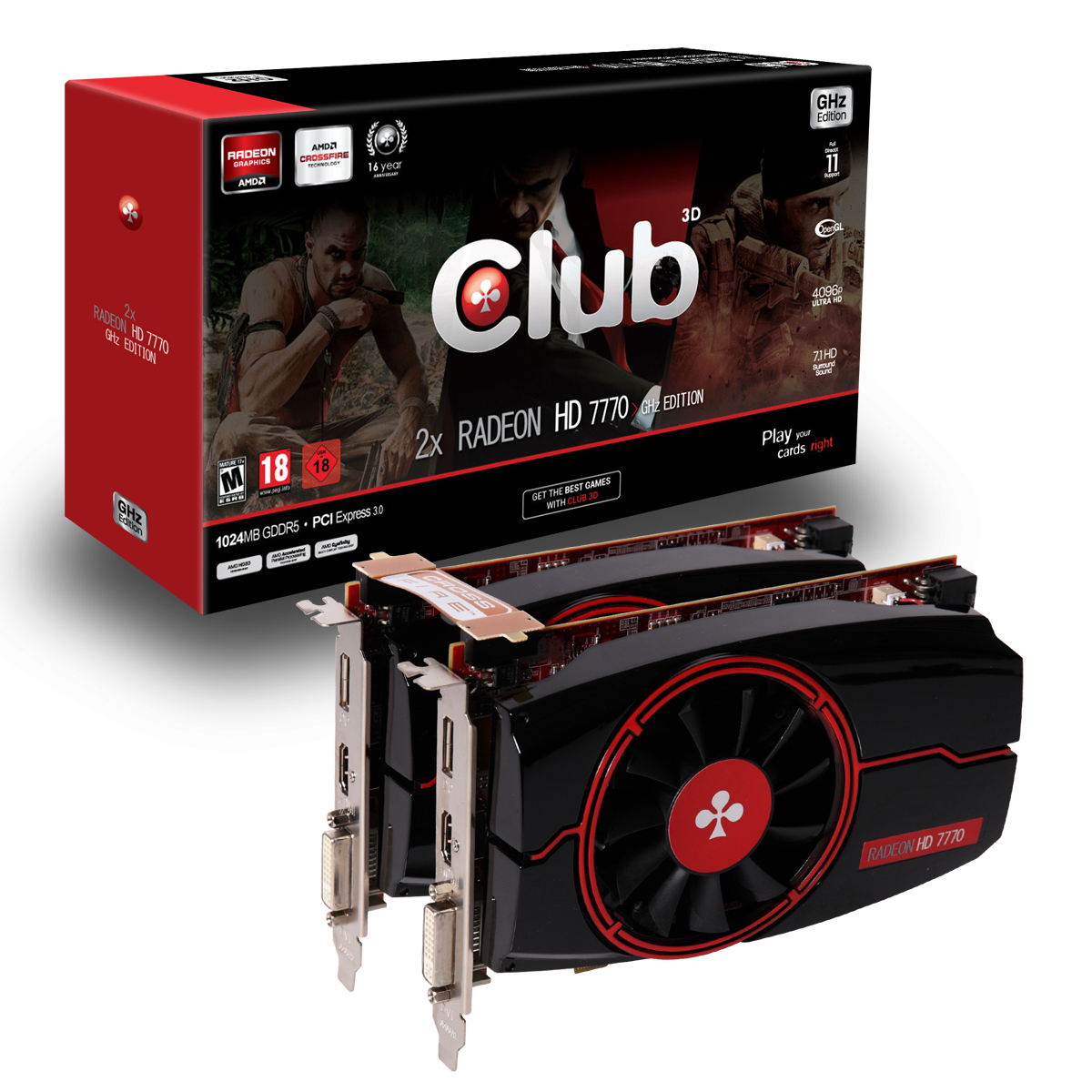

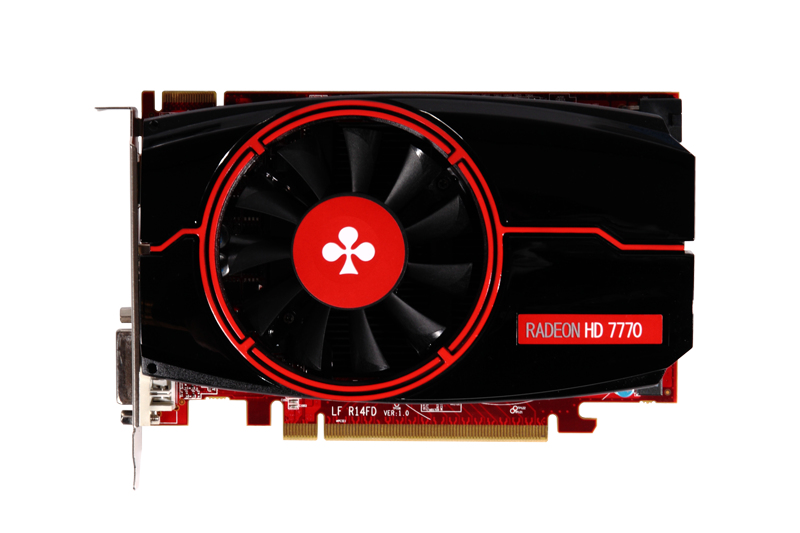

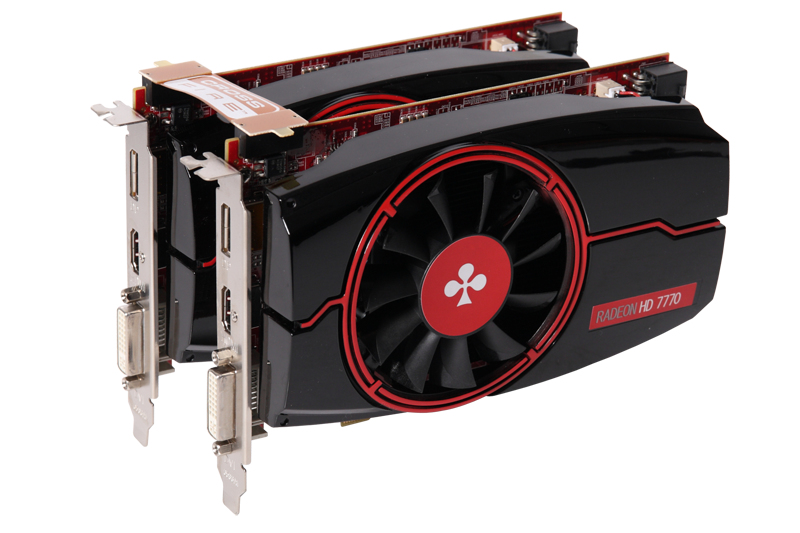

CLUB3D 2X Radeon HD 7770 GHz Edition
Model 2X Radeon HD 7770 GHz EditionPart no. CGAX-7772CCFEAN 8717249411444
44 specifications Checked 4 days ago
- TypeATX
- Weight387 g
- Graphics processor familyAMD
- Discrete graphics card memory2 GB
- Interface typePCI Express 3.0
- PhysXNo
Overview
- Type
- ATX
- Weight
- 387 g
- Graphics processor family
- AMD
- Discrete graphics card memory
- 2 GB
- Interface type
- PCI Express 3.0
- PhysX
- No
- Brand
- CLUB3D
- Category
- GPU
- Model
- 2X Radeon HD 7770 GHz Edition
- Part number
- CGAX-7772CCF
- EAN / UPC
- 8717249411444
- Also known as
- CLUB3D 2X Radeon HD 7770 GHz Edition AMD 2 GB GDDR5
Specifications
44 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Maximum resolution | 4096 x 3112 pixels |
| Processor frequency | 1000 MHz |
| Graphics card RAMDAC | 400 MHz |
| Maximum displays per videocard | 3 |
| Parallel processing technology support | 2-Way CrossFireX |
| Stream processors | 1280 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 2 GB |
| Graphics card memory type | GDDR5 |
| Memory bus | 128 bit |
| Memory clock speed | 4500 MHz |

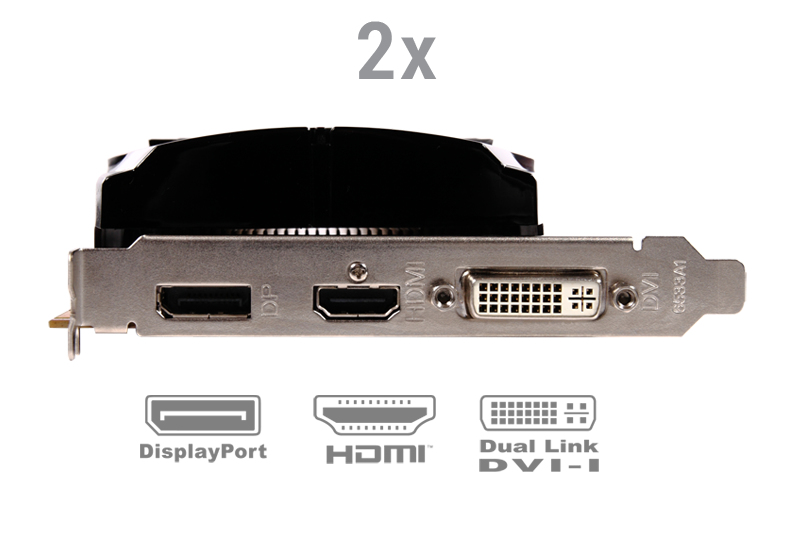

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 3.0 |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 2 |
| DisplayPorts quantity | 2 |
| HDMI version | 1.4a |
| DVI ports quantity | 2 |
| DisplayPort version | 1.2 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 11.1 |
| Shader model version | 5.0 |
| OpenGL version | 4.2 |
| HDCP | Yes |
| Dual Link DVI | Yes |
| Full HD | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Form factor | ATX |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 650 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win |
| Minimum RAM | 2048 MB |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 387 g |
| Length | 175 mm |
| Depth | 38 mm |
| Height | 107 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | CrossFire |
| Manual | Yes |
| User guide | Yes |
Other features
| Specification | Value |
|---|---|
| HDMI | Yes |
| Graphics card family | AMD |
| Motherboard form factor | ATX |
| Number of processors installed | 2 |
