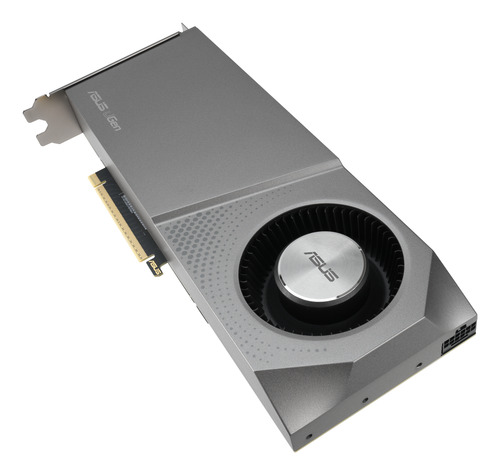

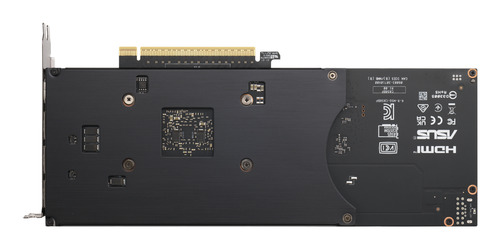

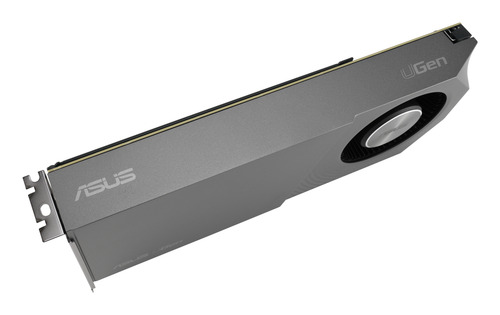

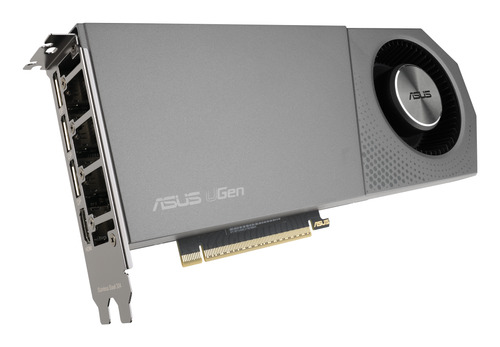

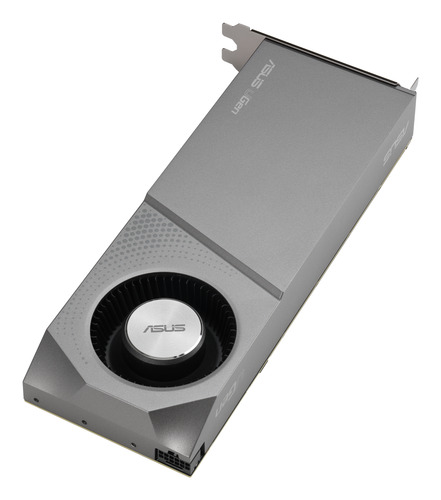

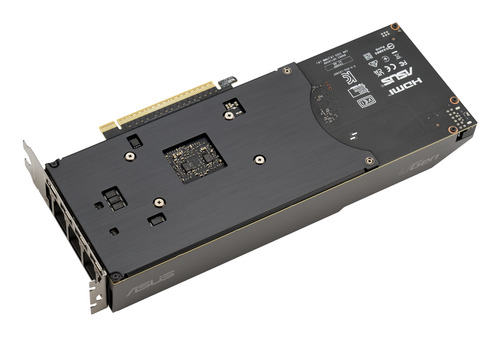

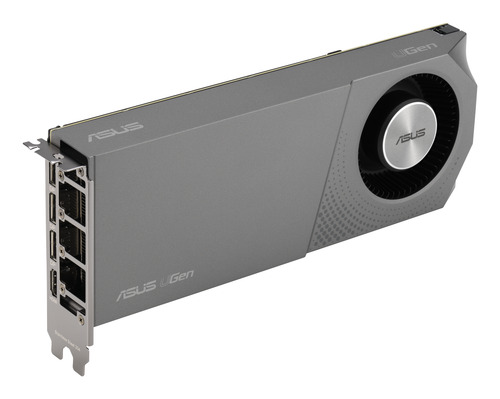

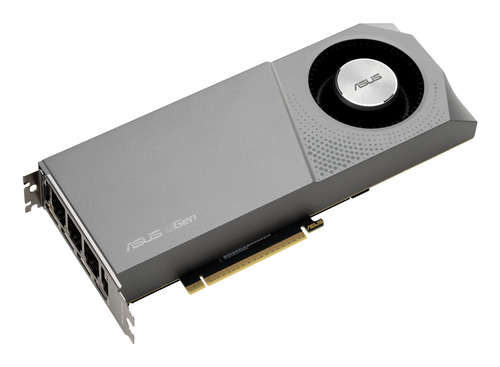

UGEN-ARC-PRO-B70-32G Intel Arc Pro B70
32 GB GDDR6
Model UGEN-ARC-PRO-B70-32GPart no. 90YT00E0-MVNA00EAN 4711636756877
45 specifications Checked today
- Weight1.09 kg
- ColourGrey
- Graphics processor familyIntel
- Discrete graphics card memory32 GB
- Interface typePCI Express x16 5.0
- Peak Single Precision Matrix (FP32) performance22.94 TFLOPS
Overview
- Weight
- 1.09 kg
- Colour
- Grey
- Graphics processor family
- Intel
- Discrete graphics card memory
- 32 GB
- Interface type
- PCI Express x16 5.0
- Peak Single Precision Matrix (FP32) performance
- 22.94 TFLOPS
- Brand
- ASUS
- Category
- GPU
- Model
- UGEN-ARC-PRO-B70-32G
- Part number
- 90YT00E0-MVNA00
- EAN / UPC
- 4711636756877
- Also known as
- ASUS UGEN-ARC-PRO-B70-32G Intel Arc Pro B70 32 GB GDDR6
Specifications
45 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | Intel |
| Graphics processor | Arc Pro B70 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | No |
| Processor boost clock speed | 2800 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 32 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Data transfer rate | 19 Gbit/s |
| Memory bandwidth (max) | 608 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1b |
| DisplayPort version | 2.1 |
Performance
| Specification | Value |
|---|---|
| Peak Single Precision Matrix (FP32) performance | 22.94 TFLOPS |
| Peak INT8 Performance | 367 TOPs |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| Shader model version | No |
| OpenGL version | 4.6 |
| OpenCL version | 3.0 |
| Dual Link DVI | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Number of slots | 2 |
| Product colour | Grey |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Power consumption (max) | 290 W |
| Supplementary power connectors | 2x 6-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 11 |
| Linux operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.09 kg |
| Length | 267 mm |
| Depth | 40 mm |
| Height | 111 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 585 mm |
| Package depth | 390 mm |
| Package height | 254 mm |
| Package weight | 1.55 kg |
| Package type | Box |
