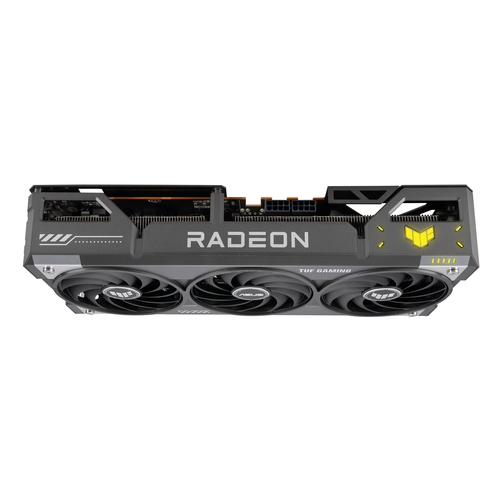

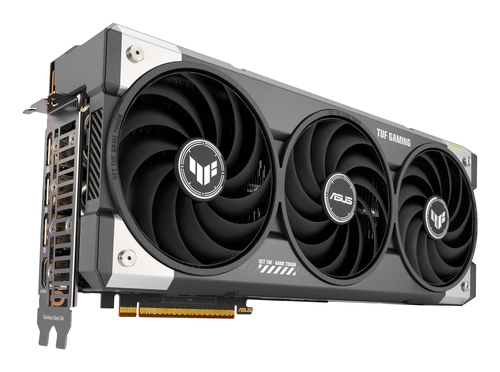

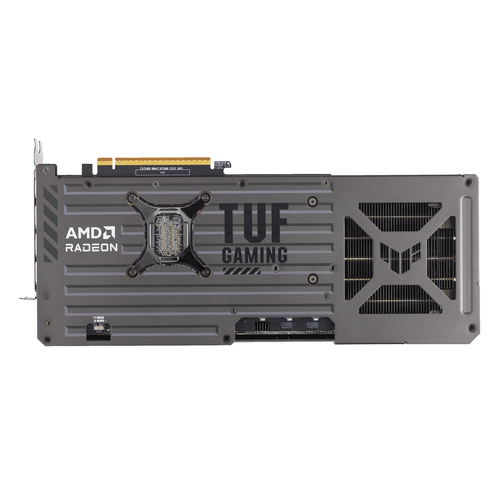

TUF Gaming TUF-RX9070-O16G-GAMING AMD Radeon RX 9070
16 GB GDDR6
Model TUF-RX9070-O16G-GAMINGPart no. 90YV0LI0-M0NA00EAN 197105829527
53 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight1.48 kg
- ColourBlack, Silver
- Graphics processor familyAMD
- Discrete graphics card memory16 GB
- Interface typePCI Express 5.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 1.48 kg
- Colour
- Black, Silver
- Graphics processor family
- AMD
- Discrete graphics card memory
- 16 GB
- Interface type
- PCI Express 5.0
- Brand
- ASUS
- Category
- GPU
- Model
- TUF-RX9070-O16G-GAMING
- Part number
- 90YV0LI0-M0NA00
- EAN / UPC
- 197105829527, 4711387829523
- Also known as
- ASUS TUF Gaming TUF-RX9070-O16G-GAMING AMD Radeon RX 9070 16 GB GDDR6
Specifications
53 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 9070 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | No |
| Processor boost clock speed | 2650 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
| Stream processors | 3584 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Data transfer rate | 20 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 5.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1b |
| DisplayPort version | 2.1a |
| Mini DisplayPorts quantity | 0 |
| USB Type-C ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDCP | Yes |
| HDCP version | 2.3 |
| Dual Link DVI | No |
| Overclocked (OC) edition | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | ASUS Axial-tech |
| Number of fans | 3 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 3.125 |
| Illumination | Yes |
| Illumination colour | Multi |
| SFF ready | No |
| Product colour | Black, Silver |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Supplementary power connectors | 2x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.48 kg |
| Length | 330 mm |
| Depth | 62.5 mm |
| Height | 140 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 420 mm |
| Package depth | 226 mm |
| Package height | 126 mm |
| Package weight | 2.56 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
