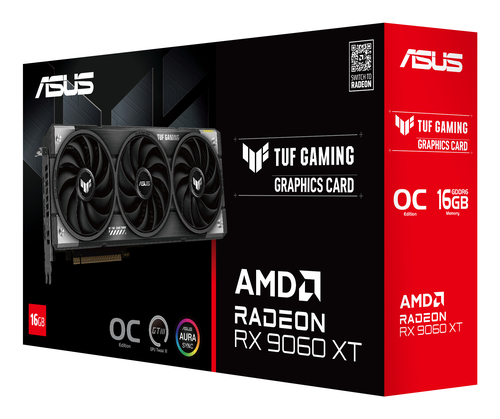

TUF Gaming TUF-RX9060XT-O16G-GAMING AMD Radeon RX 9060 XT
16 GB GDDR6
Model TUF-RX9060XT-O16G-GAMINGPart no. 90YV0LF0-M0AA00EAN 197105998957
52 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight941 g
- ColourBlack
- Graphics processor familyAMD
- Discrete graphics card memory16 GB
- Interface typePCI Express 5.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 941 g
- Colour
- Black
- Graphics processor family
- AMD
- Discrete graphics card memory
- 16 GB
- Interface type
- PCI Express 5.0
- Brand
- ASUS
- Category
- GPU
- Model
- TUF-RX9060XT-O16G-GAMING
- Part numbers
- 90YV0LF0-M0AA00, 90YV0LF0-M0NA00
- EAN / UPC
- 197105998957, 197105994195, 4711387994191, 4711387998953
- Also known as
- ASUS TUF Gaming TUF-RX9060XT-O16G-GAMING AMD Radeon RX 9060 XT 16 GB GDDR6
Specifications
52 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 9060 XT |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | No |
| Processor boost clock speed | 3320 MHz |
| Maximum displays per videocard | 3 |
| Parallel processing technology support | Not supported |
| Stream processors | 2048 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Data transfer rate | 20 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 5.0 |

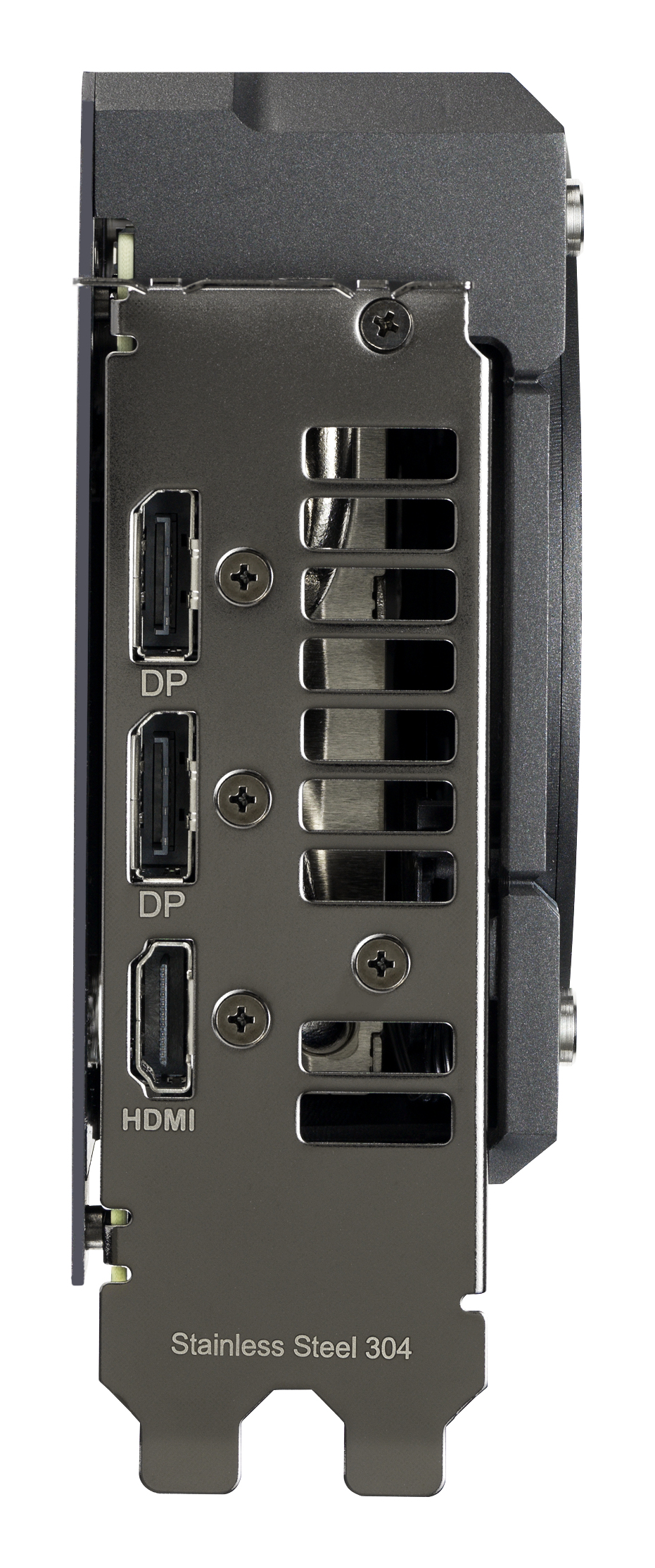

| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 2 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1b |
| DisplayPort version | 2.1a |
| Mini DisplayPorts quantity | 0 |
| USB Type-C ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| Dual Link DVI | No |
| Overclocked (OC) edition | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | ASUS Axial-tech |
| Number of fans | 3 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2.5 |
| Illumination | Yes |
| Illumination colour | Multi |
| SFF ready | No |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 550 W |
| Supplementary power connectors | 1x 8-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 941 g |
| Length | 304 mm |
| Depth | 50 mm |
| Height | 126 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 405 mm |
| Package depth | 233 mm |
| Package height | 88.5 mm |
| Package weight | 1.56 kg |
| Package type | Box |
