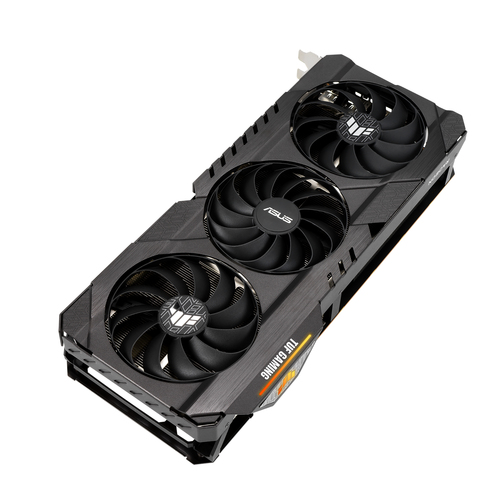

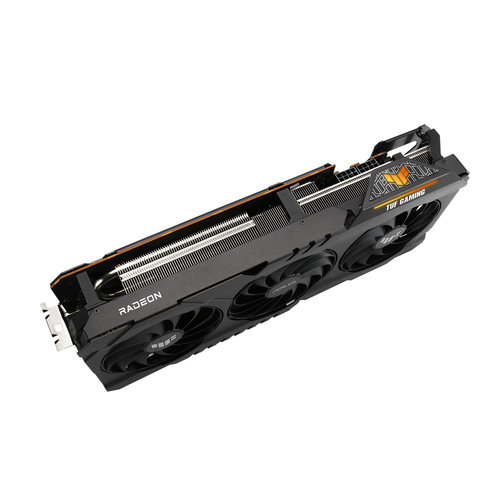

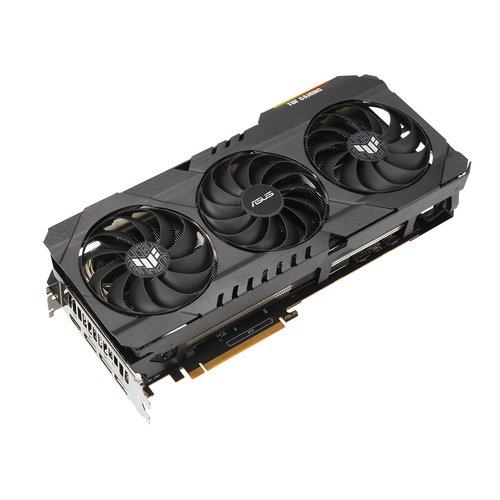

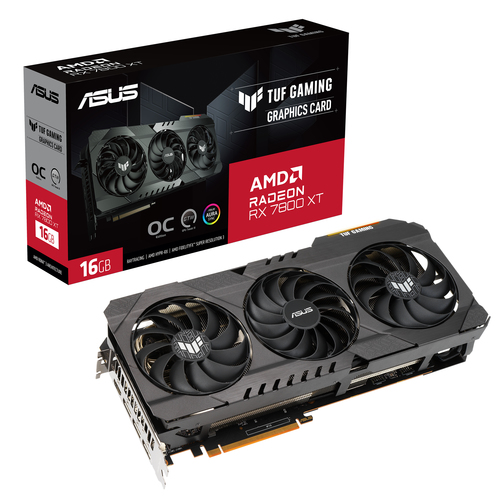

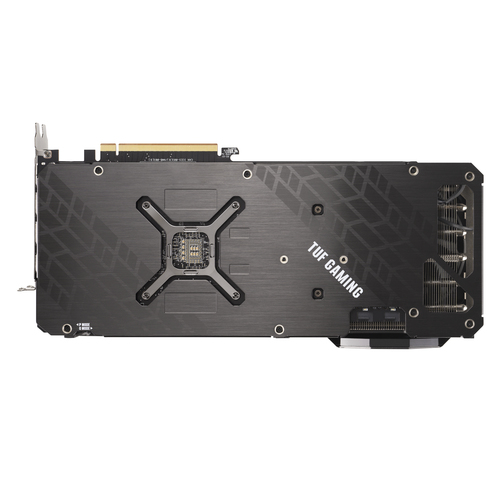

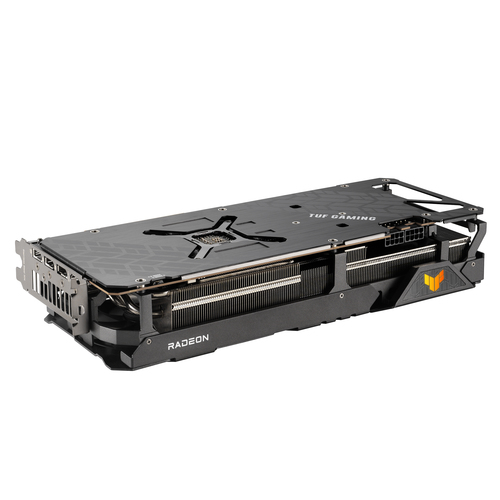

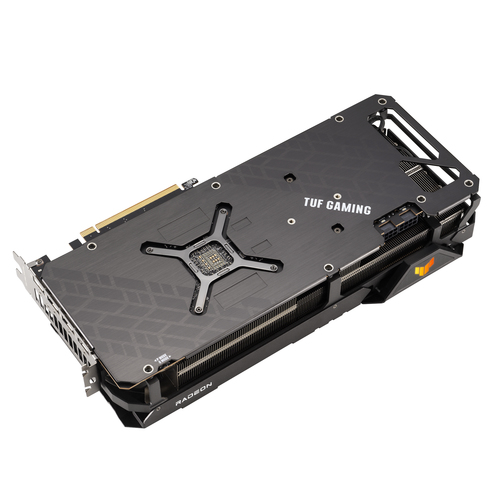

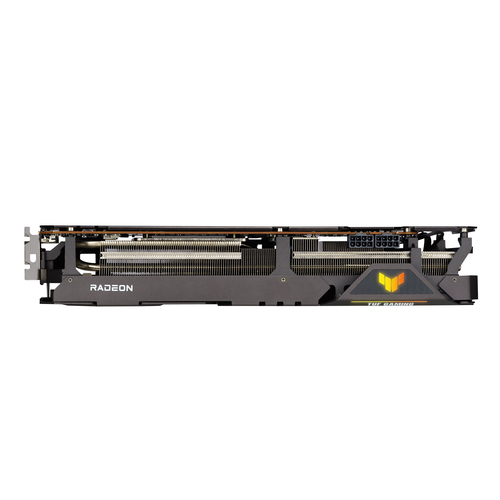

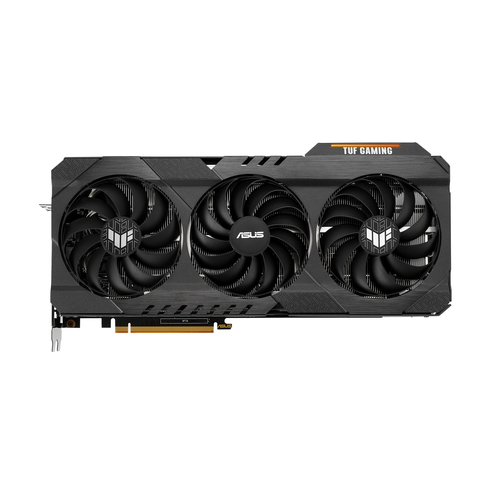

TUF-RX7800XT-O16G-OG-GAMING AMD Radeon RX 7800 XT
16 GB GDDR6
Model TUF-RX7800XT-O16G-OG-GAMINGPart no. 90YV0K70-M0NA00EAN 4711387468463
50 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight1.72 kg
- ColourBlack
- Graphics processor familyAMD
- Discrete graphics card memory16 GB
- Interface typePCI Express 4.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 1.72 kg
- Colour
- Black
- Graphics processor family
- AMD
- Discrete graphics card memory
- 16 GB
- Interface type
- PCI Express 4.0
- Brand
- ASUS
- Category
- GPU
- Model
- TUF-RX7800XT-O16G-OG-GAMING
- Part number
- 90YV0K70-M0NA00
- EAN / UPC
- 4711387468463
- Also known as
- ASUS TUF-RX7800XT-O16G-OG-GAMING AMD Radeon RX 7800 XT 16 GB GDDR6
Specifications
50 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 7800 XT |
| Maximum resolution | 7680 x 4320 pixels |
| Processor boost clock speed | 2520 MHz |
| Processor boost clock speed (OC mode) | 2565 MHz |
| Processor boost clock speed (Gaming mode) | 2254 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
| Stream processors | 3840 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Data transfer rate | 19.5 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1 |
| DisplayPort version | 2.1 |
| USB Type-C ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| OpenGL version | 4.6 |
| HDCP | Yes |
| HDCP version | 2.3 |
| Dual Link DVI | No |
| Overclocked (OC) edition | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | ASUS Axial-tech |
| Number of fans | 3 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2.9 |
| Illumination | Yes |
| Illumination colour | Blue, Green, Red |
| SFF ready | No |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Supplementary power connectors | 2x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.72 kg |
| Length | 320 mm |
| Depth | 57.8 mm |
| Height | 140.2 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 405 mm |
| Package depth | 233 mm |
| Package height | 88.5 mm |
| Package weight | 2.3 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
