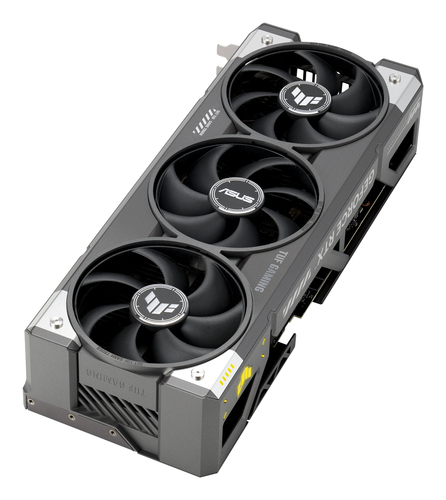

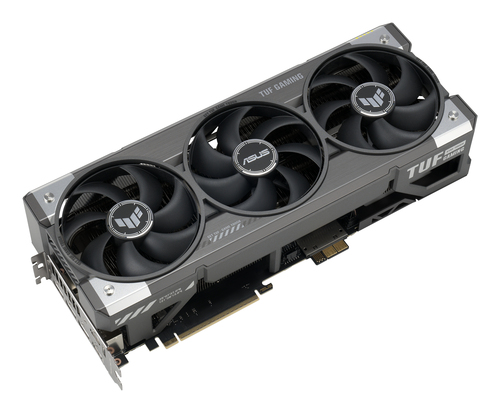

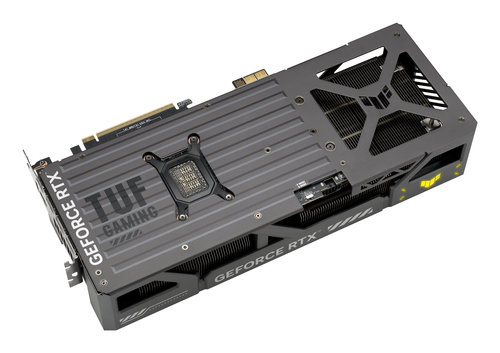

TUF-RTX5080-O16G-BTF-GAMING NVIDIA GeForce RTX 5080
16 GB GDDR7
Model TUF-RTX5080-O16G-BTF-GAMINGPart no. 90YV0PU0-M0NA00EAN 199291609358
47 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight1.9 kg
- ColourMulticolour
- Graphics processor familyNVIDIA
- Discrete graphics card memory16 GB
- Interface typePCI Express 5.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 1.9 kg
- Colour
- Multicolour
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 16 GB
- Interface type
- PCI Express 5.0
- Brand
- ASUS
- Category
- GPU
- Model
- TUF-RTX5080-O16G-BTF-GAMING
- Part number
- 90YV0PU0-M0NA00
- EAN / UPC
- 199291609358, 4711636609340
- Also known as
- ASUS TUF-RTX5080-O16G-BTF-GAMING NVIDIA GeForce RTX 5080 16 GB GDDR7
Specifications
47 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5080 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 10752 |
| Processor boost clock speed | 2700 MHz |
| Processor frequency (OC mode) | 2730 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Data transfer rate | 30 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 5.0 |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1b |
| DisplayPort version | 2.1b |
Performance
| Specification | Value |
|---|---|
| Shader model version | No |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Overclocked (OC) edition | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | ASUS Axial-tech |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Multicolour |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 850 W |
| Supplementary power connectors | 1x 16-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.9 kg |
| Length | 348 mm |
| Depth | 72 mm |
| Height | 146 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 425.9 mm |
| Package depth | 266 mm |
| Package height | 99 mm |
| Package weight | 3.03 kg |
| Package type | Box |
