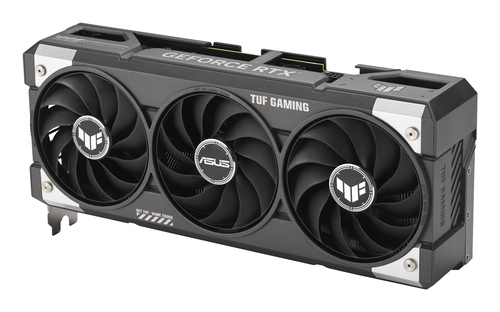

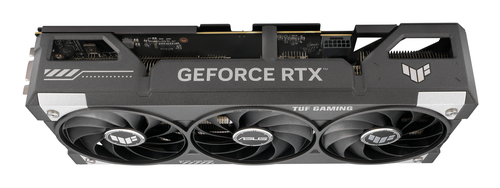

TUF Gaming TUF-RTX5060TI-O16G-GAMING NVIDIA GeForce RTX 5060 Ti
16 GB GDDR7
Model TUF-RTX5060TI-O16G-GAMINGPart no. 90YV0MG0-M0NA00EAN 197105994386
41 specifications Checked today
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory16 GB
- Interface typePCI Express 5.0
- TV tuner integratedNo
- Cooling typeActive
Overview
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 16 GB
- Interface type
- PCI Express 5.0
- TV tuner integrated
- No
- Cooling type
- Active
- Brand
- ASUS
- Category
- GPU
- Model
- TUF-RTX5060TI-O16G-GAMING
- Part numbers
- 90YV0MG0-M0NA00, 90YV0MG0-M0AA00
- EAN / UPC
- 197105994386, 199291016781, 4711636016780, 4711387994382
- Also known as
- ASUS TUF Gaming TUF-RTX5060TI-O16G-GAMING NVIDIA GeForce RTX 5060 Ti 16 GB GDDR7
Specifications
41 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5060 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 4608 |
| Processor boost clock speed | 2692 MHz |
| Processor frequency (OC mode) | 2662 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| Memory bandwidth (max) | 28 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 5.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1b |
| DisplayPort version | 2.1b |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| OpenGL version | 4.6 |
| HDCP | Yes |
| HDCP version | 2.3 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| NPU performance up to | 759 TOPs |
| Overclocked (OC) edition | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | ASUS Axial-tech |
| Number of fans | 3 fan(s) |
| Number of slots | 3.1 |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 550 W |
| Supplementary power connectors | 1x 16-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 302 mm |
| Depth | 62 mm |
| Height | 133.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
