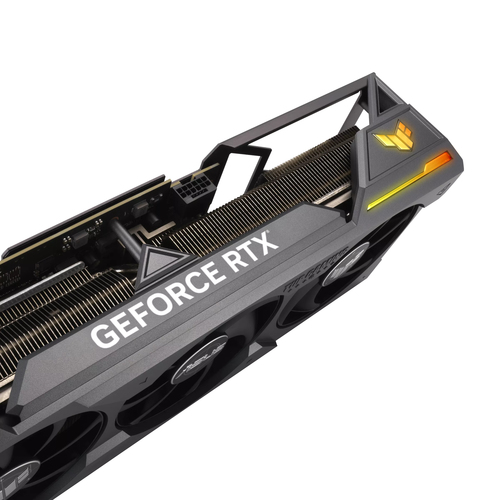

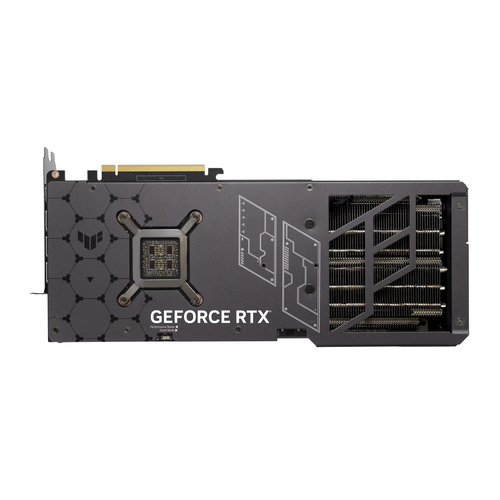

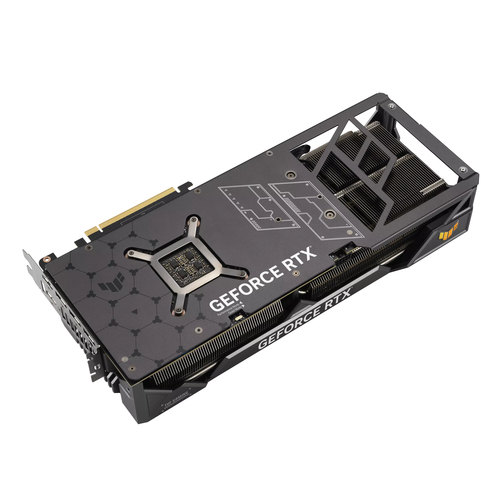

TUF Gaming TUF-RTX4090-O24G-GAMING NVIDIA GeForce RTX 4090
24 GB GDDR6X
Model TUF-RTX4090-O24G-GAMINGPart no. 90YV0IE0-M0NM00EAN 4711081936923
49 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight2.34 kg
- ColourGrey
- Graphics processor familyNVIDIA
- Discrete graphics card memory24 GB
- Interface typePCI Express 4.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 2.34 kg
- Colour
- Grey
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 24 GB
- Interface type
- PCI Express 4.0
- Brand
- ASUS
- Category
- GPU
- Model
- TUF-RTX4090-O24G-GAMING
- Part numbers
- 90YV0IE0-M0NM00, 90YV0IE0-M0NA00
- EAN / UPC
- 4711081936923, 195553936927, 4711081936916, 5054444604268
- Also known as
- ASUS TUF Gaming TUF-RTX4090-O24G-GAMING NVIDIA GeForce RTX 4090 24 GB GDDR6X
Specifications
49 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 4090 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 16384 |
| Processor boost clock speed | 2565 MHz |
| Processor frequency (OC mode) | 2595 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 24 GB |
| Graphics card memory type | GDDR6X |
| Memory bus | 384 bit |
| Data transfer rate | 21 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1a |
| DisplayPort version | 1.4a |
| Mini DisplayPorts quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| AMD FreeSync | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 3.65 |
| Illumination | Yes |
| Illumination colour | Blue, Green, Red |
| Product colour | Grey |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 850 W |
| Supplementary power connectors | 1x 16-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.34 kg |
| Length | 348.2 mm |
| Depth | 72.6 mm |
| Height | 160 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 425.9 mm |
| Package depth | 266 mm |
| Package height | 99 mm |
| Package weight | 3.36 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
