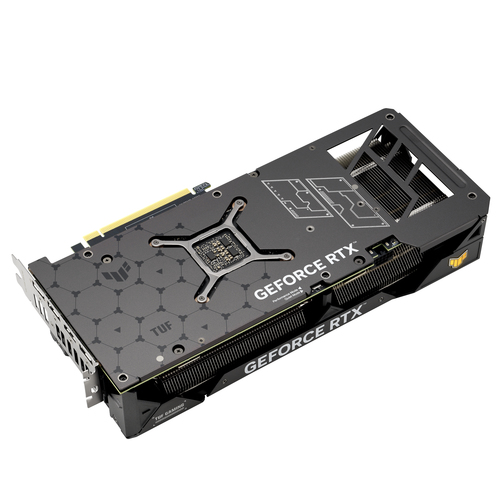

TUF Gaming TUF-RTX4070S-O12G-GAMING NVIDIA GeForce RTX 4070 SUPER
12 GB GDDR6X
Model TUF-RTX4070S-O12G-GAMINGPart no. 90YV0K80-M0NA00EAN 197105450875
35 specifications Checked today
- ColourMulticolour
- Graphics processor familyNVIDIA
- Discrete graphics card memory12 GB
- Interface typePCI Express 4.0
- OpenGL version4.6
- Cooling typeActive
Overview
- Colour
- Multicolour
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 12 GB
- Interface type
- PCI Express 4.0
- OpenGL version
- 4.6
- Cooling type
- Active
- Brand
- ASUS
- Category
- GPU
- Model
- TUF-RTX4070S-O12G-GAMING
- Part number
- 90YV0K80-M0NA00
- EAN / UPC
- 197105450875, 197105450899, 4711387450871
- Also known as
- ASUS TUF Gaming TUF-RTX4070S-O12G-GAMING NVIDIA GeForce RTX 4070 SUPER 12 GB GDDR6X
Specifications
35 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 4070 SUPER |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 7168 |
| Processor boost clock speed | 2565 MHz |
| Processor boost clock speed (OC mode) | 2595 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 12 GB |
| Graphics card memory type | GDDR6X |
| Memory bus | 192 bit |
| Memory bandwidth (max) | 21 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1a |
| DisplayPort version | 1.4a |
Performance
| Specification | Value |
|---|---|
| OpenGL version | 4.6 |
| HDCP | Yes |
| HDCP version | 2.3 |
| Dual Link DVI | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |

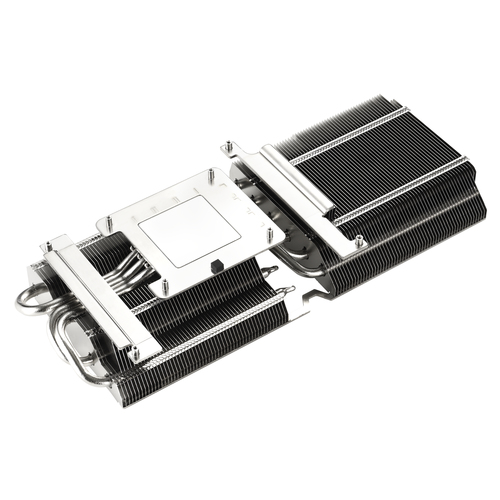

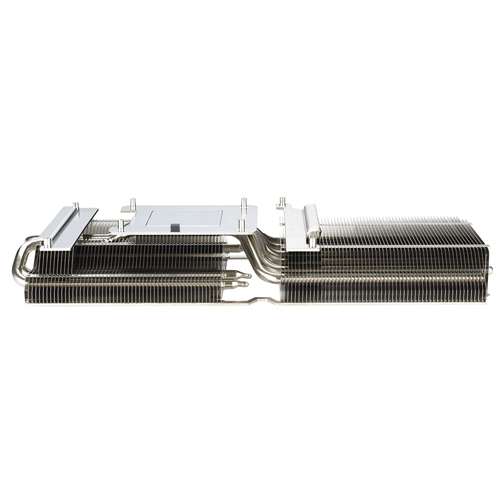

| Cooling technology | ASUS Axial-tech |
| Number of fans | 3 fan(s) |
| Number of slots | 3.15 |
| Product colour | Multicolour |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Supplementary power connectors | 1x 16-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 301 mm |
| Depth | 63 mm |
| Height | 139 mm |
