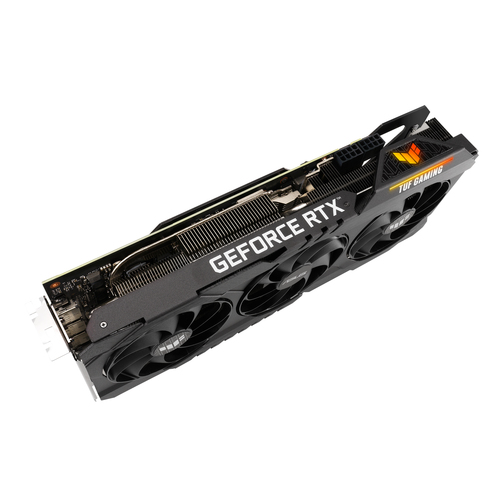

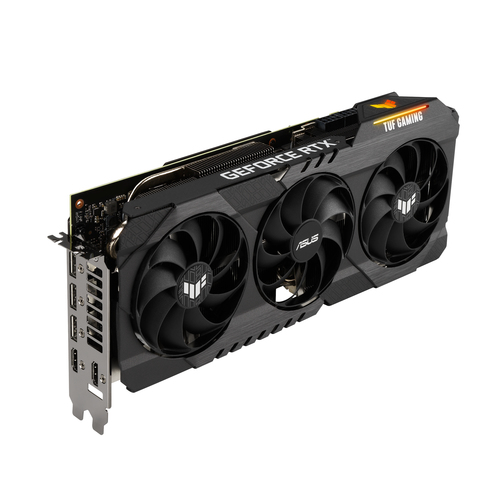

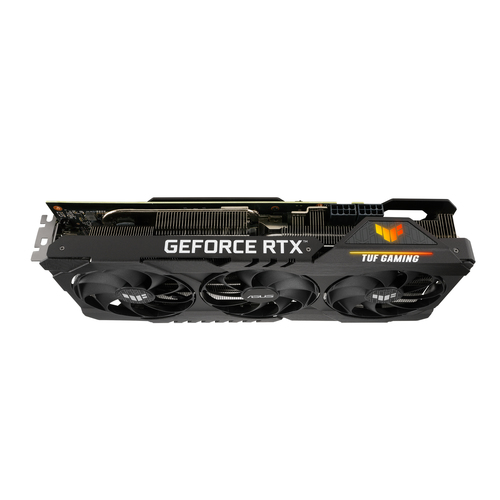

TUF Gaming TUF-RTX3080TI-O12G-GAMING NVIDIA GeForce RTX 3080 Ti
12 GB GDDR6X
Model TUF-RTX3080TI-O12G-GAMINGPart no. 90YV0GU1-M0NA00EAN 4711081169802
38 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- ColourBlack
- Graphics processor familyNVIDIA
- Discrete graphics card memory12 GB
- Interface typePCI Express 4.0
- PhysXNo
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Colour
- Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 12 GB
- Interface type
- PCI Express 4.0
- PhysX
- No
- Brand
- ASUS
- Category
- GPU
- Model
- TUF-RTX3080TI-O12G-GAMING
- Part numbers
- 90YV0GU1-M0NA00, 90YV0GU1-M0NM00
- EAN / UPC
- 4711081169802, 195553169813, 4711081169789, 4711081169819
- Also known as
- ASUS TUF Gaming TUF-RTX3080TI-O12G-GAMING NVIDIA GeForce RTX 3080 Ti 12 GB GDDR6X
Specifications
38 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 3080 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| Processor frequency | 1755 MHz |
| Processor boost clock speed | 1785 MHz |
| Processor frequency (OC mode) | 1785 MHz |
| FireStream | No |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 12 GB |
| Graphics card memory type | GDDR6X |
| Memory bus | 384 bit |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4a |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2.7 |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 850 W |
| Supplementary power connectors | 2x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 299.9 mm |
| Depth | 51.7 mm |
| Height | 126.9 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
