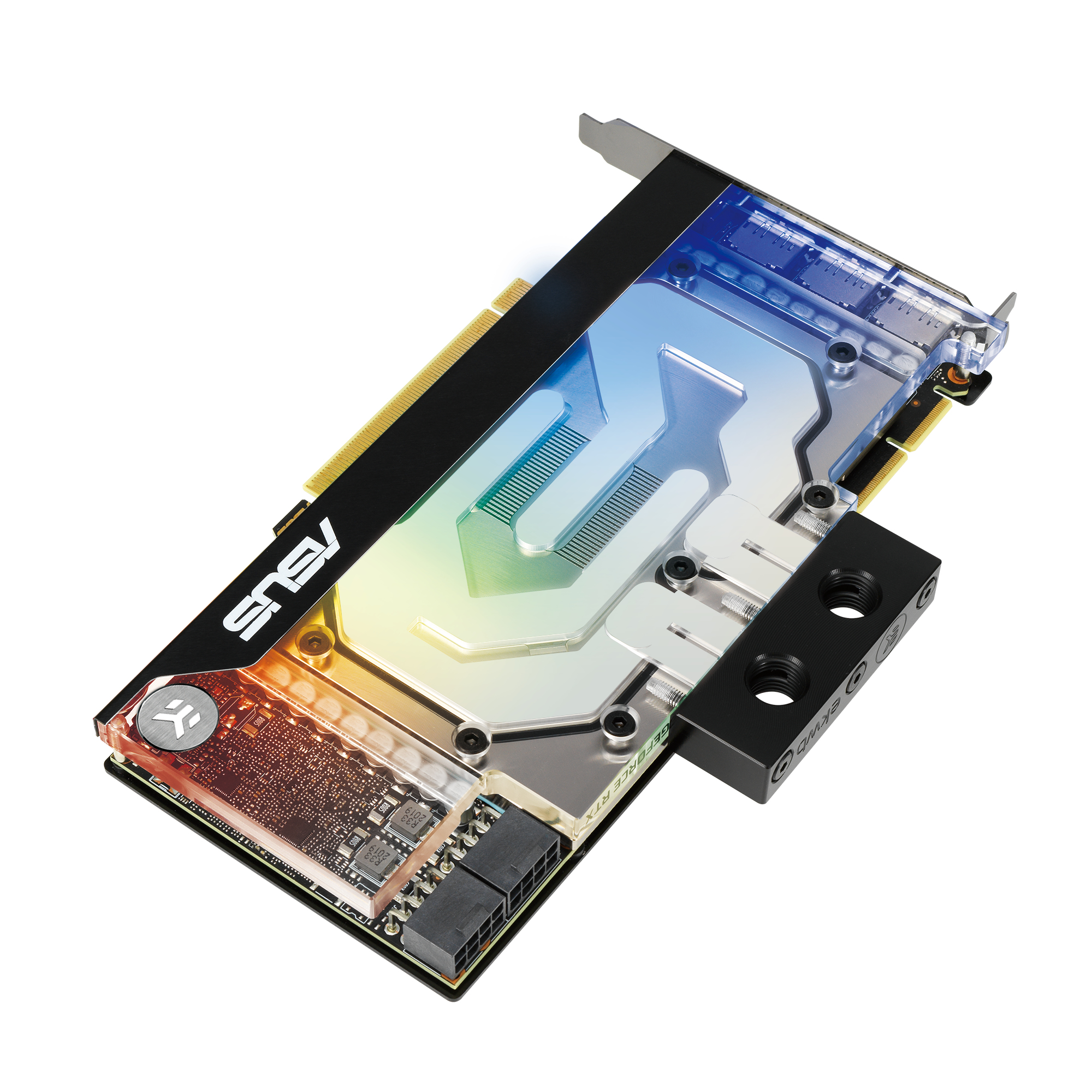

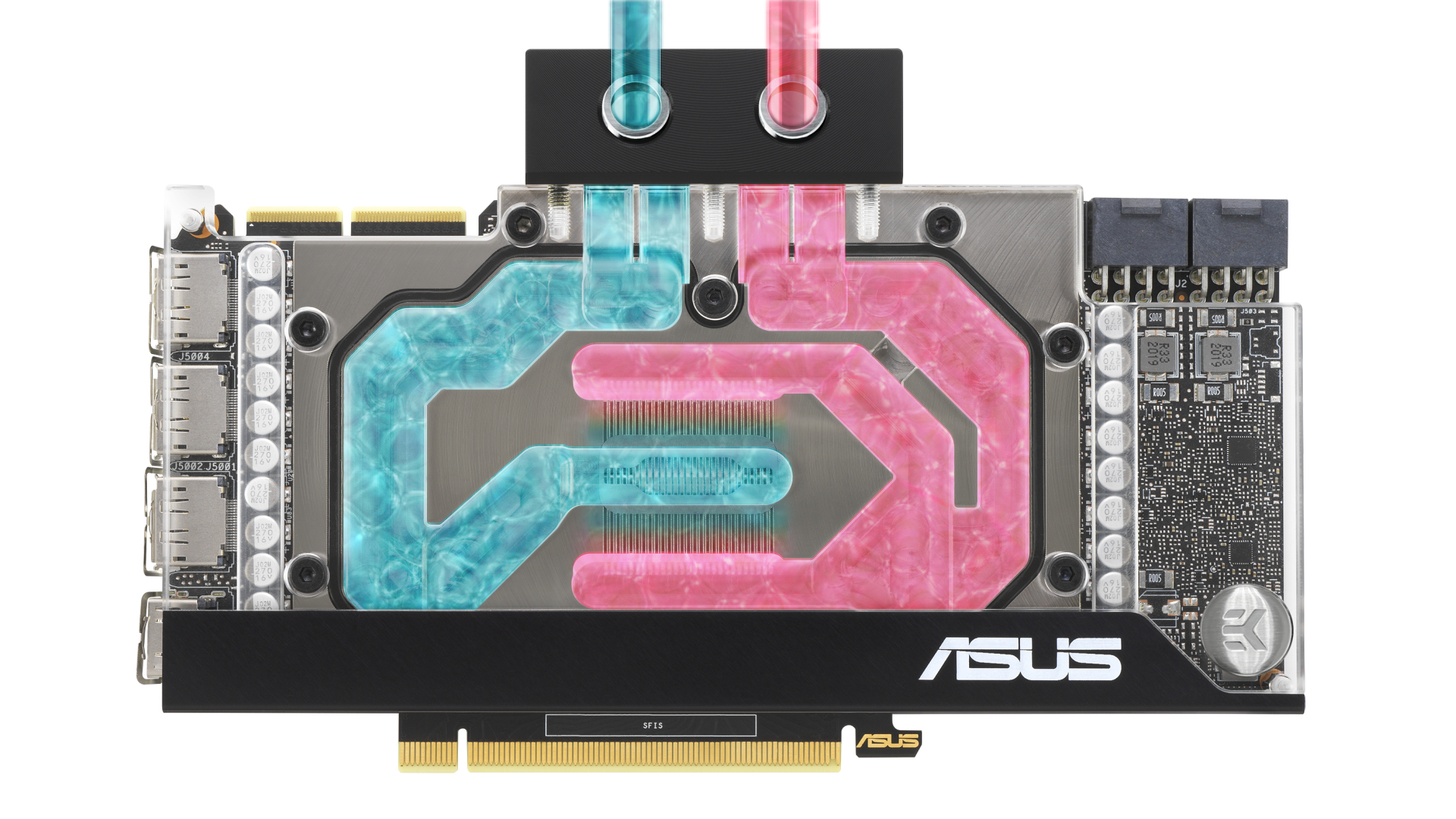

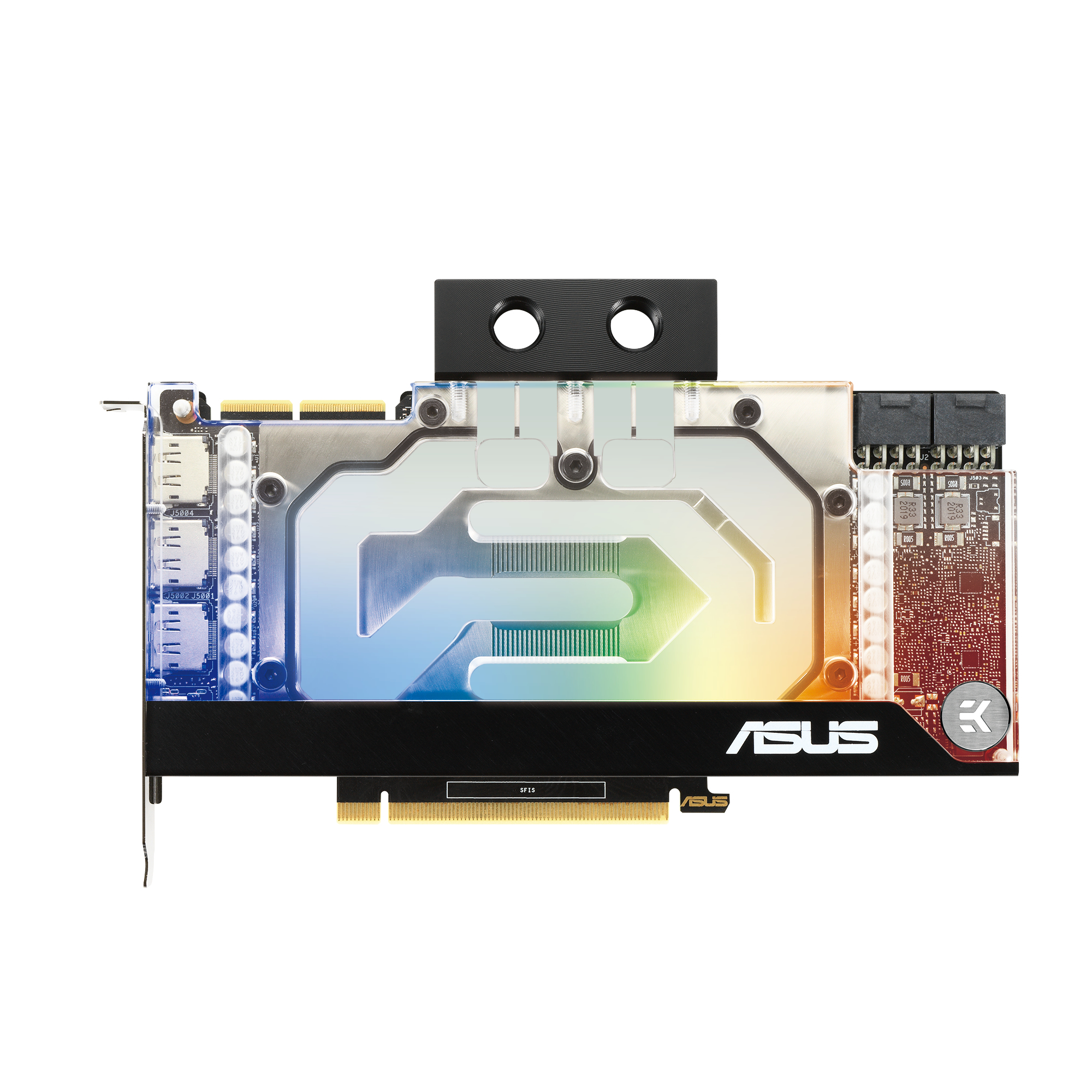

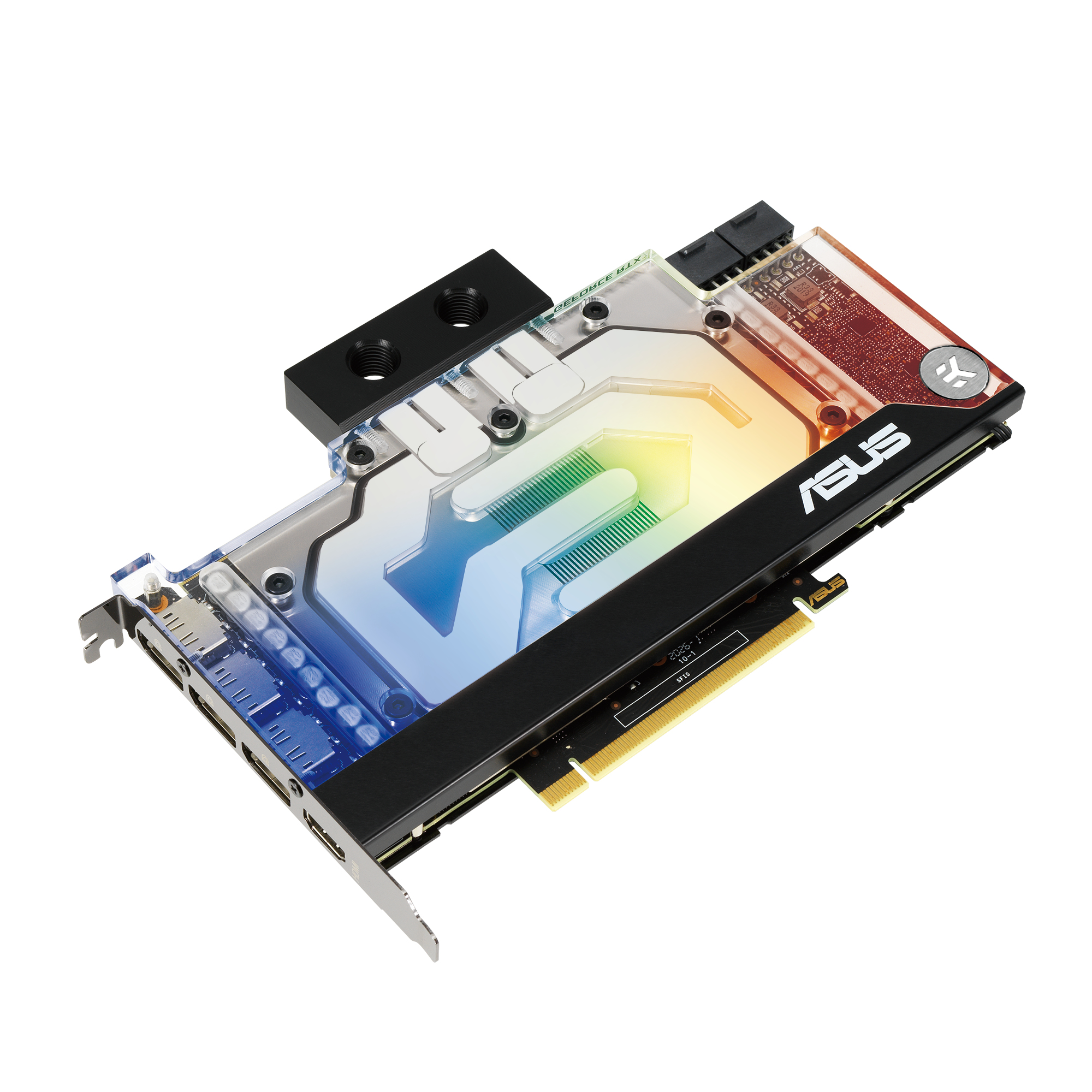

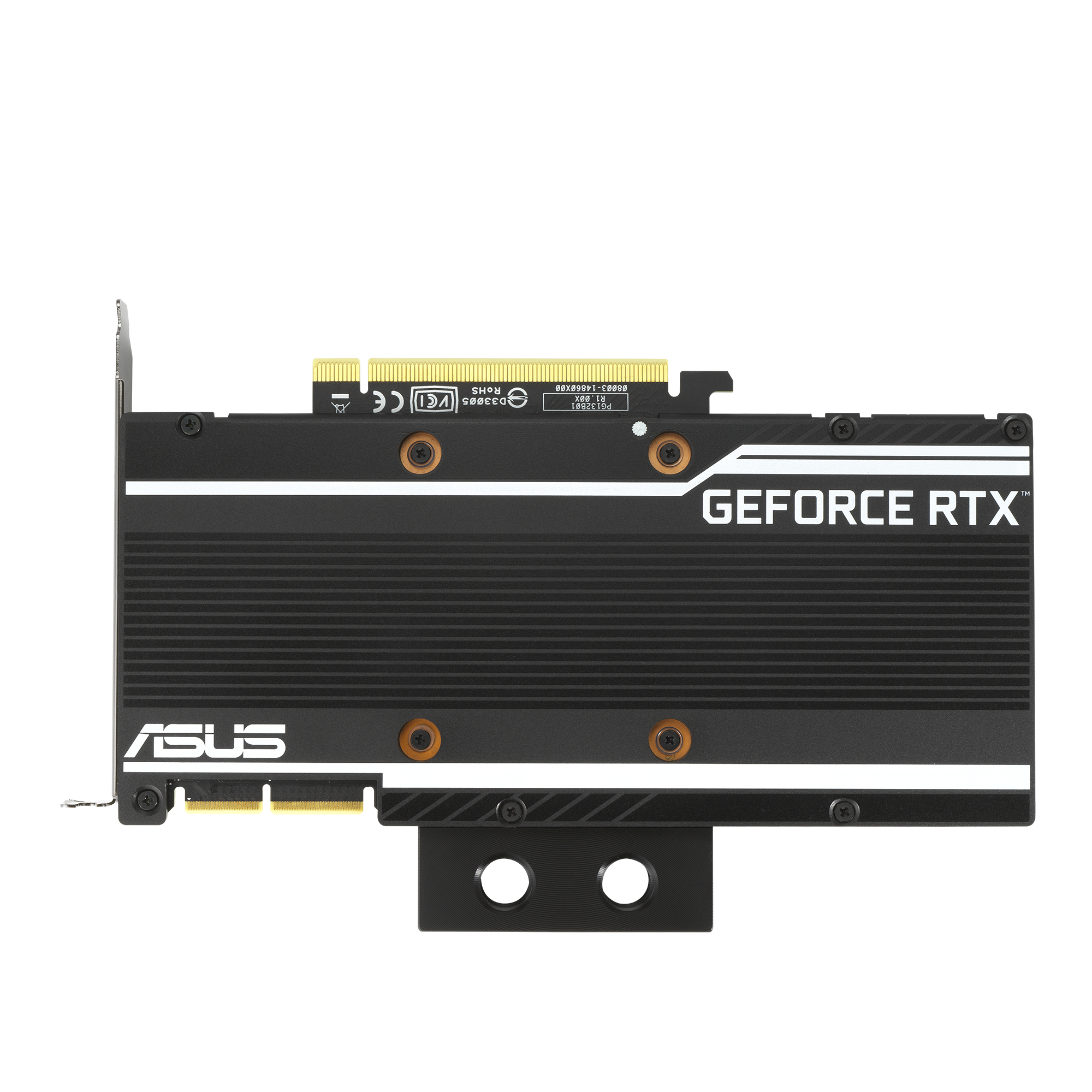

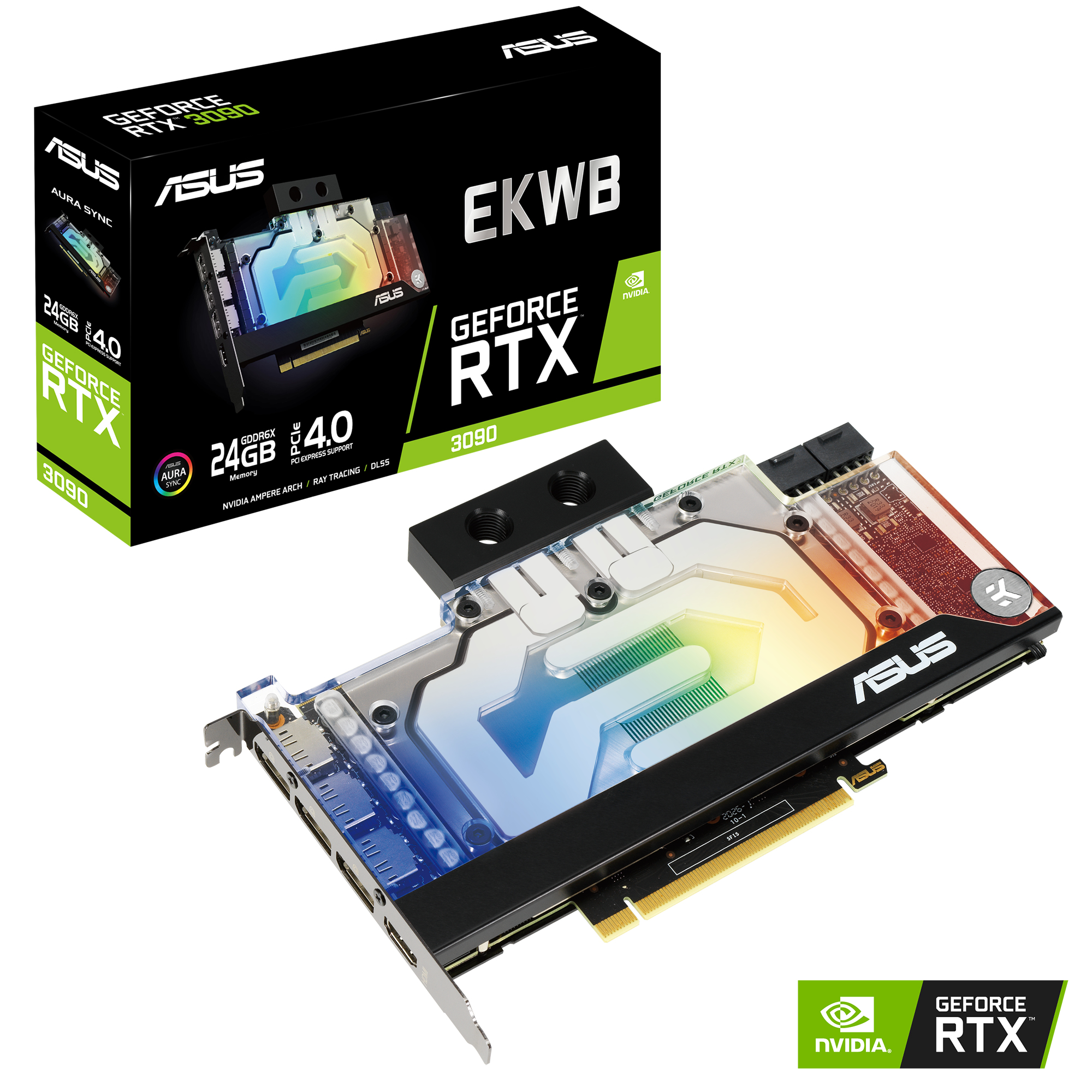

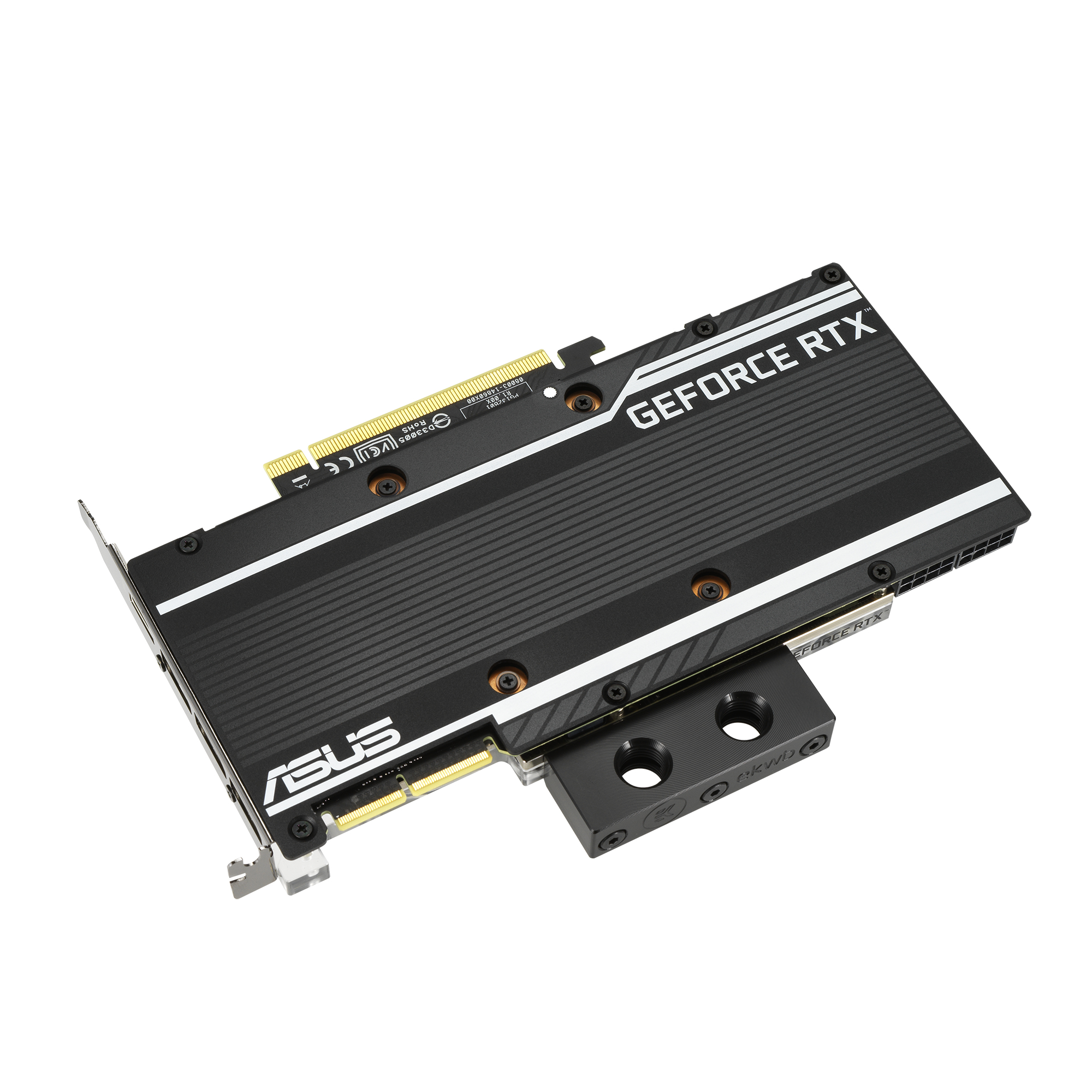

RTX3090-24G-EK NVIDIA GeForce RTX 3090
24 GB GDDR6X
Model RTX3090-24G-EKPart no. 90YV0F80-M0NM00EAN 4718017990844
33 specifications Checked today
- Graphics processor familyNVIDIA
- Discrete graphics card memory24 GB
- Interface typePCI Express 4.0
- PhysXNo
- Cooling typeliquid
- Power consumption (typical)750 W
Overview
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 24 GB
- Interface type
- PCI Express 4.0
- PhysX
- No
- Cooling type
- liquid
- Power consumption (typical)
- 750 W
- Brand
- ASUS
- Category
- GPU
- Model
- RTX3090-24G-EK
- Part number
- 90YV0F80-M0NM00
- EAN / UPC
- 4718017990844
- Also known as
- ASUS RTX3090-24G-EK NVIDIA GeForce RTX 3090 24 GB GDDR6X
Specifications
33 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 3090 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 10496 |
| Processor frequency | 1695 MHz |
| Processor frequency (OC mode) | 1725 MHz |
| Parallel processing technology support | Crossfire, NVLink |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 24 GB |
| Graphics card memory type | GDDR6X |
| Memory bus | 384 bit |
| Data transfer rate | 19.5 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4a |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| Shader model version | No |
| OpenGL version | No |
| HDCP | Yes |
| Dual Link DVI | No |
Design
| Specification | Value |
|---|---|
| Cooling type | liquid |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 750 W |
| Supplementary power connectors | 2x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 216 mm |
| Depth | 19.8 mm |
| Height | 136.2 mm |
