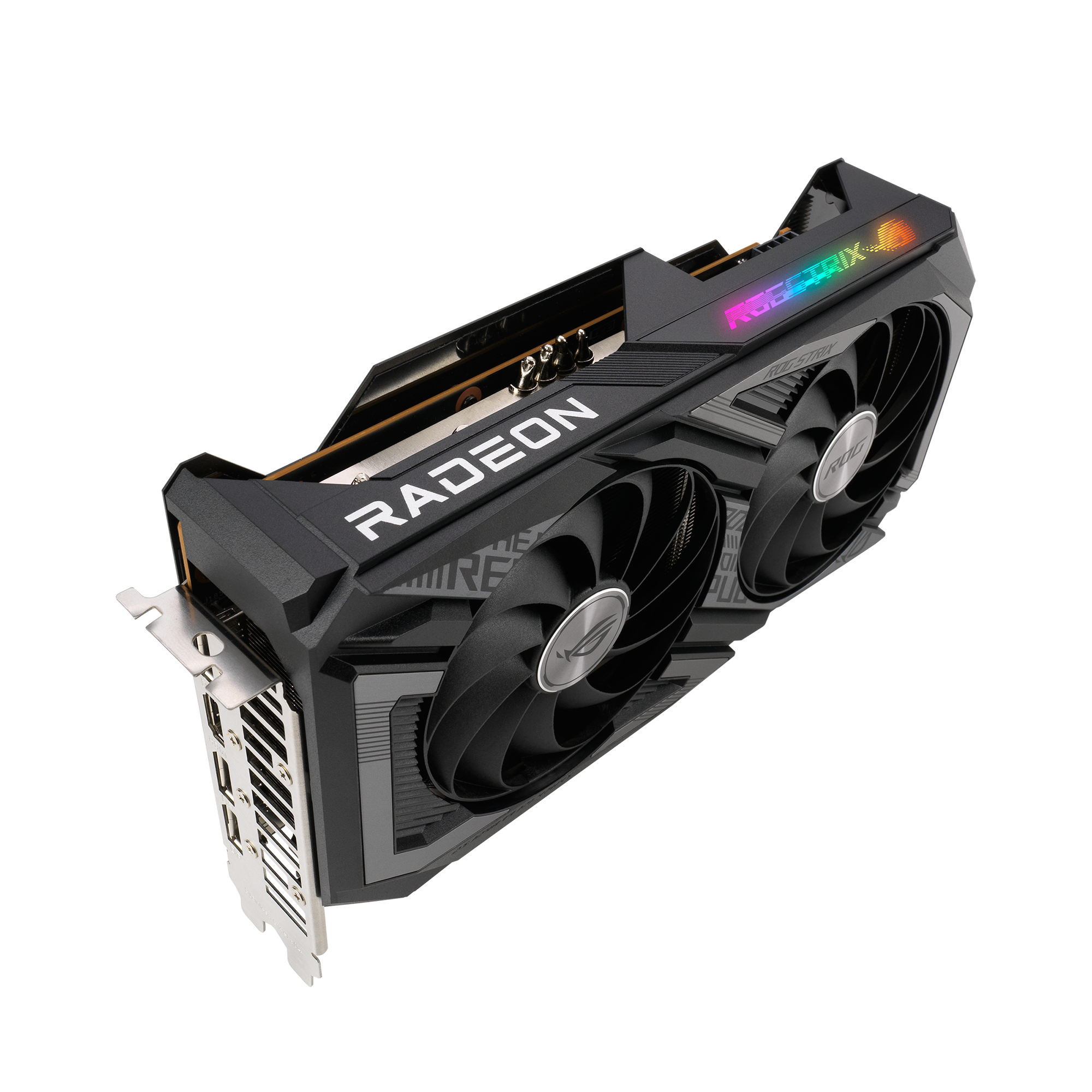

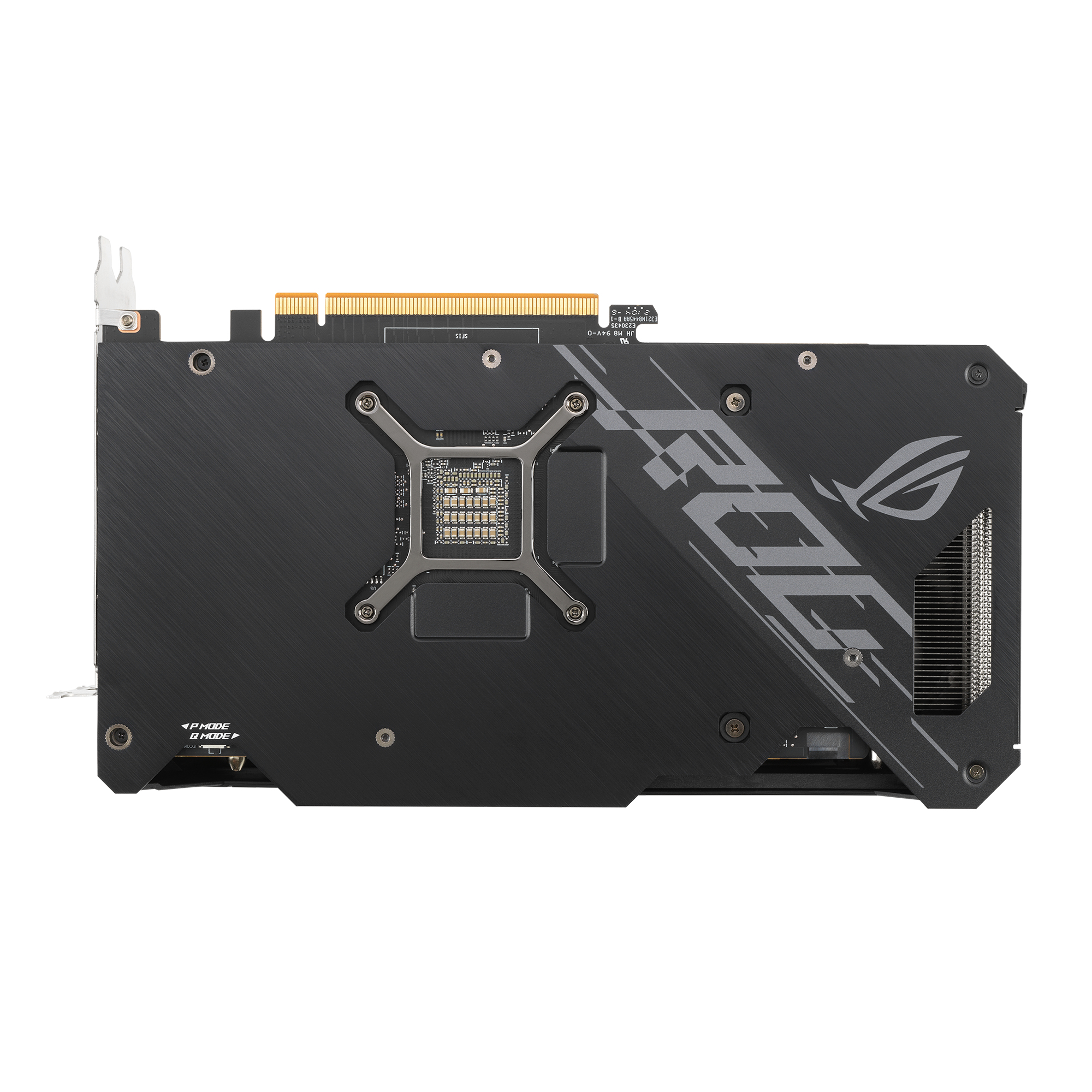

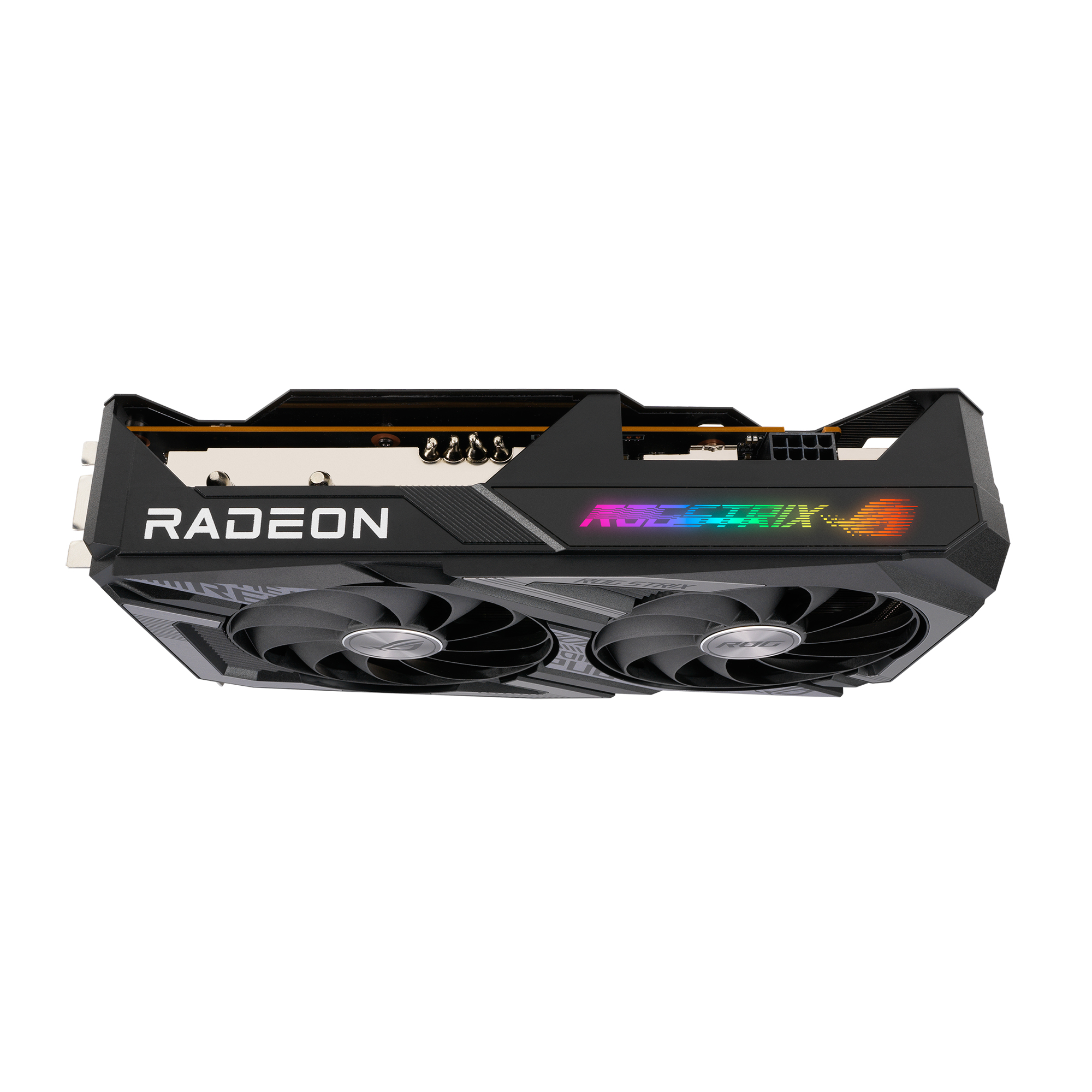

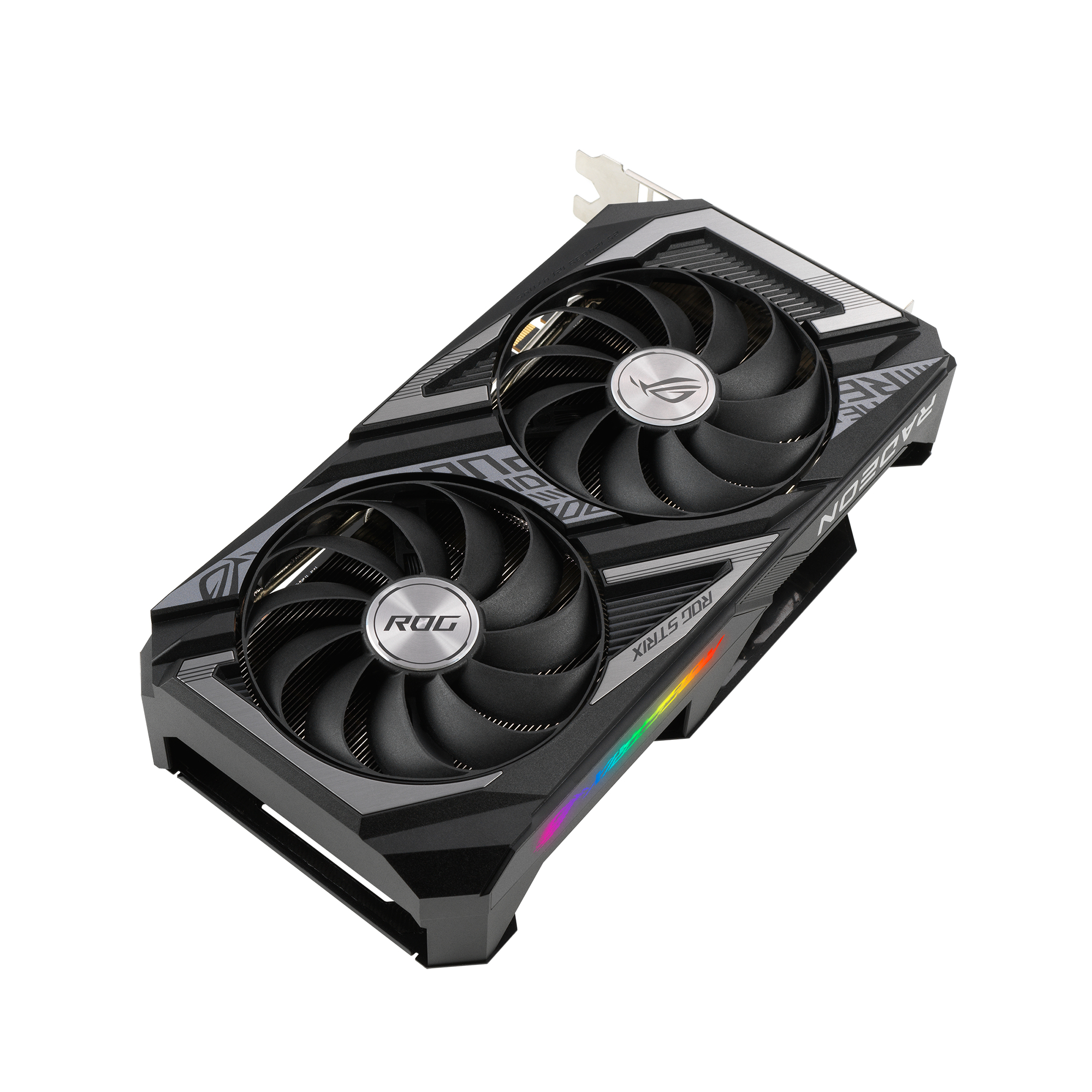

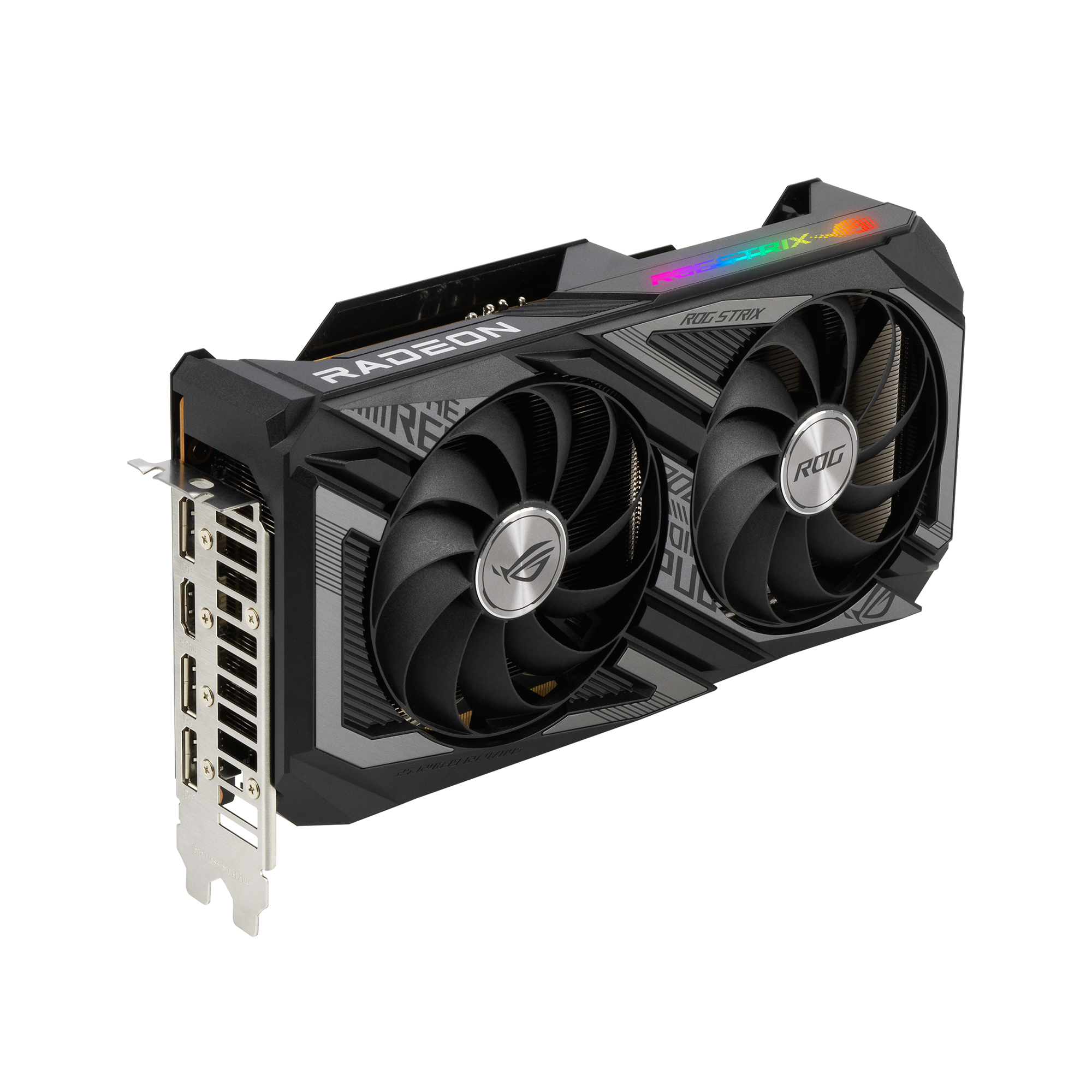

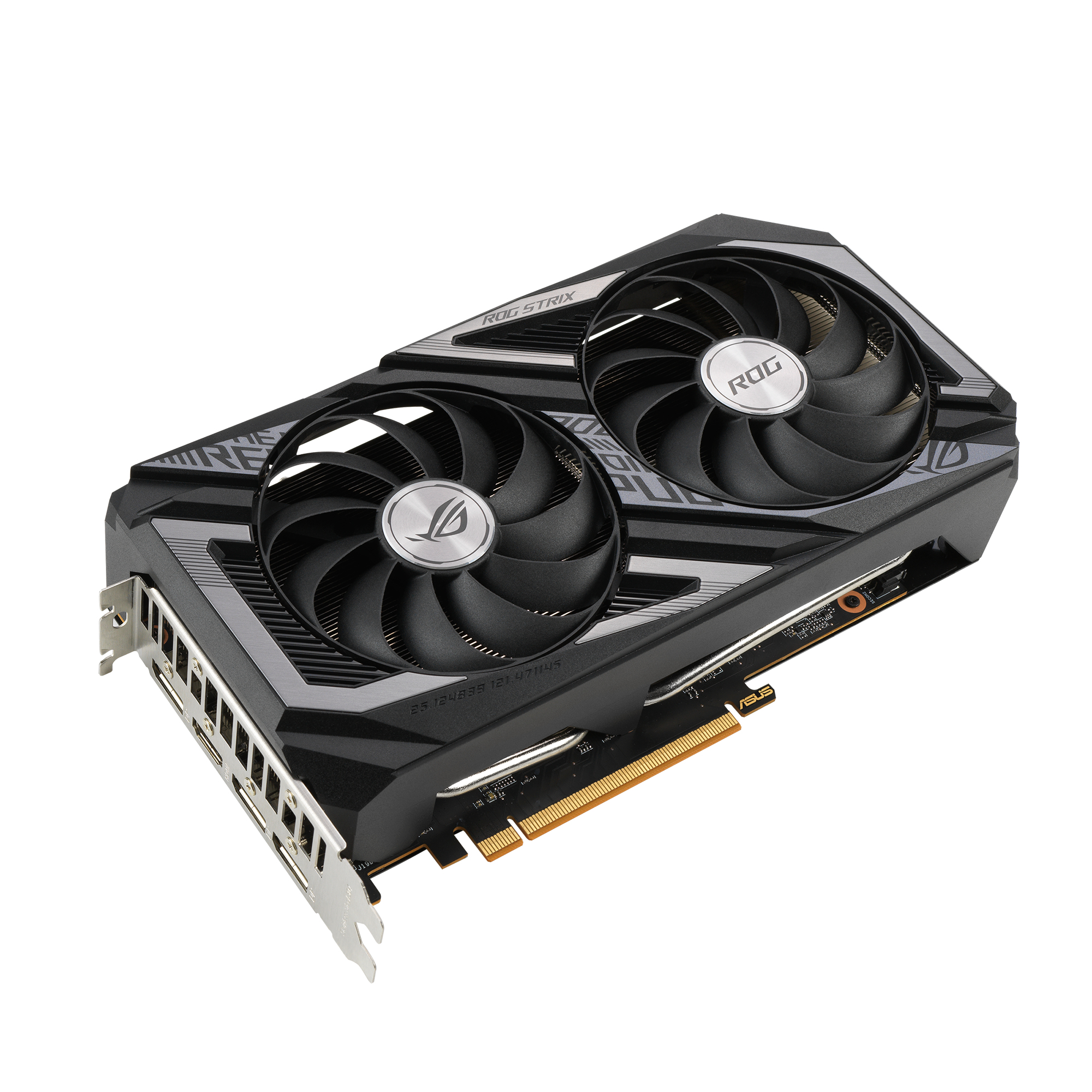

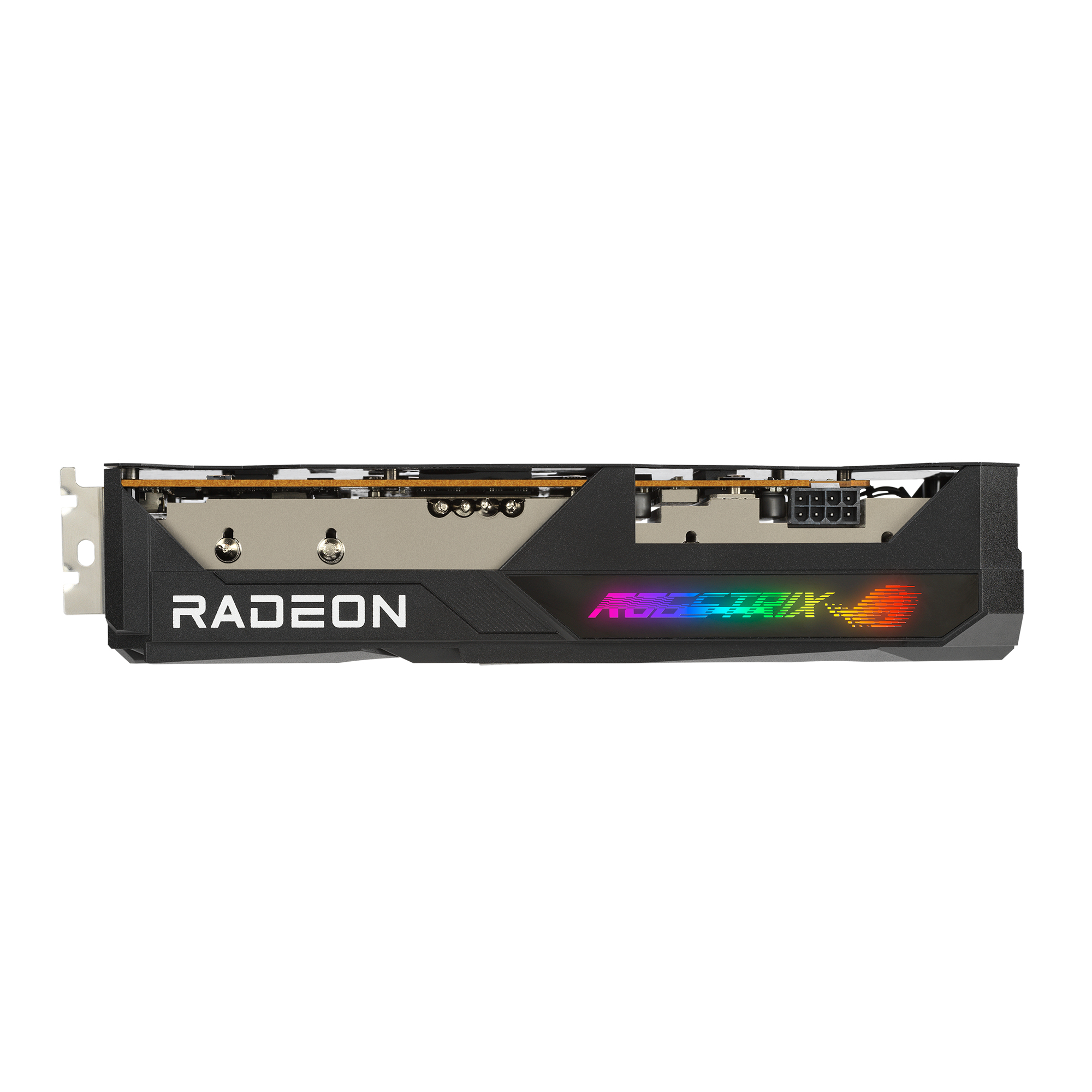

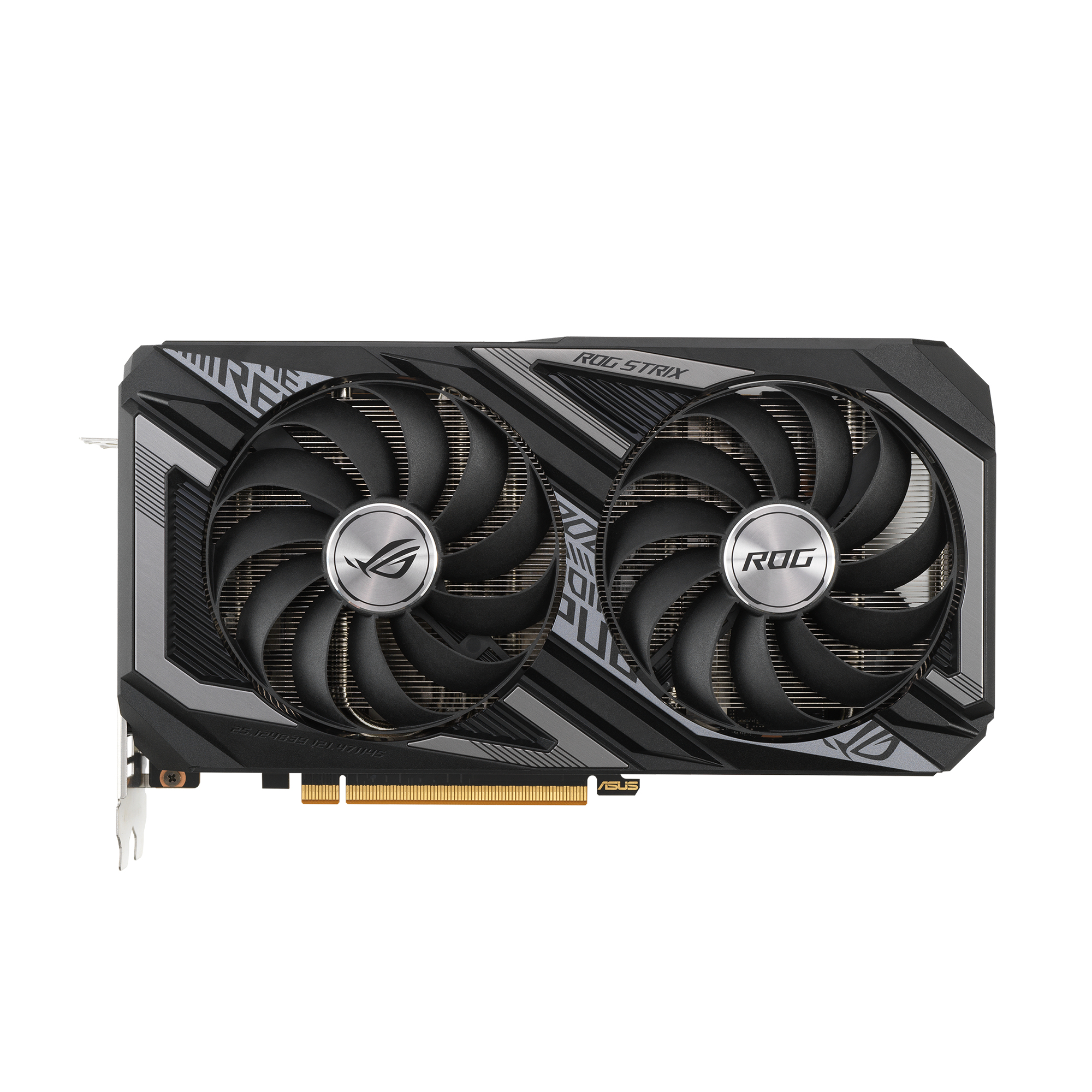

ROG -STRIX-RX6600XT-O8G-GAMING AMD Radeon RX 6600 XT
8 GB GDDR6
Model ROG-STRIX-RX6600XT-O8G-GAMINGPart no. 90YV0GN0-M0NA00EAN 195553332781
51 specifications Checked today
- TypeFull-Height/Half-Length (FH/HL)
- Weight850 g
- ColourBlack, Stainless steel
- Graphics processor familyAMD
- Discrete graphics card memory8 GB
- Interface typePCI Express 4.0
Overview
- Type
- Full-Height/Half-Length (FH/HL)
- Weight
- 850 g
- Colour
- Black, Stainless steel
- Graphics processor family
- AMD
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express 4.0
- Brand
- ASUS
- Category
- GPU
- Model
- ROG-STRIX-RX6600XT-O8G-GAMING
- Part number
- 90YV0GN0-M0NA00
- EAN / UPC
- 195553332781, 4711081332770
- Also known as
- ASUS ROG -STRIX-RX6600XT-O8G-GAMING AMD Radeon RX 6600 XT 8 GB GDDR6
Specifications
51 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 6600 XT |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | No |
| Processor boost clock speed (OC mode) | 2607 MHz |
| Processor boost clock speed (Gaming mode) | 2428 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Crossfire |
| Stream processors | 2048 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Data transfer rate | 16 Gbit/s |

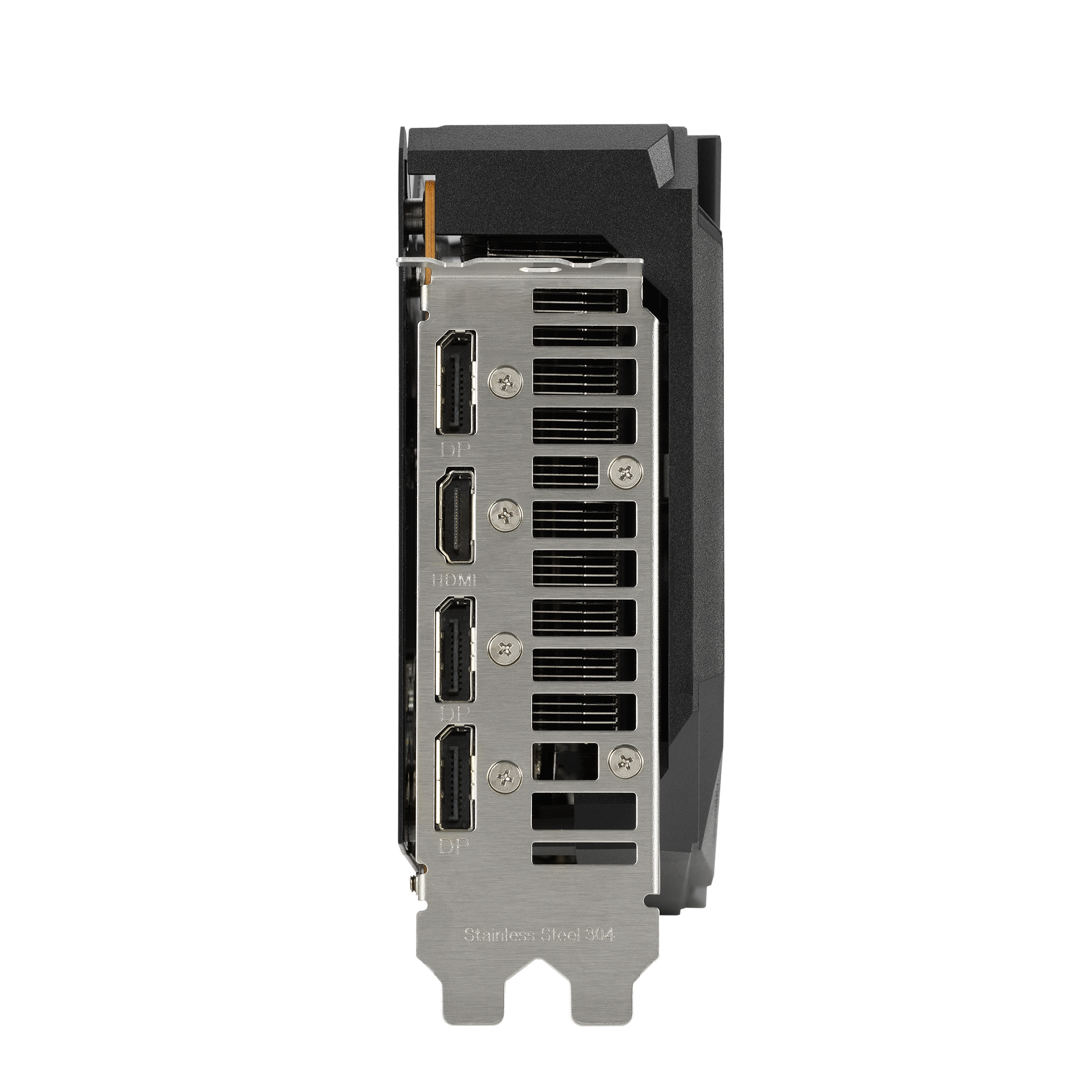

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4a |
| Mini DisplayPorts quantity | 0 |
Performance
| Specification | Value |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
| AMD FreeSync | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | ASUS Axial-tech |
| Number of fans | 2 fan(s) |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of slots | 2.6 |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Black, Stainless steel |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 500 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 850 g |
| Length | 243 mm |
| Depth | 52 mm |
| Height | 134 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 88.5 mm |
| Package depth | 405 mm |
| Package height | 233 mm |
| Package weight | 1.55 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
