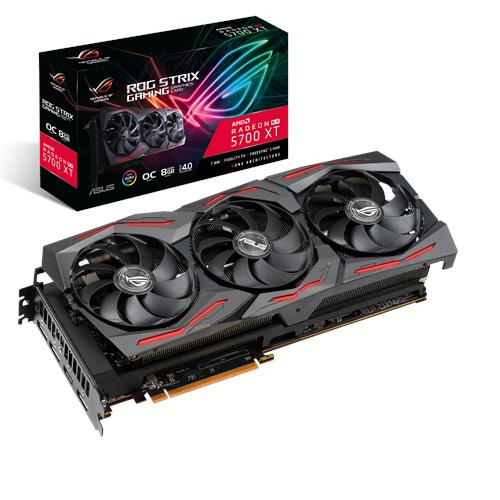

ROG -STRIX-RX5700XT-O8G-GAMING AMD Radeon RX 5700 XT
8 GB GDDR6
Model ROG-STRIX-RX5700XT-O8G-GAMINGPart no. 90YV0D90-M0NA00EAN 4718017450980
39 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- ColourBlack, Red
- Graphics processor familyAMD
- Discrete graphics card memory8 GB
- Interface typePCI Express x16 4.0
- DirectX version12.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Colour
- Black, Red
- Graphics processor family
- AMD
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express x16 4.0
- DirectX version
- 12.0
- Brand
- ASUS
- Category
- GPU
- Model
- ROG-STRIX-RX5700XT-O8G-GAMING
- Part numbers
- 90YV0D90-M0NA00, STRIX-RX5700XT-O8G-GAMING
- EAN / UPC
- 4718017450980
- Also known as
- ASUS ROG -STRIX-RX5700XT-O8G-GAMING AMD Radeon RX 5700 XT 8 GB GDDR6
Specifications
39 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 5700 XT |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | No |
| Processor frequency (OC mode) | 1840 MHz |
| Processor boost clock speed (OC mode) | 2035 MHz |
| Maximum displays per videocard | 6 |
| Parallel processing technology support | Crossfire |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Data transfer rate | 14 Gbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 4.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
| VGA (D-Sub) ports quantity | 0 |
Performance
| Specification | Value |
|---|---|
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| HDCP | Yes |
| AMD FreeSync | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2.7 |
| Product colour | Black, Red |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 600 W |
| Supplementary power connectors | 2x 8-pin |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Length | 305 mm |
| Depth | 54 mm |
| Height | 130 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
| Manual | Yes |
