ROG -STRIX-RX560-4G-V2-GAMING AMD Radeon RX 560
4 GB GDDR5
Model ROG-STRIX-RX560-4G-V2-GAMINGPart no. 90YV0HV0-M0NA00EAN 4711081772293
31 specifications Checked today
- Weight622 g
- Graphics processor familyAMD
- Discrete graphics card memory4 GB
- Interface typePCI Express 3.0
- OpenGL version4.5
- Cooling typeActive
Overview
- Weight
- 622 g
- Graphics processor family
- AMD
- Discrete graphics card memory
- 4 GB
- Interface type
- PCI Express 3.0
- OpenGL version
- 4.5
- Cooling type
- Active
- Brand
- ASUS
- Category
- GPU
- Model
- ROG-STRIX-RX560-4G-V2-GAMING
- Part number
- 90YV0HV0-M0NA00
- EAN / UPC
- 4711081772293
- Also known as
- ASUS ROG -STRIX-RX560-4G-V2-GAMING AMD Radeon RX 560 4 GB GDDR5
Specifications
31 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 560 |
| Maximum resolution | 5120 x 2880 pixels |
| Processor frequency | 1199 MHz |
| Maximum displays per videocard | 2 |
| Parallel processing technology support | Not supported |
| Stream processors | 1024 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 4 GB |
| Graphics card memory type | GDDR5 |
| Memory bus | 128 bit |
| Memory bandwidth (max) | 6.8 GB/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 3.0 |

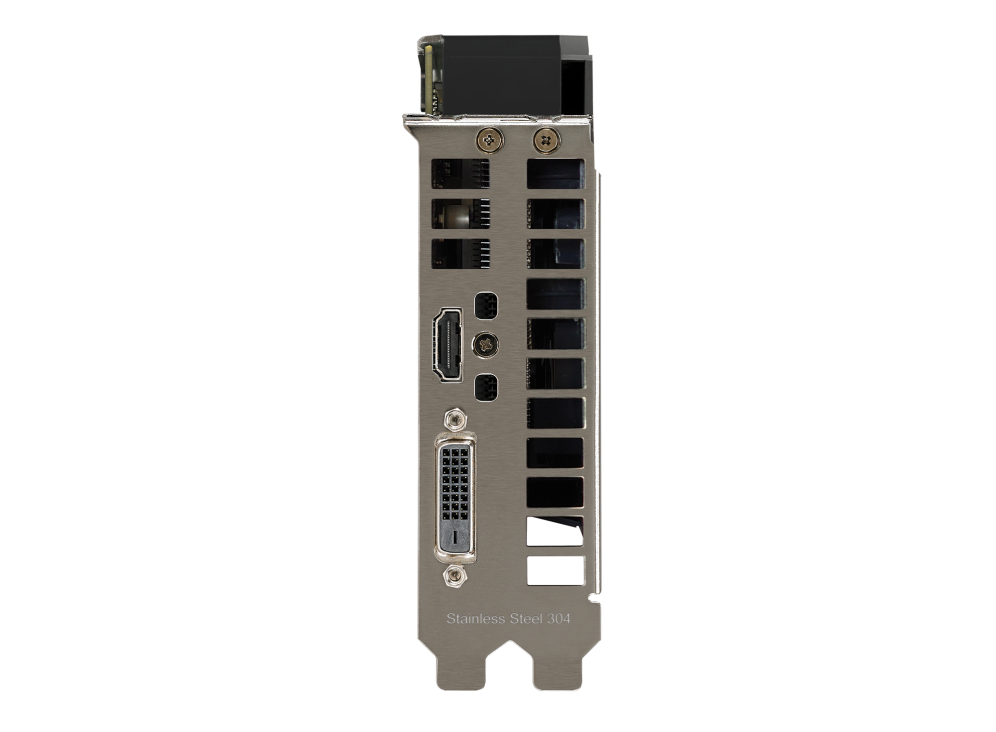

| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| OpenGL version | 4.5 |
| Dual Link DVI | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Number of slots | 2 |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 450 W |
| Supplementary power connectors | 1x 8-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 622 g |
| Length | 242 mm |
| Depth | 42 mm |
| Height | 129 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 364 mm |
| Package depth | 217 mm |
| Package height | 66 mm |
| Package weight | 1.1 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
